Remote Style Pump with Motor 131268401

Very easy
Unhook electricity
Took bottom front cover off
Took plastic motor cover off
Unhooked electrical connections
Moved clams on hoses and took hoses off
Took bolts out that held in pump

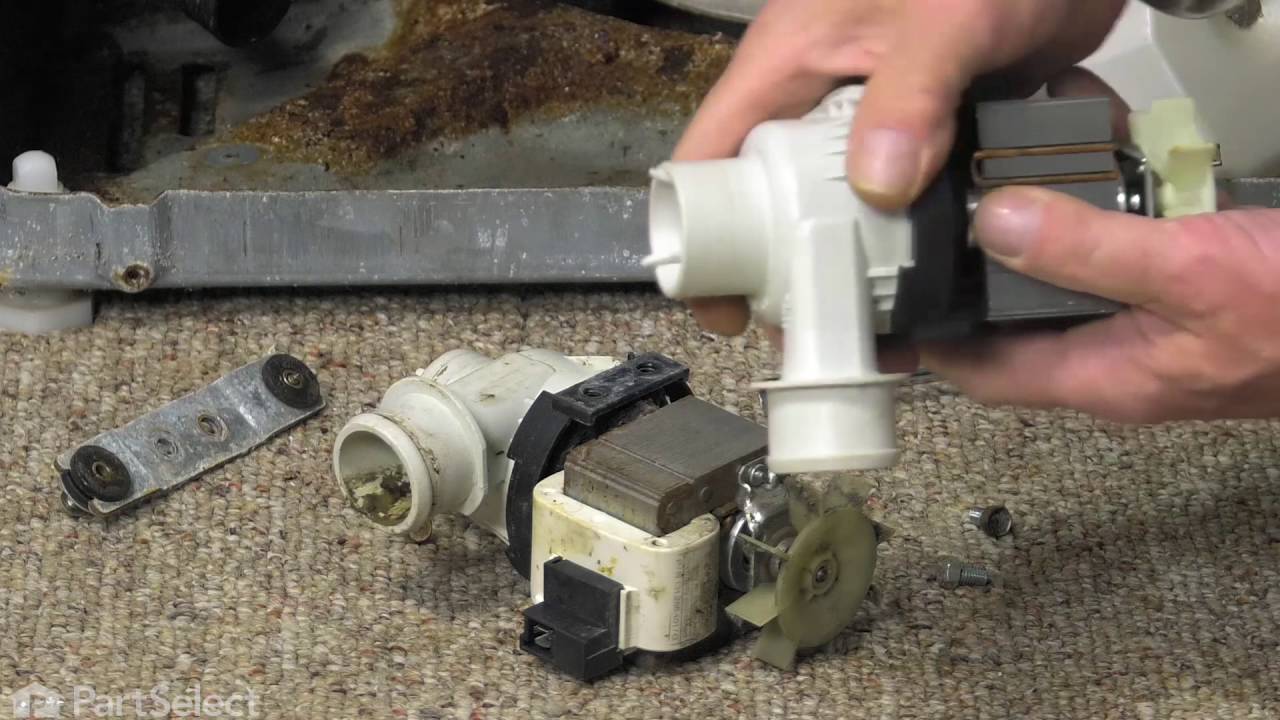

Took bottom bracket off of old pump and put it on new pump
Turned the adjustable hose connection to the right same posstion as old pump
Bolted new pump on
Connected the water hoses
Connected the electrical connections
Bolted plastic motor guard back on
Bolted on front bottom cover
Plugged in and Wallaa!!!
I run one load before installing front cover, to watch for leaks
And the video sent with email was very helpful
Thanks
And have a good day!

Removed old pump and installed new pump in same order. Only problem was reinstalling wire spring clamps with hoses on new pump. Not enough room to use pliers to open clamp. Otherwise a simple installation. A small vise grip pliers might help to hold clamp open. Check and rotate inlet/outlet end of pump as included directions describe first before installation.

part was fast easy to put on know work better then before

I had replaced the pump 5 years earlier and now it was leaking again. When I removed the old pump, I discovered a bobby pin had made its way into the pump and was chewing up the housing, causing a small hole. This was a very simple repair as the pump sits right in the bottom front of the machine. The most difficult part was removing the old hoses and re-attaching them to the new pump. Four bolts/screws and two electrical connectors, which cannot be confused, made this an easy fix.

This is the third time it has been replaced. They last about 2-3 years. Made sure pump was full of water before starting etc so we didn't start with a "dry" pump.

The actual repair and parts ordering went just fine.

Scotty

Replacing the pump assembly only involved:
1. Unplugging the washing machine!
2. Removing 2 screws to take off the washing machine's lower front panel.
3. Removing 2 bolts to take off the cover over the remote pump assembly.
4. Changing out the pumps required:
A. Unscrewing the 2 screws that secure the assembly harness to the washing machine's base.
B. Unclasping the 2 tubes using curved jaw pliers.
C. Disconnecting the electrical connectors by hand.
D. Removing 2 bolts from the assembly harness and the pump assembly.
5. Reverse steps 1 - 4 to install the new pump.

Fairly easy repair to replace the discharge pump assembly. Remove the access door, pump shield, disconnected the hoses, remove the hoses, and the pump housing screws. Orientation of the water pump had to be changed to match original, easily done by rotating the pump hosing. Installed in reverse order and job was complete

Remove old pump, only a scrwedriver needed.
Save myself @ $100

Pump replacement quite simple - most difficult part of job was figuring out how to disassemble outer washing machine panels. Pump required disconnecting 2 hoses and an electrical connection.

Loosened top of washer from spring tabs and leaned it against wall, removed two phillip head screws from the front bottom panel, removed panel. Removed spring clamps from 2 hoses( make sure water is drained from tub before doing this!!) on pump, removed 2 wire connectors. Used nutdriver to remove 2 screws that held down pump. Replaced pump and everything else installs in reverse. Almost forgot, the plate that holds the pump to the bottom of the washing machine has to be removed from the old pump and attached to the new one.
