Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
OEM from PartSelect
Genuine brand name
Guaranteed to fit
Superior quality and durability
1 year warranty
Generic
Unknown manufacturer
No fit guarantee
Inconsistent quality and lifespan
Limited warranty and support
Troubleshooting
This part works with the following products:
Refrigerator
Customer Repair Stories
Average Repair Rating: 3.3 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Main refrigerator was not cooling down adequately.
I looked up a YouTube video and it gave pretty well laid out instructions on how to replace the Twin fan assembly in the main compartment. There was also a suspicion that the sensor wasn't working properly and the fan had ice on it. Once I removed the main housing at the back of the inside of refrigerator it was relatively easy
... Read moreto replace the fan motor, and sensor. You have to follow the disassemble procedure closely in getting the main housing out. You have to remove the clear plate covering the water filter. Then remove the bottom shelf, which then gives you access to the large white back panel. After that its easy to replace the motor and sensor.
Ask our experts a question about this part and we'll get back to you as soon as possible!
1 question answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Larry
October 24, 2019

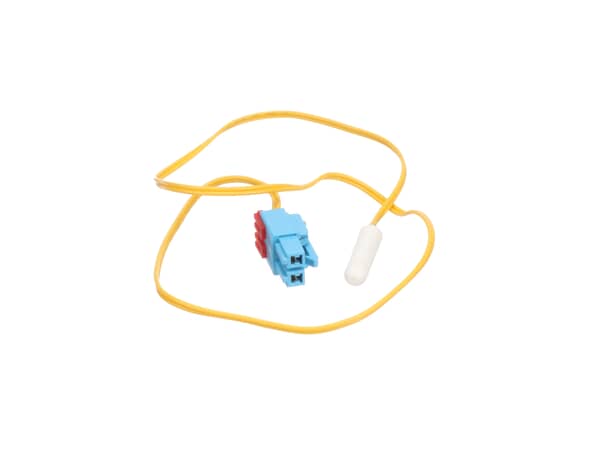

My fridge has a dual cooling unit. The left side is freezing up and it won’t hold True temperature. I had it looked at and was told it needs a temperature sensor and a fan. Can you recommend if this is accurate and if so what the part numbers are.
For model number RF28HMEDBSR
Hi Larry, thank you for your question. When you are having temperature problems in your fridge, there are a few parts that could cause the issue. You can use a multi meter to test most of the parts. Make sure you cut power to your appliance before doing any repairs or tests. First you should test your defrost thermostat. Place the thermostat in ice cold water for 2-3 minutes after removing it from your appliance. It should be reading 0 ohms to be working correctly. Another part to check would be your defrost heater. Remove it from the appliance. It should be reading anywhere between 0 - 50 ohms to be working. You could check your temperature sensor. To find the correct reading for this part you will have to refer to your tech sheet that comes with your appliance. You can usually find this tech sheet behind the bottom grille of your fridge on either the right or left side. These are the most common parts that cause this issue in your appliance. So it is suggested you check them first. I have linked the fan that you asked for below as well, this sensor you have questioned on is the sensor you referred to. I hope that helps. Good luck with your repair.
