The drum belt attaches to the motor pulley and causes the drum to spin as the motor is rotating. The drum belt is made of black rubber. This is an easy repair and should only take a few minutes. This goes between the drive motor and the dryer drum. The belt may have broken, which will cause the drum to not turn properly. You will need to pull your dryer away from the wall and use your Phillips screwdriver to remove the screws on the back. This is an OEM product, shipped directly from the manufacturer.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Noisy
This part works with the following products:
Dryer.
This part works with the following products:
Samsung, Kenmore.
Part# 6602-001655 replaces these:
AP4373659, 6602-001314, 6602-001655
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
11 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
James
January 30, 2018
I can't get tension on the belt. I have a new tensioner and belt
Hi James,
Thank you for your question. You may not be installing the part correctly. The belt is usually installed around the drum first, then you would pinch your belt together near the bottom, lift your idler pulley up and place the ribbed part of the belt around the motor pulley. Then you press your idler pulley down on to the belt to get your tension. I hope that helps. Good luck with your repair.
6 people found this helpful.
Was this helpful?
Thank you for voting!
Rubie
April 12, 2018
My dryer is making a loud squealing noise. Is there a problem with the drive belt? If not, what could it be?
For model number DV42H5000EW
Hi Rubie,
Thank you for your question. It could be the drive belt. I would also suggest taking a look at your rollers and your bearing as well. It sounds like something has just worn down in your appliance and needs to be replaced out. I hope that helps. Good luck with your repair.
4 people found this helpful.
Was this helpful?
Thank you for voting!
Rebecca
February 26, 2019
Will turn on but wont start
For model number Dv328aew xaa
Hi Rebecca,
Thank you for your question. If the dryer will not start, there are some parts that you will need to check to see which ones are causing the issue. You will need to check the dryer door switch, the push-to start switch, the thermal fuse, the electronic control board, the motor and the belt. I hope this helps. Thank you and have a great day!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Stuart
August 21, 2019
Hello! I have ordered 2 different belts from amazon that `'supposidly` works with my dryer.. both of them are way to short.. you simply cannot get them over the pulley and the idler has zero slack.. they are too short.. how can i be guaranteed this thing i buy from you is going to fit??
For model number DV219AEW/XAA
Hello Stuart and thanks for writing.
Yes. Part Number: 6602-001655 is in the list of compatible items for your model. Hope this helps . Please contact us anytime.
This Dryer Belt measures 92 inches in total length, has 5 ribs and 4 grooves, and is 5/16" wide. Hope this help. Please contact us anytime.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Carolyn
December 13, 2018
How do I get to the drum rollers
For model number DV400GWHDWR/AA
Hello Carolyn, Thank you for the question. Here is a link to a how to video on installing the roller. The appliance may not be %100 the same but will have the same basic steps. Hope this helps!
https://www.youtube.com/watch?v=4QIHirXRzpA&t=345s
1 person found this helpful.
Was this helpful?
Thank you for voting!
Carol Aytes
January 16, 2019
I hear a pop and the dryer quit turning. Could this be the belt? It turns on and when you press the start button i hear a click.
For model number DV50K8600EV/A3
Hello Carol, thank you for your question. Yes, if you heard a pop and the drum stopped turning but the motor will run when you press start the belt has broken. The belt part number is PartSelect Number PS4133825. Good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Scott
December 27, 2019
How do you change the belt?
For model number 402.89032012
Hello Scott, Thank you for the question. The belt is usually installed around the drum first, then you would pinch your belt together near the bottom, lift your idler pulley up and place the ribbed part of the belt around the motor pulley. Then you press your idler pulley down on to the belt to get your tension. I hope that helps. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Daphne
February 28, 2020
Hi.The tension clip had fallen off, and the spring undone. i fixed those, and put the belt on the drum first as you described. then put the belt on the tension ring, and the motor ring. the belt is still too lose. could the belt be stretched out? or is there a third place to hook the belt that i'm not seeing?
thanks
For model number DV45H7200EW
Hello Daphne, thank you for your question. It does sound like the belt has stretched. This is a common issue. We would recommend replacing the belt. PartSelect Number: PS4133825. I hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
John
April 10, 2018
How do you get belt around drum
For model number dv419agw/xaa
Hi John, Thank you for the question. You will need to remove the back panel to the appliance to gain access to the drum to slip the belt around the drum assembly. Hope this helps!
Was this helpful?
Thank you for voting!
Patrick
September 4, 2019
Bought belt part number 6602-001655 and the belt is to short. Is there another part number or did I just get a bad belt
For model number DV511AERXAA
Hello Patrick, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number PS4133825. This Dryer Belt should measures 92 inches in total length, has 5 ribs and 4 grooves, and is 5/16" wide. Hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

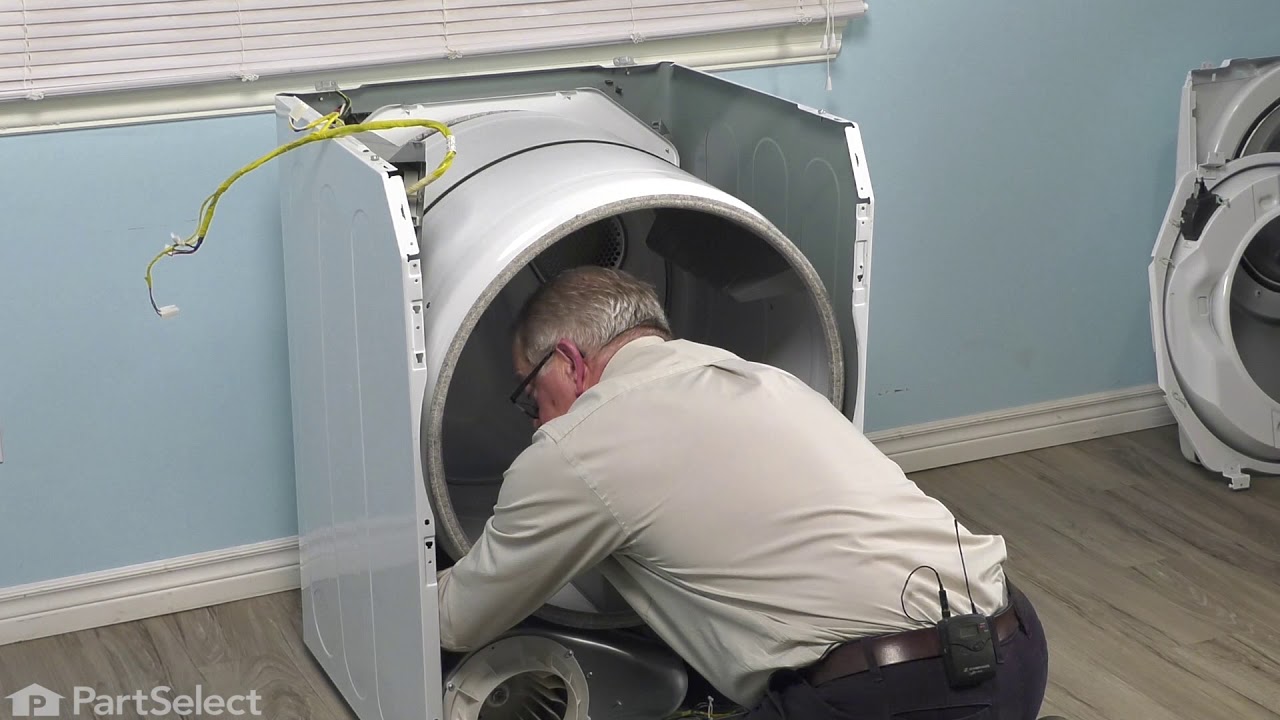

Replacing your Samsung Dryer Drive Belt
Customer Repair Stories
Average Repair Rating: 3.6 / 5.0, 6 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The dryer turned on but the drum did not move when you pressed start even though It started it cycles.
I YouTube it and there’s a step by step process on how to do it, took maybe 30 mins. If I can so can you
Christopher from SUGARLOAF, CA
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
19 of 31 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drum don’t turn
Follow the video instructions.
Orlando from LAWRENCEVILLE, GA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
2 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drum stopped turning.
Followed the video on the website and finished it in a short time. Now it works like a new dryer.
Dequince Atkinson from PLATTSBURG, MO
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drier did not turn it was not the belt
I still had to take it apart there was a small sock stuck in the fan that blowes the lent out my wife left the lent filter out one time. Your video was a great help. I'm a mechanic and it was easy thanks Anthony Ratto Tulipbike82@aol.com
Anthony from FLORAL PARK, NY
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Hooking up belt and pully
Followed video and YouTube most was easy.... put the hooking up the belt took time
After viewing many instructions on how to replace a broken drum drive belt on UTUBE and the video you sent me the project was completed with no problems and with ease.
However, I did discover large amounts of lint caked to the bottom of the lint screen housing just beyond the filter screen. There was minimal lint on the lint exhaust fan blades and no lint in the exhaust ducts.
I didn't recall seeing any video instructions drawing attention to potential lint issues, it just made good sense to clean the entire system while it was apart . At first I saw no major lint problem.
However, after removing the lint screen and placing a vacuum cleaner wand to the bottom of the lint screen housing (the bottom is not easy to see) my vacuum cleaner hose became clogged three times. I realized there was a major lint issue isolated to this area.
Many of the on line complaints focused on parts not properly fitting their dryer. they had to modify the parts in some way to fit or operate or they had to return them for other parts. Just think of the time wasted and the lack of use of their dryer.
I called and talked to a tech. Gave them my model number and the tech located the correct OEM parts for my dryer. I paid the extra money for OEM parts because I wanted my dryer fixed and restored to service in the least amount of time.
Outside the discovery of the not so obvious lint issue, the repair project was easy and the dryer was restored to full service with minimal down time.
Thanks for all your help and fast delivery service.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Mark C - February 28, 2022
Verified Purchase
Straight forward repair@
Perfect fit. Solid construct. Exactly what I needed. Wrap around drum and lift and place in spot on rollers holding top of belt to keep untwisted. Reach in from front to place on tension spring arm wheel.
★★★★★
★★★★★
Abdallah M - October 27, 2021
Verified Purchase
The right choice
The right size, the right thickness, wide, fit perfectly, I compared it to the original used one and it is absolutely identical. I advice whoever not to buy the cheap ones from different site, they are thinner and for sure not a good quality.
★★★★★
★★★★★
Vincent Della F - September 8, 2021
Verified Purchase
Part worked like a charm
The drive belt came a little later than expected, but was easy to install and works well. I had previously purchased an after market belt through a popular retail website, but it was an inch or two shorter than it needed to be and was almost impossible to get over the tension pulley even when the tensioner was pulled all the way back. From now on I will only purchase OEM parts!
★★★★★
★★★★★
Daniel B - May 8, 2021
Verified Purchase
Replaced belt
Had to replace the belt that turns the tub, not very hard to do, just a little time consuming. Very easy to order part and only took two days to get here.
★★★★★
★★★★★
Wayne P - April 21, 2021
Verified Purchase
No one else had this part
Fast service and they had just what I needed when I could not find it anywhere else!
★★★★★
★★★★★
William L - November 29, 2020
Verified Purchase
Easy repair
Received belt for our Samsung dryer. Repaired in 20 minutes. Really appreciated the ‘How to’ video link in the email. Wife is happy!!
★★★★★
★★★★★
Brenda S - August 13, 2020
Verified Purchase
Repaired and working!
Part fit my dryer and was repaired and we back in the clothes drying business.
★★★★★
★★★★★
RATH T - February 11, 2020
Verified Purchase
Exact match...
Took a little longer then I Expected...but overall satisfied...
★★★★★
★★★★★
Tate D - July 3, 2019
Verified Purchase
Easy to install
Rep that helped me in phone was great to work with.
★★★★★
★★★★★
Michelle P - April 15, 2019
Verified Purchase
Samsung Drive Belt Replacement
Purchasing was quick and easy.. The product arrived in good shape and ready to install.
