Soap Cup Latch Kit 676413

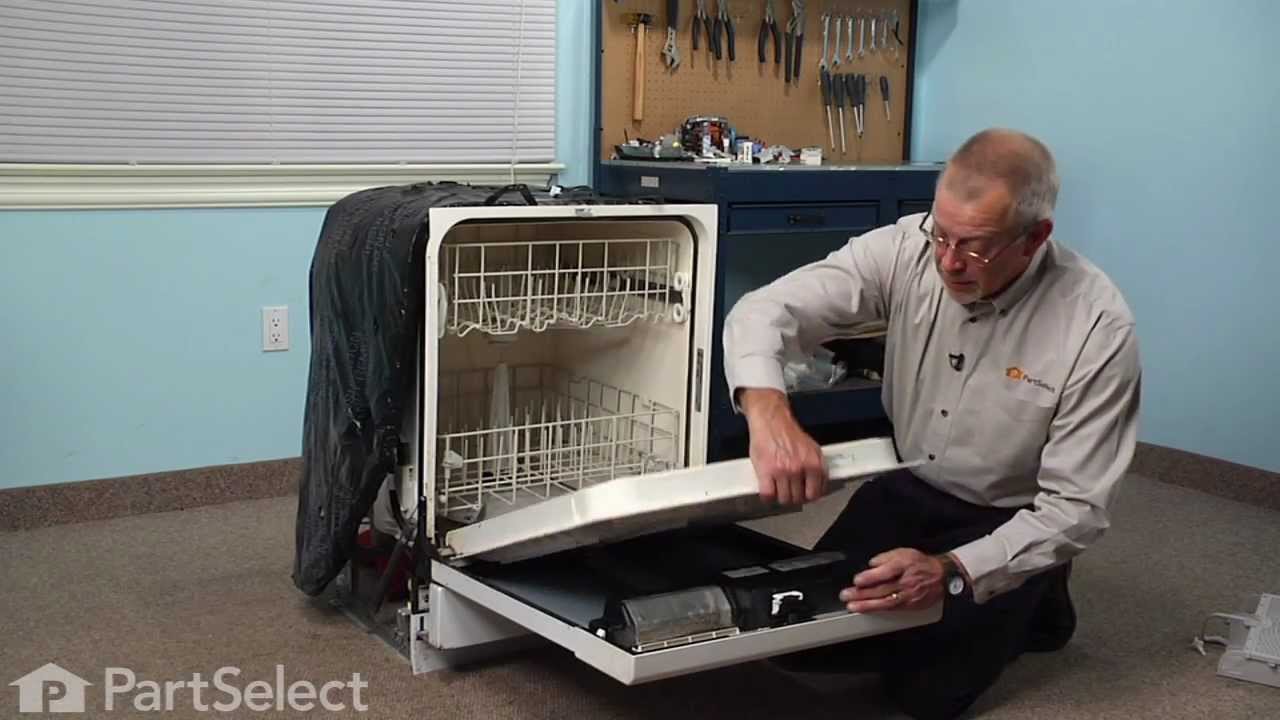

I watched the video link sent in an email and followed exactly what they did in the video. I removed the star head screws holding the door liner in place. Then removed the protective cover on the inside. I disengaged the component holding the latch in place. I replace the component that holds the latch in place and then snapped the new latch in place. I turned the dishwasher dial until the prongs were fully retracted. I replace the protective cover and then put the door cover back in place. I initially only placed the left bottom star head screw until I was sure that the latch was going to release. I tested that it was working properly by slowly turning the dial on the dishwasher control. Once I knew it was working I replaced the rest of the screws.

I removed all the ( what my Husband called star screws ) star screws and removed the housing panel ( holds dish detergent cup and silverware basket ) I discovered everything accross the bottom was all gucked up with detergent soap accumulation. I took the part to the kitchen sink and used the sprayer hose on the part with hot water and it cleaned up beautifully, and the detergent latch then worked ( the spring that operates the latch was all gucked up with detergent accumulation ).
I am the wife and did all of this myself and it only took around 5-10 min. My Husband had to help me figure out the type of screws because they turned out to not be phillip screws, but as Hubby called them.."star screws".
Soooo, I did not need to use the Latch Kit I purchased, so will store it in my parts supply! :)
Happy repairs to you..
Judy Estes Park, CO

Look at the exploded parts diagram, that parts select provides on their website.

You have to take off the nine star pointed screws. So you need a special screwdriver or I had a socket set of them and I used a ratchet to make it easier. I think there are nine of them around the base of the door. Then remove the door and set it on the counter. Flip it over and there is a small plastic cover that has to be removed from the back of it, and it is easily removed by gently pulling on it.

Now comes the difficult part. There is a locking piece on it that holds the latch onto the door by interlocking with a piece on the back side of the door. I took a pair of wire snips and just cut the old interlocking piece off. This way I didn't have to try and slide the two interlocking pieces apart.

When you go to put the new piece on before you interlock them make sure they are put on right. Specifically the latch is pointing the right way to seal the detergent door. Otherwise it can be a pain to separate the interlocking pieces again. (which is why I cut it off the old one).

Then you're done. Just put it all back together.

I removed the screws on the door cover and snapped in the new clip

for the arm I just removed one screw and replaced the arm
