Drain Check Valve with O-Ring

★★★★★
★★★★★
2 Reviews
$38.61   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS382661
Manufacturer Part Number 675238
Manufactured by Whirlpool
Product Description

Drain Check Valve with O-Ring Specifications

This water inlet valve should be located behind the lower kickplate panel in either the right or left corner. The attaching solenoids on the valve open and close according to the desired amount of water needed.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Not draining | Leaking | Not cleaning dishes properly
This part works with the following products:
Dishwasher, Refrigerator.
This part works with the following products:
Whirlpool, Kenmore, KitchenAid, Estate.
Part# 675238 replaces these:
AP2910020, 2844, 300800, 3369482, 3371226, 675238, 719927, 719930, 719950
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

5 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Susan
    November 23, 2017
    Dishwasher not draining. Removed parts down to pump base. Still not draining. Removed external drain hose and ran water through it. No clog there. Is it likely to be the check valve?
    For model number 66515632000
    Hi Susan, Thank you for the question. If the appliance is not draining at all I suggest replacing the Check valve and if this didn't fix the issue,you can test to see if the Pump and Motor is getting 120Vac with a Multi Meter,if so and it is still not draining it will need to be replaced.Hope this helps!

    5 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Roland
    January 10, 2019
    During the wash/rinse/fill cycle, the washing machine makes a really loud bumping noise when it is calling for water.Is that related to the drain check valve and solenoid?
    For model number DU5003XL0
    Hello Roland, Thank you for the question. If it is just during the wash/rinse/fill cycle and not the drain cycle, I suggest testing the fill valve. I looked up the part and it is listed as No Longer Available/Discontinued. There is no part substitutions listed. My suggestion here would be to call the manufacturer and see if they can provide you with a substitution for these part numbers. Hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Marilynn
    September 30, 2019
    The dishwasher doesn’t drain. Took apart drain to clean anything out. The drain pump runs but doesn’t make the hard clunk sound right before it usually does when draining the water away. Would this solve it?
    For model number Tud6710sb0
    Hello Marilynn, thank you for inquiring. Yes, this could be due to a faulty Drain Check Valve with O-Ring. This part number PS382661 is the correct replacement for your model. You may also want to consider the Drain and Wash Impeller Kit, part number PS382822 for your model. Good luck with your repair!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Rhonda
    November 17, 2019
    What in wrong with my Whirlpool dishwasher it isn't washing dishes good and it want drain water
    For model number DU943PWKB0
    Hello Rhonda and thanks for writing. It sounds like you in need of the drain and wash impeller kit. Part Number: PS382822 is in the list of compatible items for your model and should fix both of those issues. We hope this helps. Please contact us anytime.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    Elliott Scocas
    November 14, 2018
    Washer pump seems to empty all of the water from the dish washer, but after 15 minutes or so , there is 1/2 inch of water around the pump. Is the normal or do i need a new ball check valve.If so, can i access it and replace it by removing the lower front panels? thank you for your help.
    For model number 655.15595791
    Hello Elliott, thank you for your question. If there is some standing water in the tub after the unit has finished draining we would recommend replacing the check valve. This part prevents water from coming back into the unit from the drain hose. You should be able to access this part from under the front access panel. It is attached to the drain hose and the pump housing. I hope this helps!

    Was this helpful?
    Thank you for voting!
      Part Videos

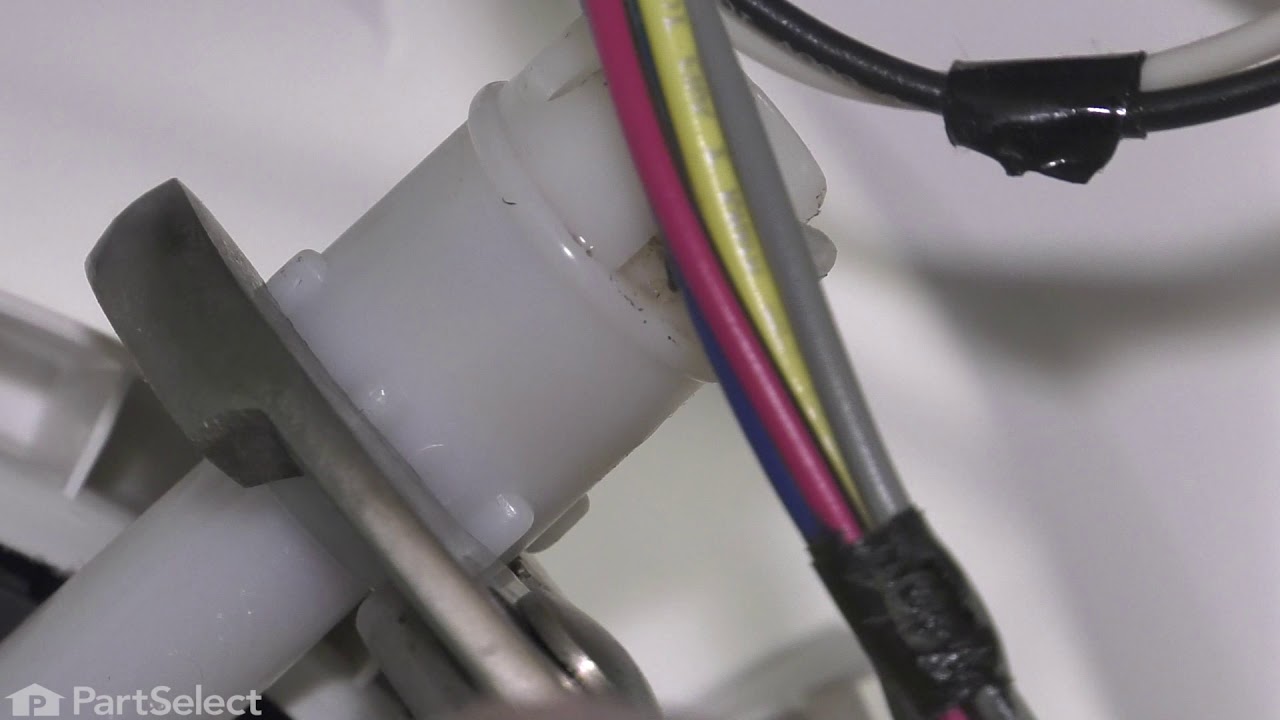

      Replacing your Whirlpool Dishwasher Drain Check Valve with O-Ring

      Replacing your Whirlpool Dishwasher Drain Check Valve with O-Ring play video
      Customer Repair Stories
       Average Repair Rating: 3.3 / 5.0, 3 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        Dishwasher Not Draining
        Ordered both drain & wash impeller kit and the drain check valve with o-ring. Decided to test the cheaper drain check valve first. Pulled dishwasher out from wall & adjacent cabinetry; removed drain hose from disposer and drained as much water as possible; "jacked" side of dishwasher to gain access to drain hose and drain check valve; used pliers to remove hose clamp; placed flat pan underneath to catch remaining water drainage; unscrewed drain check valve; tested under bathroom faucet--determined faulty; replaced with the new one, restored connections, reset dishwasher in proper location; voila--fixed! Plan to return the unneeded impeller kit.
        • Lewis from Portsmouth, NH
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Pliers, Screw drivers
        • Parts Used:
          675238
        162 of 206 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        standing water in tub , not draining
        removed old check valve from bottom of dishwasher and replaced with new one. I used channel locks to do this, disconnect hoses and screw out check valve, and put back in opposite order, make sure the dishwasher is empty of water or have a plastic bowl or such to catch water. Take off two front covers on bottom of dishwasher to access check valve ,white with hose attached.
        • paul from CHARLOTTESVLE, VA
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Pliers
        • Parts Used:
          675238
        4 of 4 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Bottom of dishwasher retained an inch of water after cycles complete. Had to pump out dirty water before starting new cycle.
        Once the covers under the door are removed, the check valve is visible (unless its too dark, hence the headlight), and pointing right at you. Since I was working under the dishwasher, I gathered all the tools I thought I might need and laid them on the floor next to. Removed 2 covers, placed pan under check valve and hose to catch any water, squeezed clamp with (wrong) pliers, it eventually came loose. Carefully twisted hose off check valve. Water came out, some of it got into the pan, most of it on the floor. I guess I should have pumped it out before I started this. Plastic check valve is screwed into the big piece of whatever, carefully grabbed it with (wrong again) pliers and turned it out. Installation is reverse of removal - but use a large pliers with a ROUNDED jaw to grab the round check valve body. Don't squeeze too hard or overtighten it. Put the clamp on the valve before pushing the hose on. Be sure the hose seats all the way onto the little lugs. Compress the clamp, slide it over the end of the hose and release. That's all folks, works good now.
        • Sam from MAPLE VALLEY, WA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Pliers, Screw drivers
        • Parts Used:
          675238
        1 person found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          2 Reviews
          5.0
          Filter By Rating:
          • 5 Stars
            2
          • 4 Stars
            0
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS382661
              Manufacturer Part Number: 675238
              Brand
              Model Number
              Description
              Kenmore
              110773811
              Dishwasher
              Kenmore
              110773812
              Dishwasher
              Kenmore
              110773813
              Dishwasher
              Kenmore
              110773881
              Dishwasher
              Kenmore
              110773882
              Dishwasher
              Kenmore
              110773883
              Dishwasher
              Kenmore
              19385
              Dishwasher - Kenmore Dishwasher Model 19385 (1988) (19385(1988)) Parts
              Kenmore
              19585
              Dishwasher - Kenmore Dishwasher Model 19585 (1988) (19585(1988)) Parts
              Kenmore
              19985
              Dishwasher - Kenmore Dishwasher Model 19985 (1988) (19985(1988)) Parts
              Kenmore
              5648630100
              Refrigerator - REFRIGERATOR
              Kenmore
              5648630110
              Refrigerator - REFRIGERATOR
              Kenmore
              5648630180
              Refrigerator - REFRIGERATOR
              Kenmore
              5648630190
              Refrigerator - REFRIGERATOR
              Kenmore
              5648650200
              Refrigerator - REFRIGERATOR
              Kenmore
              5648650210
              Refrigerator - REFRIGERATOR
              Kenmore
              5648650280
              Refrigerator - REFRIGERATOR
              Kenmore
              5648650290
              Refrigerator - REFRIGERATOR
              Kenmore
              65715755791
              Dishwasher - Kenmore Dishwasher Model 657.15755791 (65715755791, 657 15755791) Parts
              Kenmore
              66513402K900
              Dishwasher
              Kenmore
              66513402K901
              Dishwasher
              Kenmore
              66513409K900
              Dishwasher
              Kenmore
              66513409K901
              Dishwasher
              Kenmore
              66513442K900
              Dishwasher
              Kenmore
              66513442K901
              Dishwasher
              Kenmore
              66513443K900
              Dishwasher
              Kenmore
              66513443K901
              Dishwasher
              Kenmore
              66513444K900
              Dishwasher
              Kenmore
              66513444K901
              Dishwasher
              Kenmore
              66513449K900
              Dishwasher
              Kenmore
              66513449K901
              Dishwasher
