Refrigerator Defrost Board

★★★★★
★★★★★
1 Review
$113.01   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS372260
Manufacturer Part Number 4388931
Manufactured by Whirlpool
Product Description

Refrigerator Defrost Board Specifications

This device acts like a clock. It continually advances and alternates between activating the cooling cycle and the defrost heater.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Fridge too warm | Freezer not defrosting
This part works with the following products:
Refrigerator.
This part works with the following products:
Whirlpool, Amana, Kenmore, Roper.
Part# 4388931 replaces these:
AP3109393, 901240, 2154674, 2162270, 2162373, 2169266, 2169268, 2188160, 2303825, 4388931
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

4 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Russ
    March 23, 2018
    My Whirlpool fridge is warm freezer works fine noticed the evaporator fan is not running , compressor is running and feels very warm
    For model number W8RXNGMWQ03
    Hello Russ, thank you for your question! If the fridge is warm, but the freezer remains at the proper temperature AND the evaporator fan motor is not turning you should replace the Evaporator Fan Motor part number WPW10188389. Please enter the part number into the site for current price and availability. Good luck with your repair!

    5 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Minh
    August 2, 2018
    My freezer and fridge are warm. I checked the evaporator the motor fan is running and i noticed a small frosted around the bimetal thermostat area. I replaced new capacitor, compressor start relay and overload protector and defrost timer. Now i am not sure defrost control board may need to replace?
    For model number ER8GHKXMQ03
    Hello Minh, Thank you for the question. I suggest testing the Clip-On Bimetal Defrost Thermostat with Leads. The best way to do this is to remove the thermostat from the refrigerator so you can control the temperature of the sensor. You can let the sensor warm up to room temperature. With the sensor warmed up to room temperature the sensor should read approximately 6.2K Ohms at 68°F. With the thermistor submerged is a glass full of ice water, the sensor should be very close to 32°F which should read approximately 16.3K Ohms. If the values that you are getting are far off from these readings, then the sensor is bad and should be replaced. Hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Staunchis
    February 20, 2019
    Freezer and refrigerator not cooling, i only had frost around the bi-mental thermost, i have replaced all of the defrost parts but still not cooling, i replaced the defrost control board first and after two days i could see that the freezer was starting to freeze then it stopped. What else could be causing my problem
    For model number t8txnwfwb01
    Hello Staunchis, thank you for your question. We would recommend testing the Part Number: WPW10662129 Capacitor. Usually if the fridge and freezer stay warm, it has something to do with the capacitor on the compressor. I hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Robert
    September 25, 2019
    Loud click coming from thermostat cover. On/off sound. A day later i have frost built in freezer and bottom is not cold as it normally would be. I ordered a thermostat. Should i have ordered this part instead?
    For model number A8RXNGMWN00
    Hello Robert, Thank you for the question. If the sound is coming from the Thermostat, it is more then likely the issue. Hope this helps!

    Was this helpful?
    Thank you for voting!
      Part Videos

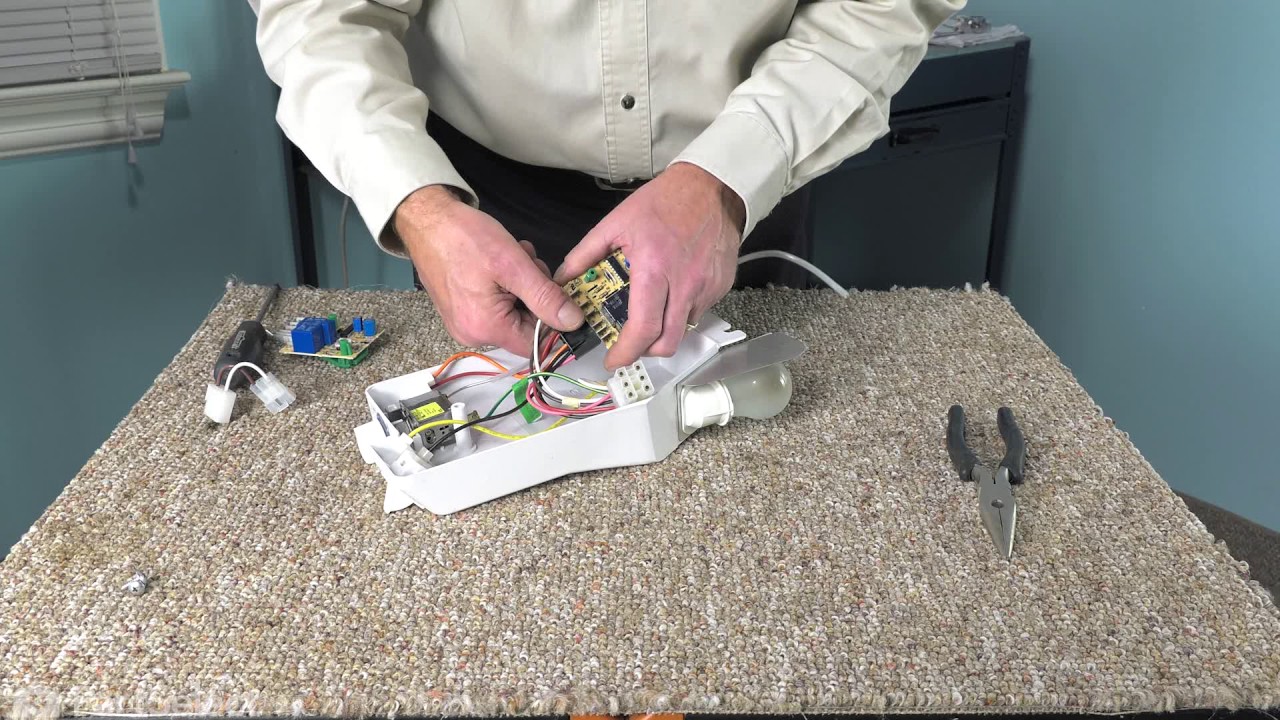

      Replacing your Whirlpool Refrigerator Refrigerator Defrost Board

      Replacing your Whirlpool Refrigerator Refrigerator Defrost Board play video
      Customer Repair Stories
       Average Repair Rating: 4.8 / 5.0, 3 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        freezer froze up refridge not cold
        I unplugged the fridge.Removed the thermostat casing located in the lower part of the refridgerator by removing a few screws. disconnected the wiring plug from the relay board-connected the new board-screwed the new board inplace-put the casing back and replaced those screws. turned fridge back on and HOORAY off we went. i want to add frinding the part and recieving it so quickly was also part of a great savings to me!
        • Benjamin from Mahanoy Plane, PA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          4388931
        39 of 45 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        evaporator iced up every 5 days or so
        Very easy, unscrewed control panel cover (1 screw) which is located under the freezer compartment inside the refrigerator. Took out non working defrost timer installed new one replaced cover, done. Total time: less than 5 minutes.
        • nicholas from riverside, CA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Pliers
        • Parts Used:
          4388931
        14 of 18 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        would not defrost and would not get cold.
        Had alot of frost build up, coils were frozen solid. Removed the coil cover to defrost.
        Ordered the defrost timer on friday, arrived on saturday. only took 15 minutes to install. Working great
        • Jack from Beardstown, IL
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        • Parts Used:
          4388931
        13 of 14 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          1 Review
          5.0
          Filter By Rating:
          • 5 Stars
            1
          • 4 Stars
            0
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS372260
              Manufacturer Part Number: 4388931
              Brand
              Model Number
              Description
              Kenmore
              10631400200
              Refrigerator
              Kenmore
              10631402200
              Refrigerator
              Kenmore
              10631404200
              Refrigerator
              Kenmore
              10631409200
              Refrigerator
              Kenmore
              10631410200
              Refrigerator
              Kenmore
              10631412200
              Refrigerator
              Kenmore
              10631414200
              Refrigerator
              Kenmore
              10631419200
              Refrigerator
              Kenmore
              10632842010
              Refrigerator
              Kenmore
              10632852010
              Refrigerator
              Kenmore
              10632852011
              Refrigerator
              Kenmore
              10632853010
              Refrigerator
              Kenmore
              10632853011
              Refrigerator
              Kenmore
              10632862010
              Refrigerator
              Kenmore
              10632862011
              Refrigerator
              Kenmore
              10632863010
              Refrigerator
              Kenmore
              10632863011
              Refrigerator
              Kenmore
              10632872010
              Refrigerator
              Kenmore
              10632873010
              Refrigerator
              Kenmore
              10632882010
              Refrigerator
              Kenmore
              10632883010
              Refrigerator
              Kenmore
              10632889010
              Refrigerator
              Kenmore
              10660932901
              Refrigerator - REFRIGERATOR
              Kenmore
              10660933901
              Refrigerator - REFRIGERATOR
              Kenmore
              10660934900
              Refrigerator
              Kenmore
              10660934901
              Refrigerator - REFRIGERATOR
              Kenmore
              10660939901
              Refrigerator - REFRIGERATOR
              Kenmore
              10661494401
              Refrigerator
              Kenmore
              10662154900
              Refrigerator
              Kenmore
              10662972900
              Refrigerator
