3655061-1-M-Frigidaire-137518800-Pump Filter
Part Location Diagram of 137518800 Frigidaire Pump Filter
See part 40 in the diagram
3655061-1-S-Frigidaire-137518800-Pump Filter 360 view
( Grid squares measure 1x1 inch )
3655061-1-S-Frigidaire-137518800-Pump Filter 3655061-1-S-Frigidaire-137518800-Pump Filter 360 view
Part Location Diagram of 137518800 Frigidaire Pump Filter
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Pump Filter

$ 14.45
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS3655061
Manufacturer Part Number 137518800
Manufactured by Frigidaire
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Check if this fits your product and find model diagrams

Need help finding your model number?
Troubleshooting
This part fixes the following symptoms:
Will not drain | Leaking
This part works with the following products:
Washer, Washer Dryer Combo.
This part works with the following products:
Frigidaire, Crosley, Kenmore, Westinghouse.
Part# 137518800 replaces these:
AP5630356, 134565200, 134885800
Back to Top
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

4 questions answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Sarah
February 23, 2018
Where is the pump filter supposed to sit in the drain mechanism? I just took apart the rubber drain tube before the pump looking for something slowing the draining way down and i see the pump filter thru the opening, i’ve done this same procedure a few times and have never seen that.
For model number GLTF2940FS0
PartSelect logo

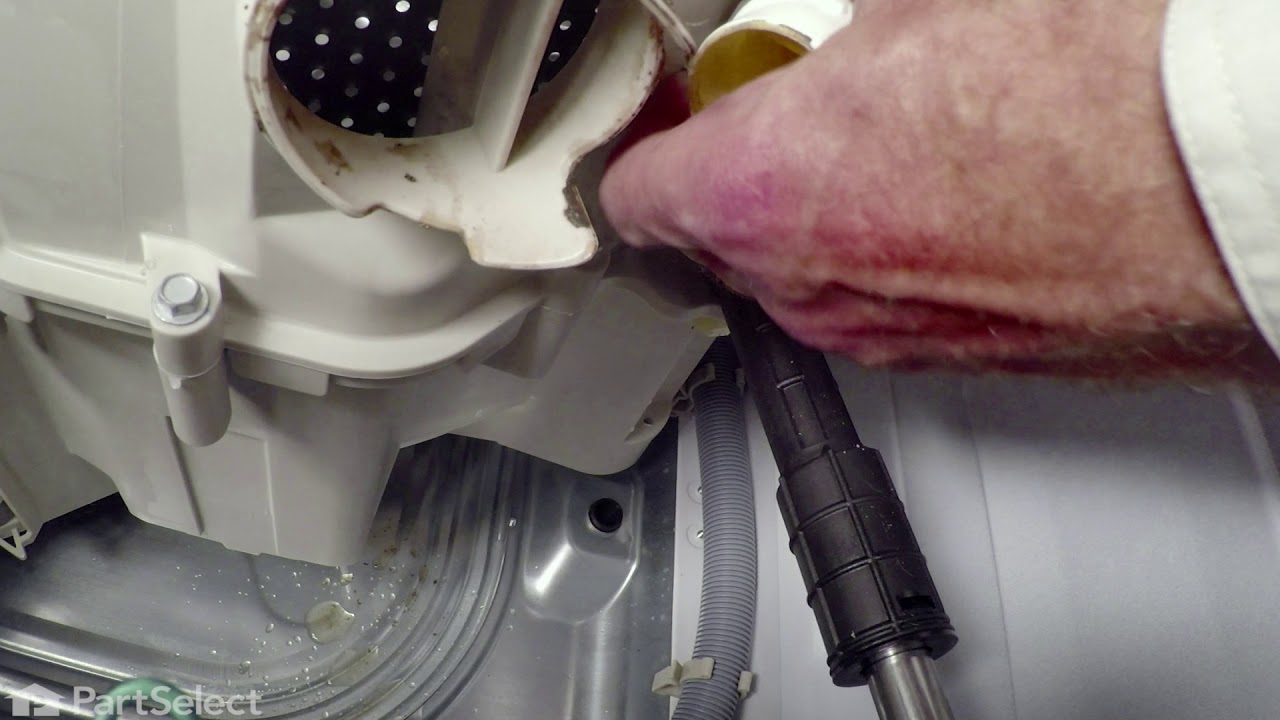

Hello Sarah, Thank you for your inquiry. The pump filter is supposed to sit down inside the bellow part of tub-to-pump rubber drain hose at approximately the second rib of the bellow. The video for the drain hose-part# 134455900 shows how to take the filter/coin trap out. Hope this helps!

7 people found this helpful.

Was this helpful?
Thank you for voting!
Gino
November 30, 2019
Also the filter shown in the picture above is empty inside.The one I have seems to have something like a screen or something inside of it blocking the holes. Is that normal? Also I couldn't find the video you told Sarah about on how to remove the filter.
PartSelect logo
Hi Gino, that seems normal, this part is a replacement for the original so it may look slightly different. The video is here: https://www.youtube.com/watch?v=2iqN8Ly-WcE&feature=emb_title. Thank you for your question and good luck with your repair!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Wendy
7 days ago
A pillow filled with shredded foam rubber burst during washing. I cleaned out every bit of the stuff from the inside of the washer, but I'm worried that there's a filter in the guts of the machine that could be clogged with it. I won't run a load until I find out. Can you advise me? This is an old machine that still runs like a charm.
For model number FAFW3577KB1 Frigidaire
PartSelect logo
Hi Wendy, thank you for reaching out. Based on our research, the filter that may get clogged due to this is the pump filter, part number PS3655061. The pump filter is supposed to sit inside the bellow part of the tub-to-pump rubber drain hose at approximately the second rib of the bellow. You should be able to wipe the filter out with a cloth. We have attached a relevant video that might help you access the pump filter. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Gino
November 30, 2019
I am replacing f35 (drain pump) but noticed the filter inside the drain hose. The filter just floats/sits inside at the bottom of the drain hose bellow. (part 134455900). Is that the correct orientation? To just sit inside the below unattached?
PartSelect logo
Hi Gino, that is correct, it is unattached. It should have a fairly snug fit. Thank you for your question and good luck with your repair!

Was this helpful?
Thank you for voting!
  • 1
Back to Top
You May Also Need?
Drain Hose
$59.12
$59.12
  In Stock
Drain Pump - 120V 60 Hz.
$143.28
$143.28
  In Stock
Back to Top
Model Cross Reference
This part works with the following models:
PartSelect Number: PS3655061
Manufacturer Part Number: 137518800
Brand
Model Number
Description
Kenmore
41727182700
Washer
Kenmore
41727182701
Washer
Kenmore
41727182702
Washer
Kenmore
41727182703
Washer
Kenmore
41727182704
Washer
Kenmore
41740412700
Washer
Kenmore
41740412701
Washer
Kenmore
41740412702
Washer
Kenmore
41740412703
Washer
Kenmore
41747102700
Washer
Kenmore
41747102701
Washer
Kenmore
41748102700
Washer
Kenmore
41748102701
Washer
Kenmore
41748106700
Washer
Kenmore
41748112700
Washer
Kenmore
41748112701
Washer
Kenmore
41748116700
Washer
Westinghouse
970-C48112-10
Washer
Frigidaire
970L48022A0
Washer - WASHER
Frigidaire
ATF6000ES0
Washer - Residential
Frigidaire
ATF6000ES1
Washer - Residential
Frigidaire
ATF6000FS0
Washer - Residential
Frigidaire
ATF6000FS1
Washer - Residential
Frigidaire
ATF6000FS2
Washer
Frigidaire
ATF6500FG0
Washer - Residential
Frigidaire
ATF6500GG0
Washer - Residential
Frigidaire
ATF6500GG1
Washer - Residential
Frigidaire
ATF6500GS0
Washer - Residential
Frigidaire
ATF6700FE0
Washer - Residential
Frigidaire
ATF6700FE1
Washer - Residential
