Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
OEM from PartSelect
Genuine brand name
Guaranteed to fit
Superior quality and durability
1 year warranty
Generic
Unknown manufacturer
No fit guarantee
Inconsistent quality and lifespan
Limited warranty and support
Troubleshooting
This part works with the following products:
Range
Part# MGC61851712 replaces these:
MGC61851703
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Susan
November 7, 2017
Two burners work only intermittently. The problem seems to be in the touch screen. Which part would i replace? Thank you
For model number LRE3012ST
Hi Susan,
Thank you for your inquiry. If the touch screen is not responding, you will need to check continuity of the touch screen, the wiring between the touchpad and the electronic control board and the electronic control board with a multimeter to see which part is causing the issue. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Maleka
December 6, 2017
Hi i only need the glass piece to my control panel. Too much pressure has broken the plastic on the on/off button. Is this possible to purchase?
For model number LDE3011ST
Hi Maleka,
Thank you for your question. Yes, that would be your parts assembly or touchpad which is part 2385 in your diagram. I have linked that part below for you. Good luck with your repair.
Stove tops don't work only ovens can be turned on with touch pad. Need to know if control panel assembly will fix
For model number Lde3011st

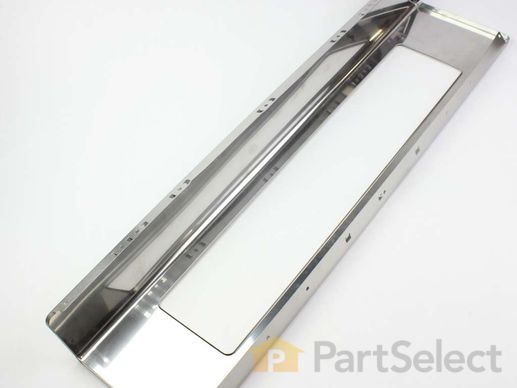

Hello Carol, thank you for your question. The control panel you've referenced is just the frame around the control touch panel. If none of the cook top burners are working you will want to test or replace the element control boards. These boards control the burners. Part number PS3646288 and part number PS3646159. Good luck with your repair!
Was this helpful?
Thank you for voting!
Trace
September 30, 2019
Unit will not reset from "sabbath mode" we have pushed settings button for 3 seconds.
For model number lde3011st
Hello Trace, thank you for writing. Press both the Bake and Broil keys at the same time until SF displays, then press the Delay Start Key until Shut Down displays. Then press Start and you should be able to use the appliance as normal. Good luck with your repair!
Was this helpful?
Thank you for voting!
Adam
March 25, 2023
The right front burner only works on high. It stops working as soon as you turn the setting down.
For model number LDE3011ST
Hello Adam, thank you for contacting us. First, check your heating element using a multimeter for continuity. If the heating element, part number PS3527757, fails the continuity test you may need to replace it. If the heating element is good, you may need to replace the control board, part number PS3646288, to fix your issue. We hope this helps.
