Dual Outlet Valve Kit 4318046

Watched instructional video, read all printed instructions and repair related posts
It's all there. Works great! Thank you!

For a year the filler tube would freeze up and stop all water flow. I would remove it and use a heat gun on it. I decided that the fill valve was leaking after 20y and actually saw drops coming out of the tube when the valve was off. So I watched the videos and ordered the parts. So far no freezing up and working as originally. The valve kit came with all the parts I needed to replace and reconnect the plastic and copper tubing connections. Very pleased with the outcome after a week as well as the videos and complests parts needed. The fill tube didn’t need shorthing and was used as it came. Adding, easy to replace and connect to the water supply line. My refrigerator location made the repair a little difficult ( small kitchen) but with patience it all went well. Not as difficult if access to the back side is easier. Not the fault of the parts supplied! Also to mention, I vacuumed out 20 years of dust from the coils while I had the back off. Same for the front side. A must do often to extend the life and air circulation.

Initial problem was water not entering the icemaker. Replacing the valve assembly did not solve the problem. Further investigation revealed the inflow tube to he icemaker had frozen water in it. Cleaned the ice our and water flowed a bit but not enough to fill the tray. Still investigating the problem.

Dual Outlet Valve Kit- Part matched up identical to my unit. Had previously worked on leaking valve but started leaking again. Easy, simple replacement, took about 30 minutes because I installed water filtration kit also. Runs quieter than before, making ice with hardly any notice now. Felt so impressed with myself I replace the defrost timer too in 30 minutes. Runs like a new machine now. Happy customer!

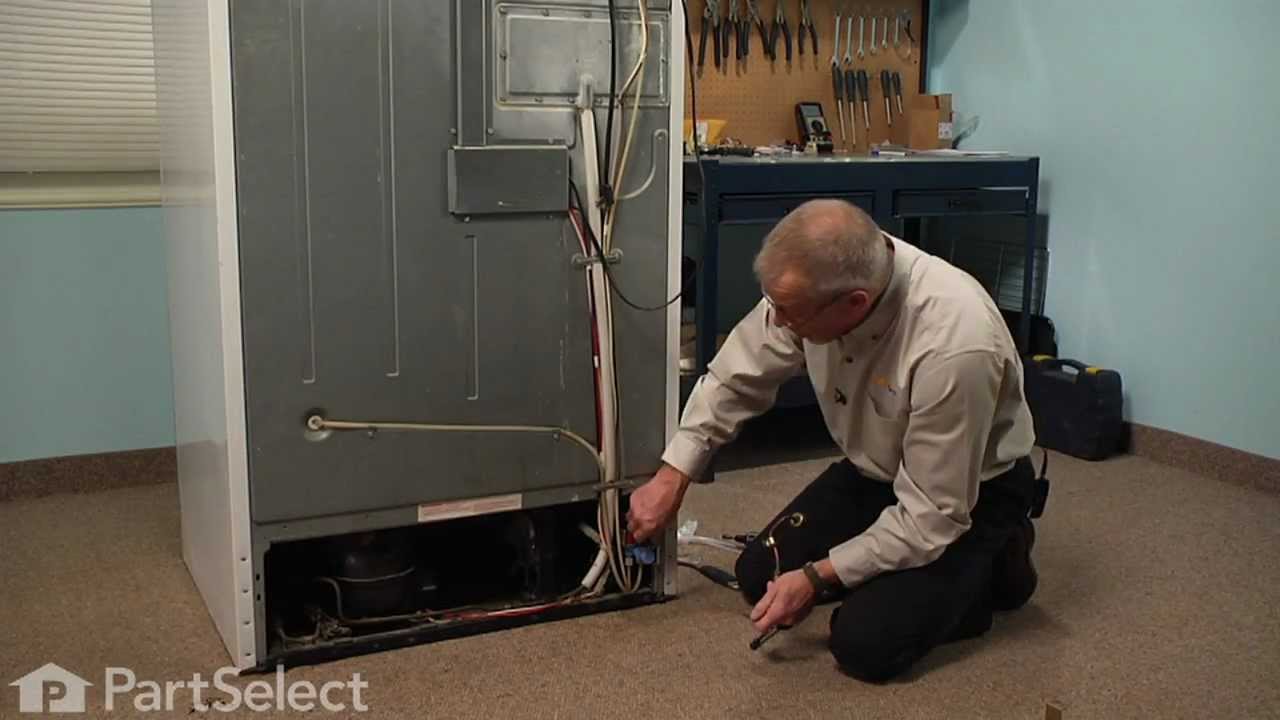

Started the replacement of the existing dual outlet valve by removing cardboard covering the lower back of the refrigerator exposing the outlet valve. Closed the water supply valve at the wall. Removed the hose bibb water supply connection on the outlet valve by hand as it is only hand-tight. I used a small plastic container to catch the minimal amount of water left in the copper line. I removed the electrical connection on each solenoid valve (one for the in-door water supply and one for the icemaker supply). I removed the plastic supply lines from the outlet valve. I removed the screws on the bracket attaching the dual outlet valve to the refrigerator vertical rail. I reconnected the electrical connectors to the valve. I reattached the plastic supply lines to the valve, but did not tighten them fully at this point. I secured the bracket on the new valve to the existing screwholes on the refrigerator rail. The new outlet valve does not have a hose bibb connector, it has a compression fitting for the supply. I reused the existing copper supply line from the wall angle-stop valve to reconnect to the new outlet valve. (It would have been best to have cut the copper line and used a new furrel on the copper line). Note that the supply line now comes into the outlet valve from the top, not the rear as on the old valve, so now the dual outlet valve sticks out beyond the frame of the refrigerator. I tightened the nuts on the plastic supply lines on the valve. I had to cut the cardboard cover around the new outlet valve. Resecured the cardboard cover to the back of the frig. Checked for leaks, turned the icemaker on by lowering the shutoff arm, and after a few moments, the outlet valve opened, water flowed into the icemaker, and all is well.

Pulled the fridge (KitchenAid side by side) out from the wall for the 1st time in a few years and dealt with those issues. Followed the instructions which were pretty clear. I was lucky enough that I did not need to retro fit any of the connections - it was really a straight forward replacement. The ice maker and the water dispenser have never worked better. Took about an hour.

The part received was a straight replacement part - no modification required, just a simple remove and replace. This made the job really easy. Used the socket set to lower the front wheels to move the refrigerator, the nutdriver to remove the back cover and the valve, and the adjustable wrench to remove the water line. I had to cut the supply line tubing because the ferrule was too far up the line to make a good seal (minor leak quickly corrected with parts available in the kit - nice touch!) What took the most time was cleaning the coils and lint, etc. - hey I hadn't moved the unit in years! - but I did not include the 45-60 minutes this took in the repair time. Directions supplied were clear and easy to follow - but in my case I could have done the job without them - easy to see what needed to be done, but the stated precautions were nice.

I guessed that the water dispenser solenoid was getting weak.
A quick web search led me to PartSelect's website where it was so easy to pull up my refrigerator model with diagrams. I ordered the valve kit, and in 5 days it was in my hands.

Installation was literally 10 minutes. It took longer than that to vacuum all the dust from under and in back of my refrigerator !

first bought new ice maker installed it-didn`t fix the problem. next bought fill tube kit and dual outlet vale -installed those ice maker works GREAT no leaks -no ice froze together in bend. thanks for the help GUYS.

I replaced the dual outlet valve and deiced the filler tube going to the ice maker. I removed the filler tube and ran hot water on it. I believe the old filler valve was leaking letting water slowly into the filler tube where it eventually froze solid.
