Part Location Diagram of AJU72992601 LG Water Inlet Valve Assembly
See part 619E in the diagram
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Daily 8am - 9pm EST

customerservice@partselect.com

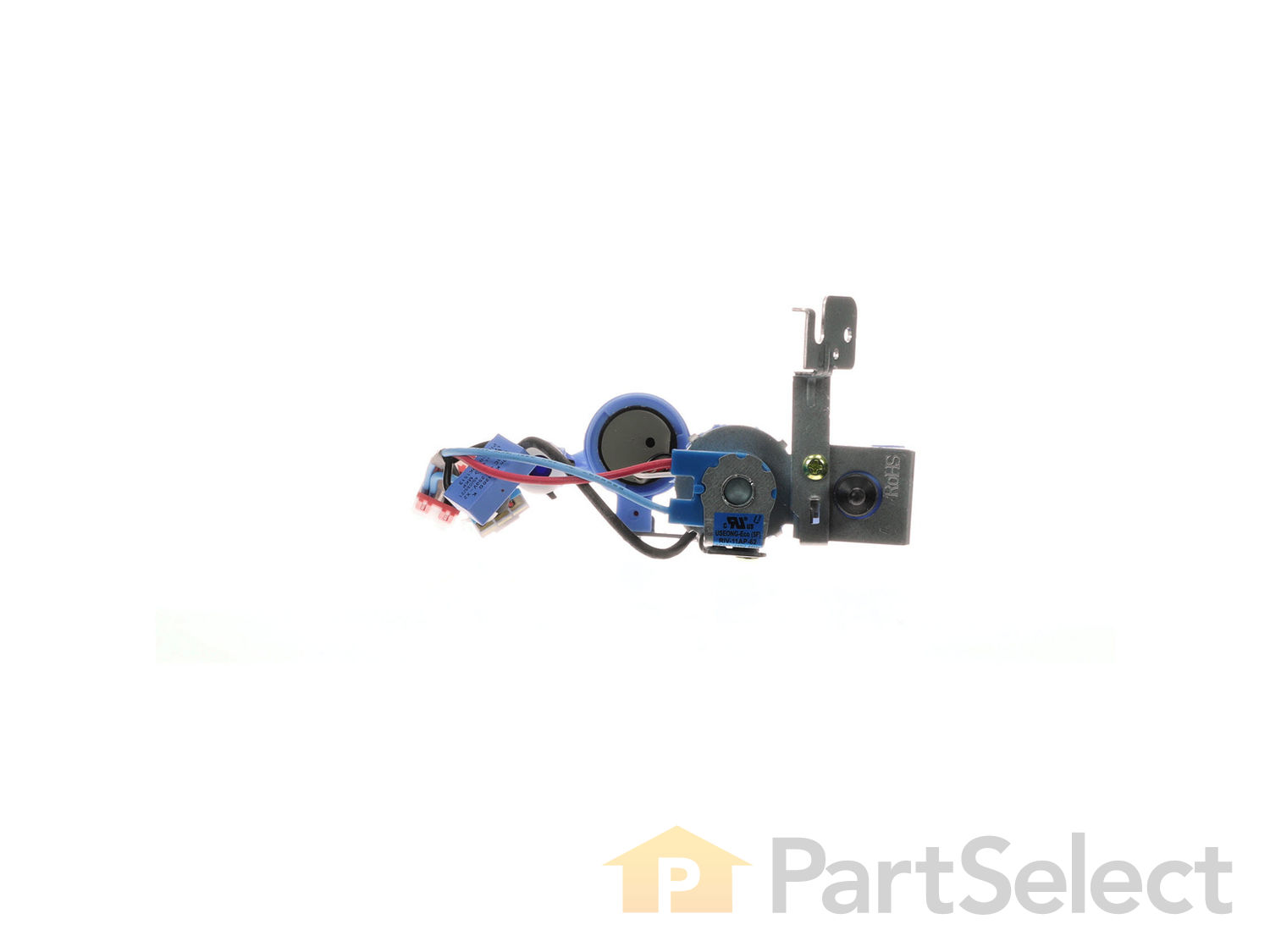

Water Inlet Valve Assembly AJU72992601

★★★★★
★★★★★
14 Reviews

Rated by 5 customers

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

$ 123.82
  In Stock
Get FREE EconoShip on orders over $100! T&C apply

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS3533117
Manufacturer Part Number AJU72992601
Manufactured by LG
Product Description

Water Inlet Valve Assembly Specifications

This includes the primary and secondary valves along with the wire harness.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Leaking | Not dispensing water | Ice maker not making ice
This part works with the following products:
Refrigerator, Freezer.
This part works with the following products:
LG, Kenmore.
Part# AJU72992601 replaces these:
AP4671476, 5221JA2011J, 5221JA2011P, 6877JB3036V, AJU72992606, EAD61548201, EBD60664501
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
14 Reviews
4.6
Filter By Rating:
  • 5 Stars
    10
  • 4 Stars
    3
  • 3 Stars
    1
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
  • 2
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
  • 2
Customer Repair Stories
 Average Repair Rating: 3.0 / 5.0, 5 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Leaking
Swapped old one with new one. New one had extra plug not needed.
  • Johnny from MOUNT OLIVE, AL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Valve assembly leaked
The assembly sent is different than what is on the unit. The connectors do not match. We called and it seems you don’t have the correct part. The only part we have found will only connect the ice maker or the water. It will be a shame if I have to buy a new refrigerator.
  • Richard from TORRANCE, CA
  • Difficulty Level:
    Very Difficult
  • Total Repair Time:
    More than 2 hours
2 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Slow water for drinking
Just like on YouTube very easy to do
  • Steven from SEBASTIAN, FL
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers, Wrench set
1 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Low water pressure which in turn led to no water and no ice.
Unplugged fridge, shut off water supply disconnected water supply from fridge. Remove screws that hold lower cover on back of fridge, removed screws holding valve assembly to fridge. Disconnect two electrical connections, remove black c-clip on out flow water line, lift fitting on outflow line side and pull water line off. Replace with valve assembly in reverse order
  • Daniel from ABERDEEN, WA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Screw drivers, Wrench set
7 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
replace leaking water inlet valve assembly
1. Shut off water to refrigerator. 2. Removed bottom sheet metal cover (6 screws). 3. Removed leaking water inlet valve assembly from refrigerator (1 screw). 4. Remove water inlet tube (loosen nut) and tube back to refrigerator (pull from water valve after remove cotter pin washer). 5. Detach two electrical wire harnesses. 6. Install new water inlet valve assembly to refrigerator (1 screw). 7. Replace both water tubes to water inlet assembly. 8. Re-attach both wiring harnesses. 9. Turn water to refrigerator on. 10. Check for leaks. 11. Re-attach bottom sheet cover (6 screws).
  • Richard from JACKSONVILLE, FL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
28 of 47 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

26 questions answered by our experts.
Sort by:
  • 1
  • 2
  • 3
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ben
August 26, 2019
No water comes into the ice maker, hence no ice. Water does flow out the water dispenser on the door. Machine was producing ice until i replaced the filter. Thought it might be bad, and replaced it with a new one. Still no water into the ice maker. What could be wrong??
For model number 795.70339.410
PartSelect logo
Hi Ben, thank you for your question. There are two parts that you should check for this issue. The first part to test would be your water inlet valve. The valve has two solenoids that control either the dispenser or the ice maker. Even if your dispenser is working the ice maker solenoid may not be and vise versa. The valve can be tested with a multi meter and should be reading between 500 - 1500 ohms of resistance. If that part is testing correctly then you should look into your ice maker being the issue. I hope that helps. Good luck with your repair.

25 people found this helpful.

Was this helpful?
Thank you for voting!
Michael
April 2, 2019
Low water psi, i change the fliter and check the water line psi
For model number LFX25971ST
PartSelect logo
Hello Michael, Thank you for the question. If the water Pressure to the appliance is good, you may have an issue with a defective Water Inlet Valve. Thank you for your inquiry, good luck with this repair!

6 people found this helpful.

Was this helpful?
Thank you for voting!
Hilton
December 12, 2019
Water inlet valve p/n 5220j82009a is on my fridge can't find that number
For model number lfx25960tt
PartSelect logo
Hello Hilton, thank you for contacting us. This Water Inlet Valve Assembly, part number PS3533117, is the current compatible replacement for the model number you provided. Good luck with your repair!

5 people found this helpful.

Was this helpful?
Thank you for voting!
KEVIN
January 4, 2020
Water and ice will not stop dispensing after glass is pulled out
For model number lmxs28626d
PartSelect logo
Hi Kevin, the dispenser or switch may be stuck in the "pushed in" position. Generally caused by residue build-up on the dispenser. Press the lock button for 3 seconds. If it stops the lever is stuck, pull out the lever, gently push in and release the dispenser lever a few times quickly. Otherwise if it does not stop an internal component has failed, likely the switch. Thank you for your question and good luck with your repair!

5 people found this helpful.

Was this helpful?
Thank you for voting!
Paul
May 20, 2019
I get water form the refrigerator but the ice try does not get water no ice cubes
For model number LFX25976ST
PartSelect logo
Hi Paul, thank you for your question. There are two parts that you should check for this issue. The first part to test would be your water inlet valve. The valve has two solenoids that control either the dispenser or the ice maker. Even if your dispenser is working the ice maker solenoid may not be and vise versa. The valve can be tested with a multi meter and should be reading between 500 - 1500 ohms of resistance. If that part is testing correctly then you should look into your ice maker being the issue. I hope that helps. Good luck with your repair.

5 people found this helpful.

Was this helpful?
Thank you for voting!
Suzanne
May 2, 2019
Our water dispenser froze in our cabin over the winter, also broke the filter. Now all the water flows to the bottom of the freezer and on the floor. Where do i check to see whats wrong
For model number lfx28968st
PartSelect logo
Hello Suzanne, Thank you for the question. If there was water in filter, then there may have been water int he water lines. I suggest checking the lines as they could have been split when the ice expanded the lines. Also check to make sure the filter housing was not damaged. Hope this helps!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Anthony
October 11, 2017
My ice maker is not making ice, and i have replaced the water inlet valve and it is still not making ice. What should i check now.
For model number lfx25971st/1
PartSelect logo
Hi Anthony, Thank you for your question. I would suggest checking your ice maker itself next. Your manual should have instructions on how to troubleshoot that part. Good luck with your repair.

3 people found this helpful.

Was this helpful?
Thank you for voting!
Steve
January 16, 2019
Water leaks from the bottom of the refrigerator door when the icemaker fills and when water is dispensed in a glass to drink. Can this be a tubing leak?
For model number Lmxs27626s
PartSelect logo
Hello Steve, thank you for your question. Yes, there is probably a broken or torn water tube in the the fridge door or where the water line connects into the door. We would recommend inspecting the area to see if you can locate the problematic water tube. I hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Deborah
March 8, 2019
Water is collecting underneath the lunch meat tray and leaking onto the floor a little bit now my ice maker will not make ice what do you think it is
For model number Lmxs37626s
PartSelect logo
Hello Deborah, Thank you for your inquiry. We would recommend checking the following parts to fix your issue: Water inlet valve, Water Tank assembly, and the water tubes. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Robert
June 29, 2021
Looking for part number for water inlet valve in back of refrigerator.
For model number LFXS24623B
PartSelect logo
Hello Robert, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number: PS3533117. We hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
  • 1
  • 2
  • 3
Model Cross Reference
This part works with the following models:
PartSelect Number: PS3533117
Manufacturer Part Number: AJU72992601
Brand
Model Number
Description
LG
1867
Refrigerator
LG
48231784207
Refrigerator
LG
48231784214
Refrigerator
LG
48231784221
Refrigerator
LG
48231784412
Refrigerator
LG
70322
Refrigerator - Refrigerator
LG
70323
Refrigerator - Refrigerator
LG
70329
Refrigerator - LG Refrigerator Model 70329 Parts
LG
70332
Refrigerator - Refrigerator
LG
70333
Refrigerator - LG Refrigerator Model 70333 Parts
LG
70339
Refrigerator - LG Refrigerator Model 70339 Parts
LG
70355
Refrigerator - Refrigerator
LG
70357
Refrigerator - Refrigerator
LG
71022
Refrigerator - Refrigerator
LG
71023
Refrigerator - Refrigerator
LG
71024
Refrigerator - Refrigerator
LG
71026
Refrigerator - Refrigerator
LG
71029
Refrigerator
LG
71032
Refrigerator
LG
71033
Refrigerator
LG
71036
Refrigerator
LG
71039
Refrigerator - LG Refrigerator Model 71039 Parts
LG
71052
Refrigerator
LG
71053
Refrigerator
LG
71054
Refrigerator
LG
71056
Refrigerator
LG
71059
Refrigerator
LG
71062
Refrigerator - LG Refrigerator Model 71062 Parts
LG
71063
Refrigerator - LG Refrigerator Model 71063 Parts
LG
71069
Refrigerator - LG Refrigerator Model 71069 Parts
