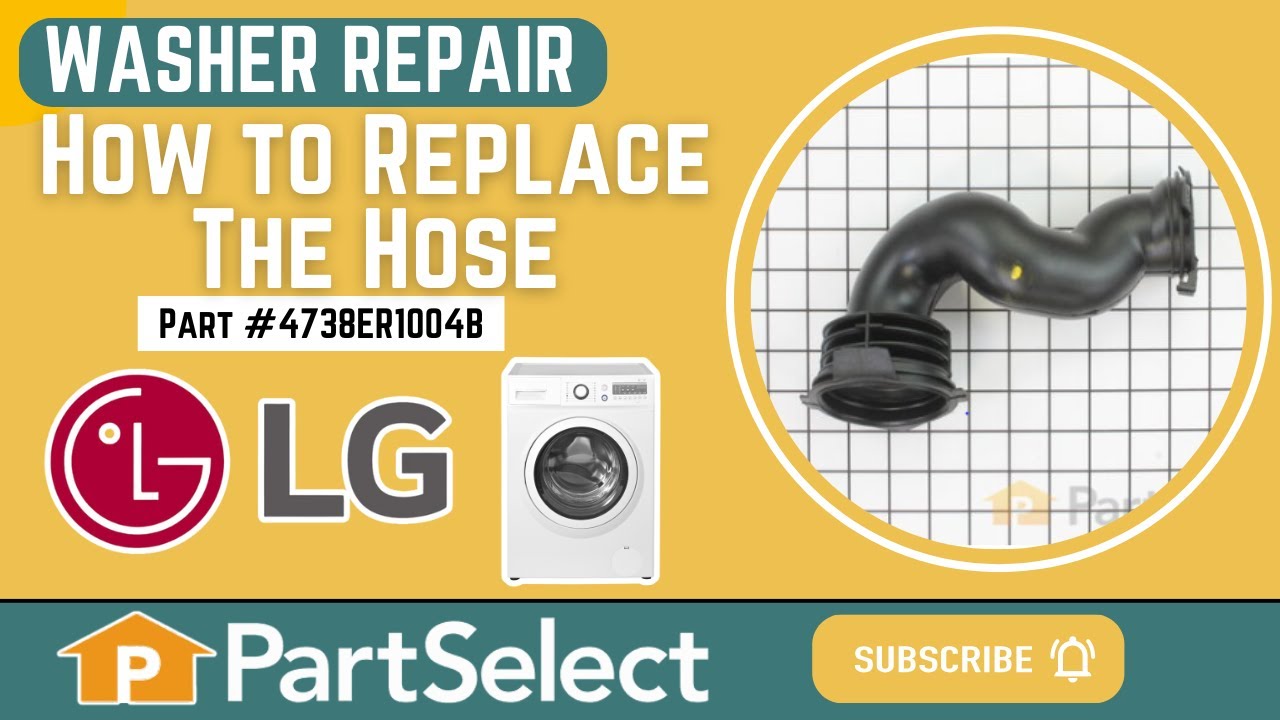

This washer hose with bellows, also known as a dispenser hose, is a genuine OEM replacement part for your washer. Replacing this part can be helpful if your washer is leaking. The dispenser hose connects the dispenser assembly to the tub. Before beginning the repair, unplug the washer and turn off the water supply. You will need a Phillips head screwdriver to complete this repair; a clamp tool can also be helpful. Remove the screws holding the lid of the washer in place, and take off the lid. Locate the dispenser hose and remove its clamps. Place the clamps on the new hose, using the arrows for a guide in positioning the clamps. Install the new hose and reassemble all other parts.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Leaking
This part works with the following products:
Washer, Washer Dryer Combo.
This part works with the following products:
LG, Kenmore.
Part# 4738ER1004B replaces these:
AP4436600, 4738ER1004B, MAR62482201
Customer Reviews
Average Rating:
★★★★★
★★★★★
6 Reviews
4.3
Filter By Rating:
5 Stars
5
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
1
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Roger G - May 1, 2021
Verified Purchase
Direct replacement, great fit
The part was an exact match to the original, two screw clamps to remove the old transferred to the new and installed. If I had it I would have probably replaced one of the screw clamps but it was still functional so I did not spend the time and money to replace it.
★★★★★
★★★★★
William P - January 5, 2021
Verified Purchase
Easy repair. Part was good. Lerfect
Part was good. Tips for installation were good. Went as planned.
★★★★★
★★★★★
Anthony C - August 8, 2020
Verified Purchase
right part first time!
Part arrived, quick appilance up and running
★★★★★
★★★★★
Shane W - June 24, 2020
Verified Purchase
Easy repair, easy website use
Part was perfect match and very high quality!
★★★★★
★★★★★
Jennette P - July 3, 2018
Verified Purchase
Easy repair
The part was exactly what was ordered it didn’t take long for the washer to be up and running again
★★★★★
★★★★★
Tommy W - April 18, 2018
Verified Purchase
washer hose replacement
I recieved the washer hose as ordered.Correct part as needed, but the girl that took my order lied to me on shipping. She gave me shipping chose of ground for $6.00, or 2 to 3 days for$10.00, or overnight for $23.00. I chose 2 to 3 day for $10.00. It shipped ground which took a week, 5 days to be exact. When I called back to complain or try to get a refund on the $4.00 different I paid for 2 to 3 days shipping I got a B S story from her about it would take 5 to 6 days to recieve. The package was marked ground shipping, not 2 to 3 day shipping, like priorty mail or ups blue or orange. Good news correct part, fair price. Bad news they will screw you on shipping and they DON"T care, or at least the person taking orders donesn't. I am still pissed about being lied to and them not caring.Sounds like some training in customer service is badly needed.
May 4, 2018
Hi Tommy, I’m sorry to hear you had that experience. We would like the opportunity to fix this situation. We will be sending you a email shortly in regards to the shipping refund. Looking forward to hearing from you!
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.6 / 5.0, 5 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Leak in top washer hose
Super straightforward to diagnose and repair.
There was puddle under the washer.
I removed the top (screws in rear, slide top toward rear slightly and lift) and followed the trail of water up to the top washer hose between the drum and detergent tray.
Two hose clamps to remove and replace, then replace the
... Read more top and ready to go.
Read less
Jason from S HAMILTON, MA
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noticed small tear in hose bellows and leak during reassembly
I already had the top of the washer open, from previous disassembly to clean the front loader seal, and when I ran a trial load, noticed a small 1/4" tear in the hose bellows that attaches to the drum.
Very simple repair, remove the existing hose by loosening the clamps, paying attention to their orientation. Install the exist
... Read moreing hose clamps onto the new hose, install and tighten the hose clamps.
5 minute job, if the washer top is off (which is also simple).
Read less
Ryan from HIGHLAND, UT
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leaking hose
2 hose clamps and a hose, easy! This would be a very common cause of leaks in washers due to all the movement inside.
David from SAINT CHARLES, IL
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
3 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Our washer was leaking from the washer hose. Once taken off I could see it had a small tear in it. All it took was a screwdriver and a couple minutes and we were up and running. I love PartSelect.com for always having the parts I need and getting them to me in a timely manner!
Took off the old hose with a screwdriver and put the new one on. As simple as that. You don’t need a repair man to get this done, you can do it yourself and save money too.
Wife called me and said the washing machine just flooded the Landry room. I looked at it and didn't see anything wrong. Took the top off and the back off and started looking for a leak, did not see anything. Took the front part of the washer apart thinking the drain hole was plugged up where the rubber boot is. It was ok after taking the
... Read morebig rubber boot off or whatever that is called i was not getting anywhere. I put it back together left the top and the back off. I turned the water on and started the washer on a quick cycle looking for a leak. I found the bellows at the inlet had a small leak fixed that and started the washer again. So what i found out was the clean out drain plug was not in tight letting water out as it was washing after i tightened it all was ok. So i did find a leak that was small that we never saw. The hardest part was putting that wire clamp on the rubber boot it took two people to do that.
Read less
mark from AUBURN, CA
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
7 of 9 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
8 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jerry
August 1, 2018
After washing cycle ends, there is water in the softener dispenser. What is wrong? How do i fix this?
For model number WM3270CW
Hi Jerry, Thank you for your question. There are a couple of things that could be causing the problem. One of the most common things is that your detergent and your fabric softener build up at the hose fittings and clog up the openings. All you would have to do is clean out your dispenser housing. Sometimes it could simply be that your appliance is not level and so all of the water is not draining out as it is supposed to. If these things are not the issue you may have to look into your water inlet valve being the problem. It could be that your valve is not closing all the way after bringing water into the machine and is leaking into the dispenser tray. I hope that helps. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Kim
November 8, 2018
At the end of every cycle i have water leaking from a part in the drum seal on the upper right hand side of the seal. Your tutorials are helpful, but none mention the specific part & what gets replaced
For model number wm3875hvca
Hi Kim,
Thank you for your question. If the washer is leaking from the top right corner, the issue is likely the door boot seal. The part number listed under your model number for the door boot seal is PS3535211. There is a clamp that goes around the door boot seal that secures it. You may need to check that and see if you have to adjust it. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Steve
January 24, 2020
I have replaced the discharge hose, the pump and the housing and it worked fine for four days. Now its leaking again. What could it be?
For model number Kenmore 796.41162411
Hello Steve, thank you for your question. We would recommend checking the tub to pump hose, the vent bellows tube at the top of the tub and the tub to pump connector. We hope this helps.
The washer hose with bellows
Seams only one washer the back of looks attracted the hose now is rippled so how together old one off the part that connects to the washer but the part that's aganstback off washer how does that come off
Hi Michael. To replace: Remove the screws holding the lid of the washer in place, and take off the lid. Locate the dispenser hose and remove its clamps. Place the clamps on the new hose, using the arrows for a guide in positioning the clamps. Install the new hose and reassemble all other parts. Thank you for your question and good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Jill
February 8, 2018
Our LG washer is leaking quite heavily from the underneath left front side...could it possibly be the drain pump and motor or the water hose with bellows?
For model number WM3170CW
Hi Jill, Thank you for the question. The Drain Pump and Motor at located at the left front, sounds like the leak is coming from there. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Scott
March 9, 2020
When cleaning the detergent dispenser, i've noticed water near the top of the opening of the black bellows hose (4738er1004b). When i run a load, the incoming water dispenses the detergent properly but after the final drain and spin, i can still see standing water level in the hose. Shouldn't the water be fully draining so the it doesn't become stagnant?
For model number LG WM2801HWA
Hello, Thank you for your question. You will want to check the drain hose and the drain tube to ensure it is not clogged. If it is not you will need to replace the drain hose. We hope this helps.
Was this helpful?
Thank you for voting!
Tim
February 4, 2023
How do I get to the bottom of washer when there is no separate bottom panel?
My ft loader seems to be leaking from the lower front so I’m assuming it’s one of the pump hoses.
For model number 41162
Hello Tim, Thank you for your inquiry. You have to remove the screws from the back of the washer and remove the top panel off to access this part. We have included a link on how to access the drain pump, which explains how to get access to the bottom of the washer. Good luck with your repair.
Was this helpful?
Thank you for voting!
John
September 1, 2023
does this fit this lg washer model
For model number wm2377cw
Hello John, thank you for the question. The hose you mentioned fits your model. We hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Model Cross Reference
This part works with the following models:
PartSelect Number: PS3523347
Manufacturer Part Number: 4738ER1004B
