Agitator Repair Kit 285748

Removed lid panel changed lid lock switch. Took cap off removed 7/16 bolt changed out thrust spacer and agitater repair kit. Took about an hour.

I needed the washer ASAP. I paid extra for the expedited shipping. The parts arrived as promised. I watched the on-line video. I read and followed the included instructions. Removed cap and nut. Pulled out part with "dogs", swapped new dogs and assembly. Re-installed components, I was wary from information gleaned from the video, which warned of proper orientation of "dogs", as they can be inserted backwards. Tightened bolt and re-installed cap. Presto! Repaired washing machine worked as good as new. My coffee didn't even get cold.

Popped the cap off the agitator (pocket Knife) Look down in the center of the agitator. I saw I needed a 7/16 socket, 6" extention and ratchet. I used 1/4" drive. I took the retaining bolt out and lifted the upper portion of the agitator off of the iower portion and out of the tub. Set the part I took out on the dryer. I pulled the cone shaped part that houses the 4 cogs pieces out of the center of the upper agitator part. Once the coned shaped part was out, turned it upside down and placed it on the closed washing machine lid, then again used my pocket knife to lift the plastic retaining ring that securely holds the 4 cogs in place upward on the cone as to remove and replace the 4 worn out cogs with the new ones purchased in a repair kit. Pay close attention the direction the old cogs are facing, so the new ones go back in the same facing direction. It can be extremely easy to install the new ones backwards. I have to say at this point, I was quite disappointed with the retrofit repair kit I purchased. The new cone part the holds the cogs and goes down into the center of the upper agitator wouldn't allow the bolt that locks the whole agitator to the shaft to line up straight and wanted the bolt to "cross" thread into the main shaft. I took it all apart again and reused the original coned shaped part that came with the machine. I should have purchased just the 4 cogs for considerably less money. Reassembled the cone part and put it back together. Reinstalled the upper agitator in reverse order of removing it. Turned on the washer and it works like it's supposed to once again. Hope this helps the next person.

I followed the instructions and removed the old part. I assembled the replacement parts and installed them. I also watched a video of the repair before I attempted the repair. All in all it went very smoothly.

I removed the fabric sofner dispenser, then removed the cap on the top of the agitator housing. I then removed the agitator retention bolt with a 3/8 drive craftsman ratchet , a craftsman half inch socket and 10 inch extension. I removed the broken pawls inside the agitator as they had crumbled from age and replaced the old items with the new items in the agitator repair kit and reassembled everything just reversing the steps.

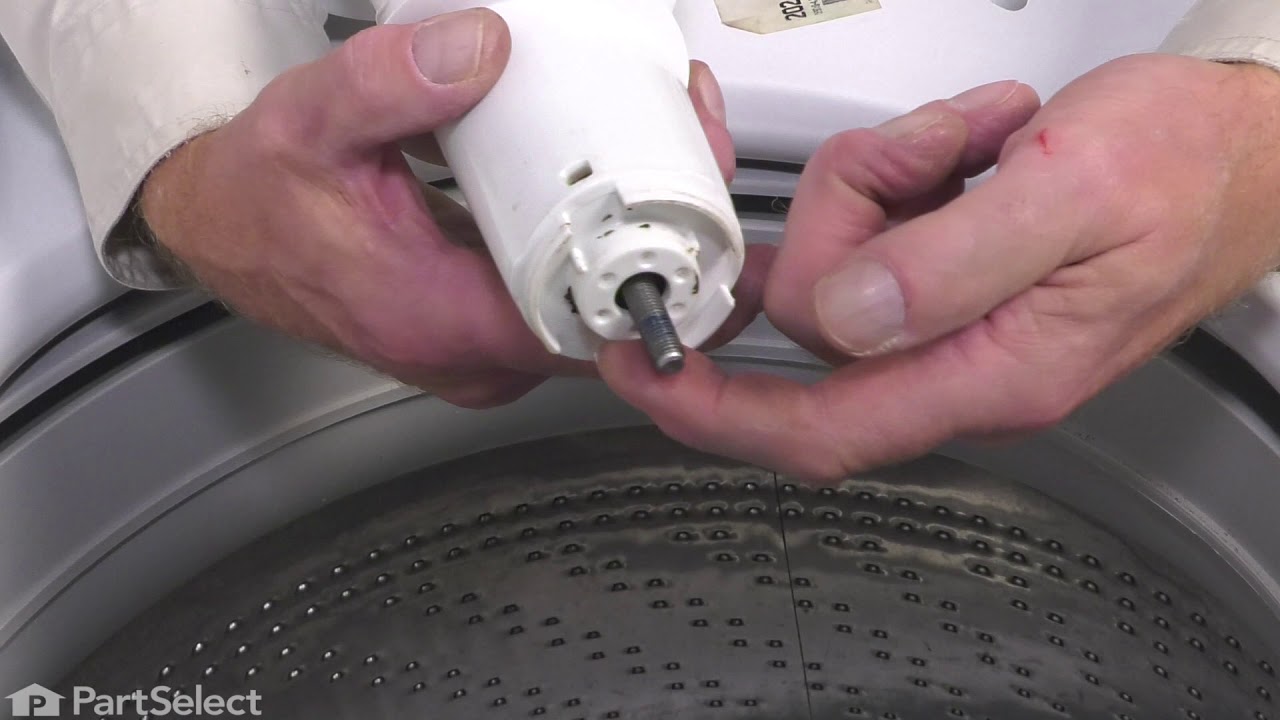

My kit didn't have instructions, and there was one thing not mentioned by others, so I'll pitch in this info: 1) pry off the agitator cap. 2) Removed the bolt with nut driver & lift out agitator. 3) Now, to get the cam assembly out, I had to use some long needle-nose pliers to snap off small horizontal tabs that extend from the old cam assembly. These tabs exert outward pressure on some vertical tabs that extend upward from the agitator base and hold the cam assembly in place. It probably wouldn't be a big deal if you broke off the vertical tabs by mistake, since the bolt would hold the cam assembly in place anyway. With the horizontal tabs gone, the old cam assembly can be lifted off the agitator base. 4) The new assembly can be put in place, but the vertical tabs just mentioned need to be positioned so that the new assembly can be slid over the top. If they are bent, the new cam assembly will not drop down in place! 5) re-assemble the rest. ALL IS GOOD!

Repair was very simple as others have stated. I also had to break the small tabs holding the cam in place. The only other element I have to add is the original cam assembly is better quality than the supplied one, even so I replaced it, however kept the old one. Look for a small slot under the agitator cap to insert the screw driver. As is turned out, all I needed was the dogs, therefore, you may want to take it apart first to see if that's all you need. The small ridges in the dogs wear smooth, and no longer grip the gear ring on the agitator body.

Incredibly easy, literally five to ten minutes. Removed Fabric Softener cup, then lid over agitator attachment bolt (no tolls needed), removed attachment bolt and top agitator, replaced dogs and re-assembled all. Works like new.

Removed the fabric softner despenser on to of agitator.
Removed the filter inside the agitator, pull straight up
Removed the bolt in the center of the agitator using a an extension on a 5/!6 socket.
Pulled the agitator out of washer removed inner works by hand. There are 4 fiberglass parts with teeth on them, I removed these 4 units and replaced them with new ones and it them put agitator back together in the reverse order. Works great.

Unplugged washer from 110 outlet.
Lifted up plastic lock down ring, to remove soap dispenser, pulled off soap dispenser.
Used a short plain screwdriver to remove plastic cap.
Used a 3/8 drive ratchet with an extension and a 7/16 socket to remove bolt. Lifted up and removed agitator. Sat agitator on a rag,as there Is a little grease.I put my feet on the bottom agitator and pulled up. Had to kind of pull and jerk as the top part of agitator came apart harder than expected.
The plastic thrust washer between agitators fell on the floor. I re-used It, but bought a new one at a later date.
I replaced broken plastic coggs and put back together.
