Part Location Diagram of 2159057 Whirlpool Fresh Food Door Gasket
See part 8 in the diagram
Replacing your Whirlpool Refrigerator Fresh Food Door Gasket
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.com

Fresh Food Door Gasket 2159057

★★★★★
★★★★★
4 Reviews

Rated by 5 customers

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$ 120.96
  In Stock
Get FREE EconoShip on orders over $100! T&C apply

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS323891
Manufacturer Part Number 2159057
Manufactured by Whirlpool
Product Description

Fresh Food Door Gasket Specifications

This door gasket is used to seal the refrigerator door when closed to keep the cool air inside and the room air out.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

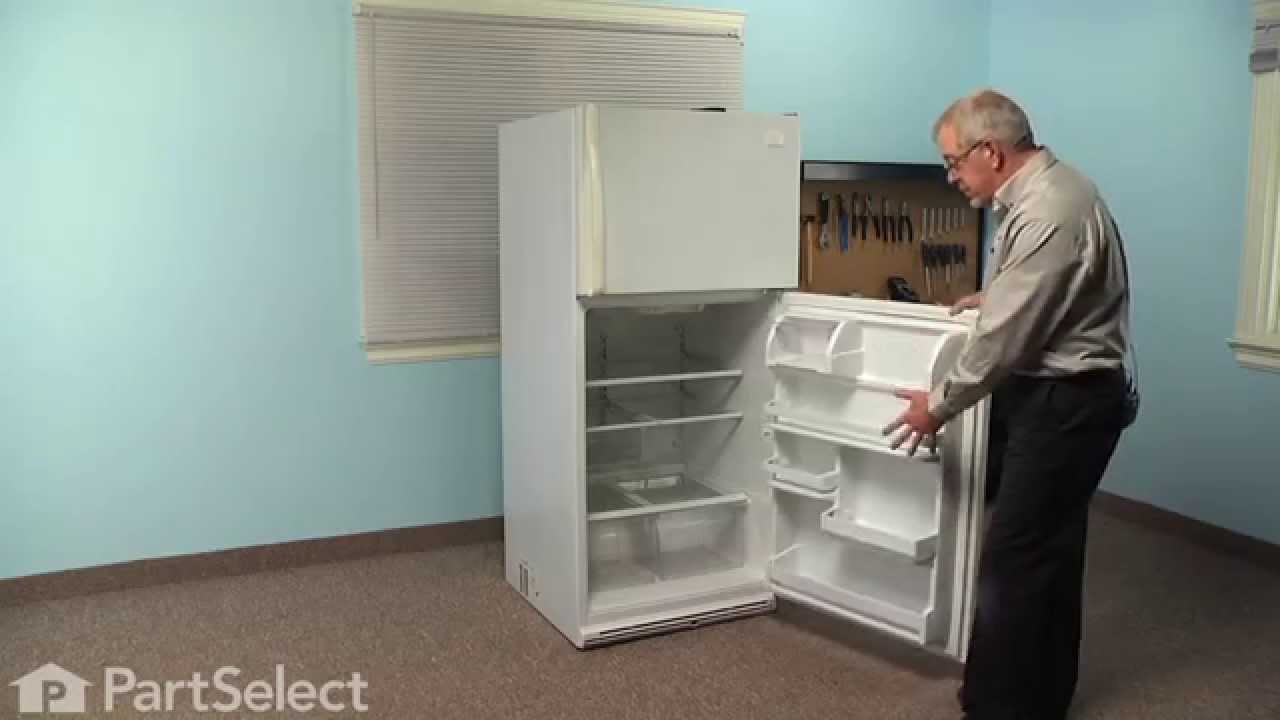

Replacing your Whirlpool Refrigerator Fresh Food Door Gasket

Replacing your Whirlpool Refrigerator Fresh Food Door Gasket
Troubleshooting
This part fixes the following symptoms:
Door won’t open or close | Leaking | Fridge too warm | Door Sweating
This part works with the following products:
Refrigerator.
This part works with the following products:
Whirlpool, Kenmore, KitchenAid, Roper.
Part# 2159057 replaces these:
AP2988055, 443006, 2159051, 2159057, 2171376, 2171386, 2177242, 2177307, 2202874, 2214962
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
4 Reviews
3.8
Filter By Rating:
  • 5 Stars
    2
  • 4 Stars
    1
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    1
Sort by:
  • 1
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Customer Repair Stories
 Average Repair Rating: 3.2 / 5.0, 5 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Gasket wouldn’t hold door shut.
NO DIRECTIONS CAME WITH GASKET! Project failure as gasket tore on a corner. For the price of this gasket, I was DISAPPOINTED. Door is being held shut with a childproof strap.
  • Patti from GARNEILL, MT
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    1- 2 hours
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Gasket had several tears in it at the corners and was leaking air into the fresh food compartment
Removed the old gasket and ran the hard edged lip into the opening behind the door liner. Concerned that the gasket does not seem to be attaching itself to the door well. First put it on the side of the refigerator and it would not adhere enough to support itself. While it closes it just doesn't seem to attach with the magnets in the gasket. These magnetic strips have a weak magnet side and a strong magnet side. I wonder if they put the wrong side facing the door when they assembled it. Counter this with a new gasket for an upright freezer which was twice the length and attached itself firmly to the side wall of the freezer and did not slide down.
  • James from BATON ROUGE, LA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Original door gasket split from age, no longer sealing snugly to refrig.
Inserted scraper behind gasket breaking it free from door, permitting a hand hold. While putting tension on gasket, slid scraper around door gently removing old gasket. Replaced gasket starting at top gradually working around door. No need to remove door.
  • William from LYNBROOK, NY
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The door gasket had worn out and the door wouldn't shut properly
We took the edge out of the slot and pulled the old one off then put the new one on. Once we got the plastic edge started into the slot it was a breeze. Only took about 5 minutes. We were very pleased with the results.
  • Jo from Hudson, NH
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
30 of 35 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The rubber piece around it was worn out
We just had to find the trick to put it in where it would catch on and the rest was a piece a cake.

You had to put it in the groove where it would catch and snap it in place and the rest went in
pretty easy.
  • Carmen from Albany, NY
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
28 of 35 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

8 questions answered by our experts.
Sort by:
  • 1
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Scott
September 26, 2019
Is the fresh food door gasket still available in black? If not can the white gasket be painted black? Thank you
For model number KTRC19MKBL03
PartSelect logo
Hi Scott, you can get the black gasket as part PS326947. Thank you for your question and good luck with your repair!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Sheila
January 13, 2020
I am looking for a gasket for fridge door this is a 1995 fridge
For model number ET18NKXDN04
PartSelect logo
Hello Sheila, Thank you for your question. The gasket for the refrigerator door is under part PS323891 for your model. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Josanne
September 13, 2022
Hi, how is this item packaged to be shipped?
PartSelect logo
Hello Josanne, Thank you for the question. The gaskets are pre packaged by the manufacture in a box. We hope this helps, good luck with this repair!

Was this helpful?
Thank you for voting!
Andy
November 28, 2022
I need a new gasket for an older apartment fridge, I've listed the model number. Will this work for me? What are all 3 dimensions, height, width and thickness.
For model number ET8FTKXKQ0 0
PartSelect logo
Hi Andy, thank you for contacting us. Yes, this part will fit your model. The length of this gasket is 44.50 inches and its width/thickness is 2.00 inches. Customer service is always available to help you place an order if you are having trouble doing so. Good luck with your repair.

Was this helpful?
Thank you for voting!
Ray
October 5, 2023
For some reason the door will not stay secure w/o external pressure applied to lower corner on opening side. Seal looks in good shape , but it feels like something is pushing back as you push to close. Door has inside clearance to close. No sag looks apparent.
For model number RT18AKXKQ00
PartSelect logo
Hello Ray, thank you for the question. Based on our understanding of the issue, if the seal is in good condition, we would suggest checking the door stop, part number PS11739061, to fix the issue. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Related Parts:
Craig
August 30, 2017
I need to replace the fridge door gasket. Does item number ps323891 have a magnetic seal, does it come in black, and what is the size of the gasket?
For model number wrt134tfdb
PartSelect logo
Hi Craig, Thank you for your inquiry. Yes the gasket does have a magnetic seal. The gasket does come in black and the part number for it is PS11740393. I hope this helps. Thank you and have a great day!

Was this helpful?
Thank you for voting!
Craig
August 30, 2017
I need the gasket for the lower fridge door, the bigger door.
PartSelect logo
Hello Craig, thank you for contacting us. This is the gasket for the fridge door. Good luck with the repair!

Was this helpful?
Thank you for voting!
Jennifer
April 10, 2018
I need this gasket for the fridge but i need grey. Do you have it in grey?
For model number WRT359SFYM00
PartSelect logo
Hi Jennifer, Thank you for your question. I have listed the part information for the grey gasket in a link down below for you. It is the third #6 gasket in the list of parts underneath your diagram there. I hope that helps. Good luck with your repair.

Was this helpful?
Thank you for voting!
Related Parts:
  • 1
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS323891
Manufacturer Part Number: 2159057
Brand
Model Number
Description
Kenmore
10632942101
Refrigerator
Kenmore
10632943101
Refrigerator
Kenmore
10632949101
Refrigerator
Kenmore
10660832100
Refrigerator
Kenmore
10660832101
Refrigerator
Kenmore
10660832102
Refrigerator
Kenmore
10660834100
Refrigerator
Kenmore
10660834101
Refrigerator
Kenmore
10660834102
Refrigerator
Kenmore
10660842100
Refrigerator
Kenmore
10660842101
Refrigerator
Kenmore
10660842102
Refrigerator
Kenmore
10660844100
Refrigerator
Kenmore
10660844101
Refrigerator
Kenmore
10660844102
Refrigerator
Kenmore
10660852990
Refrigerator
Kenmore
10660852991
Refrigerator
Kenmore
10660854991
Refrigerator
Kenmore
10660857990
Refrigerator
Kenmore
10660862990
Refrigerator
Kenmore
10660862991
Refrigerator
Kenmore
10660864991
Refrigerator
Kenmore
10660867990
Refrigerator
Kenmore
10660872990
Refrigerator
Kenmore
10660872991
Refrigerator
Kenmore
10660874991
Refrigerator
Kenmore
10660877990
Refrigerator
Kenmore
10660962990
Refrigerator
Kenmore
10660962991
Refrigerator
Kenmore
10660964991
Refrigerator
