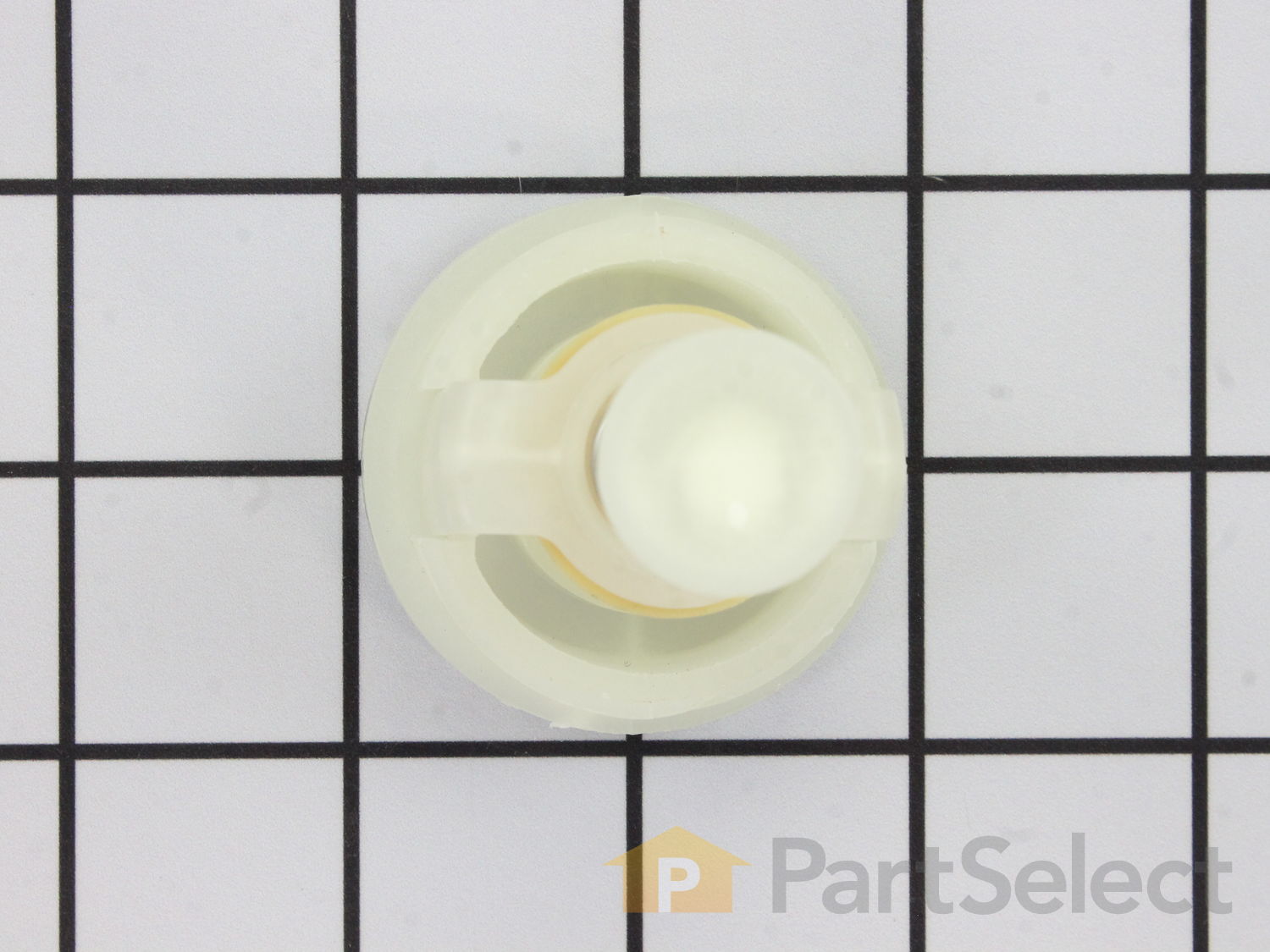

Replacing your General Electric Dishwasher Dishwasher Piston And Nut Assembly
Troubleshooting
This part fixes the following symptoms:
Not draining | Not cleaning dishes properly | Leaking
This part works with the following products:
Dishwasher.
Part# WD24X10018 replaces these:
AP2617344, 821081, WD22X133, WD24X199, WD24X220
Customer Reviews
Average Rating:
★★★★★
★★★★★
19 Reviews
4.7
Filter By Rating:
5 Stars
16
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
1
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Roy C - August 22, 2018
Verified Purchase
Perfect replacement
Part came quick,and was an exact replacement!
★★★★★
★★★★★
Brian R - February 16, 2018
Verified Purchase
It worked!
Easy ordering, good instructional video. We are back in business. Thanks!
★★★★★
★★★★★
Sandra H - March 26, 2018
Verified Purchase
Easy repair.
Put part in. Worked great. Put it in myself.
★★★★★
★★★★★
Joseph G - March 22, 2018
Verified Purchase
simple part to change
you may also require a drain pump, but this part must be working so it's the first step
★★★★★
★★★★★
Ronald P - March 26, 2018
Verified Purchase
Dishwasher piston and nut assembly
I received exactly what I ordered and it was a snap to install. EXCELLENT price and a fast shipment too. The dishwasher is running like-new for a very low cost.. Thank you for the help.
★★★★★
★★★★★
Frank M - April 24, 2018
Verified Purchase
Easy way to repair a problem
The part came in the mail fast and the machine is working great now
★★★★★
★★★★★
Russell F - May 11, 2018
Verified Purchase
Easy repair from video
My dishwasher was leaking so I replaced this part which was easy to do with just a screwdriver and a pair of pliers. After the repair I ran my dishwasher with the access panels off and found out that the leak was coming from the solenoid and the drain valve seal. I ordered a new seal, push on nut and a solenoid assembly to try to fix my dishwasher.
★★★★★
★★★★★
Steve G - April 24, 2018
Verified Purchase
Easy order, quick repair
Partselect’s web site made finding and ordering the part I was looking for easy. Delivery came as promised and fixing my project a snap. Thanks Partselect!
★★★★★
★★★★★
VIRGIL K - June 3, 2018
Verified Purchase
Dishwasher will not drain completely.
Repair was simple, and part arrived quickly.
★★★★★
★★★★★
Scott K - June 3, 2018
Verified Purchase
Easy repair
Perfect part this is a great website
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 70 reviews.
What's this?
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
There was water remaining in the bottom after a wash cycle
and there was not supposed to be so I checked the drain and it was clean and I found a part in the back that looked like it was damaged from use and it was so I got a new part and changed it and that fixed the problem. I removed the screen from the bottom rear inside the cabinet that covers the nut and piston and I changed the part and th
... Read moreat fixed the problem . Now no water stays in the bottom when the cycle is done.
I looked at your web sight and saw how to repair dishwasher.
clyde from DUNCANNON, PA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Did not fully drain water
Looked up possible causes on your website. Website stated that more than 50% of time the cause was the piston and nut assembly. Removed the piston and nut assembly in bottom of unit behind screen on rear wall and saw that the gasket seal was completely gone . Ordered the part. took less than 10 minutes to install. Tested the unit and it d
... Read morerained completely. Thank you as i was looking at a more difficult repair if the pump had to be replaced.Repair cost less than $20.00.Before changing piston and nut assembly I cleaned the strainer and sump. disconnected drain hose and checked for blockage . i than checked your website that listed the piston assembly as the culprit more than 50% of the time. Thanks again
Read less
Antoinette from TOMS RIVER, NJ
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher Has Water Left in the Bottom
Removed filter screen with the socket set, removed the piston and nut assembly with pliers, and installed the new piston and nut assembly. Put filter screen back in with hex head screws. During the process, I opened the float regulator and cleaned it out too. Water backup problems solved.
Bruce from SOULSBYVILLE, CA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Socket set
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishes were not coming out clean and water was standing after the wash cycle was complete.
Removed filter/screen by unscrewing 2 screws with a nut driver and then unscrewed the old Piston and Nut assembly and simply screwed in the new part. Problem solved and my dishes are much cleaner and the water is draining out completely. Easy fix for this frustrating problem.
Steven from ST LOUIS PARK, MN
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
dishwasher was not drainig completly after completing the cycles
Followed the simple instructions to unscrew the old unit and replace with the new one. The unit was easily located on a diagram on the internet and the website instructions for removal were spot on.
Chloe from Salisbury, NC
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher not draining and not getting dishes completely clean.
First I removed the bottom dishwasher rack. Using a 1/4" nutdriver I removed (4) 1/4" screws from the drain cover that is inside the dishwasher all the way in the back. This will allow you to get to the piston and nut assembly which was easily removed with no tools by simply grasping and unscrewing. Used a wash cloth to wipe "gunk" from a
... Read moreround the threads. I then screwed the new piston and nut assembly in place. Used no tools to tighten, just "snug up" by hand. The seal on my old piston and nut assembly was 50 percent gone, not sealing at all. I guess the years had taken their toll. This solved my problem. The dishwasher washes and drains as it should. Super easy fix. Took me about 10 minutes to do the repair.
Read less
John W. from SEMMES, AL
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water would not drain
Replaced the Piston and Nut Assembly, located inside the dishwasher under the screen at the back, by unscrewing the old one and replacing with the new - Works great now!!
robert from Pinehurst, NC
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
0 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water was not draining properly
Looked up Model number on site, checked "symptoms", and 64% of the time it was the Piston & Nut Assembly, which was correct. While I had it apart, I replaced Filter Gasket that was deteriorating, and lower spary arm that had a crack. Very easy fix.
follow instructions found here, with a little help from part diagram. Initially removed the sump cover but then removed the cover at the back of tub. This uncovered the Piston assembly and the replacement was a snap. Dishwasher now works well and actually cleans the dishes. Also did I mention my parts arrived the day after I ordered even
... Read morethough I used standard delivery. This site rocks.
Read less
Athaell from Denton, TX
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
0 of 1 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jo Ann
July 24, 2017
My dishwasher will not drain completely at the end of the cycle. However, i can drain it by pressing the reset button. Is that a replacement of the piston and nut assembly?
For model number GSD3900L00WW
Hello Jo Ann, that is a great question. Yes, the piston and nut assembly are showing as the most common fix for this issue. Hope this helps and good luck with the repair!
9 people found this helpful.
Was this helpful?
Thank you for voting!
Hutch
April 13, 2018
My dishwasher stopped in the middle of the cycle. There is standing water in the bottom. It has power, but it will not turn on. I tried moving the dial in every position but it is dead. Can you please tell me which part to order?
For model number GSD3200J00WW
Hello Hutch,
Thanks for your question. You may wish to test the door interlock switch with a multimeter for electrical continuity. Replace it if it shows no continuity. You may also want to test the door latch and see if anything has shifted out of place with the door panel.
I hope this helps.
Dishwasher will not fill with water, what am i missing. Replaced the water inlet valve and the sequence switch, both GE oem parts and still won't fill. When i manually fill with water to proper level dishwasher works like new, until it drains and cycles to the next cycle and it doesn't fill to allow the water sprayers to work and do their job. Checked float switch manually and it works but dishwasher doesn't fill enough for water to engage. Please help.
For model number GSD5560G00SS
Hello Jim, thank you for inquiring. This could be caused by either a faulty or defective Water Inlet Valve part PS259368, the Motor and Pump Kit part PS260801, or the Float Switch part PS260235. Try checking the water pressure to the valve. The water inlet valve requires at least 20 psi to function properly. We hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Lenwood
August 9, 2019
My dishwasher has standing water at the end. I can turn the start dial and it will drain. Will this part fix the problem even though i can make it drain?
For model number Gsd4120y70bb
Hello Lenwood, thank you for your question. Yes, the piston and nut assembly are showing as the most common fix for this issue. Hope this helps and good luck with the repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Kelley
October 9, 2019
Part number PS260690. Does this part require a seal? If so does, it come with it?
For model number GSD3400G00WW
Hi Kelley,
Thank you for your question. There is a gasket that is needed for the piston and nut assembly and it is sold separately. The part number listed under your model number for the gasket is PS263956. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Bob
August 17, 2021
Motor hums but will not run.
For model number GSD3630F00WW
Hello Bob, Thank you for contacting us. We have researched the model you have provided and recommend checking the following parts to fix your issue: motor and pump kit, and the door latch kit. Hope this helps.
Sometimes does not empty and leaks all over the floor
For model number GSD3200J00BB
Hello Michelle, thank you for reaching out. We would recommend checking the piston and nut assembly, part number PS260690, to fix the issue. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS260690
Manufacturer Part Number: WD24X10018
