Bi-Metal Fuse W10258275

Replaced fuse: no result

Replaced electronic control board: no result.

Replaced front control with buttons: fixed.

Three tries, three times waiting for parts but the result was good.

Got on line at PartSelect and provided the requested Model and Serial numbers. I also used YouTube to "armchair" diagnose the symptoms and reviewed several suggested fixes. Our "touch panel" containing all the control buttons had deteriorated over the years, and I speculated that this panel could be the problem. Since the dishwasher is a few years old and has had heavy use, I also assumed that the thermal sensor would be bad, or at least at the end of its life. Since one LED on the control panel still worked, I knew the unit had power going through it. So I removed the upper latching mechanism and touch panel screws and pulled the panel apart to inspect it for signs of burning, corrosion and possible deterioration. The electronics looked good so I cut the power at my main household electrical panel and proceeded to disassemble and unsnap the inside covers. Then I disconnected two electrical connectors and carefully unfastened the electronics ribbon. I snipped two wires leading to the thermal fuse, replaced them with a new sensor (spliced the two wire feeders with electric nuts) and put that back in place. Then I snapped the new touch control panel back together, replaced the protective cover, and the screws I had removed. I re-energized the house electric panel and-- WALA --the dishwasher sprung back to life! I'm probably slow and methodical, but it took me about 30 minutes to disassemble and reassemble the unit with the new parts. It's great to have the machine back in service, and the tab was only about $160.

0) assure main power was off
1) Opened up the panel assembly according to the instructions and the partselect video using the torx driver.
2) snipped the wires from the old part
3) patched in the new part by twisting the wire ends, inserting them into the assembly and tightening the screws.

Had my dishwasher up and running again within 15 minutes.

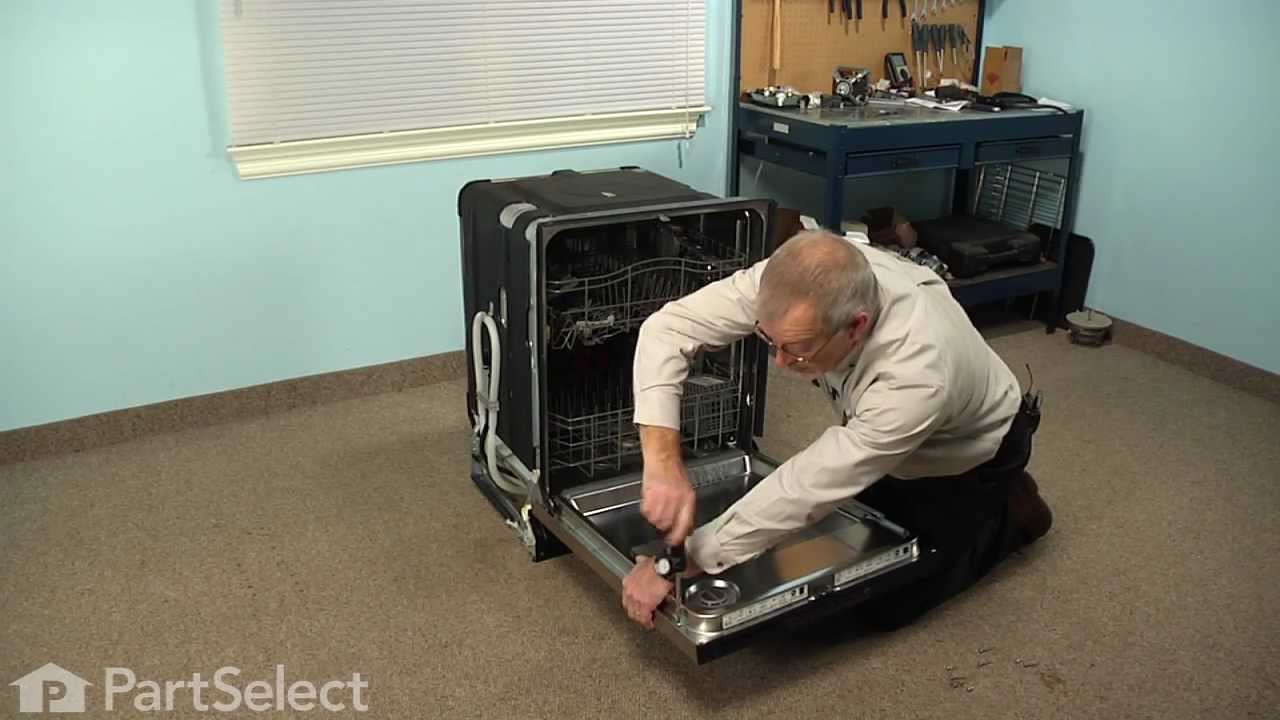

Followed the YouTube video linked with the part ordered and it was an absolute dream

Cut wires to terminal block, removed bi-metal fuse. Rewired to n ew terminal block and snapped on fuse.

After doing some research on the Kitchen Aid issues. I turned off the breaker. Remove the (6) #15 Torx bit screws from the inside upper panel and removed the outside control panel. I located the Bi-Metal Fuse. I turned the breaker back on.Took a Electric Meter and it showed power only on one side. I order the part (BI-Metal Fuse) from the company. Turned the breaker off to there dishwasher. Very easy to install. I cut and trim the (2) wires. Match the black wire with the white stripe to the exact same color code and do the same for the all black wire. Install one wire at a time and tighten down with a small pocket screw driver. Then use the plastic tie straps to secure the (Bi-Metal Fuse).Turn the breaker back on. You are good to go.

Ordered part , removed cover from dishwasher,pull wires from old fuse,pull wires from new fuse and plug wires from washer to new fuse,no need to cut and splice,this fixed my problem

Take out 6 screws from inside door upper most screws to control panel, removed water safety shield 3 easy tabs to release, found old fuse removed , cut wire 1 inch from old fuse removed have to pull fuse out of its plastic holder put in new fuse matched up wires, they are color coordinated, black with white stripe, and one solid black striped wires and twisted them tight, and inserted them in new wire harness that came from parts select tighten them tide them all together and used black electrical tape on all the new connections put back together and it totally fixed the problem so happy saved alot of money not having to call a service repairman

I went on line and saw a video mentioning it may be the fuse and in order to verify that, take piece of scrap wire and jump pass the fuse.If the lights come on then its the fuse,I did and it was.So I found your web site, typed in the word fuse and the part number came up w/ your video showing how to install it. It was GREAT and what a great idea too having the video available w/ the part! I killed the power and I unscrewed the screws and placed them in the pattern they came out of because some are longer than others. I supported the front cover with my knee and had found the wires in advance so I knew which ones to cut, strip and screw into the new replacement part.I replaced it back in the snap on fuse holder and re-screwed it back together starting with the latch ones, using a criss cross pattern like on a tire. And that was that...I will DEFINITELY use this site again...........hopefully not for a while! Thanks so much.

Trouble shoot the problem by checking the Bi-Metal fuse for continuity. You must isolate fuse from circuit and have no power going to the machine. Found fuse open. Replaced with new unit from parts select in accordance with their instructions. Machine now working fine. Suspect fuse becomes bad over time due to current across it. A $28 dollar fix. thank You
