2345209-1-M-Frigidaire-316225001-Bake Element - 240V
Part Location Diagram of 316225001 Frigidaire Bake Element - 240V
See part F67 in the diagram
Replacing your Frigidaire Range Bake Element - 240V
2345209-1-S-Frigidaire-316225001-Bake Element - 240V 360 view
( Grid squares measure 1x1 inch )
2345209-1-S-Frigidaire-316225001-Bake Element - 240V 2345209-1-S-Frigidaire-316225001-Bake Element - 240V 360 view
Part Location Diagram of 316225001 Frigidaire Bake Element - 240V Replacing your Frigidaire Range Bake Element - 240V
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Bake Element - 240V 316225001

★★★★★
★★★★★
6 Reviews

Rated by 3 customers

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

$ 125.09
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS2345209
Manufacturer Part Number 316225001
Manufactured by Frigidaire
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Check if this fits your product and find model diagrams

Need help finding your model number?
Product Description

Bake Element - 240V Specifications

This bake element is found on the bottom of the oven.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Little to no heat when baking | Element will not heat
This part works with the following products:
Range.
This part works with the following products:
Frigidaire, Kenmore, Tappan, Kelvinator.
Part# 316225001 replaces these:
AP4365654, 1472688, 316225001, 316225000
Back to Top
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Randy
February 10, 2022
I need to replace the bake element.However, the wire on one of the sides slipped back inside the stove. Any simple way to recover the wire?
For model number FFEF3043LSN
PartSelect logo
Hi Randy, Thank you for your question. We have included a link to one of our YouTube videos that you may reference on how to install the bake element. The range in the video may appear different from yours, but it will give you a general idea on how to install the part. If the wires have slipped in back, move the insulation aside and see if you can reach in and get them. If they have fallen too low, try and use something with a hook to reach in and get them. If this does not help, you may have to remove the back panel to access them. Before doing any repair please make sure that the oven has been unplugged from the electrical outlet. If you have any questions, please let us know. We are open 7 days a week. We look forward to hearing from you!

1 person found this helpful.

Was this helpful?
Thank you for voting!
  • 1
Back to Top
Part Videos

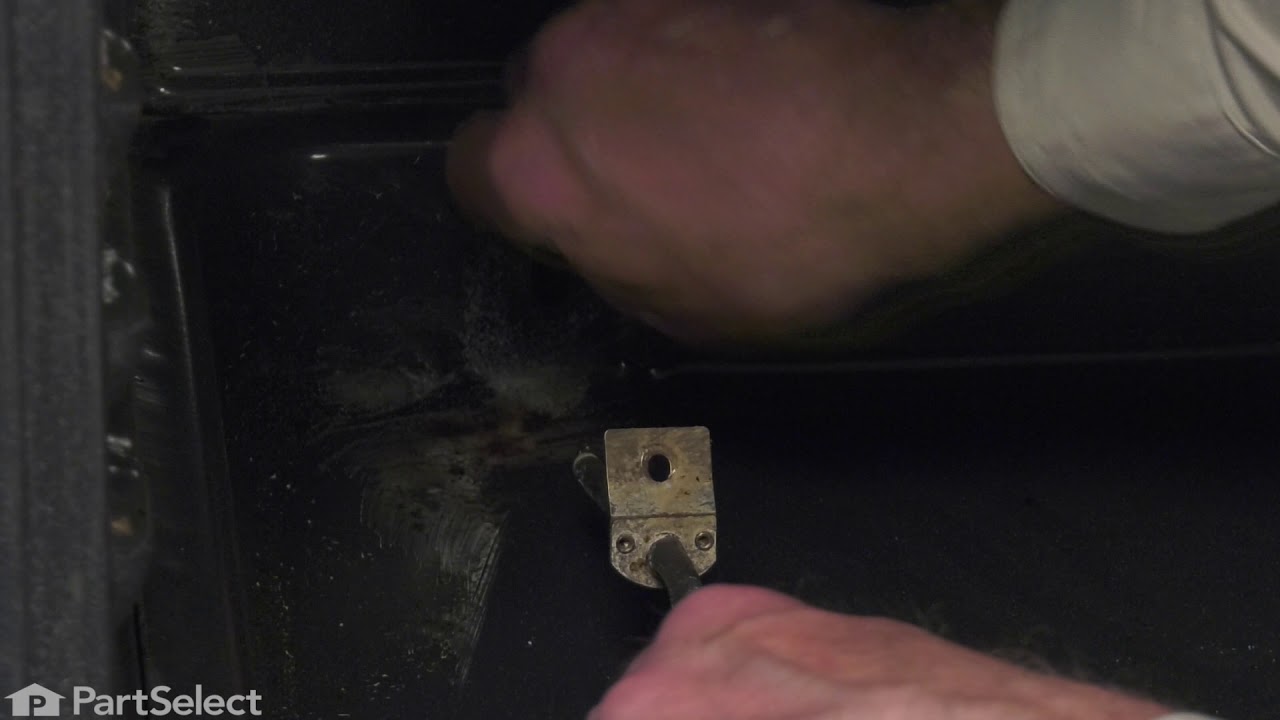

Replacing your Frigidaire Range Bake Element - 240V

Replacing your Frigidaire Range Bake Element - 240V
Back to Top
Customer Repair Stories
 Average Repair Rating: 4.3 / 5.0, 3 reviews. What's this?
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Bottom element burned up
I am 78 years old and I watched the how to video twice and then did it so if I can do it anyone can,oh and I am a woman
  • Peggy from PORTLAND, OR
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The stupid baking element died on CHRISTMAS EVE!
My husband removed the old one in a few minutes, the just popped the new one in when it came. Not for nothing, (where we purchased the stove) wanted $67 for the same part you all charged $49.00
  • Minda from Madras, OR
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers, Socket set
12 of 17 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Bake element(bottom element) melted through, would not turn off until breaker shut off.
Pulled stove away from wall until I could access behind it. Disconnected power source, used nut driver to remove 7 small hex screws with nut driver, from back cover, slide down and away. Disconnect two wire( 1 from each end of element). Open oven door, remove all shelves, remove two screws inside oven on back wall, pull out old element. Guide in new element(gently guide each end through access holes in back of oven, line unscrew holes with retaining clips, insert screws. Place racks back in oven. Reattach back panelnwith 7 screws, plug power source back in. Slide oven back into place. Done.
  • Timothy from Greensburg, PA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Nutdriver
39 of 48 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
6 Reviews
5.0
Filter By Rating:
  • 5 Stars
    6
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Gail P - December 11, 2022
  Verified Purchase
Easy repair, less expensive than a repairman
Part was delivered when expected and my oven is back in working order
★★★★★
★★★★★
Abigail M - January 27, 2022
  Verified Purchase
Easy repair
The easiest thing to repair in the whole house
★★★★★
★★★★★
Alice L - January 5, 2021
  Verified Purchase
Easy to remove and replace
Came as advertised great service will order again for any future parts,thank you for the great service
★★★★★
★★★★★
Vicente B M - April 9, 2019
  Verified Purchase
Satisfied
It was a pricey element, but I am satisfied. Identification and ordering was very simple. Thank you. Appreciatively, Papa V
★★★★★
★★★★★
Randell W - September 5, 2018
  Verified Purchase
Part came in a semi-timely manor, was in good shape
Part went in as expected and worked immediately. Very pleased.
★★★★★
★★★★★
Trevor R - April 24, 2018
  Verified Purchase
It was easy to install, and it works as it is expected to.
The part come on time and in tack. I installed it in about 10 mins, and now the oven is in good working order once more.
  • 1
