Part Location Diagram of W10207863 Whirlpool Float Stem Kit
See part 12 in the diagram
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.com

Float Stem Kit W10207863

Rated by 2 customers

A Bit Difficult

1- 2 hours

Ratings submitted by customers like you who bought this part.

$ 40.56
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS2338895
Manufacturer Part Number W10207863
Manufactured by Whirlpool for KitchenAid, Kenmore, Whirlpool
Product Description

Float Stem Kit Specifications

This kit comes with the float stem, gasket and switch.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Leaking | Will not fill with water
This part works with the following products:
Dishwasher.
Part# W10207863 replaces these:
AP4357378, 1460983, 116269, 116270, 4161731, 4161732, 4161733, 4171145, 9741999, 9742937, 9742938
Back to Top
Customer Repair Stories
 Average Repair Rating: 2.2 / 5.0, 2 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Old float stem had fine thread new one had corse and did not supply nut so had to use old one over.
put new switch and new gasket on old float stem with old nut. but it still overflows about 1/2 cup of water through stem
Other Parts Used:
Float Stem Kit Gasket Float Switch Dishwasher Float
  • Daniel from Duxbury, MA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers, Wrench (Adjustable)
10 of 39 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher often didn't fill with water.
Remove power, either unplug the unit or locate and turn off the circuit breaker. There is power under the dishwasher even if it is not running.

Use the nut driver to remove both lower panels to gain access to the bottom of the dishwasher.

I suspected the overflow switch and used the ohm meter to discover the resistance of the switch, with no water in the washer, measured anywhere from a couple of ohms to 40 ohms or more and of course it should be less than one ohm.

There was no sign of any leakage or other problem so I wanted to keep the job simple and replace only the actual micro switch.

Problem! The micro switch is mounted on the back side of the float stem kit and visibility is severely limited. About all you can see are the switch terminals and the head of the phillips screw that holds the microswitch on the rest of the float stem kit.. You'll definitely need a small mirror.

I first pulled the wires from the microswitch terminals. Then I used a small phillips screw driver to remove the screw holding the switch and the first thing that happened is the small white float lever fell out. (I didn't know that it was even there because of the poor visibility. Ugly surprise!)

I spent 1/2 hour or more studying how the lever went in and found that the cirular end of the lever fits into a circular depression in the assembly body and was HELD IN BY THE SWITCH. (Now it's really getting ugly!)

The problem then is how to get the lever back in place and have it stay there while placing the micro switch back in place. There just isn't any easy way to do that. If only the switch and lever were one piece it would have been so simple.

Aha!

I placed and aligned both the lever and the microswitch on the float assembly body that I received. Using a couple of small pieces of electricians tape I taped the microswitch and lever together so they were one piece. Then I carefully (very carefully) removed the switch/lever
"assembly" that I made and eased it into position onto back side of the dishwasher float stem assembly body. When the switch is almost in place there is just barely room to get the tip of your finger in there and seat the rounded end of the lever into the depression. After seating the lever, carefully replace and tighten the phillips screw holding the switch in place. Then remove the electricians tape.

Replace the wires on the micro switch terminals, replace the front panels, put your tools away, and by golly, you're done.

This repair is not for the faint-hearted nor for those with fat fingers or who tend to be klutsy. It took me three or four attemps and a couple of hours to get the microswitch and float lever into place. But I think it was worth it as I didn't have to remove the dishwasher, play with water lines, or remove the full float assembly thus avoiding creating other problems that might likely result in water leaks and additional repairs..

If you decide to try this repair, good luck. It can be done but it is tough.
  • Lorrin from Longview, WA
  • Difficulty Level:
    Very Difficult
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Nutdriver, Screw drivers
11 of 14 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

3 questions answered by our experts.
Sort by:
  • 1
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Bill
August 2, 2017
Not enough water enters dishwasher water pressure is 40 only about 1/2 inchof water in the very bottom this in in wash and rinse
For model number KUDM25SHWH1
PartSelect logo
Hi Bill, Thank you for your inquiry. It sounds like your Water Inlet Valve might be malfunctioning. You should test it with a multi-meter to see if this is the cause of your dishwasher not filling properly. I hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Justin
August 1, 2018

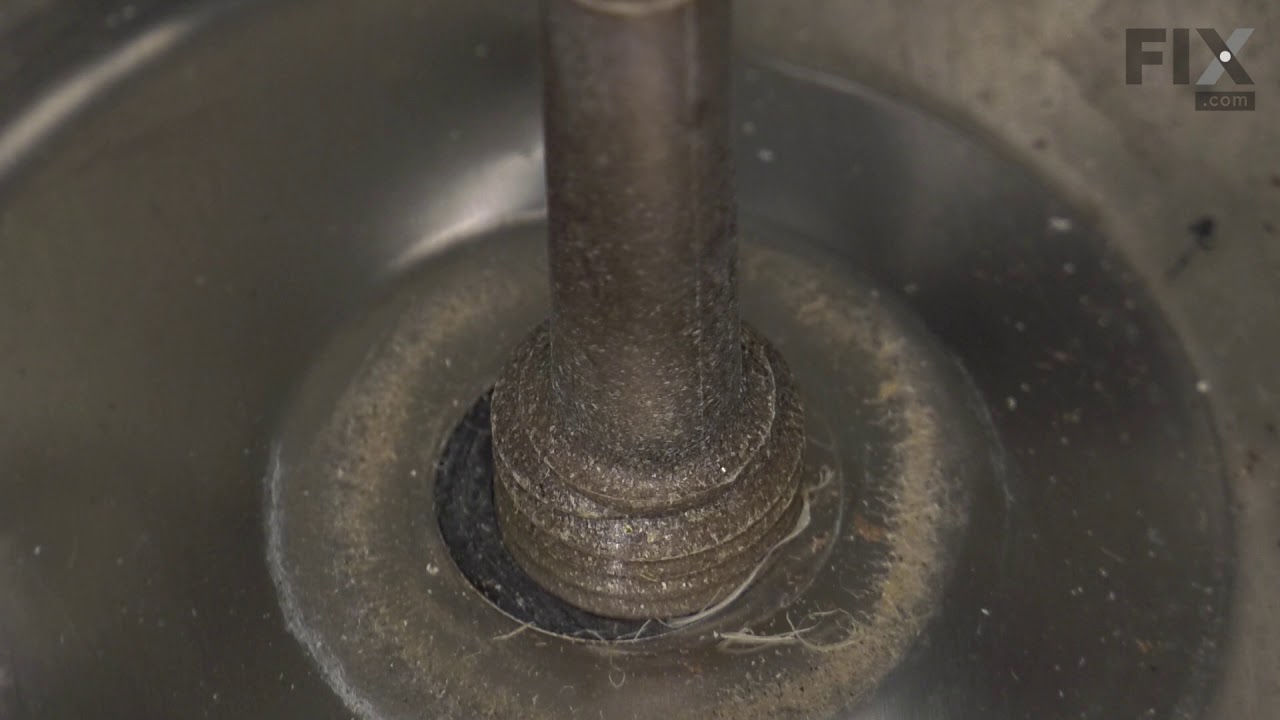

Water is leaking from the float through the shaft, similar to YouTube link provided. Would i need to replace the float,float stem kit, or gasket?
For model number WDT790SLYM0
PartSelect logo
Hi Justin, Thank you for your question. Unfortunately this kit does not belong underneath your model information so we could not say that it would work for you. However you would likely have to inspect the parts to see which one for sure you will have to replace. It seems like the gasket would be the most likely part that is the problem, but it is always better to double check. I hope that helps. Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Eduardo
March 1, 2023
My washer is leaking underneath. I am thinking it’s the gasket. Should I just buy the kit since it includes the gasket. Any videos on how to get to the gasket?
For model number KUDP220T0
PartSelect logo
Hi Eduardo, thank you for reaching out. Yes, you can buy the gasket, part number PS11746142, separately. We have attached a relevant video to help you get to the gasket. We hope this information helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
  • 1
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS2338895
Manufacturer Part Number: W10207863
Brand
Model Number
Description
KitchenAid
4KPDI620T0
Dishwasher
KitchenAid
4KPDI620T1
Dishwasher
KitchenAid
4KPDI620T2
Dishwasher
KitchenAid
4KPDI620T3
Dishwasher
KitchenAid
4KUDA220T0
Dishwasher
KitchenAid
4KUDA220T1
Dishwasher
KitchenAid
4KUDA220T2
Dishwasher
KitchenAid
4KUDA220T3
Dishwasher
KitchenAid
4KUDA220T5
Dishwasher
KitchenAid
4KUDA220TW0
Dishwasher
KitchenAid
4KUDA220TW1
Dishwasher
KitchenAid
4KUDA220TW2
Dishwasher
KitchenAid
4KUDA220TW3
Dishwasher
KitchenAid
4KUDA22ST0
Dishwasher
KitchenAid
4KUDA22ST1
Dishwasher
KitchenAid
4KUDA22ST2
Dishwasher
KitchenAid
4KUDC220T0
Dishwasher
KitchenAid
4KUDC220T1
Dishwasher
KitchenAid
4KUDC220T2
Dishwasher
KitchenAid
4KUDC220T3
Dishwasher
KitchenAid
4KUDC220T5
Dishwasher
KitchenAid
4KUDI220T0
Dishwasher
KitchenAid
4KUDI220T1
Dishwasher
KitchenAid
4KUDI220T2
Dishwasher
KitchenAid
4KUDI220T3
Dishwasher
KitchenAid
4KUDI220WW0
Dishwasher
KitchenAid
4KUDP220T0
Dishwasher
KitchenAid
4KUDP220T1
Dishwasher
KitchenAid
4KUDP220T2
Dishwasher
KitchenAid
4KUDP220T3
Dishwasher
