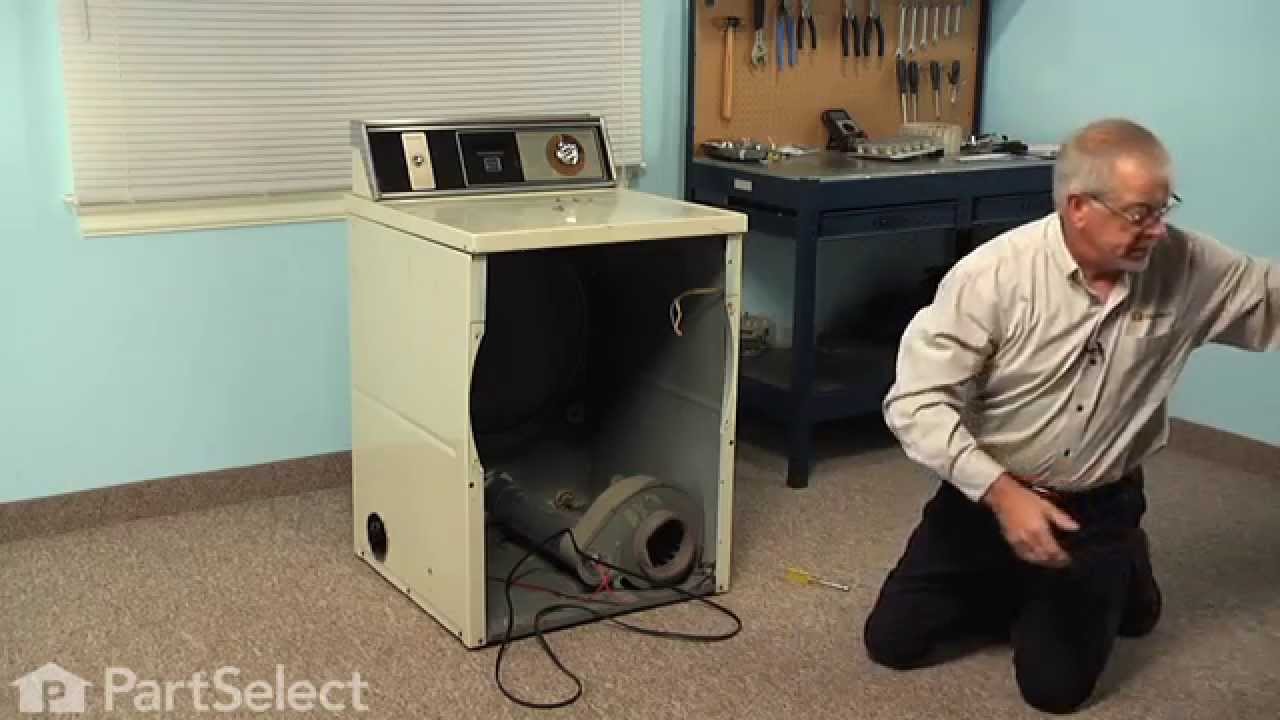

Heating Element Kit - Red Dot 61927

Well first of all you get to the back of the dryer from the FRONT.. after lower panel was removed location of the heating element was right in front of you. Two 7/16 sheet metal screws hold the heating element in place very easy to remove.. upon removal you will have plenty of room to pull element out and switch out the wires you need to ... Read more do.. Upon examination I think my trouble was a high limit fuse that burned out, so I propably did'nt need to buy the whole element ( you might want to check that first it is the ceramic one ) cleaned everything out and dryer is as good as new Good luck

Simple,I unplugged the dryer and took off the panel located below the dryer door. To do that unscrewed 2 small screws on the underside of the panel. Once that was off I used a flashlight to locate the heating element which was in the rear of my Amana. Using a socket attached to a screw driver I turned 4 screws out of the element and it wa ... Read more s free. I brought the element closer and compared it with the new element and made note of the wire pattern. I plugged in the new wires I received in the box into the new unit and then one by one unhooked the wire leads coming out of the dryer. I reversed the above there it was...maybe 30 minutes!

Loosened the screws, took out the old one. It shorted out to back. Inserted the new one attached wires, Installed screws and it worked

This was the second time we lost the High Limit Thermal Fuse. My wife dried some new towels and the lint filter completely plugged before the cycle was done and popped the high limit fuse. I went throught this before and paid a fortune for a repairman and ended up installing the thermal fuse myself so I did it myself and saved about $10 ... Read more 0. I also ordered an element kit so I have it. I will just swap out element units if there is a next time. Maybe the next time we buy new towels. It only takes few minutes to remove the front lower panel and unplug two wires, remove two screws and the element assembly with both the fuse and the thermostat are out. It is easy to replace the fuse with the element assembly in your hands and in good light.

I just took the bottom front panel off and the parts I needed to rplace where in the back and very easy to get to . I decided to replace all 3 while I was in there. The parts were not to high, so that is why I did that.

removed the lower cover, tipped the dryer on its back for easier access, unscrewed the 2 mounting screws removed the heating element, installed the thermostat and and high tempt relay on new one replaced the wires reinstalled the new element, very simple

did basic diagnostics to narrow down the problem to be likely one of the three parts include w/ the kit. removed front panel and confirmed that part looked like the one on the web page. part arrived 3 business days after ordering.
used nutdriver to remove two screws holding old part in place. pulled old part out still attached to w ... Read more iring harness and assembled new part and attached wires the same way as the old part. installed new part, plugged in dryer and confirmed that it was heating. replaced front pannel and dryer is now working as well as ever. hardest part was reaching to the back of the dryer from the front while lying on the floor. total cost was cheaper than a service call, let alone paying for parts and labor from a service tech.

remove front part of the dryer and rise up the top to remove drum to replace the belt. than remove two screws for the heating element piece of cake repair.

The repair went very well. The parts were a perfect fit and arrived earlier than expected.It took a little longer than it should have to do the repair because of my recent surgery I had my 11 year old grandson operating the nut driver taking the dryer apart install the parts then reassemble under my watch full eye. You could say it went s ... Read more o easy a fifth grader could do it.

I took off two screws on the front panel and removed it. I then located the old element inside at the back, left side of the dryer. I removed the two screws holding it in and then transfered the wires to the new element. My dryer works better than it ever did before. Thanks,
