This fan motor is most times used with frost-free refrigerators with a condenser coil. When the compressor runs, so does this fan, circulating air through the refrigerator grille, cooling the compressor and condenser coils. This fan motor also helps to evaporate excess water in the drain pan.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Noisy | Fridge too warm | Freezer section too warm | Will Not Start
Ask our experts a question about this part and we'll get back to you as soon as possible!
10 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Wendell
September 8, 2017
How many volts is on the condenser fan
For model number GSS22WGPHBB
Hi Wendell,
Thank you for the question. This motor is 115V.
Good luck with the repair!
20 people found this helpful.
Was this helpful?
Thank you for voting!
Deborah
December 1, 2017
My Hotpoint is making a screeching noise like a eirrie scrapping on and off when it begins running. What would cause this
For model number HTS22GBPBRWW
Hi Deborah, Thank you for the question. It would depend on the area of the appliance the noise is coming from. If it is coming from the back of the freezer it would be the Evaporator Fan Motor, PartSelect Number PS1766252. If it is coming from the bottom of the appliance, it would be the Condenser Fan Motor, PartSelect Number PS1766247. I suggest listening for the noise to see what section it is coming from. You can also try cleaning and checking the fan blades on the motors to ensure they are operating properly as well. Hope this helps!
5 people found this helpful.
Was this helpful?
Thank you for voting!
Fernando
October 22, 2019
In between doors and left outside freezer gets hot. Changed condenser fan, cleaned out all dirt inside and out side condenser. Still hot after i plugged it for 8 hrs. What is the next step, evaporator fan or temp sensors in the freezer part? Thanks in advance.
For model number HSM25GFTISA
Hello Fernando and thanks for writing.
You should check the following components:
Temperature sensor #PS304103 and after that the electronic board # PS12069099. We hope this helps. Please contact us anytime.
Should the condenser cooling fan stay on all the time? My unit will run really cold for a while, well below what I set it at. Then it will start getting warmer and warmer to where it’s not functioning right. I’ve checked three of the thermistors, the condenser fan and the other fan and all our operational. The evaporator fan is new and came with a thermistor.
For model number Dss25ksrdSS
Hello Charlie, Thank you for the question. The Condenser Fan will run while the Compressor is running to keep it cool and air flow over the coils. We suggest testing the Temperature Sensor. If the Sensor is good, you may have to replace the Interface Control Board, PartSelect Number PS966899. We hope this helps!
The fan is frooze up the unit will not start is there a safety system in place to prevent the unit from starting if the fan dose not work.Or should i look for more problems? Thank you
For model number HSM25GFRFSA
Hello Richard, Thank you for your inquiry. No the fridge should keep working if the condenser fan is frozen. However, if it is not working, it can lead to other issues. If your fridge will not start, we would recommend checking the following parts to fix your issue: run capacitor, start relay/overload, defrost thermostat, defrost heater, temperature sensor, evaporator fan motor and the electronic control board. You can test the parts with a multimeter. If you are unfamiliar with how a multimeter functions, there are YouTube videos available to assist you. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Edna
May 1, 2018
Which condenser fan motor, grommet and blade fan assembly fit and will work properly with my GE refrigerator model gsz25wgaww. Please let me know the parts reference numbers.
For model number GSZ25WGAWW
Hello Edna, thank you for your question. The DC Condenser Fan Motor - 12V is PartSelect Number: PS1483567 the Fan Motor Grommet is PartSelect Number: PS284959 (qty2) and BLADE CONF FAN ASM Part Number: PS11726966. Please enter the part number into the site for current price and availability. Good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Edna
April 29, 2018
Does this part belong in and work in the GE fridge above-mentioned model?
For model number GSS25WGSAWW
Hello Edna,
Thanks for your question. No, the condenser fan motor for your model is part number PS1483567.
I hope this helps.
Which condenser fan motor, grommet and blade fan assembly fit and will work properly with my GE refrigerator model gsz25wgsww. Please let me know the parts reference numbers.
For model number GSSZ25WGSWW
Hi Edna,
Thank you for your question. The part numbers listed under your model number for the condenser fan motor, the grommet and the blade are, in order, PS1483567, PS773826 and PS11726966. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Harold
November 18, 2021
Not sure if this is the part I need. I replaced the sensor in fridge that is near the freezer because fridge side wasnt cooling. When finished with repair I turned breaker on and now nothing is running on either side. Only thing on is the light inside fridge. Checked the compressor starter relay and it didnt rattle. Do you have any suggestions?
For model number GSL25JFPABS
Hi Harold,
Thank you for your question. If your refrigerator is not working, there are some parts that you will need to check to see which one is causing the issue. You will need to check the capacitor, the condenser fan motor, the electronic control board and the start relay. You will find information on how to test these parts under Free Repair Help and Instant Repairman on our website. We hope this helps! Good luck with the repair!
I see 2 different Condenser Motors. One is AC DC and one looks to be just DC. Which one do I need for my model number?
For model number gth18ebt2rww
Hello Susan, thank you for writing. There are two different motors in all models. The Condenser Motor PS11701278 is located down where the compressor is located. The Evaporator Motor PS12741350 is located at the top of the freezer. We look forward to hearing from you.
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

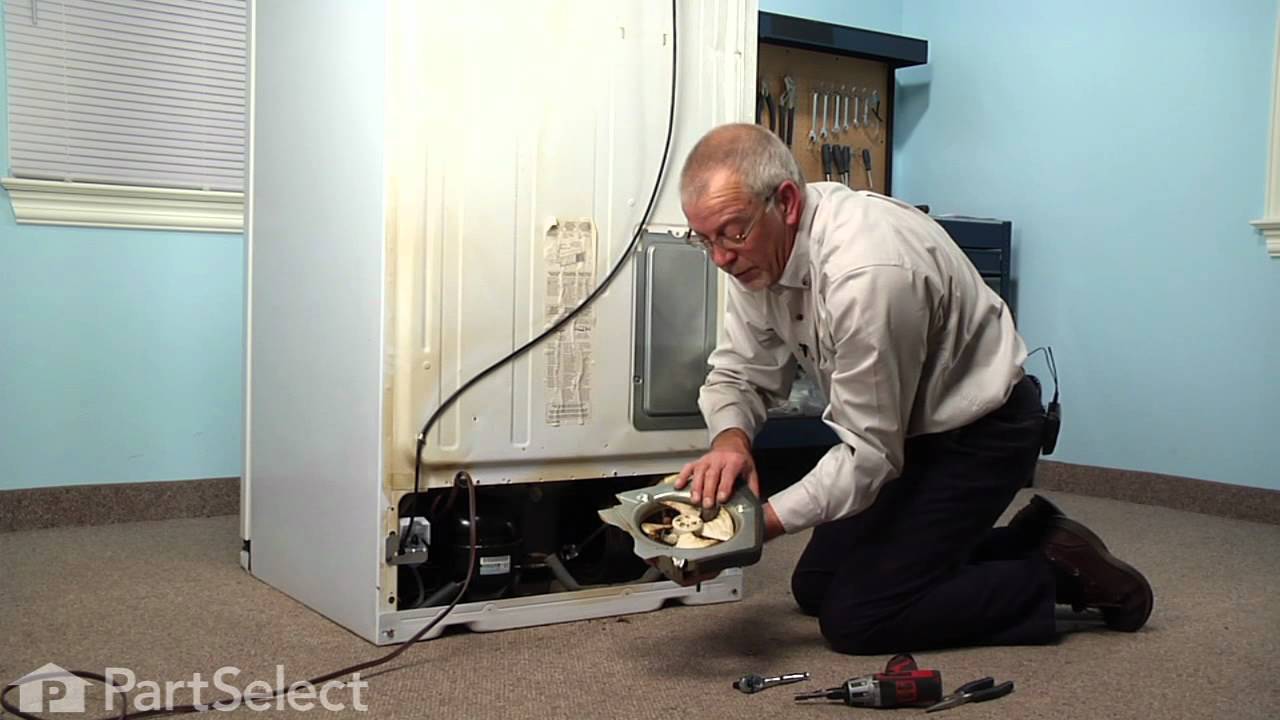

Replacing your General Electric Refrigerator Condenser Fan Motor
Customer Repair Stories
Average Repair Rating: 3.6 / 5.0, 21 reviews.
What's this?
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
My refrigerator began to overheat and the everything was thawing!!
My refrigerator began to overheat and the everything was thawing!! The condenser fan motor had seized and I thought this is something even I can replace.
I did a Google search on the refrigerator model number. The link to your site looked promising and I clicked on it. I was taken to your web page for my refrigerator and I clicked on the schematic for the condenser assembly.
The schematic had the parts I needed labeled clearly so this layman could be sure to get the right ones.
I ordered the parts at 12:45PM Monday and selected overnight shipping. The parts arrived at 8:35AM Tuesday (Thank you FedEx). I installed the parts and my refrigerator is up and running again.
To get to the condenser fan motor I took off the back panel on the fridge that covers the condenser, fan and coil. The fan/motor assembly is attached to a bracket I removed with two screws. Pulled the bracket assembly out of the back of the fridge, removed the fan blade and then the motor, and put the new motor on the bracket and stuck the new fan blade on the motor spindle. The trickiest part was getting the complete assembly back in. Just went slowly and took my time. Reconnected the wires, no problems. I took pictures of everything that I disassembled BEFORE I disassembled it in case I wasn't sure how something went back in but this job was so simple I didn't need the pictures.
I’m not sure how I could improve on this except maybe you could ship a refrigerator technician, too, to do the install.
Thank you PartSelect everything worked out better than I could have hoped and I saved $220.00 compared to what a repair service was quoting.
took one screw that held the whole fan housing on, its a tight fit to try and pull it out cause of the copper lines in the back so I just turned it enough to where I could get to the 2 screws on the fan bracket, took the old fan and the rubber grommets out and replaced them! Put everything back together and works like new! Nice and quite! Plus I saved about $200-300 if a tech. would have came and fixed it!
1. Unplugged the fridge. 2. unplugged the fan connection and removed the wire holding clip. 3. removed the 2 screws holding the motor bracket in place and removed the bracket. 4. Pulled gently back on the motor so that the fan pressed against the front bracket until the fan slid off the motor shaft. 5. Pulled the rubber motor mounts off of the old motor and placed on the new motor. 6. Slide the new motor in place pressed the fan all the way onto the shaft. 7. Placed the rear motor bracket in place and started the screws by hand making sure the ground wire was attached to the furthest away screw. 8. tightened the screws down. 9. Pushed in the wire holding clip into the clip hole. 10. Plugged back in the fan. 11. Plugged back in the fridge. 12. Turned down the temp on the fridge to kick on the compressor and checked to assure the fan was operating and then set the temp back to normal. 13. Vacuumed the condenser coils to get them all clean and ready for more years of service!
Arthur from Alamosa, CO
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
14 of 15 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Refrigerator
The hard part was cleaning the dust around the coil and fan area. Its plug and play right after that. Two nuts on the fan housing and a wire harness snaps on and off. Bam! 1,2,3 Up and running. . Like new. . . Thank you ps
Robert from Cutler Bay, FL
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Wrench (Adjustable)
7 of 11 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
bad condenser fan motor, noisy
used prior reviews, was good, I was not sure how to remove fan blade. It just pulls off. space is tight but every thing went ok.
Jerold from Rocklin, CA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
4 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Ref was not freezing correctly
took back cover off. swept the rear with a vacuum cleaner to get rid of dust.found that the fan would not turn. ordered part with your really great ordering technique. Part was suppose to be here in 3-5 days and was here the next day!!!.Removed 2 bolts pulled out the plastic clip that held the wire on. and worked the fan blade off shaft. removed and replaced in the same order as taking simple Thanks
Desiree from Greensburg, PA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
4 of 7 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noise from Condensor Fan and Fan Motor.
I watched the video provided by PartSelect twice, then proceeded with the removal and installation. It took me 40 minutes from start to finish. Piece of Cake. Everything works fine now.
the refrigerator did warm up arround the doors until the freezer side stops work.
After I have checked oline , I ordered the parts wich Igot a day early and fix it , it took me about 15 minutes and I saved at 250.00 dollars . Thanks for all the help.
We noticed the wall between the doors was quite hot. It is a side door refrigerator. Thank God we weren't gone on vacation, this could have caused our home to catch on fire!
Husband did the installation. Said it was easy and he had no problems with the repair. He's great at various do it yourself repairs.
Connie from COALWOOD, WV
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
44 Reviews
4.9
Filter By Rating:
5 Stars
40
4 Stars
4
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
MARTA E - January 29, 2023
Verified Purchase
Part for refrigerator
Just what we needed. Fixed our 17 yr refrigerator and didn’t have to buy a new one
★★★★★
★★★★★
Connie P - September 12, 2022
Verified Purchase
Easy repair
My appliance is back in working order.
★★★★★
★★★★★
Robert M - April 28, 2022
Verified Purchase
Fit perfectly
The part was slightly difficult to install but worked out well. Fridge has been running just fine and quiet for around a month.
★★★★★
★★★★★
Jacob G - March 8, 2022
Verified Purchase
Great part, took patience to install
I was really happy with the part and speed of delivery. The install was a little tedious and required more tools than the video. I had to disassemble/reassemble the components while everything was still under the fridge. The placement of the copper lines prevented the easy method shown in the video. It worked though and saved my a ton of money!
★★★★★
★★★★★
Joseph H - January 10, 2022
Verified Purchase
Easy part to find, thanks to part select and the repair was easy too. Saved hundreds by just doing it myself but then again this is what I do.
Part came very fast and the price was right. Glad i didn't wait until it stopped working all together. Once it started making noise was a good time to change it.
★★★★★
★★★★★
Keil, B - September 22, 2021
Verified Purchase
Simple Repair
Professional organization, professional part. Hearing the clicking, we rolled out the frig, took off the back and in two minutes saw the obvious. Ordering the part, simple, just followed the Part Select Guide and the accompanying video. The part arrived in three days. My wife and I followed the video and replaced the part in fifteen minutes. Really simple and sort of satisfying.
A power drill and 1/4 socket is all you need.
Frig is working just fine.
★★★★★
★★★★★
Serhiy H - July 10, 2021
Verified Purchase
Good
Work
★★★★★
★★★★★
Craig H - May 12, 2021
Verified Purchase
Easy Repair thanks to Part Slect
Being able to match the part. Order the part and then the video of house to replace the part. DONE! Thank you
★★★★★
★★★★★
David L - April 4, 2021
Verified Purchase
This Part Arrived In Less Than 24 Hours
everything was as advertised, and better.
i was stunned to receive the part the very next morning despite having ordered it late the previous afternoon. i am in nyc and the part came from up-state.
it was exactly what i needed and i was able to install it in less than 10 minutes.
i always go to you tube and watch professionals explain how to DIY appliance repair and i always save money.
PartSelect makes the entire process that much easier, and that much cheaper too.
