Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

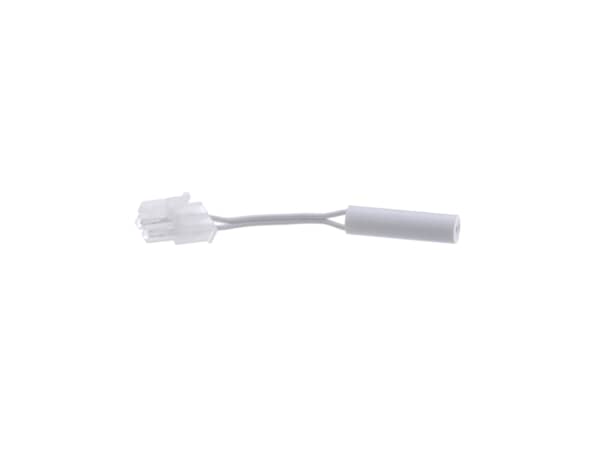

This temperature sensor, also known as a thermistor, is responsible for preventing the evaporator within your refrigerator from overheating during its defrosting cycle. This sensor is compatible with various makes and models of refrigerator and is sold as an individual part. This sensor works with the electronic control board within your refrigerator to control the temperature by turning the compressor on or off. If your fridge is too warm or too cold, consider changing the thermistor with this genuine OEM part, and make sure to disconnect the power to the refrigerator before doing any repairs.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
William H - October 28, 2021
Verified Purchase
Great part
Fast shipping, fit easy
★★★★★
★★★★★
David K - October 5, 2018
Verified Purchase
Wrong part but don’t think there fault
we triple checked the part number to the fridge when we receive the part we noticed it was a clip on but the fridge raider did not have a coupon feature .Delivery was great and customer service was amazing as well
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.7 / 5.0, 2 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
My fridge temp was warm. Freezer temp was ok, but fluctuated some.
I checked the dampener, it worked. The compressor and fan worked. I knew because my freezer was still hovering around 10 degrees. Coils were clean. Thermistor was the only thing it could be. Took all my shelves out. Removed four screws. Took the back panel off. The thermistor sits tucked in on the side. I piped it out, in clipped it. Used
... Read more my multimeter to test the numbers. Numbers were off just a bit. Ordered the part. Crossed my fingers.,took less then 5 minutes to put the part in. Plugged in the fridge. It was sitting at 33 degrees in about an hour and a half. I can’t believe I fixed it. I knew NOTHING about refrigerators. For how big my fridge is, it would have cost 3,000 and up to get a new one with the same cu ft size. Instead, it cost me $44. That includes shipping. Thank you Parts Select!! Made it so easy to pick the correct part for my model fridge!
Read less
Cindy from AMARILLO, TX
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
44 of 72 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
2 drawer undercounter beverage ref not getting cold enough. Wont get below 48°
Took drawers out by removing 2 screws on top of rail near front, then popped black plastic cover off in lower right inside cabinet...sensor just un plugged and new one plugged in easily...did not fix problem though...display set at 34 but bottom drawer reads about 40 at best and upper drawer reads around 55...dont think the 3 little fans
... Read moreinside on back wall have been running
Read less
Tim from SYLVANIA, OH
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
8 of 11 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
4 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Vince
April 19, 2025
Sy ef. Evap fan not coming on. Defrost is fine, replaced motor and temp. Sensor. Is there anything else besides the board?
For model number FGHS2631PF2
Hello Vince, thank you for getting in touch. Based on our research, the error code you mentioned indicates a problem with the evaporator fan circuit, likely causing the freezer to be not cold enough. As you have already replaced the evaporator fan motor and the temperature sensor, we would recommend making sure that the motor's wire harness is intact. If the problem persists, then you may need to check the control board, part number PS10062915, to solve the problem. We hope this helps!
Hi my problem is it keeps freezing foods near the back and in crisper draws at bottom.. changed the damper air tower and didn’t help.. lil ice build up on the lower half of tower.. any suggestions thanks
For model number GRFS2853AF4
Hello Johnson, thank you for your inquiry. Ensure the refrigerator temperature is set correctly. The recommended temperature for the fridge is between 37°F and 40°F (3°C to 4°C). If it’s set too low, it can cause freezing. Also, ensure there’s no blockage in the air vents between the freezer and fridge. Restricted airflow can cause uneven cooling and freezing in certain areas. A faulty thermistor (temperature sensor) can cause the refrigerator to overcool. Test the thermistor for continuity using a multimeter and replace it if defective. The part number is PS17647917. We hope this solves your problem!
Was this helpful?
Thank you for voting!
Michael
May 25, 2025
The fridge was moved to another town on its side. Then it was left to stand for for 3 days to allow the fluids inside to settle..
We plugged the unit in this morning. It is now like an oven in the top part as well as the freezer section. The alarm is going off and the temp indicates 49º C in both compartments. Any ideas would be very much appreciated.
For model number FGUN2642LF5
Hello Michael, thank you for getting in touch. Based on our understanding of the issue, we would suggest checking the inverter board, part number PS2361242, to solve the problem. A malfunctioning inverter board will cause the compressor to not kick on, causing the refrigerator to not cool. We hope this helps!
I know this is the model number of my Frigidaire refrigerator, I’ll check again today. It’s only 2 years old and now the freezer builds ice all over the evaporator and won’t get cold enough and the fridge side sits at 50 degrees. I was thinking it could be the defrost sensor/ thermostat. It’s black side by side with ice/ water on front. I removed back panel from freezer and don’t see the sensor? Want to get correct part
For model number FRSS2623AB8
Hi Doug, thank you for reaching out. The issue could be with the thermistor kit, part number PS8769098. You may need to replace it to fix the issue. We hope this sorts out your problem!
