SOCKT-LITE
$
54.63
In Stock
Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.
PartSelect Number PS16730838
Manufacturer Part Number W11594027
Manufactured by
Whirlpool

Check if this fits your product and find model diagrams
Need help finding your model number?
Product Description
SOCKT-LITE Specifications
The light socket on your electric range connects the power source to the light bulb. If your oven light is malfunctioning, you may need to replace the light socket. The light socket is located in the back of your range, so in order to access it you will need to remove the back panel. Many of our customers have rated this repair as easy, and it should take less than 15 minutes. Before you begin this repair, make sure to disconnect the power source from your range. This is an OEM part sourced directly from the manufacturer.

How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Will Not Start
This part works with the following products:
Range, Wall Oven, Microwave Oven Combo.
This part works with the following products:
Whirlpool, KitchenAid, Maytag, Kenmore.
Part# W11594027 replaces these:
3150505, 3176512, 3196701, 880009, 880012, 9750925, 9781050, W10454648, W10512757, W10565174, W11175594, W11281687, W11544370, WPW10454648
Questions and Answers
Be the first to ask our experts a question about this part!
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

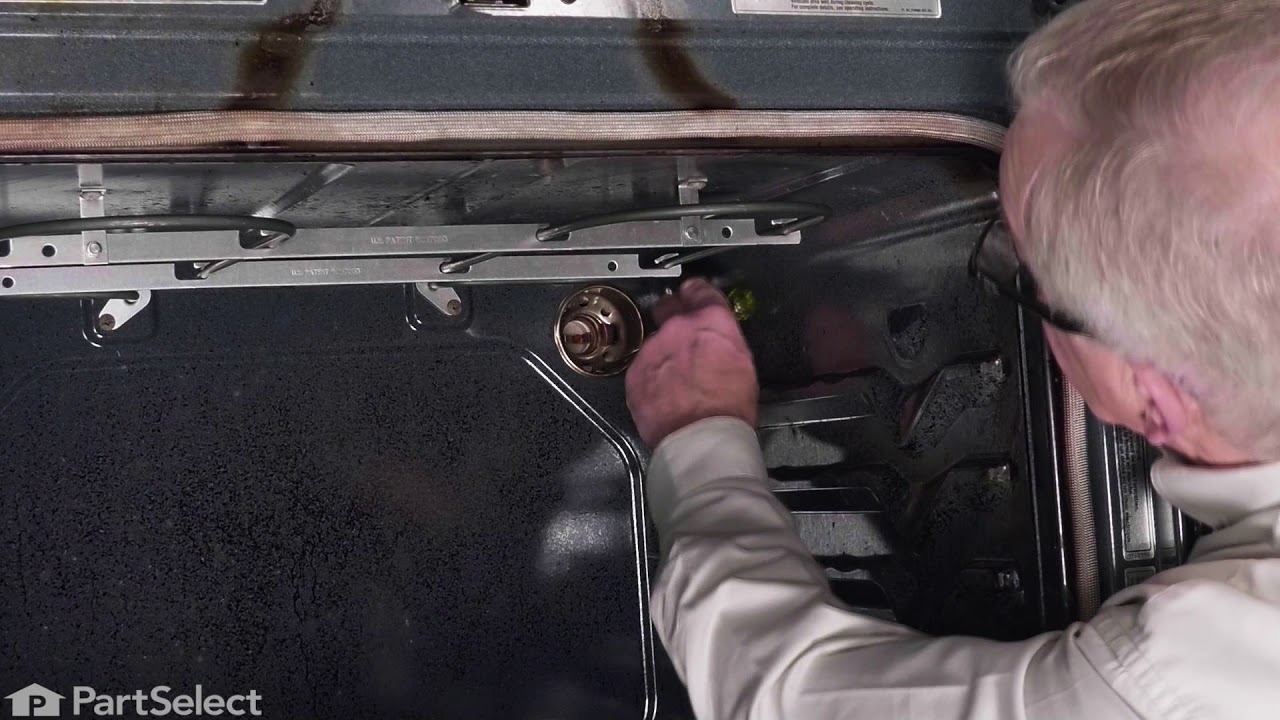

Replacing your Whirlpool Range SOCKT-LITE

Customer Repair Stories
Average Repair Rating: 3.5 / 5.0, 13 reviews.
What's this?
- < Prev
- 1
- 2
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Socket Light had a bad thread
Socket Lite come with clips attached to the outside
of the housing. After you unhook the 3 lead wires
that are attached to the unit. All you have to do is push in on the clips and release the unit. Then you
snap in the new unit. Attach the 3 wire leads, put a
oven bulb in the socket end, and the install the light cover
of the housing. After you unhook the 3 lead wires
that are attached to the unit. All you have to do is push in on the clips and release the unit. Then you
snap in the new unit. Attach the 3 wire leads, put a
oven bulb in the socket end, and the install the light cover
-
Edmund from Emporium, PA
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
44 of 57 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Inside brass liner in socket came out when bulb was removed. Apparently had welded itself to the base of the bulb
Removed oven from wall unit and took the back off. Removed the old socket assembly by depressing the ears and forcing unit into the oven. The electrical wires were easily removed since they are spade connections and slip off. They also are different sizes so that there is no chance of erroneously putting them back in an incorrect order. The new unit simply slips in from the front and snaps into place. The most difficult part of the entire process is removing the old unit. A little "friendly persuasion" is required to get the old unit out.
-
Lewis from Chapin, SC
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
21 of 25 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven light not working
I turned off the breaker (I'm a little nervous even unplugging a 220 plug). I first removed the cover from the back of the stove to get to the wiring/socket. Removed the two wires from the leads - they just pull off by hand but use a needlenose pilers if it is stuck. One is larger so no need to try to remember which one goes where. I removed the glass cover and bulb from inside the oven. I read another post on this site that said there were clips that you had to press to get the old socket out which helped. That part was a little tricky as the insulation around the socket makes it hard to see and the opening is really tight. I finally found the clips and pressed one then got that side out enough to hold the clip back then pressed the other clip and I was able to push it right out. I did not have the strength to press both clips with enough pressure but if you do, that would probably be easier. From inside the oven, I pushed the new socket through the hole - there was a little notch in the opening that had to match up with the socket. I had to push pretty firmly until I felt both clips snap in place. Replaced the wires, turned on the power, screwed in the bulb and cover and I had light!
-
Carol from Allison Park, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
18 of 25 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven light would not work--faulty socket
After removing the back of the stove, the old light socket was fairly easy to remove. The new socket slipped in place and the wires reattached and now the oven has a light again. A very simple process--especially for someone who's not an expert in repairing appliances.
-
Delores from Warren, MN
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Socket set
10 of 12 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven Light Would Not Work, Old Bulb Broken
Had already removed back covers and disconntedted power. When io received parts I replaced them in reverse oder I had removed them. Took me longer to replace back covers because of my bad diabetic hands. Thanks very much, yopu savbed me a bunch. God bless you and yours, god bless america.
Other Parts Used:
-
LOUIS from FREEPORT, TX
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Screw drivers
9 of 16 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven lamp socket had broken center electric tab - failed.
1993 model oven, built in wall model, so didn't to remove oven for the normal rear access to replace the lamp socket. As someone else posted, replacement can be done from inside the oven -- BUT the socket removal was more complex than just 'twisting it out.' But below worked! (1) Turned off oven power at circuit breaker panel. To facilitate working in the oven compartment, removed oven door (2 screws on back of door), raised the over door almost closed, put 2 large nails through the hinge holes when they lined up. Lifted the door out (heavy ~20-25 lbs) and put aside. (2) Put work light inside oven. (3) unscrew glass socket lens and the bulb). (3) Using inspection mirror, studied the inside of the socket to determine that its lock tab type and locations -> were on left and right sides of the socket. These tabs needed to be bent in, but they were each held out by a small circumferential length of think metal, a tab about 3/16" x 3/8". These small tabs could be moved/positioned by just finger friction, with a little start with a screwdriver tip on their edge! I got an end positioned to put sharp screwdriver under that end, then pried it (bent it) inward a short distance. Enough to use needle-nosed pliers to pull it completely out - came fairly easily. Repeated on other side of socket. (4) Then, with pliers, bent each of the 4 locking tabs inward a short distance, Used sharp tool to get one socket edge lifted a small amount; then use mini-pry bar and screwdriver to gently pry around the socket in steps, working evenly around its edge. At about 3/8", it was free. Lifted it inward gently so as not to damage the insulation of the 2 wires attached to its rear. Noted the direction of the wire tabs was straight up (keep same orientation on new socket). (5) Needle-nosed pliers on each connector to gently work the connectors off their socket tabs. Note one tab is larger than the other. Keep the wires inside the oven compartment. Don't damage the insulation. (6) Pushed the wire connectors onto their respective new socket tabs. Aligned socket with the tabs upward, and inserted it, careful to nurse the wires back into the oven wall hole; press socket into the hole, pushing it in evenly and firmly until flush. (7) Pushed in the new type bulb that came with new Socket. Turned on power, and light came on. (8) screwed on new glass cover. (9) Lifted oven back onto the hinge prongs. (easier with two people to get the prongs aligned and into their door slots.) Worked door left and right to get it to lower down fully. Removed nails, lowered door, and put its 2 screws back on. (10) Poured a glass of wine.
-
Stan from FLAT ROCK, NC
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers
3 of 3 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Worn/Bulb Socket
It was alittle difficult at 1st to remove the clips that held in the socket. But once out everything went smoothly.
-
JOSEPH from COON RAPIDS, MN
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
2 of 4 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
electrical short from oven light.
I trouble shot and traced out to electrical short in face panel and found burnt wires. I've been a licensed electrician for years and it takes alot of comon sense to trouble shoot and find problem. I found schetch-matic of appliance and searched computor and found partselect.com and tried it. It wasnt no time and the part was at my door. Thank you partselect and i would use them again in the future. billy
-
William H. from morehead city, NC
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers
2 of 4 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
oven light not working
replaced light socket but did not repair problem. must have burned the motherboard.
pleased with service from your company.
pleased with service from your company.
-
Richard from Gaylord, MI
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Screw drivers
2 of 6 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Inside Light would not work
Turned off CB for the oven,Remove the oven from the cabinet , remove the back of the oven, replaced the light Assembly. turned on CB for the oven, tested the light. and truned off the CB and replace the back and reinstalled the oven in the cabinet.
-
Dan from Caddo Mills, TX
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver
1 of 6 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- 2
- Next >
Customer Reviews
Filter By Rating:
- < Prev
- 1
- 2
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
James F - January 9, 2023
Verified Purchase
Fast service, easy installation
I was very pleased with the service I received, a rep actually reached out to be sure they had the part # I needed. I asked them twice to send me warranty information and have had no response, that was the only negative thing I experienced
EARL H - February 18, 2022
Verified Purchase
Easy repair
The part was easy to install, fast shipping and is working well. Will buy again from this company again if needed. Thanks
Bruce M - September 17, 2021
Verified Purchase
sent as required
Received the part for our old oven and all went perfectly. Not sure what I would do without the availability of PartSelect. Great service and fast mailing time
Rex W - September 1, 2021
Verified Purchase
Put the light in, worked great!
I received the part, installed it, worked great. Stove light works again!
Linda P - December 30, 2020
Verified Purchase
Oven light socket relacement
Once we got the old socket out the new one was a snap to put in. Fit perfect. Was so glad it only took a few days to receive the new part.
Susan G - August 26, 2020
Verified Purchase
28 year old oven saved! Light and oven works great!
We had hired a local appliance repair company to fix the oven light on our oven built in 1992. They said they couldn't do it, because they couldn't get the part. They charged me $109 for the service call, even though I'd given them the model and serial number ahead of time. I was so mad!
PartsSelect had the part! It came quickly and it perfect condition. My husband pulled the oven out of the wall where it's mounted, replaced the oven light, and now it works perfectly!
This saved us from wanting to replace our 28 year old oven, which would have cost us hundreds of dollars!
William W - May 20, 2020
Verified Purchase
Light Socket
light works better than the old did by being LED. Very happy with purchase.
Sheryl N - March 26, 2019
Verified Purchase
Easy repair. Works well.
Did the trick. We now have light in the oven.
Edward H - February 14, 2019
Verified Purchase
Great part but difficult to install.
Any information on how to replace this part was misleading. Supposedly you have to pull the oven out, remove the back panel, and use a screwdriver to pry the old part out. Actually all you have to do is remove the old cover and bulb, twist the part out with a pliers, connect the new part to the wires, and pop the socket back in. This only takes about 5 minutes to do.
Coley B - October 30, 2018
Verified Purchase
Old part a bear to remove. New part a snap.
Although I struggled to remove the old one, brute force won the day and the new part fit perfectly.
- < Prev
- 1
- 2
- Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS16730838
Manufacturer Part Number: W11594027
Manufacturer Part Number: W11594027
Brand
Model Number
Description
Kenmore
6644428914
Range
- Kenmore Range/Stove/Oven Model 664.4428914 (6644428914, 664 4428914) Parts
