Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

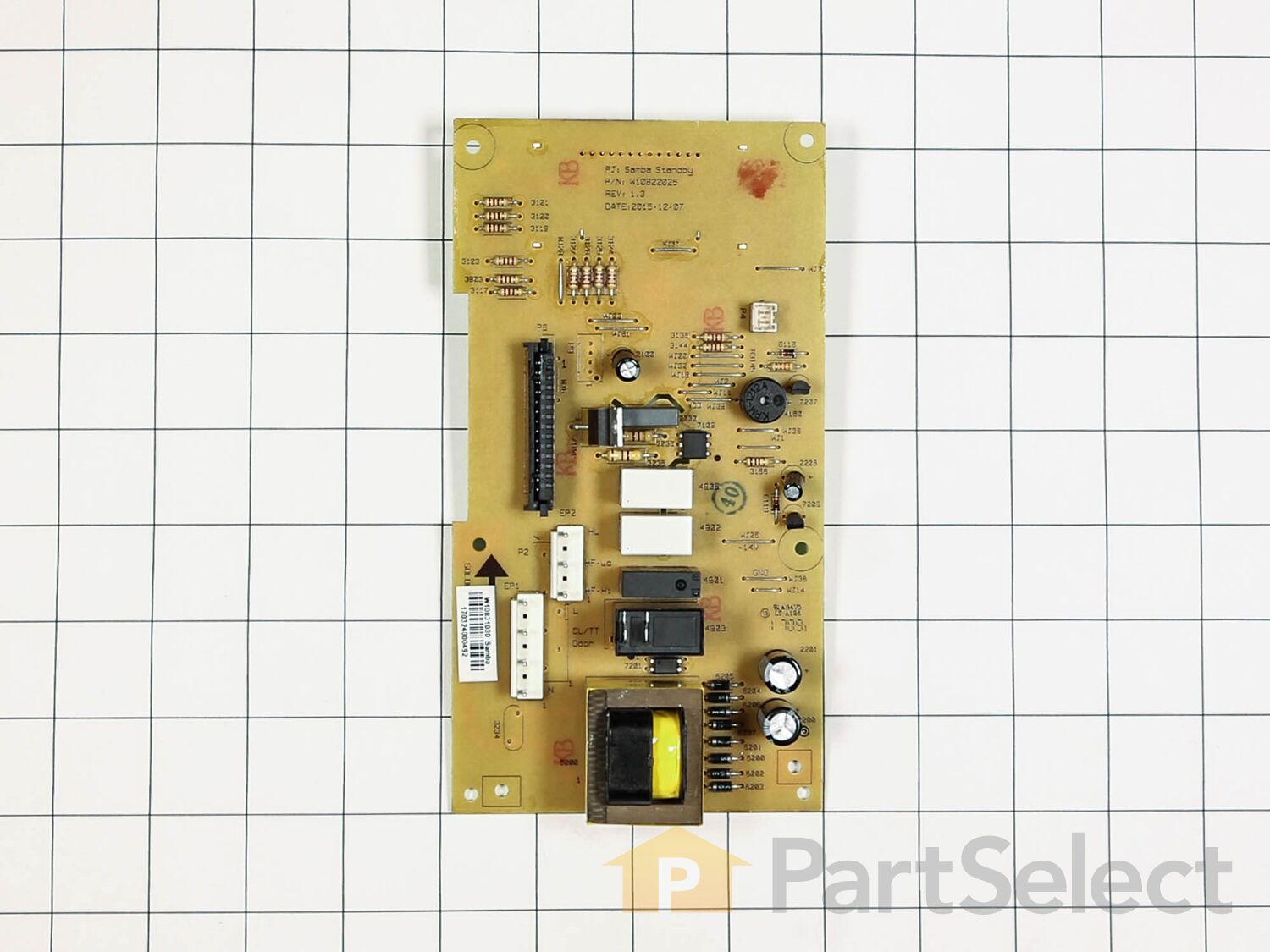

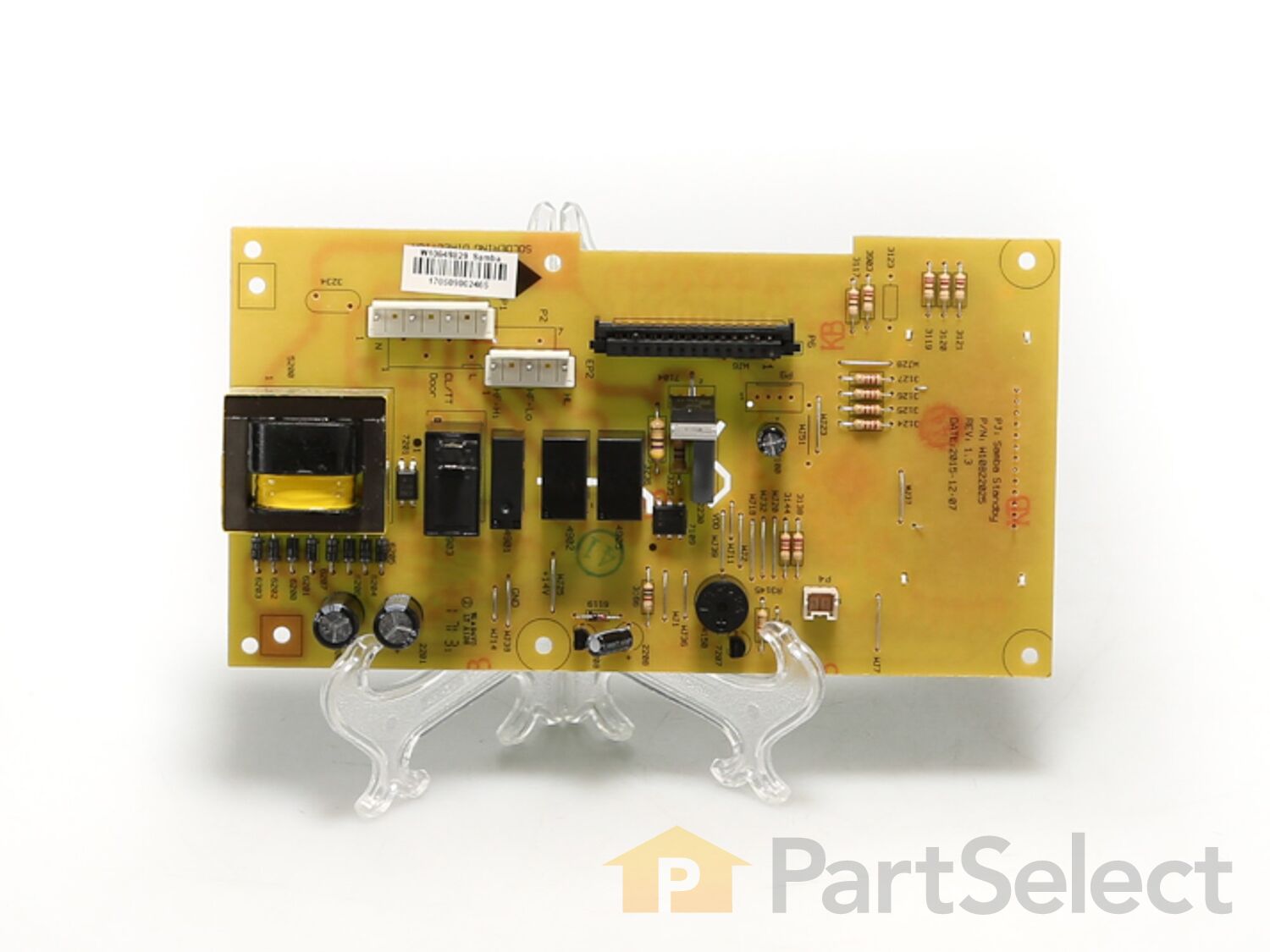

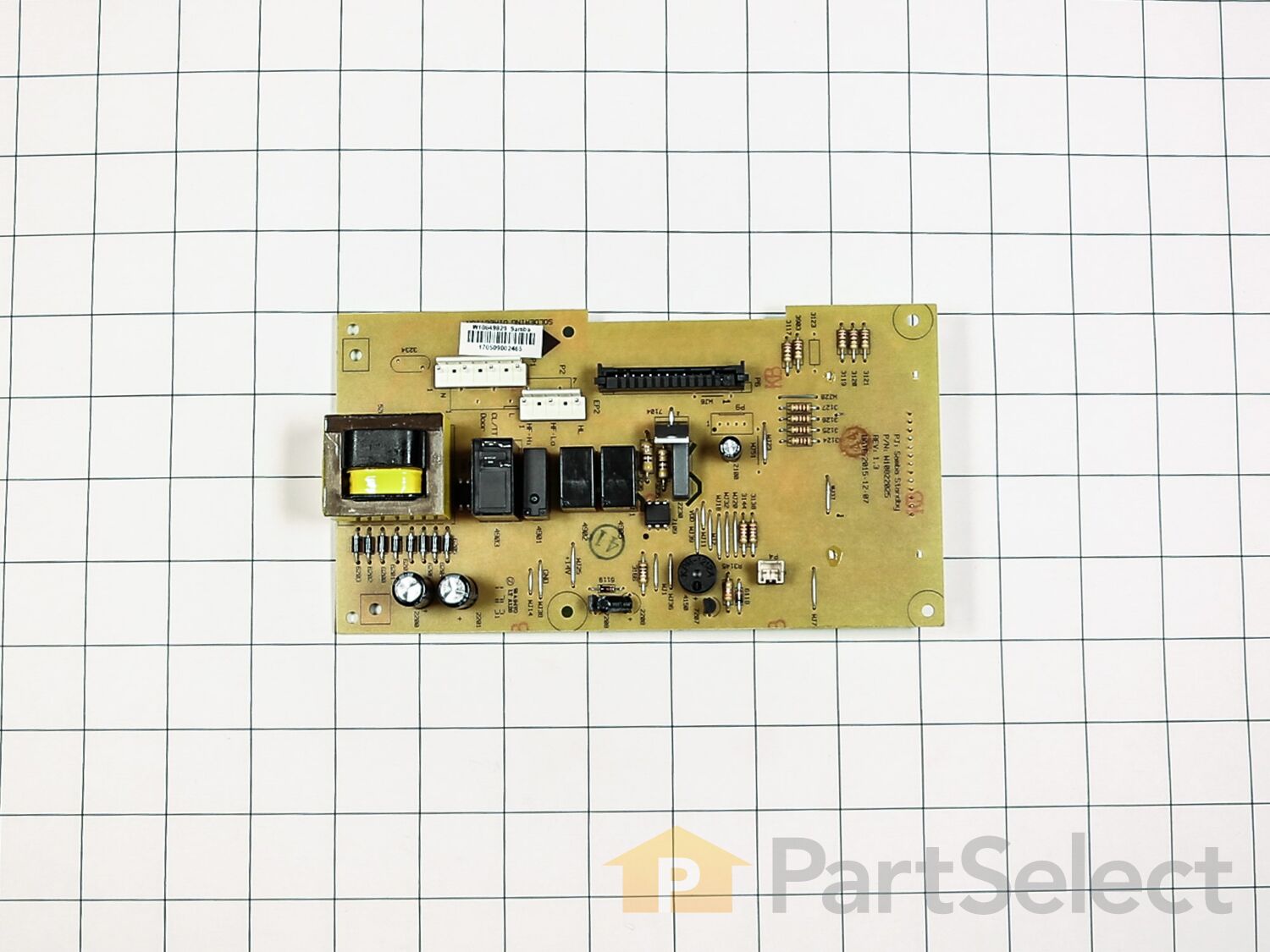

This control board is an authentic replacement part sourced directly from the manufacturer to ensure compatibility with your microwave. It has dimensions of 4 inches by 8.25 inches. The control board is responsible for controlling the various functions and features of the microwave such as the power levels and cooking times. If it is faulty, your microwave will likely be unresponsive when you try to input commands, it may be unable to start or complete heating cycles, or it may display error codes. Additionally, a burning smell coming from inside the microwave may be a sign of a faulty control board.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Brent W - September 3, 2023
Verified Purchase
Super easy repair! Took me five minutes.
The part was a fraction of the cost of other websites and took me just a few minutes to fix. The part plus the service call would’ve been over $200. I was very pleased and I will definitely be using this website in the future for other parts needs for whatever they sell!
★★★★★
★★★★★
Paul L - February 24, 2024
Verified Purchase
Easy repair
Very easy to install and is working great!
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.5 / 5.0, 3 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
control board
took the front right side of the microwave off took the oldcontrol board out and install the new one apiece of cake
Douglas from BELLEVIEW, FL
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Light under Microwave stopped working. No power from PC Board.
Removed the top screw holding the control face. Lift up on control face and tilt outward to unplug wires and remove green ground wire screw. Place unit on a flat surface and remove flat wire plug by squeezing tabs and lift up slightly then remove flat wire. Unscrew screws holding PC board. Then reverse order the install of the new PC boar
... Read mored and install unit on to microwave.
Read less
Morgan from ASHLAND, KY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The microwave magnet would start when the door closed w/o a keypad signal.
Unplugged the microvave, removed the phillips screw holding the right hand section of the microwave in place (Note: This screw is found by looking through a vent opening in the TOP of the microwave body.). Lifted up and out on the right hand section of the microwave. At this point the right hand section is completely unattached to the mic
... Read morerowave body. Unplugged all of the polarized wiring harnesses and removed the screw holding the green wire to the board holder. Removed the screws holding the board to the right hand section and installed the new board. Reversed the procedure to put the microwave back together. Note: Look at and manipulate the keypad ribbon recepticle on the new board to see how to remove and reattach the ribbon, if needed.
Read less
jerry from BRYAN, TX
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
2 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
3 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Randy
August 26, 2023
I accidently shorted my light socket removing the bulb under my unit. There was a pop. My entire microwave still works, but the light has no power coming down to the light socket.
For model number wmh31017hb07
Hello Randy, thank you for reaching out. Based on our research, the issue is with the defective light socket. We recommend you check the wire harness and replace the light socket, part number PS2342199. We hope this solves your problem!
I turned the underside light on and there was a flash and the light had burnt out, after replacing the bulb the light will not turn off even after pressig the light button. The button appears to work, I get a tone everytime I press the light button and it also cycles thru high, low and the off setting but the light still stays on. I am at a loss
For model number WMH31017FS-0
Hello Chris, Thank you for reaching out. The short when the light below could have caused a short and damage to the PCB Board. The Board may need to be replaced. We hope this information helps!
Was this helpful?
Thank you for voting!
Catlin
May 22, 2025
My microwave is displaying error "F1E4" when trying to start the microwave. Will this part correct this issue.
For model number UMV1160CS6
Hello Catlin, thank you for contacting us. The error code F1E4 indicates that the power relay on the control board is faulty. You may need to replace the control board, part number PS16620391, to solve the problem. We hope this helps!
Was this helpful?
Thank you for voting!
