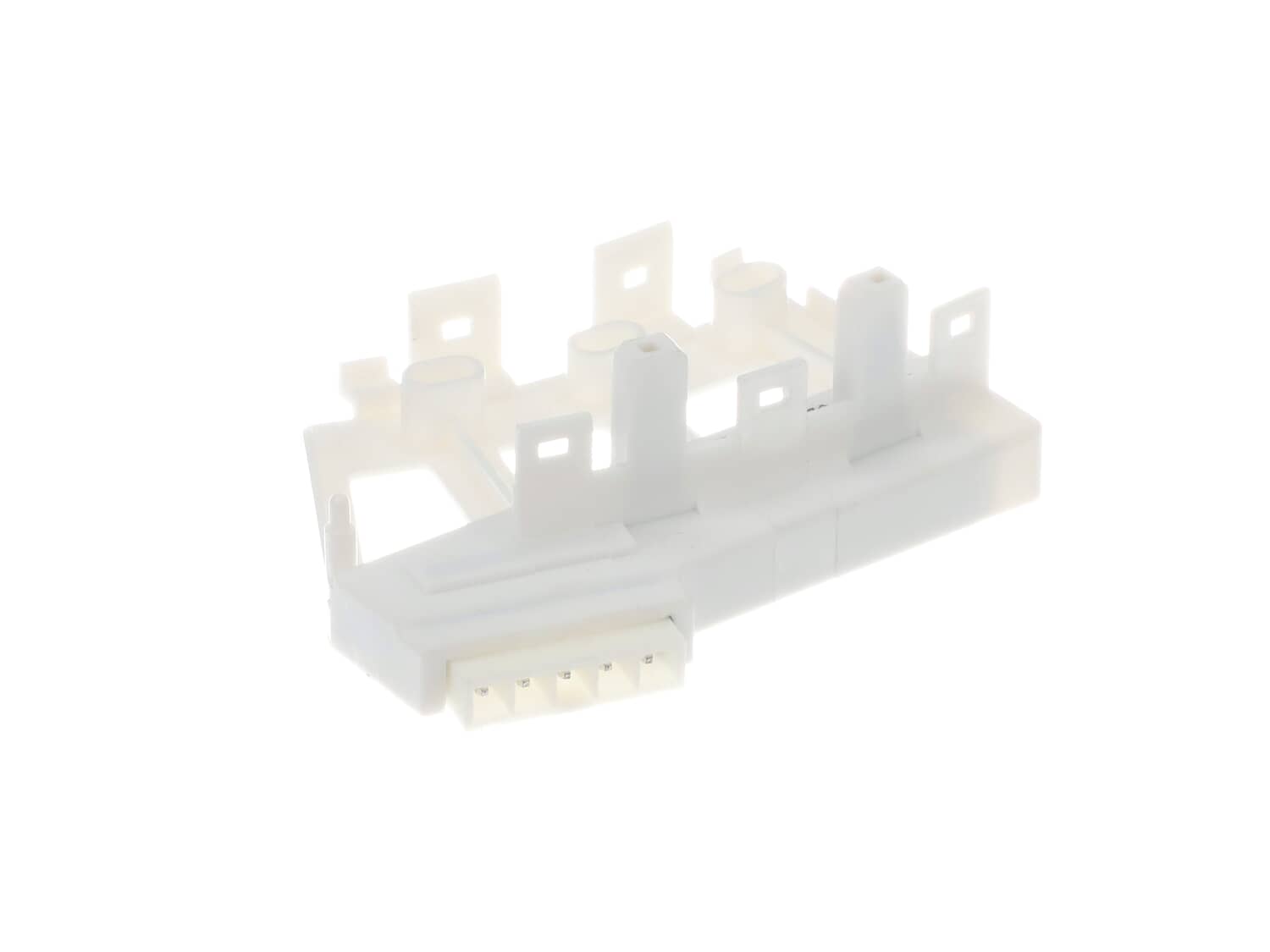

This is a replacement sensor assembly for your washer. It may also be known as a motor rotor position sensor. The sensor assembly monitors the direction and speed of the spinning rotor and communicates this information to the electronic control board. If your washer pumps but will not spin or agitate, you may have a damaged sensor assembly. This part is sold individually, and is an OEM part sourced directly from the manufacturer. Be sure to shut off the power to your washer before you begin this repair.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Will not agitate | Spinning Issues | Will Not Start | Spins slowly
This part works with the following products:
Washer, Washer Dryer Combo.
Part# 6501KW2002B replaces these:
6501KW2002A
Customer Reviews
Average Rating:
★★★★★
★★★★★
20 Reviews
4.8
Filter By Rating:
5 Stars
18
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
1
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
SCOTT M - August 25, 2023
Verified Purchase
WORKING WELL
This part seems to have fixed the issue! Happy.
★★★★★
★★★★★
Danny N - June 21, 2023
Verified Purchase
Very good
After I read the reviews I ordered the exact parts. It saved my washer! Thanks
★★★★★
★★★★★
Kerry C - November 19, 2021
Verified Purchase
Worked like a charm!
The LG customer service dept. performed several test and resets and that took awhile as my mobile phone service is dicey here and we kept dropping calls. They said "Call a service tech" and were kind enough to give me a list of local techs. I did more research and this site listed the symptoms I was seeing. Ordered the part, looked up the install and it took about a half hour and all is well.
Thanks!
★★★★★
★★★★★
Linda W - September 19, 2021
Verified Purchase
Solved rotation issue
This part was the charm.
We had to replace our main control board. But even then we had no rotation of the drum.
After reading reviews we ordered this part too. I’m happy to report that this part finished the repair!
My 12 year old LG is running like a champ again!
Reduce, reuse, recycle ?? and REPAIR! ??
★★★★★
★★★★★
Dean G - September 8, 2021
Verified Purchase
Part work to fix my washer
Part came in good condition, this part fixed my washing machine.
★★★★★
★★★★★
Hien L - May 10, 2021
Verified Purchase
simple,easy installed,high quality
It's a great one., works right away.
★★★★★
★★★★★
Bobby A - December 31, 2020
Verified Purchase
Easy repair no problems.
Quick delivery. Swapped out the old one and was back in businesd.
★★★★★
★★★★★
David L - April 11, 2020
Verified Purchase
Perfect Fit, Simple Repair, Quick to Ship!
The part was shipped to me faster than expected, especially in the middle of a worldwide pandemic where the laundry can pile up quick and noone wants to share space at the laundromat. I laid my top-loading machine on its back, removed the two sections of the direct drive motor and swapped out the new sensor. The entire process took about 30 minutes to complete and the washer runs like new again. Partselect.com is the only place I'll be ordering my parts from in the future. ?????
★★★★★
★★★★★
Linda B - January 11, 2020
Verified Purchase
My Repair made Easy
The repair on our Washing Machine went really awesome. It was nice to get the right part, the first time around, thanks to PartSelect. The parts were a perfect match. The Washer is up and running. I also would like to thank the people who posted repair videos on YouTube.
★★★★★
★★★★★
Mike F - December 24, 2019
Verified Purchase
worked as expected
the rotor position sensor worked great for my machine the motor runs with out any problems.
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 3.6 / 5.0, 7 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
would not spin le code
bought a position sensor top load machine when i tipped the machine over i found the nut and washer on the floor .replaced the sensor and nut took about half an hour
gregory from TEWKSBURY, MA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
5 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The washer drum would not spin around completely. It would just jerk and try to spin. Error code LE showed up.
We followed the installation video step by step that was found on another website.
Brenda from BROWNSVILLE, KY
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
7 of 9 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Kept getting an LE code and washer would stop.
Disconnect elec., hot and cold water supply and drain hose. Lay washer on it's back. Removed nut from center housing. Removed screws from stater. Disconnected wires with flat screw driver at sensor and stater. Installes new sensor. Put everything back together. Washer works great. No LE code.
Chris from NEW CUMBERLND, PA
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers, Wrench (Adjustable)
7 of 8 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Code LE
Disconnected power supply and water supply hoses. Laid machine on its back because this is a top load machine. Removed one bolt to take off stator then 6 bolts to remove rotor. Put it on side without taking off wire assembly. Snapped off rotor position sensor and installed new one. Put all back together and connected power supply and new
... Read more stainless braided hoses. WORKS PERFECT. Thanks !
Read less
Ronald from BELLE CHASSE, LA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
9 of 10 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
"Le" Fail Code on digital display ... Washer would not agitate and made an odd noise.
I first thought there was a mechanical problem but after checking everything mechanical I discounted that idea ... I researched and found out from others with a similar problem that the Le code display was probably a sensor problem ... I ordered a replacement sensor ... With the new sensor available, I removed the access panel to the back
... Read more of the machine (phillips head screw driver - 4 screws) ... Remove the exposed motor half (1 bolt - 17mm scocket) ... Loosen the motor stator that has the wired coils (10mm socket - 6 bolts) ... Hold motor unit to the side without disconnecting the wiring harness ... Disconnect the sensor wire connector and remove the old sensor ... Clip the new sensor in place (same position as the old one) and re-connect ... Reverse the assembly procedures ... This fixed the problem and the washing machine works like a new one ... The wife is HAPPY!
Read less
Ronny from GASTONIA, NC
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
20 of 25 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
LE fail code
Removed back of washer with screw driver, Removed outer motor cover with a 17 mm socket (1 bolt), Removed motor stater using 10 mm socket (8 bolts). Left motor plugged in and and tipped to the side exposing the sensor. Unplug and snap off sensor. Reassembled in opposite order. Machine works great. Very easy fix, and perfect fit on part.
scott from GODDARD, KS
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
25 of 26 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
LE Error Message and won't spin drum properly
I first tested the motor per the service manual. I checked the resistance between the terminals of the 3 pin connector. It's supposed to be 5-15 ohms. The motor checked out so I replaced the main electrical board. It turns out that wasn't the problem. After a brief web search I found out that the hall sensor (which is attached to the
... Read more motor stator) was the likely cause of the failure. I replaced that and everything works great now. And now I have a spare main board in case that ever fails. I also want to mention that I took the time to remove the dispenser box (where the water comes in and is directed to the different cleaning products) and cleaned it with a very strong bleach solution. It got rid of the mildew and funky smell. It seems that the fabric softener caused a lot of mildew to form inside the dispenser directly above the fabric softener tray. The bleach took care of that. This is probably something that should be done routinely to keep the mildew from forming.
Read less
Mark from Harrisburg, PA
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
238 of 310 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Lina
September 23, 2023
What i should do o change for a LG washer "de" Error code
For model number WM3470HVA
Hi Lina, thank you for your inquiry. According to our research, the "dE" error code on your LG washer indicates that the washer door was unable to lock. To fix this error code, we would recommend to turn the machine off by pressing the power button and unplug your machine and restart it again. Next, press and hold the Start/Pause button for 5 seconds. If that does not work, you may need to check the door lock assembly, part number PS3533609, to help fix this issue. We hope this information helps!
Please confirm this is the hall stator assembly for my model washing machine.
For model number WM3170CW
Hello Matthew, Thank you for the question. The Sensor for this model is only sold as part of the Washer Motor Stator. The Sensor is not sold on its own. We hope this helps, good luck with the repair!
Unit does not power on, CB checked, power at the receptacle
For model number WM377OHWA
Hello Jim, thank you for contacting us. Based on the description that you have provided, we would recommend checking the noise filter, part number PS11710201, and the power cord, part number PS12079896. If the issue still occurs, you may need to check the display board, part number PS12080523. We hope this solves your problem!
When coming to the spin cycle, the washer stops and displays the LE code. I’ve tried the “unplug/press and hold start button/replug” reset but still persists.
I’ve been able to finish the spin cycle by restarting and running on speed cycle setting. My research diagnosis would tell me that it’s the Hall sensor at fault. Is this likely correct ? And if so, which part should I be ordering? Thanks!
For model number WM2701H
Hi Randy, thank you for reaching out. An LE error code indicates that the motor is locked, possibly due to a heavy wash load. Since you have already reset the washer, we recommend checking to replace the rotor position sensor switch, part number PS16556422. We hope this solves your issue!
Was this helpful?
Thank you for voting!
Denise
May 4, 2023
Will part #6501kw2002a changed to #6501kw2002B fit my front load lg washer.
For model number WM3370HWA
Hello Denise, thank you for the query. According to our research, the sensor assembly does not come separately. You may need to buy the stator assembly, part number PS3635512. We hope this helps!
