Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

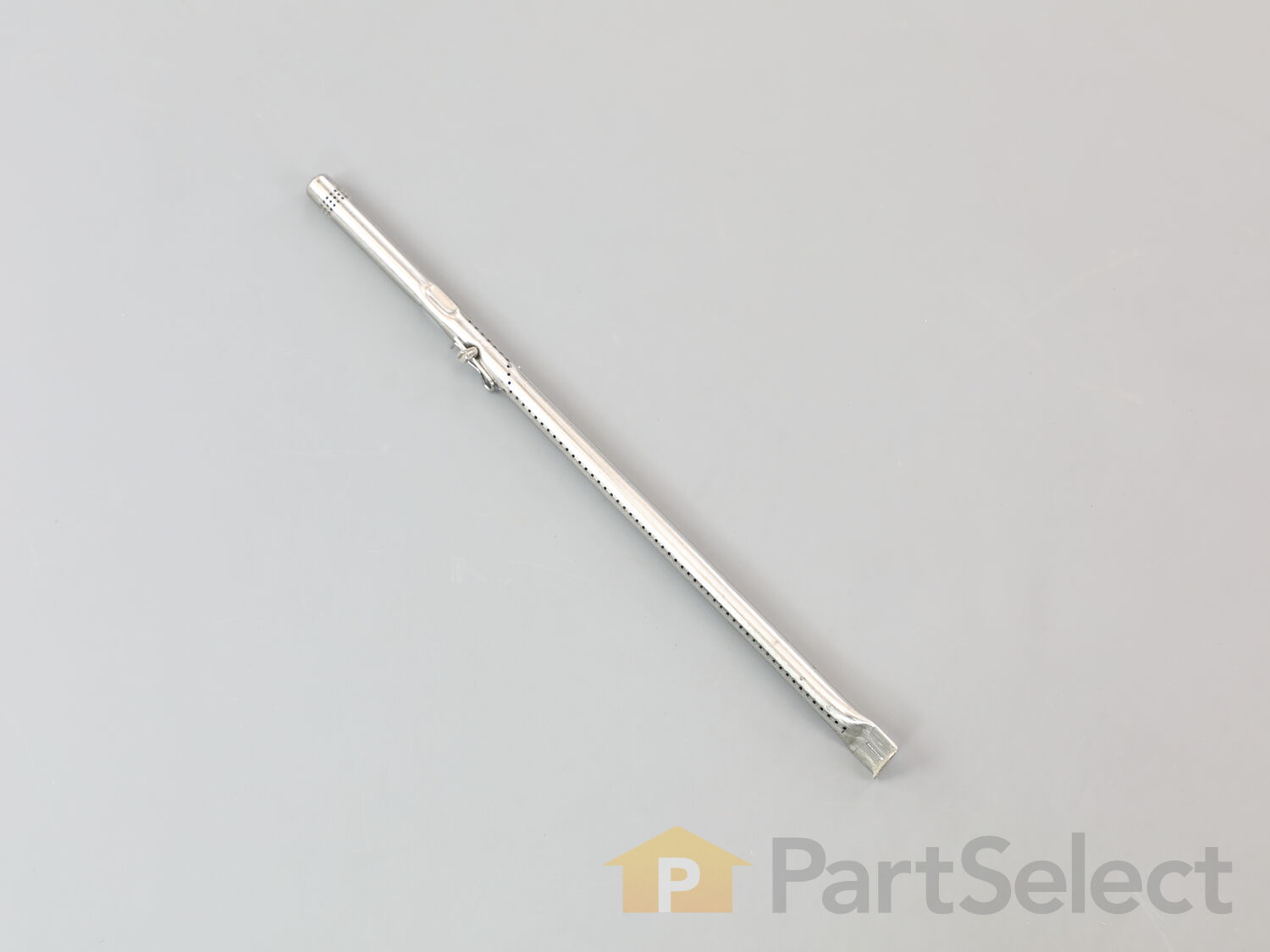

This burner tube helps to cook your food on your gas grill by allowing gas to flow through the small holes or ports along its length, where it mixes with air and ignites to produce a flame. It is 17-3/4 inches long and has an outer diameter of 5/8 inches. It features a vented venturi end, a 90-degree bend, and a center slotted mounting hole at the back end. The burner tube is typically found underneath the heat tents, running parallel to it. If you notice signs like uneven flames, weak heat output, frequent clogs, or visible damage such as rust or corrosion, the burner tube needs to be replaced. To do so, you will need pliers and a screwdriver. Use these tools to remove the cooking grates, heat tents, and the holding pins and brackets that secure the tube to the grill box. Keep in mind that this OEM replacement part is sold individually, so verify the quantity needed for your equipment before making your purchase.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Gary
April 19, 2024
how long is this burner tube
For model number 463246218
Hello Gary, thank you for getting in touch. The length of the burner tube you mentioned is 17-3/4 inches. We hope this information helps!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Dan
March 22, 2022
Grill is a 2 burner; Only shows main burner. So do I order 2 main burners to replace both of them? Is it the same burner tube?
For model number 463673017
Hello Dan, Thank you for your inquiry. We have researched the model number that you have provided and it shows both burner tubes as the same part number G470-5200-W1. The carry over tube that goes between them is part# G432-001D-W1. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Barbara
May 1, 2023
Hello, I am looking for Carry Over Tubes G552-0003-W1 and Tube Burners G470-5200-W1
For model number 463275517
Hello Barbara, Thank you for your inquiry. We do carry both parts on our website and if you are needing assistance with placing an order, please contact our customer service. We hope this helps.
Was this helpful?
Thank you for voting!
David
March 14, 2023
Looking for burner tubes and crossover tubes please for this model
For model number 463342118
Hello David, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part Number:G651-0068-W1 for the Carry Over Tube and Part Number:G470-5200-W1 for the Burner Tube. The tubes are sold individually.
Was this helpful?
Thank you for voting!
Jim
January 4, 2023
Looking for crossover tubes and burner tubes for model# 463276517 are these still available? Thank you
For model number 463276517
Hello Jim, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part Number: G552-0003-W1 for the Carry over Tube and Part Number: G470-5200-W1 for the Burner Tube. We hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS16502990
Manufacturer Part Number: G470-5200-W1
