Part Location Diagram of WH01X10302 GE 6-Rib Drive Belt
See part 603 in the diagram
Replacing your General Electric Washer 6-Rib Drive Belt
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.com

6-Rib Drive Belt WH01X10302

★★★★★
★★★★★
19 Reviews

Rated by 25 customers

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

$ 25.73
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS1482278
Manufacturer Part Number WH01X10302
Manufactured by GE for General Electric, Hotpoint
Product Description

6-Rib Drive Belt Specifications

This drive belt is made to slip on the motor pulley to bring the basket up to the speed required and this makes the belt get wear and tear.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

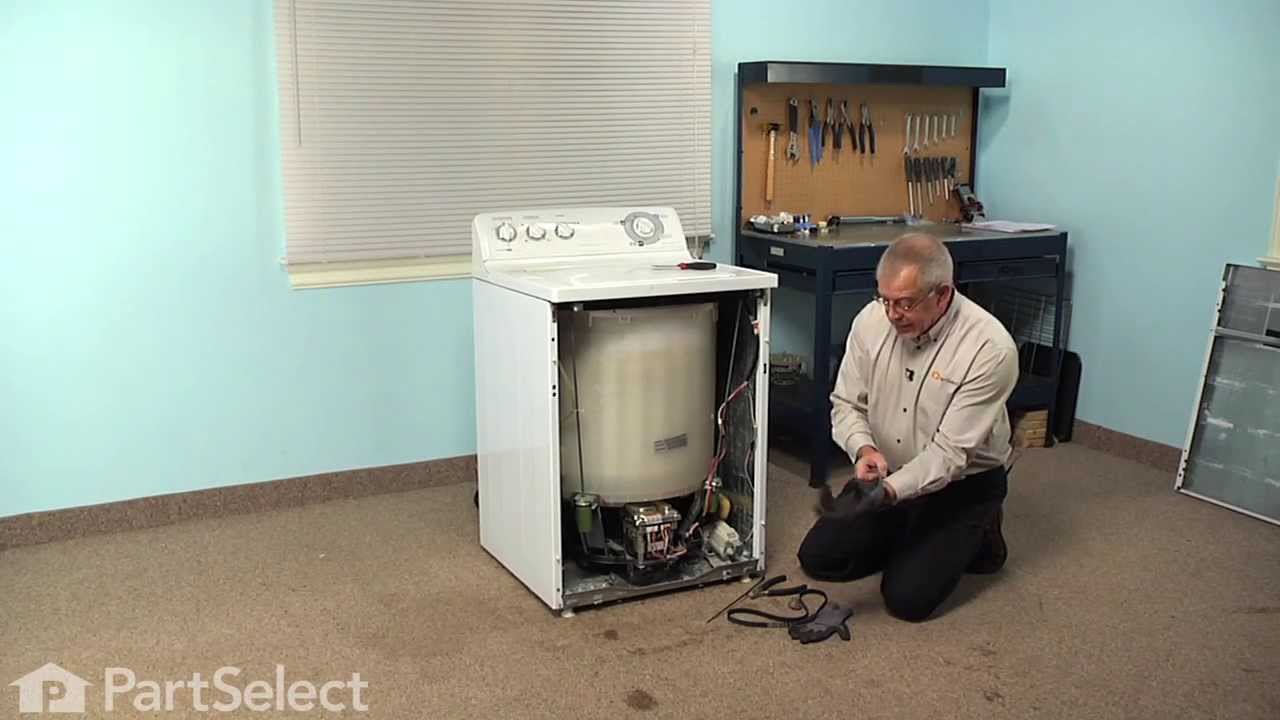

Replacing your General Electric Washer 6-Rib Drive Belt

Replacing your General Electric Washer 6-Rib Drive Belt
Troubleshooting
This part fixes the following symptoms:
Will not agitate | Spins slowly | Will not drain | Burning smell
This part works with the following products:
Washer.
Part# WH01X10302 replaces these:
AP3968432, 1264395, WH01X10353
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
19 Reviews
4.4
Filter By Rating:
  • 5 Stars
    14
  • 4 Stars
    3
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    2
Sort by:
  • 1
  • 2
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
  • 2
Customer Repair Stories
 Average Repair Rating: 2.9 / 5.0, 25 reviews. What's this?
Sort by:
  • 1
  • 2
  • 3
Sorry, we couldn't find any existing installation instruction that matched.
the belt is so tight
I heard this is a tool you need to get that belt on with out slipping off. we thought we had the wrong size belt it as impossible at first to get the belt on. what a struggle
  • rosemary from holyoke, MA
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    1- 2 hours
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Very large noise during spin cycle
Tub seal was found completely broken. Replaced it.
Then replaced tub bearing, tub bearing washer, shaft & mode shifter assembly and 6-rib drive belt.
Reassembled and tried, more quieter and like new machine.

Loosening tub nut was a challenge as it was bit corroded, use of WD40 was a great help.
Knowledge from you tube was a great help.
Other Parts Used:
Tub Seal Shaft and Mode Shifter Assembly 6-Rib Drive Belt Tub Bearing Tub Bearing Washer
  • Ashok from CUPERTINO, CA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Nutdriver, Socket set
6 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Bad timer and belt
Removed screws from the back removed screw from timer replaced timer. Removed front panel and replaced belt videos were extremely helpful
Other Parts Used:
Belt Installation Tool Timer Dial with Compression Ring Timer Knob 6-Rib Drive Belt Compression Ring
  • Dean from MINEOLA, TX
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Make sure you have something to secure the belt to the big wheel.
It was hard for me. I'm a 54 year old woman. I tied it to the wheel with twine. It kept popping off, right it the time I would just about have it on. Several times !!!! I had no zip ties. Finally I tied the part of the craft stick on tightly. Put the belt on the motor rod and as much of the wheel as it would allow. Started turning slowly. There's really no room. I finally wiped it. There was one time that I sounded like the man off the movie Christmas Story. My youngest daughter is 13. She started laughing. It wasn't easy but I BLESS GOD for it. Thank all of you so much. Be safe and take care.
  • Wanda from OHATCHEE, AL
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    30 - 60 mins
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Had to replace drive belt on washer
I removed the front cover on washer I tied wrapped one side of the belt to to the back pulley and placed the belt on the the motor pulley then placed the belt installer on pulley below belt with gloves on I started rotating the pulley in the back and when it started getting s little tight I moved pulley back and forth then started turning in clockwise direction again and belt went right on.i cut the tie wrap after making sure belt was secured and evenly on then turned pulley to make sure belt was secured removed belt installer and replaced front cover.i am a 57 yr old woman and did this job by myself.so easy when you have the belt installer also.
  • Amy from ROCHESTER, NY
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Broken drive brlt
I happen to be a mechanic so the repair was quick and saved me from buying a new washer! But the step by step videos yhat come with your parts are very easy to understand . This company has saved me thousands of dollars on new units or calling a repair company
Other Parts Used:
Belt Installation Tool 6-Rib Drive Belt
  • Paul from BROCKTON, MA
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
tub moving allover the place
replaced broken straps all 4. washer not working ]. replaced lid switch with wire harness.replaced bad old belt.working fine now. my wife is very happy. thanks for your videos and how to do the job right.
Other Parts Used:
Lid Switch with Wire Harness 6-Rib Drive Belt Tub Dampening Strap
  • GABRIEL from LA QUINTA, CA
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Very loud noise during the spin cycle
The first attempt to fix the problem did not turn out so well. I replaced the tub bearing, split ring, tub bearing washer and the hub washer. After reassembly and testing, the loud airplane noise was still present during the spin cycle
Then I ordered and replaced the mode shifter shaft assembly and, since I was going to disassemble again, also ordered a new 6-rib belt. Once reassembled and tested, it was quieter than when it was when brand new, according to my wife.
Parts came in very quickly and the tutorials/youtubes were spot on.
Other Parts Used:
Shaft and Mode Shifter Assembly 6-Rib Drive Belt
  • Walter from IRVING, TX
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable)
7 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noisey during spin cycles
Followed videos on partselect.com for changing tub bearing. Video does very good job of showing steps required. Repair would be easy if washer was new. First problem was conical tub nut could not be loosened even applying penetrating oil and heat. Finally resorted to 1/2" drive pneumatic impact gun (wrench) which hammered about 10 seconds before the nut came loose. Had to purchase 1-11/16 deep well 6 point impact socket at cost of about $30 for this task. Second difficulty was removing tub seal whose exterior rubber coating had apparently failed and the seal internal metal parts corroded causing it to expand. The tub seal had to be beat out from the bottom side using a drift. The next difficulty was removing the tub bearing which had corroded from minor leakage through the tub seal. Corrosion made the tub bearing outside diameter (OD) larger so it could not be removed using the method in the video. The outer tub bottom side was supported as close to the center as best possible and a socket just smaller than the tub bearing OD was placed on top of the bearing and was used to drive (hammer) the tub bearing out. There was a lot of cleaning necessary especially on the inner tub conical fit areas where tub rides on the split ring and hub nut. During reassembly the tub seal did not have a press fit into the tub; it was barely finger tight. I suspect the tub had permanently distorted in the seal area because the old tub seal had corroded and expanded. So silicone sealant was applied to the outside diameter of the tub seal to assure no leakage around the seal. I allowed that to cure overnight to be certain the seal would not move when inserting the shaft and mode shifter through the seal. A very light oil was applied inside the tub bearing. The last problem found was when tightening the bolts holding the base frame to the outer tub the base frame was pulled to one side so the mode shifter was not concentric with the base frame. This would place a side load on the mode shifter shaft and tub bearing. This was resolved by placing a 1/16" thick washer between one leg of the tub and base frame which maintained the base frame concentric to the mode shifter as the tub to base frame bolts were tightened. The repair is conceptually easy to perform but was challenging due to corrosion and detergent residue from 11 years operation. Now the washer rotating parts are essentially new, the repaired assembly is probably better than the original factory assembly, and the washer should operate for another ten years before the mode shifter bearing goes out again. A longer repair than anticipated but time and money well spent. Being retired helps.
Other Parts Used:
Tub Seal Shaft and Mode Shifter Assembly Split Ring Dial with Compression Ring Timer Knob 6-Rib Drive Belt Hub Washer Tub Bearing Tub Bearing Washer Hub Nut
  • Daryll from MURRYSVILLE, PA
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Broken Belt
The video on your site on the page for this belt was perfect. Really just using a tie wrap to hold the belt as you spin it to put in place was a very helpful idea. It was easy and less expensive than a new washer!
  • John from CONYERS, GA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers, Wrench set
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
  • 3
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

13 questions answered by our experts.
Sort by:
  • 1
  • 2
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Gilbert
September 24, 2017
Hello, we just purchased a 6- rib drive belt, a drain pump assembly, and agitator coupling to rectify my washer spin problem. I installed all these parts but regrettable these parts did not fix the spinning problem i am back to square one. It spins slowly and never picks up momentum to spin dry the clothes. Therefore, the spin cycle leaves the clothes wet to where they need to be wrung out due to the amount of water that is still left in the clothes. What do you recommend i do to fix the problem. I'am at the end of my rope. Any advice would be greatly appreciated.
For model number WCRE6270G0CC
PartSelect logo
Hi Gilbert, Thank you for your question. I would suggest testing your door switch. If your door switch is malfunctioning, it will not allow your machine to go into the spin cycle because that would be a safety hazard as the machine thinks that the door is open. I would also suggest testing your drain pump as well. If both of those parts are fine, you may have to look into checking your motor. Good luck with your repair.

6 people found this helpful.

Was this helpful?
Thank you for voting!
Norma
March 14, 2018
Hello, we purchased the belt, replaced it and it worked. However, within the last few days, the washer will do 2-3 loads no problem, then it doesn't work again, all day. Then in the evening bam! It spins again. Please advise. Thank you.
For model number GLWN2800D1WS
PartSelect logo
Hello Norma, thank you for your question. I would recommend checking the lid switch assembly first. If the switch is functioning intermittently, the unit might work for a few loads then stop, then work again. That is the part Lid Switch with Wire Harness PartSelect Number: PS1482372. If that part is tested and is functioning properly, you will want to check the Shaft & Drive Tube Assembly Part Number: PS3652839 as well as the Drive Motor and Inverter Assembly PartSelect Number: PS8746234. I hope this helps!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Keith
May 28, 2019
How can you tell if the motor has gone out on the washer? It won't spend or agitate. And the belt is good.
For model number Wlsr3000g1ww
PartSelect logo
Hello Keith, Thank you for the question. With a defective motor you can at times smell a burning or hear a hum noise coming from the motor. You can also test it with a multi meter to check continuity. Hope this helps!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Jerry
September 22, 2017
It spins but when it come to the 4 minute faster speed it slows down for that last cycle instead of speeding up. I sprayed some belt dressing on the belt but it didn't help. I tried the 6 minute drain and spin and when it got to the 4 minute it slowed down just the same.
For model number wpre6150k2wt
PartSelect logo
Hi Jerry, Thank you for your inquiry. If you are having an issue with the washer not spinning correctly there are a few parts you will need to check. You will need to check the drain pump, the tub dampening strap, the split ring,the hub washer, the tub seal, the tub bearing, the shaft and mode shifter assembly and the tub bearing. I hope this helps. Thank you and have a great day!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Brad
May 3, 2019
Washer won’t agitate or spin. Sometimes it will try to agitate but it barely moves. It did spin for me once yesterday, but stopped again altogether. It fills and drains just fine. What part should i get?
For model number WJRE5500G1WW
PartSelect logo
Hello Brad, Thank you for the question. I suggest checking the Belt, PartSelect Number PS1482278 to see if it is wore out and slipping or is lose. You can also check the Agitator Coupling, PartSelect Number PS1482517 for damage or wear. Hope this helps, good luck with this repair!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Handy
March 8, 2024
everything works fine, but noticing very slight petro? type smell best we can tell during spin cycle. it does go away. clothes smell fine. opened cabinet no leaks. it is not a burnt smell any thoughts??
For model number WLRR5000G0WW
PartSelect logo
Hi Handy, thank you for contacting us. Washing machines have various moving parts that require lubrication to function smoothly. If there is a slight smell of petroleum, it is possible that some lubricant has leaked onto a hot surface, such as the motor or a spinning component, causing it to emit an odor. Check for any signs of oil or lubricant leakage around the shaft and mode shifter assembly, part number PS2354082. We hope this is helpful!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Ian
March 20, 2024
Not spinning all the water out. I have removed all the hoses from the pump to check for clogs but have not found anything. Any suggestions? Thanks
For model number GTAN2800D1WW
PartSelect logo
Hi Ian, thank you for getting in touch. Based on the description that you have provided, we would recommend replacing the drain pump, part number PS3654194, to fix the issue. It removes water from the washer during the drain portion of the cycle. Glad to be of help!

Was this helpful?
Thank you for voting!
Related Parts:
Pam
November 23, 2019
I don't have model # only serial #...175d2750g335. is this the correct belt?
PartSelect logo
Hi Pam, sadly we do need the model number, the serial number does not allows us to find compatibility. Thank you for your question and good luck with your repair!

Was this helpful?
Thank you for voting!
Steven
September 18, 2021
Belt replacement tool
For model number GTWn4250d0ws
PartSelect logo
Hi Steven, Thank you for your question. The part number listed under your model number for the belt installation tool is PS10065458. If you would like to place an order for it, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.

Was this helpful?
Thank you for voting!
Related Parts:
Mary
February 2, 2022
I am needing a belt for a 4 year old hot point washer. Model # HSNP1000M4WW
For model number HSWP1000M4WW
PartSelect logo
Hello Mary, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS1482278. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
  • 1
  • 2
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS1482278
Manufacturer Part Number: WH01X10302
Brand
Model Number
Description
General Electric
57431DCWW
General Electric
57441DCWW
Washer
General Electric
57481DCWW
Washer
General Electric
57751H0WW
Washer
General Electric
57751H1WW
General Electric
57751H2WW
General Electric
57751H3WW
Washer
General Electric
58971K0WW
General Electric
58971K2WW
Washer
General Electric
58971K3WW
Washer
General Electric
EJRR4170E6WW
General Electric
EWA4500DCWW
General Electric
EWA5600G0WW
Washer
General Electric
EWA5600G1WW
Washer
General Electric
EWA5600G2WW
Washer
General Electric
EWA5600G3WW
Washer
General Electric
EWA5600K0WW
Washer
General Electric
EWA5600K1WW
Washer
General Electric
EWA5600K2WW
Washer
General Electric
EWA5600K3WW
Washer
General Electric
EWA6500DCWW
General Electric
GBAN2800F0WW
Washer - WASHER
General Electric
GBSR3140H1WW
Washer
General Electric
GBSR3140H2WW
Washer
General Electric
GBSR3140H3WW
Washer
General Electric
GBSR3140H4WW
Washer
General Electric
GBSR3140H5WW
Washer
General Electric
GBSR3140H6WW
Washer
General Electric
GBSR3140H7WW
Washer
General Electric
GBSR3140H8WW
Washer
