Frigidaire/Frigidaire_Thumb/VEJJA756.gif
See part 17 in the diagram

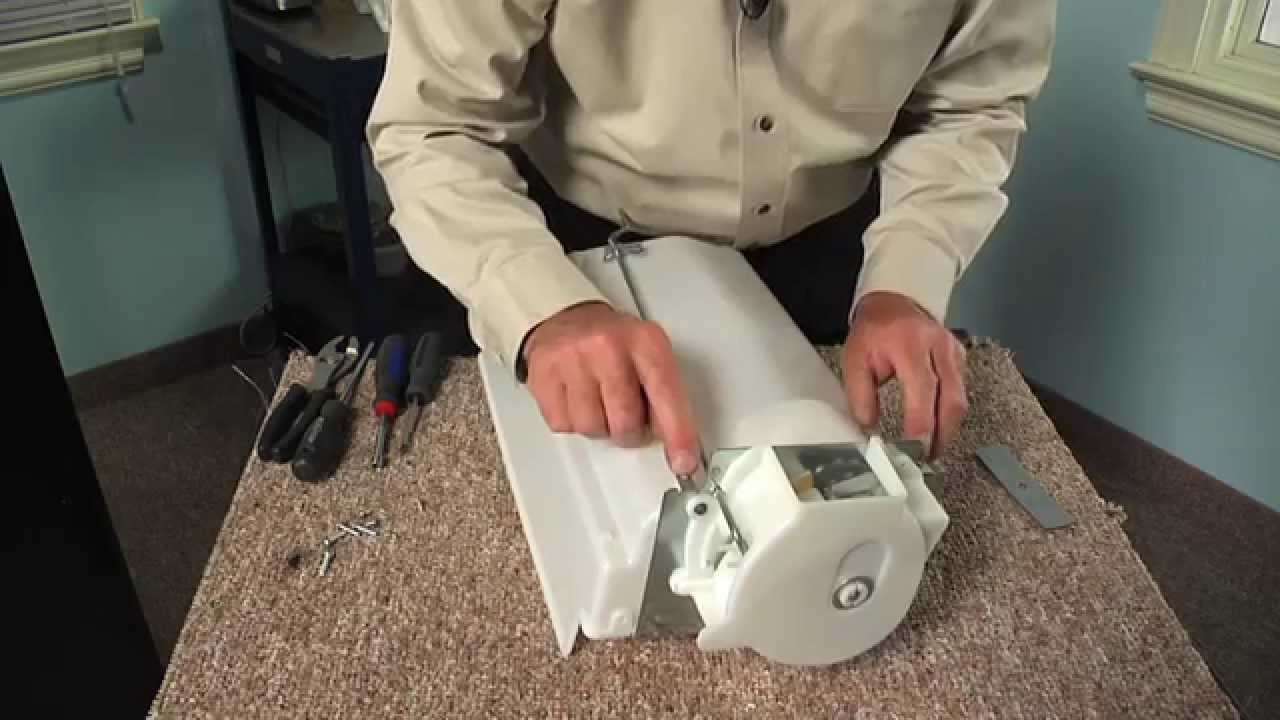

Replacing your Frigidaire Refrigerator DRIVE BLADE play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

DRIVE BLADE

★★★★★
★★★★★
2 Reviews

Rated by 7 customers

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS12728807
Manufacturer Part Number 241684503
Manufactured by Frigidaire
Product Description

DRIVE BLADE Specifications

This drive blade is a little under five inches long. It is used for the icemaker of many refrigerators.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Ice maker won’t dispense ice | Ice maker not making ice
This part works with the following products:
Refrigerator.
This part works with the following products:
Frigidaire, Kenmore, Electrolux, Crosley.
Part# 241684503 replaces these:
AP6893193, 241684501, 5304404345, 7241684501
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Doug
    April 8, 2022
    The ice maker dispenser will not dispense ice correctly. In looking at the dispenser bin I see nothing broken but there is a blade on the auger that you can tell is supposed to be attached to the round wheel that rotates and pushes the ice out of the dispenser in the door into your glass. This blade is not attached to the wheel any longer but is free to slide back and forth on the auger. Is there a clip or something that attaches to the auger behind this clip to keep it in place on the wheel so the ice will come out?
    For model number FGHC2331PF7
    Hi Doug, Thank you for your question. We have included a link to one of our YouTube videos that you may reference on how to install the driver blade. The refrigerator in the video may appear different from yours, but it will give you a general idea on how to install the part. If you have any questions, please let us know. We are open 7 days a week. We look forward to hearing from you!
    play video

    Was this helpful?
    Thank you for voting!
      Part Videos

      Replacing your Frigidaire Refrigerator DRIVE BLADE

      Replacing your Frigidaire Refrigerator DRIVE BLADE play video
      Customer Repair Stories
       Average Repair Rating: 3.4 / 5.0, 7 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        ice maker would not rotate out cube or crushed ice.
        1. Remove outer plastic face cover (4) screws.

        2. Revove (1) U type nut keeper & (1) metal washer.

        3. Remove (1) plastic nut on end of metal auger.

        4. Remove inner plastic cover (4) screws and disconnect control rod. (Note postion of control rod befor disconnecting)

        5. Note position and order of metal blades and plastic spacers on auger before siding off the end of auger to reposition them upon re-assembly.

        6. Remove metal support panel from end of ice bucket (4) screws.

        7. Remove auger & plastic cylinder from ice bucket.

        8. Remove - slide drive blade off auger.

        9. Drive blade replaced.

        10. Re-assembled other items removed in reverse order
        • David from Ponca City, OK
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Pliers, Screw drivers
        40 of 58 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Ice Would Not Dispence
        Took the ice storage bin out. Took the unit apart,and disamble the augar unit. Ordered parts from manufacture, which arrived in two days. As soon as I got the parts, I reassambled it. Work perfect. Good job!
        Other Parts Used:
        Ice Auger
        • Jerry Baten from Pampa, TX
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Nutdriver, Pliers, Screw drivers, Wrench (Adjustable)
        16 of 35 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Rust had corroded Front Plate and Drive Blade
        Installation was completed by following the online Parts diagram. Had to completely remove all parts, including the blades in ice crusher, and re-assemble. Glad the online diagram was clear and easy to read.
        Other Parts Used:
        Front Plate Screw
        • Calvin from Massillon, OH
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          1- 2 hours
        • Tools:
          Nutdriver, Screw drivers
        11 of 15 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Icemaker not pushing out ice
        Consult the exploded view of the Ice Container on this site. A likely cause the end plate (17) is worn. This plate connects the rotating corkscrew to the final plastic worm that pushes the ice into the crusher and thence to your waiting glass. The worm alone will not do the trick. To replace this plate, you need to take out all of the screws you can see, including the one that holds the spring for the crusher select bar.. First, the front cover, then the plate, and finally, locking ring from the worm and the black housing for the crusher. Now you can remove the whole worm assembly. Using a cloth or rubber insulator to protect it, unscrew the end screw and slide off the crusher teeth. Store on the table as a unit to facilitate re-assembly. Slide off the old bar and worm, put them back, and re-assemble. Takes a little dexterity to get the crusher select bar back, but not hard. Easy job.
        Other Parts Used:
        Ice Dispenser Drum
        • Andrew from SALEM, MA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Pliers, Screw drivers
        7 of 8 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Rust on Front Plate and Drive Blade
        Downloaded a schematic of the ice container. Disassembled the ice container, keeping track of which different type of screws went where. Followed the schematic to ensure proper sequence of blades and spacers. Manually rotated unit prior to installing into the freezer in case of binding. Finished.
        Other Parts Used:
        Front Plate
        • Wayne from Westford, MA
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          1- 2 hours
        • Tools:
          Nutdriver, Pliers, Screw drivers
        6 of 11 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Ice not depensing, Door rubbing
        Remove Ice dispenser from freezer, removed all screws that hold auger & blades, by remove ring & washer. Removed blades replaced broken drive blade and re-assembled. Removed ref. door install new bearing at bottom re-installed door. Both job very easy.
        Other Parts Used:
        TRIM-CABINET CORNER Hinge Bearing
        • Dominick from Las Vegas, NV
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Pliers, Screw drivers
        5 of 6 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Ice was not allowed to be dispensed because of worn part on auger.
        Followed instructions in video that was suggested when I placed the order.
        • Craig from AIKEN, SC
        • Difficulty Level:
          Very Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Pliers, Screw drivers
        1 person found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          2 Reviews
          5.0
          Filter By Rating:
          • 5 Stars
            2
          • 4 Stars
            0
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS12728807
              Manufacturer Part Number: 241684503
              Brand
              Model Number
              Description
              Kenmore
              25344302400
              Refrigerator
              Kenmore
              25344302401
              Refrigerator
              Kenmore
              25344303400
              Refrigerator
              Kenmore
              25344303401
              Refrigerator
              Kenmore
              25344303402
              Refrigerator
              Kenmore
              25344303403
              Refrigerator
              Kenmore
              25344304400
              Refrigerator
              Kenmore
              25344304401
              Refrigerator
              Kenmore
              25344309400
              Refrigerator
              Kenmore
              25344309401
              Refrigerator
              Kenmore
              25344333600
              Refrigerator
              Kenmore
              25344333601
              Refrigerator
              Kenmore
              25344333602
              Refrigerator
              Kenmore
              25344333603
              Refrigerator
              Kenmore
              25344333604
              Refrigerator
              Kenmore
              25344333605
              Refrigerator
              Kenmore
              25344333606
              Refrigerator
              Kenmore
              25344333607
              Refrigerator
              Kenmore
              25344333608
              Refrigerator
              Kenmore
              25344333609
              Refrigerator
              Kenmore
              2534433360A
              Refrigerator
              Kenmore
              25344352400
              Refrigerator
              Kenmore
              25344352401
              Refrigerator
              Kenmore
              25344352403
              Refrigerator
              Kenmore
              25344352404
              Refrigerator
              Kenmore
              25344352405
              Refrigerator
              Kenmore
              25344352406
              Refrigerator
              Kenmore
              25344352407
              Refrigerator
              Kenmore
              25344352408
              Refrigerator
              Kenmore
              25344352409
              Refrigerator
