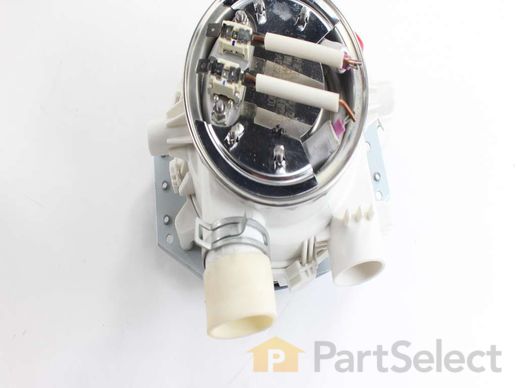

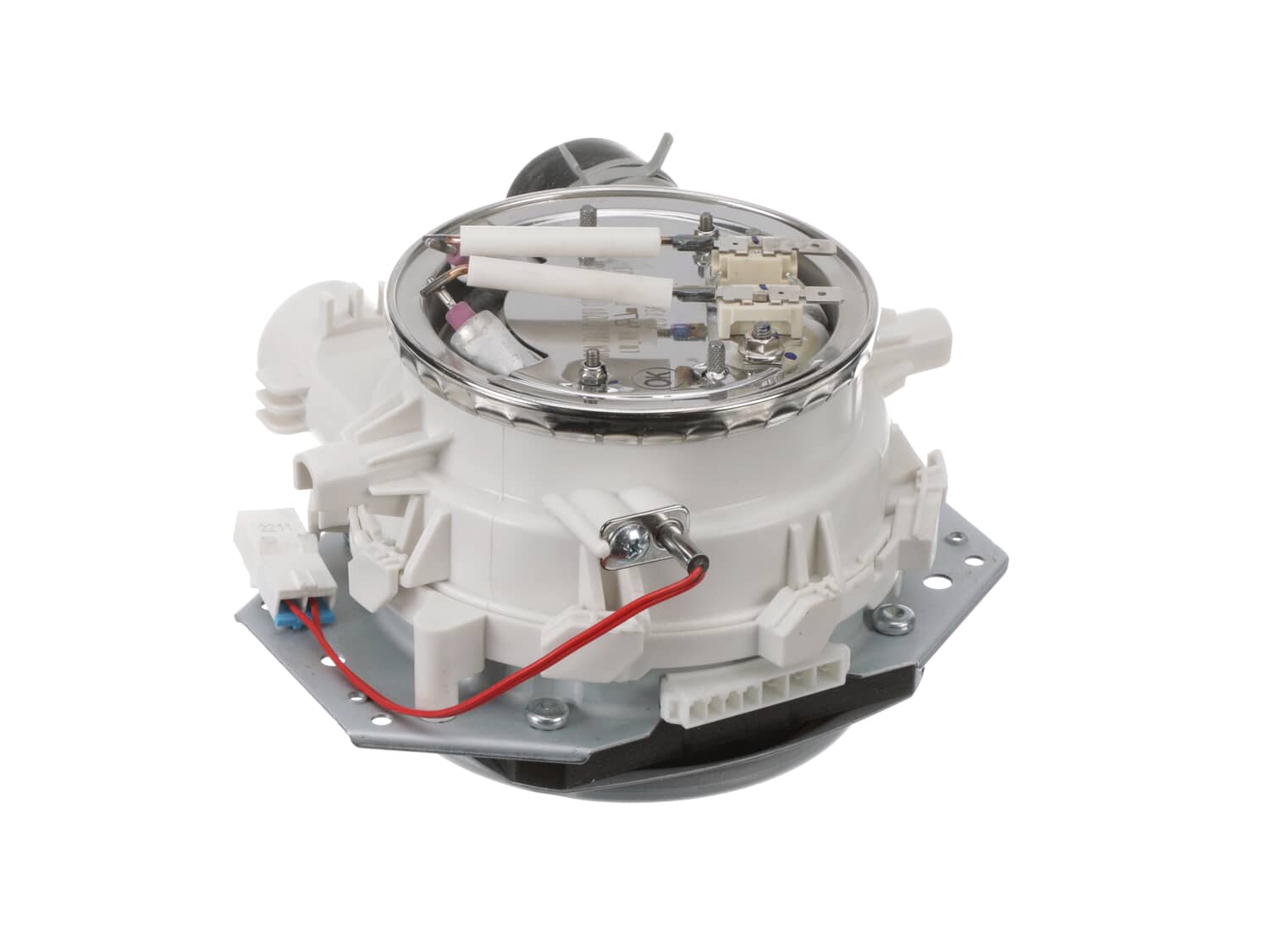

This pump casing assembly is compatible with various models of LG dishwashers. This assembly contains various components of the dishwasher pump. The pump is responsible for circulating water through the dishwasher during different cycles, such as washing and draining. The components included are the motor which provides the power that moves the water; the impeller, which helps to expel the water through the spray arms; the seals, which help to prevent water from leaking out, and the inlet and outlet ports which are responsible for pulling water from the tub and directing it outwards as needed; and finally, the outer housing. If any of these components fail, your dishwasher will have difficulties draining, dishes will not be cleaned thoroughly, and there will be grinding and buzzing noises during use.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Terry S - October 10, 2025
Verified Purchase
Perfect fit
Watched a you tube video, easy fix!!
★★★★★
★★★★★
Larry S - 11 days ago
Verified Purchase
Straightforward repair
The circulation pump was exactly what I needed for my LG dishwasher. It fit perfectly, and is working fine.
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Loud noise when running - the infamous bad drive motor
Replacing this pump is pretty easy. Disconnect the power and drain hose, and pull your dishwasher out from the counter. Lay it on its side on a towel. There WILL be spillage. Disconnecting the pump is simple. There are a couple hoses, one single wire connection (the thermistor) and one multi-wire plug. The pump is held in place by a
... Read morepair of thick rubber holders which can be pulled off by hand. That's it!
After removing the pump, I disassembled it to find out why these fail so soon. It's a very poor design. I found that the nose of the electric motor, where the bearings are located, sits in a plastic cup formed by the top of the pump body. Any leakage from the pump around the motor shaft will be held in place against the motor bearing. It has no place to go. This causes rusting of the bearing. I expect I'll be replacing this one in a few years. :(
But kudos to PartsSelect for getting the right pump assembly for me, after getting the wrong one from another supplier!
Read less
Mark from TEHACHAPI, CA
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
29 of 32 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mark Fitpatrick
October 15, 2019
Unit is not draining. Can i replace drain pump or is it all one unit
For model number ldf5545st
Hello Mark, thank you for inquiring. The drain pump for your model dishwasher is this Pump Casing Assembly, part number PS12579574. You may also want to consider replacing the Check Valve, part number PS12082224. Good luck with your repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Michael
December 30, 2023
Hi, is this pump a drain pump only, or does it do the job of circulating pump as well? Based on what's happening with my dishwasher, I have found sites that say it could be my circulating pump failing, but I cannot find a specific part called by that name on LG's site for my model. Thank you!
For model number LDP6797BD
Hello Michael, thank you for getting in touch. According to our research, the part you mentioned works as a drain pump as well as a circulation pump. If you need help placing an order, customer service is open 7 days a week!
1 person found this helpful.
Was this helpful?
Thank you for voting!
David
March 25, 2024
Hi,
I have found the leak on my LG DW coming from where the two white plastic pieces fit together on the pump. I haven't removed it yet but is there a gasket or seal that fits in there that I can replace?
Thanks,
David
For model number LDP6797ST
Hi David,
Thank you for your question. The pump shows a complete unit, so if there is a gasket it would be sold with the pump. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Kevin
July 10, 2019
My washer makes a loud humming sound when its washing. I think its the pump. Is this a common problem?
For model number ldf5545st
Hello Kevin, thank you for inquiring. This does occur from time to time. You will want to consider replacing the Inlet Valve Assembly part PS8769826 for your model to fix this. Good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Shane
April 18, 2024
Hello, my unit is making a loud squealing/ whining noise during operation. Would this be the circulation pump?
For model number LDF5545ST
Hello Shane, thank you for reaching out. Yes, based on the description that you have provided, we would recommend checking the circulation pump, part number PS12076782, to fix the issue. We hope this solves your problem!
Was this helpful?
Thank you for voting!
William
March 9, 2024
There is a whirring sound when running. Noise stops when water is pumping out.
For model number LDP6797BD
Hi William, thank you for contacting us. We have researched and found that the issue is with the circulation pump, part number PS12076782. You may need to replace it to fix the issue. Good luck with this repair!
Was this helpful?
Thank you for voting!
Adam
November 3, 2023
I have an LG Direct Drive dishwasher. while it is running, the dish washer is really loud and has a whining noise. The water is still being sprayed on the inside and only does this while washing. It will drain the water and dry the dishes but seems like the water pump has gone out. what part would need to be replaced to fix this?
For model number LDF5545ST
Hello Adam, thank you for contacting us. Based on the description that you have provided, we would recommend checking the circulation pump, part number PS12076782, to fix the issue. Good luck with your repair!
Was this helpful?
Thank you for voting!
