Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Stephan M - September 6, 2019
Verified Purchase
Good Quality Part

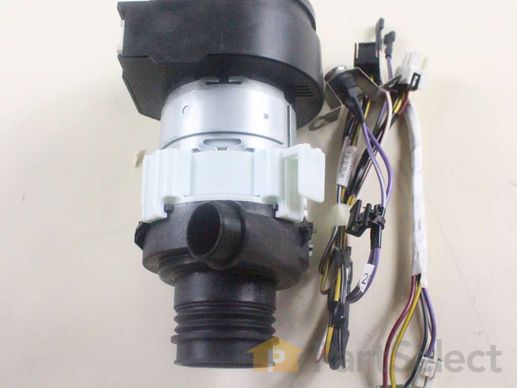

The washer pump kit came with all the hardware to install, including a new wiring harness. The new harness was necessary because the plug & socket were different from the old motor. We just matched up the wire colors with the old harness, plugged to new connectors where they belonged, and everything worked fine. Shipping was quick and part came well wrapped and undamaged.
★★★★★
★★★★★
Paul V - November 12, 2018
Verified Purchase
AWESOME!
What do I need a local parts store for? Nothing. Both times I called them to "buy local" they had to order the part. No need, I have PartSelect.com Thank You!
★★★★★
★★★★★
Sandy T - August 20, 2020
Verified Purchase
Dishwater pump
Service man came to fix our pump...it was not available at his company and he said it would take a long time to order and find one that was still in stock.
I immediately Googled parts for dishwashers and found Part Select and they would be delivering the part the next day...the workman said that’s impossible it will never happen.
He was wrong...it was here the next day!!! Boy was he shocked! My dishwasher was up and running!!!Thank Y’all ??
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
WILLIAM
November 25, 2023
Dishwasher is making a whinning sound --sound like something is straining. Not the sump pump it is working. Sounds starts at beginning of cycle.
For model number GDF520PGD4WW
Hello William, thank you for the great question. Based on our understanding of the issue, we would suggest replacing the circulation pump, part number PS12171006, to solve the problem. It delivers water to the spray arms to clean your dishes. Glad to be of help!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Fernando
January 9, 2025
Do you sell the wiring harness from the Dishwasher Circulation Pump Assembly kit by itself or must I buy the whole kit to replace a damaged port on my dishwasher
For model number GDF540HSF2SS
Hi Fernando, Thank you for asking. Very sorry, GE only sells the Harness as part of the Pump Assembly, it is not sold on its own. We hope this information helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Karen
April 28, 2022
Hi! Our dishwasher seems to be leaking from the sump pump. Should I try to tighten it or should we just replace the pump? Thanks!
For model number GDF510-620
Hello Karen, thank you for your question. It may just be a simple matter of replacing the Sump Manifold Gasket is part PS11766955. However, it you did physically see a leak from the Circulation pump, then correct part number is PS11772000. It could very well be the Diverter Assembly PS12710077 as it is so close to the pump. We suggest trying to get a good look of the underside before beginning your repair. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.
Does this model dishwasher have two separate pump motors? One for draining and another for washing?
For model number gdf540hgd4bb
Hello Roy, thank you for the great question. Yes, most dishwasher have a Circulation Pump PS12171006 and the Drain Pump PS16219695. Thank you and have a great day.
After hitting start, the dishwasher will fill with water and heats up, but does not cycle to the wash cycle. Thinking this is a circulation pump issue? Thoughts
For model number GDF520PGD4BB
Hello Shane, Thank you for your inquiry. Researching the model number that you have provided, it could be the circulation pump, the flood switch, the door latch, or the turbidity sensor. You can test the parts with a multimeter. If you are unfamiliar with how a multimeter functions, we have videos available to assist you. Good luck with your repair.
