See part F11 in the diagram
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

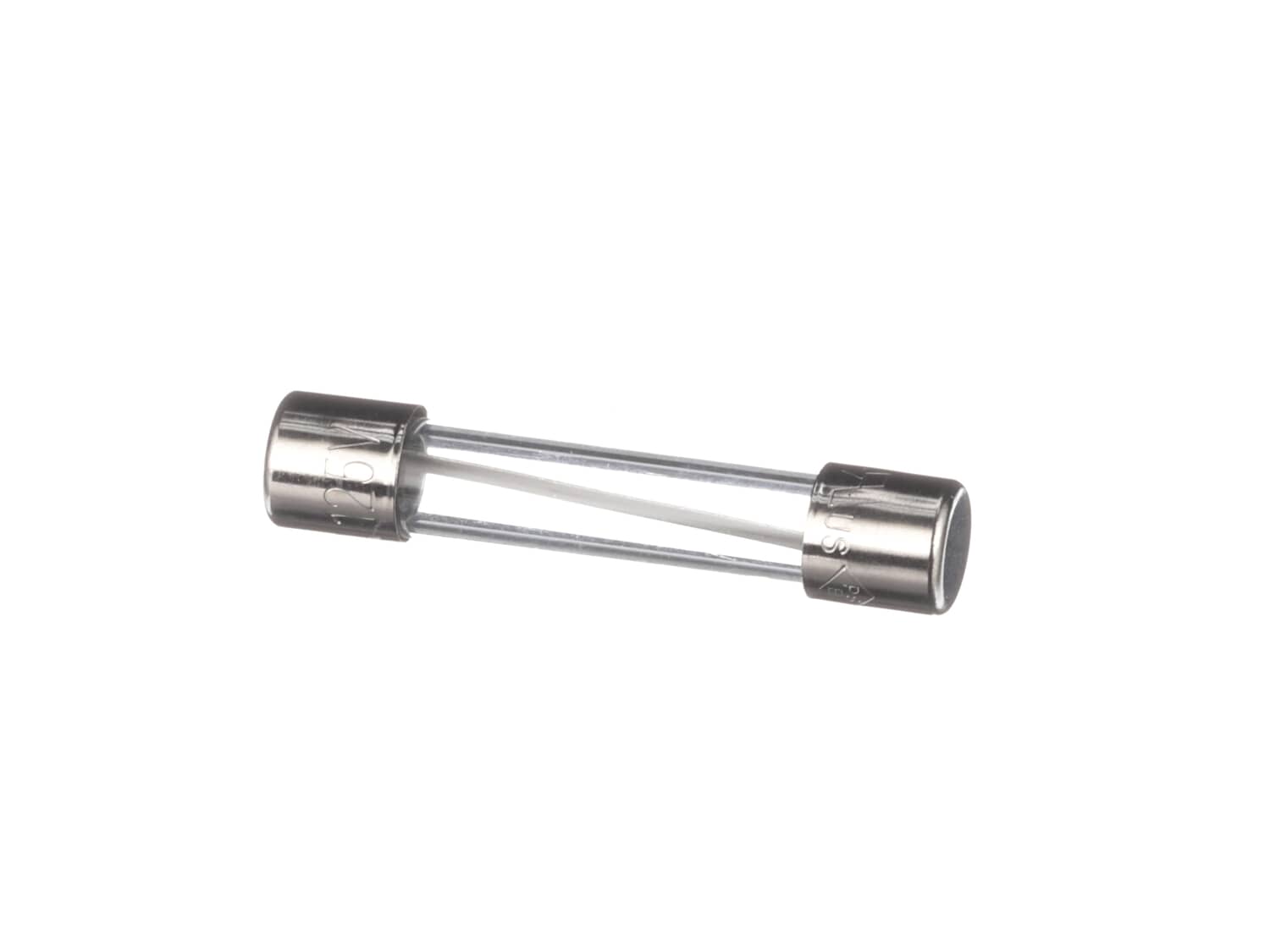

FUSE

★★★★★
★★★★★
7 Reviews

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS12071294
Manufacturer Part Number 5304509451
Manufactured by Frigidaire
Troubleshooting
This part fixes the following symptoms:
Won’t turn on
This part works with the following products:
Microwave, Microwave Oven Combo, Range.
This part works with the following products:
Frigidaire, Kenmore, Uni, Electrolux.
Part# 5304509451 replaces these:
AP6230606, 5304464087, 5304488359
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

16 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Eddie
December 18, 2019
The type and voltage use on microwave for this model and can this be pick up locally also the type of fuse used
For model number fgmv176ntf
Hello Eddie, thank you for your question. This unit is Capacity: 1.7 Cu. Ft. Cooking Watts: 1,000 Watts, and Amps: 15 Voltage: 120 Volts. There is a fuse which is PartSelect Number PS12071294. This is located on a fuse board on the right side of the unit behind the control panel. I hope this helps!

22 people found this helpful.

Was this helpful?
Thank you for voting!
Timothy
October 6, 2021
My microwave stopped working. I put a 20 amp fuse in it and it worked fine, came rite back on. Today the fuse blew out again. What else could be causing this? Should I just get a new one?
For model number MWV150KWA
Hello Timothy, Thank you for the question. As long as the proper Fuse was installed, we suggest testing the the Door Switches and making sure they are properly seated in the holder. They can cause a sure that blows the fuse. If the Switches are good, you may have a defective Magnetron blowing the fuse. We hope this helps, good luck with this repair!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Marie
September 29, 2021
I open the microwave door while it was running. I heard a loud noise. I close the door and tried to finish cooking the food but it won't turn on and the clock is not working anymore.
For model number 790.80323310
Hello Marie, thank you for writing. There is a fuse which is PartSelect Number PS12071294. This is located on a fuse board on the right side of the unit behind the control panel. I hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Michael
August 12, 2021
Location of fuse
For model number 790.80323310
Hello Michael, Thank you for the question. The Fuse is located on a fuse board on the right side of the unit behind the control panel. I hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Frank
November 26, 2021
Is this 20 amp time delay fuse. I just replaced the fuse three days ago and it blew out yesterday.
For model number FFMV1645TH
Hello Frank, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS12071294 for the fuse, it is not a timed delayed fuse. If the fuse is blowing, you may have a faulty door switch. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Joann
December 5, 2021
When I press the start button it turns off and flips the breaker. I flip the breaker back in it turns back on meaning it shows the time and the lights and exhaust fan still work fine. Problem is just when you hit the Start button it triggers the breaker to cut off.
For model number FFMV164lsa
Hello JoAnn, Thank you for your inquiry. We have researched the model you have provided and we would recommend checking the following parts to fix your issue: the fuse, the door switches, and the thermostats. You can test the parts with a multimeter. For safety reasons, since the microwave capacitor can still store electricity even when the microwave is unplugged, it is usually advised that you discharge the capacitor before any attempt at repair. We have included a link on how to do so. https://www.partselect.com/Microwave+discharge-capacitor+repair.htm Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Randy
December 27, 2021
How do I find the fuse and change it
For model number CGMV175QFA
Hello Randy, Thank you for the question. The Fuse is located on a fuse board on the right side of the unit behind the control panel. We hope this helps!

Was this helpful?
Thank you for voting!
Denise
July 5, 2022
Does any 20 amp fuse work?
For model number FGMV176NTDB
Hello Denise, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Fix Number: FIX12071294. We can only suggest only using the Fuse listed for the appliance. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
John
November 8, 2021
Where is the fuse located and how do I get to it?
For model number LFMV1645TFA
Hello John, Thank you for the question. The Fuse is located on a fuse board on the right side of the unit behind the control panel. Once the power has been disconnected the microwave will need to be set on a flat surface. The vent grill and microwave cover will need to be removed to access the fuse located at the top of the right-hand side. The appliance will hold a charge that can be dangerous, even with the appliance unplugged. We advise to use caution. We hope this helps!

Was this helpful?
Thank you for voting!
Jerry
February 28, 2022
What size fuse
Hello Jerry, thank you for writing. The fuse is Line fuse. 125 volt. 20 amp. We hope this helps.

Was this helpful?
Thank you for voting!
Customer Reviews
Average Rating:
★★★★★
★★★★★
7 Reviews
5.0
Filter By Rating:
  • 5 Stars
    7
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
    Sort by:
    Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
      Model Cross Reference
      This part works with the following models:
      PartSelect Number: PS12071294
      Manufacturer Part Number: 5304509451
      Brand
      Model Number
      Description
      Frigidaire
      00462166
      Microwave - Microwave
      Frigidaire
      00469295
      Microwave - Microwave
      Frigidaire
      30469294
      Range - Range
      Frigidaire
      50462164
      Range - Range
      Frigidaire
      50469293
      Range - Range
      Frigidaire
      70462163
      Range - Range
      Kenmore
      79080322310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080323310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080329310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080332310
      Microwave - MICROWAVE/HOOD COMBO
      Kenmore
      79080333310
      Microwave - MICROWAVE/HOOD COMBO
      Kenmore
      79080339310
      Microwave - MICROWAVE/HOOD COMBO
      Kenmore
      79080342310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080343310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080349310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080352310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080353310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080354310
      Microwave - MICROWAVE OVEN
      Kenmore
      79080359310
      Microwave - MICROWAVE OVEN
      Kenmore
      79089393510
      Microwave - MICROWAVE OVEN
      Frigidaire
      CFMV152CLBA
      Microwave
      Frigidaire
      CFMV152CLWA
      Microwave
      Frigidaire
      CFMV152KBA
      Microwave
      Frigidaire
      CFMV152KMA
      Microwave
      Frigidaire
      CFMV152KQA
      Microwave
      Frigidaire
      CFMV152KSA
      Microwave
      Frigidaire
      CFMV152KWA
      Microwave
      Frigidaire
      CFMV154CLSA
      Microwave
      Frigidaire
      CFMV157GBA
      Microwave - Hood Combo
      Frigidaire
      CFMV157GCA
      Microwave - Hood Combo
