Part Location Diagram of WE04X25201 GE THERMOSTAT
See part 506 in the diagram
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.com

THERMOSTAT WE04X25201

★★★★★
★★★★★
2 Reviews

Rated by 2 customers

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$ 15.28
  In Stock
Get FREE EconoShip on orders over $100! T&C apply

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS11772030
Manufacturer Part Number WE04X25201
Manufactured by GE
Troubleshooting
This part fixes the following symptoms:
Not Heating
This part works with the following products:
Dryer.
This part works with the following products:
General Electric, Hotpoint.
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
2 Reviews
5.0
Filter By Rating:
  • 5 Stars
    2
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Customer Repair Stories
 Average Repair Rating: 3.0 / 5.0, 2 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Dryer runs no heat,
Check for 240 at back of dryer, replaced all three thermostats around coil on rear panel, including high limt thermo,, but still no heat.

Not sure if coil is bad or if there is another thermostat or fuse around blower.
Other Parts Used:
THERMOSTAT THERMOSTAT
  • Matthew from WESTMINSTER, MD
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
3 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Not drying
Removing top of the dryer removing the back side panels of the dryer pulling back the back of the dryer to access to the thermostats left in the drum up to put it in the place secure all the screws and put everything together.
Other Parts Used:
HIGH LIMIT THERMOSTAT THERMOSTAT SAFETY THERMOSTAT
  • Rafal from FSTRVL TRVOSE, PA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

7 questions answered by our experts.
Sort by:
  • 1
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Charles
February 24, 2020
Physical location of the thermal overload switch?
For model number GTD33EASK0WW
PartSelect logo
Good Day Charles. Thank you for your question in regards to your unit (Model Number GTD33EASK0WW). Based on our research, this should be located behind the drum on upper right hand side of the Heater and Housing Assembly. We hope this helps! Best Regards.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Scott
March 4, 2023
Where is the thermal fuse located?
For model number HTX21EASK0WW
PartSelect logo

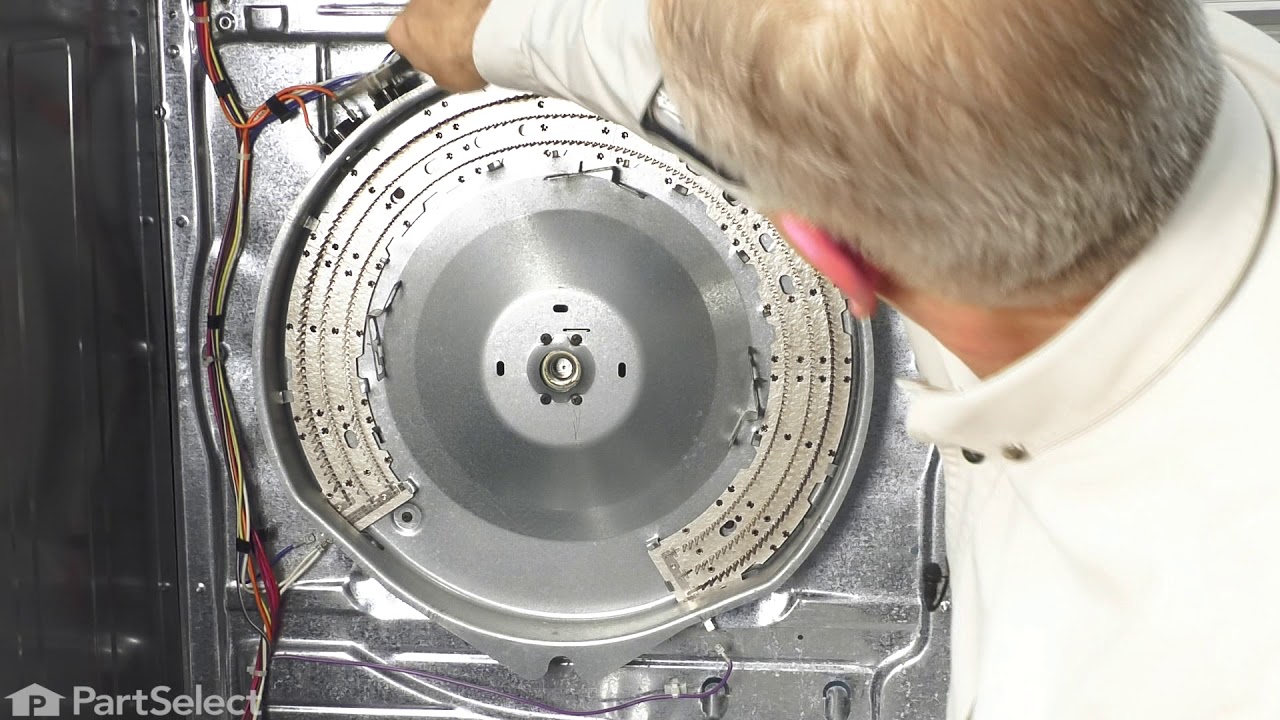

Hello Scott, Thank you for your inquiry. Researching the model number that you have provided, this model does not have a thermal fuse, it uses a safety thermostat-part# PS11759043, which is on the heating element on the outside of the inlet operating thermostat, and a high limit thermostat-part# PS12073908 which is the on the opposite side of the top of the heating element. We have included a link to one of our repair videos on how to access the heating element housing-which is where the thermostats are located. Good luck with your repair.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Bo
January 14, 2019
Where is my thermal fuses
For model number GTD42EASJ2WW
PartSelect logo
Hello Bo, Thank you for the question. The thermal fuse is located on the back where the Power Cord connects to the appliance. Thank you for your inquiry, good luck with this repair!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Roger
December 8, 2019
What do i ckeck out next if the coils and igniter both check ok no heat.
For model number gtd33gaskoww
PartSelect logo
Hello Roger, thank you for your question. We would recommend testing the flame sensor and thermostats next. I hope this helps!

Was this helpful?
Thank you for voting!
Adriana
September 30, 2023
My dryer doesn’t dry my clothes, it doesn’t blow hot air out. What would it be?
For model number GTD42EASJ2WW
PartSelect logo
Hi Adriana, thank you for your inquiry. Clogged air vents are a common cause for poor airflow in clothes dryer systems. One way to see if your dryer's air vent is clogged is by turning on your dryer and going outside to feel the flow of air leaving the vent. If it is slow and not very warm, your vent may be due for a good cleaning. If this does not help, we would recommend checking the dryer safety thermostat, part number PS12073908, it is acting as a thermal switch. It shuts off the heating element when the dryer overheats. We hope this sorts out your problem!

Was this helpful?
Thank you for voting!
Related Parts:
Jim
December 21, 2023
I ordered PS11772030 for my HP Dryer. No heat. While awaiting part we checked continuity and it's good. Assuming it is 506 on diagram. Part 505 isn't tested because it's a 3 wire and we need more info. Since everything else, including heating element had continuity, it's logical to guess 505 is the culprit. the number I find is WE04X26139. HELP!
For model number HTX24EASK0WS
PartSelect logo
Hi Jim, thank you for the question. The part 506 on the diagram is the high limit thermostat, part number PS11772030. Thermostat with part number WE04X26139 and partselect number PS12073908 is 507 on the diagram. It could be faulty also, we would recommend checking it using a multimeter. Remove the wires by pulling on the connectors, and not the wires themselves. It may be a good idea to use a pair of needle-nosed pliers to help you. Set your multimeter to the R X 1 setting. Take each of your meter's probes and touch one to each terminal. You are testing for continuity, and you should receive a reading of either zero or infinity. At room temperature, testing the thermostat should produce a reading of zero. But if a thermostat is tested when it is heated to its limit, a reading of infinity should be produced. We strongly recommend that you test your thermostat at room temperature. If the test you conduct with your thermostat does not produce these results, then you should replace the component. We hope this information is useful!

Was this helpful?
Thank you for voting!
Related Parts:
Andrew
18 days ago
Bought new home with dryer included. Seller said dryer worked until they moved out. Doubt. Dryer exhausted well but no heat. Read through parts select ect...Ordered all three thermostats without check anything. Took drum off and found: Burned through purple wire at about 4 0'clock on drum. Insulation on wired bubbled and wires was open from connector. Hence no power to heating element. Metered complete continuity through heating element, and two of the three thermostats/switches except inlet thermostat PN WE04X25201 which both on the newly received and old installed which metered (room temp) 8.94. The only culprit I see is the connector at the burned purple wire was extremely loose and fell off the terminal. I think replacing the push connector, cleaning the terminal and reconnecting should fix the issue with no need to replace any other components. Question: Ok for the thermostat to meter 8.94 resistance? Is there another component to check on the other end of the purple wire? To my knowledge the dryer did not trip the breaker. Thank you
For model number GTD42EAAJ2WW
PartSelect logo
Hello Andrew, thank you for reaching out. While you are testing for continuity, you should receive a reading of either zero or infinity. At room temperature, testing the thermostat should produce a reading of zero. But if a thermostat is tested when it is heated to its limit, a reading of infinity should be produced. We strongly recommend that you test your thermostat at room temperature. If the test you conduct with your thermostat does not produce these results, then you should replace the thermostat, part number PS11772030. We hope this is helpful!

Was this helpful?
Thank you for voting!
  • 1
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11772030
Manufacturer Part Number: WE04X25201
Brand
Model Number
Description
General Electric
GTD33EASK0WW
Dryer - ELECTRIC DRYER
General Electric
GTD33GASK0WW
Dryer - GAS DRYER
General Electric
GTD33GASK1WW
Dryer - Dryer
General Electric
GTD33PASK0WW
Dryer - GAS DRYER
General Electric
GTD42EASJ2WW
Dryer - DRYER
General Electric
GTD42GASJ0WW
Dryer - GAS DRYER
General Electric
GTD42GASJ1WW
Dryer - GAS DRYER
General Electric
GTD42GASJ2WW
Dryer - GAS DRYER
General Electric
GTD42GASJ3WW
Dryer - Dryer
General Electric
GTD45EASJ2WS
Dryer - DRYER
General Electric
GTD45GASJ0WS
Dryer - GAS DRYER
General Electric
GTD45GASJ1WS
Dryer - GAS DRYER
General Electric
GTD45GASJ2WS
Dryer - GAS DRYER
General Electric
GTD45GASJ3WS
Dryer - Dryer
General Electric
GTX22EASK0WW
Dryer - Electric Dryer
General Electric
GTX22GASK0WW
Dryer - GAS DRYER
General Electric
GTX22GASK1WW
Dryer - Dryer
General Electric
GTX33EASK0WW
Dryer - Electric Dryer
General Electric
GTX33GASK0WW
Dryer - GAS DRYER
General Electric
GTX33GASK1WW
Dryer - Dryer
General Electric
GTX42EASJ2WW
Dryer - ELECTRIC DRYER
General Electric
GTX42GASJ0WW
Dryer - GAS DRYER
General Electric
GTX42GASJ1WW
Dryer - GAS DRYER
General Electric
GTX42GASJ2WW
Dryer - GAS DRYER
General Electric
GTX42GASJ3WW
Dryer - Dryer
General Electric
GTX52EASP0WB
Dryer - Dryer
General Electric
GTX52GASP0WB
Dryer - Dryer
Hotpoint
HTX21EASK0WW
Dryer - ELECTRIC DRYER
Hotpoint
HTX21GASK0WW
Dryer - GAS DRYER
Hotpoint
HTX21PASK0WW
Dryer - DRYER
