Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

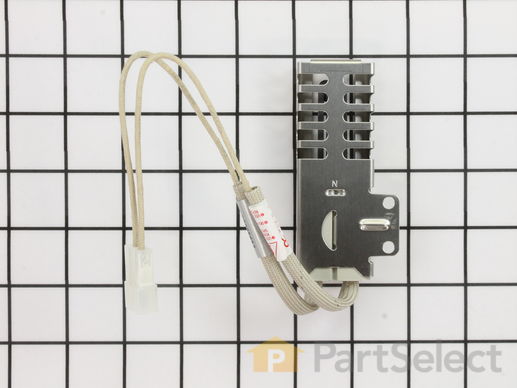

This flat-style oven igniter is a genuine OEM replacement part designed for gas ranges. Housed in durable ceramic, it includes a connector for easy installation and is responsible for igniting the gas that powers the oven burner. When functioning properly, the igniter glows and triggers the gas valve to open, allowing the burner to light and heat the oven. If the igniter glows but fails to ignite the burner, it may be worn or faulty and should be replaced. Before installation, always disconnect both the power and gas supply to ensure safety. This component is engineered for compatibility and reliable performance in select models.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Jerry E - November 10, 2019
Verified Purchase
Very easy repair and great part
Total awsome easy to order fast shipping and part fit perfectly!! Definitely would recommend this place
★★★★★
★★★★★
James D - February 6, 2018
Verified Purchase
Easy repair
The igniter was so easy to install. Probably saved $300 not having a technician come out. Very pleased.
★★★★★
★★★★★
Matthew M - September 23, 2022
Verified Purchase
Easy repair
Part came quick. Easy swap oven working again.
★★★★★
★★★★★
Jonathan R - January 22, 2021
Verified Purchase
Easy to install
The part was easy to install. It gave my stove a new life. Thanks
★★★★★
★★★★★
Edward H - September 10, 2019
Verified Purchase
Easy repair
Took about 30 minutes and oven was working.
★★★★★
★★★★★
Laura K - February 22, 2018
Verified Purchase
Easy repair even for a novice
I’m a single woman with no experience fixing appliances, when my oven broke and I decided to try to fix it on my own. I was able to trouble shoot it through this website, order the part and complete the repair with the help of YouTube videos. It was a relatively simple task, and took me a couple of hours, but saved a few hundred that could have been spent on a repairman. Anyway, I’m proud of myself and have this website to thank!
★★★★★
★★★★★
Bradley F - June 7, 2023
Verified Purchase
Easy to find got it quick got what I needed
So far part works perfectly
★★★★★
★★★★★
John A - January 20, 2023
Verified Purchase
Easy fix
Part received on time and in great condition. Replacement took 10 minutes. The hardest part was moving the oven.
★★★★★
★★★★★
Richard K - March 3, 2022
Verified Purchase
Appreciated the troubleshooting tips, this helped me repair the problem with my oven.
Delivered in a timely manner, the video showed exactly how to make the repair. Oven works like it did when it was new.
★★★★★
★★★★★
Andrew L - September 7, 2022
Verified Purchase
Easy replacement
It was an easy replacement after I got one that wasn’t broken. I ordered one and it came in broken I called them and they got a replacement part out really fast it was a. Saturday afternoon when I called and they got one out Monday for me
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 34 reviews.
What's this?
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Oven wouldn't lite and gasket was broken
First disconnect electrical and turn gas valve off remove back plane where electrical connectors are unclip connectors then remove baseplate inside oven remove inigter install new one put back together as far as oven gasket remove broken one look and size it first before installing new one as it has to be in proper place it just clips o
... Read moren if don't have mechanical skills please refer on pro
Oven igniter would not glow when put on bake. Front knob was broken
Replace the broken knob, with the exact part. Per the video, I unplugged the stove, open the front door of the stove, remove the racks and drip pan below, to expose the igniter component. Removed the two screws holding the unit in. Pull the stove from the wall and removed the shield plate from the rear covering the wire connection. Discon
... Read morenected the component and pushed the wires though the hole and replaced. Used soap to check the gas connection for leaks before pushing it back in place. Turned it on after remounting. Note: magnetic nut driver is a great tool to use on the mounting screws. Turned it on and saw the glow. Then replace the drip pan and racks.
Unscrewed the feet from the floor. Pried up the range top, removed burners. Unscrewed sides of the range from wooden cabinet it was recessed into. Unplugged range from outlet. Pulled range out into the open. Removed back cover. Discovered that I have the wrong replacement part.
Lloyd from PRINEVILLE, OR
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The Igniter seized and the oven would not heat up..the gas would not light.
So....the oven stopped working. I called a local appliance guy and set up an appointment to repair. $90 to travel here. $50 for the part $ labor was about $75 ..then tax. BUT then....I had a moment of clarity. A new Oven/Range/Stove top was about $400. This guy was over $200 to repair a 4-7 yr old s
... Read moretove. So I ordered the part. A resus monkey could have fixed the stove...I really mean it...Easy is an under-statement. I found a tutorial on you tube (how to change an Igniter. Literally 6 screws and unplug the igniter and install the new igniter. Replace the screws and replug in the unit.
and that's that.
Read less
Mace Matthew from Canaan, NY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Range oven not working, No Ignition.
Unplug range from electric service. Turn off gas supply to range.OVEN Removed the floor panel of the oven housing. Unscrew,and removed the heat deflector. (Caution sharp metals) Used 3/8 socket set to unscrew the old Igniter, used same bolts to mount new Igniter. Go to the back of the range removed the metal guard
... Read more held by four Phillip screws, unplug old harness, plug new factory plug (do not alter harness)
Read less
Randolph from Wilmington, DE
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Ignighter would not light and started smelling natural gas
Igniter is in the back bottom of the oven. I had to take off the top of the broiler compartment which has 3 screws. Unplugged the igniter which has two small screws and used a magnetic nut driver. installed the new one. It took 30-45 minutes.
David from HOUSTON, TX
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Igniter wasn’t reaching ignition point
Pull range out from the wall. Unplugged the old igniter. Took the broiler assembly out of the bottom of the oven by removing 6 philips head screws. Removed the 2 screws holding the igniter & removed. Screwed the new igniter in place , replaced broiler assembly. Got back behind range plugged in the new igniter slid range back into position
... Read more & turned the oven & it works like a new one.
Read less
Don from FREEPORT, OH
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven would not get to temp. Igniter glowed but no gas to burner.
Easy. Slide oven away from wall. Turn gas off and unplug. Open oven door. Remove grates and lift out bottom tray to access igniter. Igniter is affixed to burner tube using (QTY=2) 1/4” bolts. Used socket wrench due to limited space for nut driver handle length. Detach igniter. Got to back of oven and remove the protective plate at
... Read more the bottom. There are three phillips screws. Verify you have the correct cable for igniter by tugging on igniter in oven. Pull old igniter out. Replace old igniter with new using old bolts! Run igniter cable through back using same hole as old igniter. Plug in connector in the same fashion as prior. Before reassembly, test oven. Plug oven in and turn gas back on. Set oven to bake and set temperature. If igniter lights the gas burner tube, you’re done! Reverse process to put oven back together. Job takes 20 minutes, maximum. Saved a bundle!
Read less
JOHN from JASPER, GA
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Igniter was failing to get hot enough to ignite the gas.
It was a very simple repair pulled the old ignitor, and installed the new one in under 15 minutes. It was nice that it was a factory original part and matched perfectly. The wiring plug matched so no need to cut the plug and get ceramic wire nuts. The ignitor works perfectly and gets white hot rather than dark orange, the gas ignites i
... Read moren 20 seconds compared to 90 seconds.
Read less
Anthony from CARPINTERIA, CA
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
oven wouldn't heat up
I basically followed the video. The hardest part of the repair was trying to squeeze behind the oven to remove the back plate. Also the original screws holding the igniter took a small Allen wrench that I didn't have so I used an adjustable wrench. One screw was a little difficult but eventually got it tightened. Otherwise this was an eas
... Read morey repair like other reviewers have said.
Read less
JILL from PLYMOUTH, IN
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Wrench (Adjustable)
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
19 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mary
April 4, 2018
Preheated the oven and after 30 minutes the temp did not change on the display i opened the oven and it was still cold, not warm at all. I cancelled everything and tried again but it didn't work. Which part do you think is best for me? Thank you
For model number wfg505m0bw0
Hi Mary,
Thank you for your question. If the oven is not heating correctly, then the issue is likely with the oven sensor, sometimes called the oven thermostat, and you will need to check it with a multimeter. When testing the sensor with a multimeter, the sensor should be tested at room temperature. You will need to measure the resistance between the two prongs at the end of the sensor connector. Replace the oven sensor if the reading is less than 900 Ohms or more than 1200 Ohms. I hope this helps. Thank you and have a great day!
10 people found this helpful.
Was this helpful?
Thank you for voting!
Rene
January 13, 2018
Is the part that I am going to order going to fit my model? I had ordered an oven igniter from a different company, and the one they sent was not the one they had in the picture. It did not come with the plug in adapter. I just want to make sure before I order it, thanks
For model number SF315PEPQ1
Hello Rene, Thank you for the question. Yes, the PS11770066 is the correct igniter for the model number provided. This flat style gas oven igniter has ceramic housing and comes with a connector. Good luck with the repair!
5 people found this helpful.
Was this helpful?
Thank you for voting!
Tony F Napolitano
September 29, 2017
Just received part igntor-oven. Took the old part off, but the plug goes in back of the panel. How do i get to the plugin
For model number SF315PEMW1
Hi Tony,
Thank you for your inquiry. There is a video on our website that you can reference on how to install the oven igniter. You will find the video under part number PS1573892. I hope this helps. Thank you and have a great day!
Does this part glow the whole time the oven is being used?
For model number WFG320M0BS0
Hello Gefro, Thank you for the question.The oven igniter will stay on continuously while the burner is operating. The igniter will turn off once the oven reaches the set temperature and then it will come back on and stay on again when needed to ignite the burner to maintain the oven set temperature. Hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Raymond
September 30, 2019
My oven will not lite. It seems as if its not getting any gas from the gas line. The igniter glows very bright though. What should I check first?
For model number FGP305KW2
Hello Raymond, Thank you for the question. First I would say test your igniters with a multi meter to see if they are working correctly or not. They should be reading between 0 - 1100 ohms to be working correctly. They can glow but not be strong enough to open the valve. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Mari
June 4, 2019
The oven igniter was replaced by local technician. Oven lights only at 350-375 and then turns off when oven reaches that temperature. If i turn the oven control to a lower temperature, it goes out. I cannot cook that way. What needs to be done?
For model number AGG222VDW1
Hi Mari,
Thank you for your question. If the oven is not heating correctly, then the issue is likely with the oven sensor, sometimes called the oven thermostat, and you will need to check it with a multimeter. When testing the sensor with a multimeter, the sensor should be tested at room temperature and it should be unplugged from the oven. You will need to measure the resistance between the two prongs at the end of the sensor connector. Replace the oven sensor if the reading is less than 900 Ohms or more than 1200 Ohms. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Lisa
November 17, 2019
My oven won’t heat up and we smell gas. Would this be the igniter
For model number SF114PXSW2
Good Day Lisa. Thank you for your question in regards to your unit (Model Number SF114PXSW2). The following link will bring you to a list of parts that you may need to replace in order to solve the problem that you are having: https://www.partselect.com/AdvancedModelSymptoms.aspx?ModelNum=SF114PXSW2&mfgModelNum=&fkMfgID=3&ModelMasterID=114427&PID=51. Hope this helps. Best Regards.
Was this helpful?
Thank you for voting!
Brittany
August 10, 2021
My Whirlpool gas stove burners work and light but when turning on the oven it lights but doesn't heat properly the temp does not change but when opening the oven it has little to no heat not enough to cook. What could the problem be?
For model number WFG320M0BW
Hello Brittany, Thank you for the question. We suggest testing the Oven Sensor. This oven temperature sensor, for ranges, works together with the oven control board to measure and regulate the oven temperature. Testing the temperature sensor probe on your oven is easy. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. We hope this helps!
Try to start oven, nothing. Igniter does not glow. Igniter or temp sensor?
For model number WFG320M0BB
Hello John, Thank you for the question. We suggest testing the Igniter. On a good igniter, there should be between 40 & 400 OHMS. A bad igniter will show no resistance or continuity. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
Scott
April 25, 2022
I need oven igniter for WFG320M0BS
For model number WFG320M0BS
Hello Scott, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS11770066. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
