Bellow Clamp W10902779

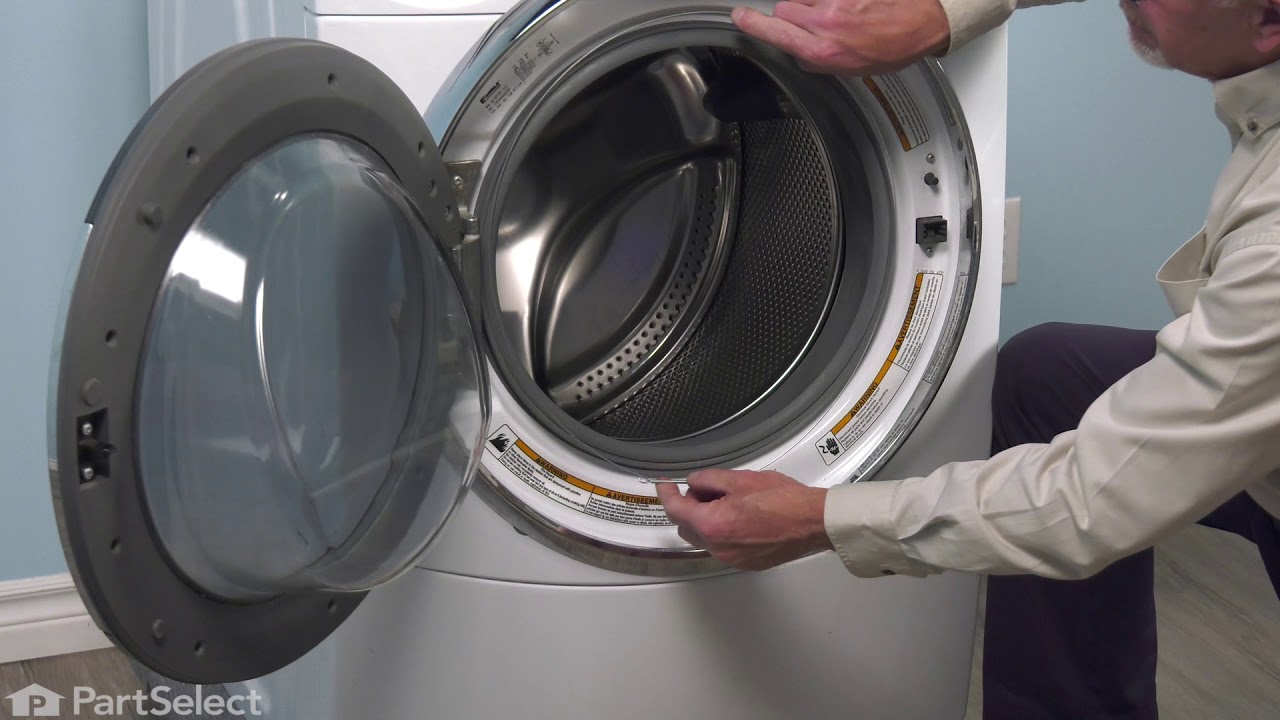

Replace bellow with help from Youtube video.

I found a you tube video with step by step instructions. Very easy to follow. Repair would have been quicker had my kids not been at home. I had to have my boyfriend help me put on the outer bellow spring clamp, as I was not strong enough. Washer works great.

It takes 2 people to do this repair.The bellow is the hardest part. One person has to hold the bellow in one spot, and the other person has to put it on the rim of the drum all the way around. Sort of like putting a tire on a bicycle. Dont do what I did and pry the door open. If you do that you will have to get a new door lock control at $54.Take off the lower front panel and reach up to the manual releace tab on the right side and pull down. Please make sure that the power is turned off, unplug the washer from the wall for your safety. The door switch itself is easy to replace, 3 screws, 3 plugs. Hope this helps.

Removed bellow clamp (used screwdriver to pry clamp open). Removed Bellow to Outer Tub Clamp with socket set. Removed Bellow. I had purchased new clamps as I didn't know condition of the old clamps. The Bellow to Outer Tub Clamp was in good condition, appeared to have an anodized finish - was not corroded and the tightening screw pointed forward where as the new clamp appeared to be galvanized and the tightening screw paralled the clamp. I assumed the new orientation of the tightening screw was to make it easier to tighten with a screwdriver, but space is limited and I had good success removing the old clamp with a socket set so I elected to reuse the old clamp. Plus, I liked the finish of the old clamp better - it had zero corrosion on it after several years, almost a decade, of use.
Reinstalling the bellow was the hardest part of the repair - it is just tedious and patience is required - I took a couple of breaks seating the Bellow to the outer tub. There was a tab on the Bellow which went to the top to insure the Bellow was properly aligned. After I seated the bead of the Bellow all the way around, I slipped the Bellow to Outer Tub Clamp over the Bellow and tightened it down - continually checking the seating of the Bellow. I then put the Bellow over the water inlet tube and seated the outer portion of the Bellow. I needed additional hands to help hold the outer clamp in place - my wife helped - and I used pliers and plastic pry wedges from a tire patch repair kit to pull it open and slip it over the Bellow - I didn't want to use screwdrives as I was afraid I would damage the Bellow.

I removed the outer tub clamp using two needle-nosed pliers. Then I folded the bellow back and removed the bellow from the dispensing outlet. I then losened the bellow clamp using a screw driver. It was on there very securely. Then I had my daughter with her smaller hands finish untightening the screw enough to release the bellows from the machine. Then the bellow and clamp were taken out of the machine carefully, not scratching anything and noting orientation for new bellow. I cleaned the machine surfaces. Next, lining up the top notch on the bellow, it was worked into the groove around the entire inner basket. The bellow also had to have the hole covering placed over the dispensing outlet. This was the most time consuming. Just to make certain that it was positioned correctly took 20 minutes. I then put the bellow clamp back on and tightened it to the very tight positioned it was in prior to being removed. My daughter returned to help with the smaller bellow clamp that goes to the front of the machine. I needed help keeping one side of the clamp in placed while the other side was stretched out again to go onto the bellow. Then the machine was leveled top to back, side to side, leg nuts tightened. Works quieter than ever.
