See part 17 in the diagram
Replacing your Whirlpool Washer Washer Water Inlet and Valve Assembly play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Washer Water Inlet and Valve Assembly

★★★★★
★★★★★
21 Reviews
$77.45   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11757114
Manufacturer Part Number WPW10683603
Manufactured by Whirlpool
Product Description

Washer Water Inlet and Valve Assembly Specifications

This water inlet valve attaches the water lines to the back of your appliance. The attaching solenoids on the valve open and close according to the desired temperature, or amount of water needed.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Will not fill with water | Leaking | Will not stop filling with water | No hot or cold water
This part works with the following products:
Washer.
This part works with the following products:
Whirlpool, Amana, Maytag, Kenmore.
Part# WPW10683603 replaces these:
AP6023768, W10423125, W10501149, W10683603, W10683680
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

25 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Keith Constable
February 12, 2018
Does this come with solenoids?
For model number part w10423125
Hi Keith, Thank you for your question. Yes, the water inlet valve comes with the solenoids. I hope this helps. Thank you and have a great day!

22 people found this helpful.

Was this helpful?
Thank you for voting!
Lil
October 12, 2017
I bought this washer two years ago am i going to have to replace this every two years
For model number W10683680
Hi Lil, Thank you for your inquiry. Hopefully not. Sometimes parts can wear out. If your appliance is under warranty the manufacturer may be able to replace it for you. If you are not still under warranty you may order the part from us. I hope this helps. Thank you and have a great day!

8 people found this helpful.

Was this helpful?
Thank you for voting!
Larry Dupuy
January 2, 2018
Is there a screen in the water inlet port? My washer has a very low water pressure into the machine. It is not in the water line. Do i need to replace the machine?
For model number RTW4640YQ1
Hi Larry, Thank you for your question. There are screens in the water inlet valve that catch debris. Sometimes if they become clogged they can prevent the proper flow of water from flowing through them. The screens on the water inlet valve can be damaged easily if cleaned. If the problem is with the screens, you may need to replace the water inlet valve. I hope this helps. Thank you and have a great day!

7 people found this helpful.

Was this helpful?
Thank you for voting!
Victor
July 5, 2019
Remove part no w10423125
For model number mvwc400xw4
Hello Victor, thank you for writing. We do have an installation video for this part. Here is a link. https://www.youtube.com/watch?v=pYFRzLH4Wl4. We hope this helps.

3 people found this helpful.

Was this helpful?
Thank you for voting!
Ken
December 12, 2018
This four year old washer behaves as follows; any cycle selection, - pushing the start button, the left light lites, the lid log makes a noise and engages, the agitator turns slowly, and then the lid lock disengages. No water flow at all. Checked hoses and filters. Both good. Is this a typical lid latch issue or a water valve issue or is there another problem. The issue(s) have happened over a few weeks, firstly the tub would not fully drain, and now it does virtually nothing except be powered. With the cost of the various parts, it may be cheaper to simply buy new. Certainly cannot afford a repair professiona. However, i would think that a four year old machine would not become obsolete.
For model number MVWC425BW0
Hello Ken, thank you for your question. It sounds like the water valve has failed. The washer should lock, then fill with water. If the water valve isn't opening to allow water to the unit the lid lock will unlatch and the unit will not run. We would recommend replacing the water valve PartSelect Number: PS11757114. If that doesn't fix the issue the water level pressure hose could be kinked, or the pressure switch may have failed which could cause the unit to not fill as well. I hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Nicole C
February 7, 2019
Hello, i asked earlier about the washer flashing code f8e1, i was told to check the air pressure tube for damage and i did not see any damage on the tube even blew threw it and didnt feel any air. The inlet valave seems to be in good condition, i dont see any warping or anything like that. When i took the back of the washer off and the removed the drain tube water came out, could there be something wrong with the pump? Or does the code f8e1 only mean the pressure tube and valve? If it helps any the washer goes through the cycle and by the time it gets to spin it will spin once and then the lights turn off but the lock lid light and it makes noises and then that light turns off and the wash light will turn on and just sit there, the clothes are still wet when i open the lid. However the only code flashing is f8e1.Thank you for the help
For model number wtw5000dw0
Hello Nicole, Thank you for your follow up! Next I am suggesting to do a continuity test on the lid switch itself. It is a safety mechanism and if it fails the washer will not spin. It is normal for some water to come out of the drain tube in small amounts however it should not be anything excessive. I hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Nicole C.
February 7, 2019
This is just a follow up from my last two questions about my washer. I did check the lid lock and its okay, i can even put the washer on drain and spin and it does just fine. However its still doing what i described in my last message about getting to rinse and then the Green lights turning off and just the lid lock light stays on and i can hear the pump or drain doing something and then the lid light turns off and it goes to wash and just sits there, the same error code is coming up as f8e1. The water is going into the machine just fine as well.....would it just be safe to assume i should go ahead and just get a new pressure hose and replace it incase there is a hole or something wrong somewhere that im not seeing? i just dont want to buy 10 different parts to fix one thing. thank you for all the help!
For model number wtw5000dw0
Hello Nicole, Thank you for contacting us! The only other things I can think of checking would be PS11752017 2 position selector switch, PS11752020 5 position selector switch, and PS10056798 CNTRL-ELEC. I would like you to test these parts with the multimeter. Good luck with your repair!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Terry
February 12, 2019
Can i replace just the two electronic magnet devices on my washer on the water inlet valve
For model number W10501149
Hello Terry, Thank you for writing. Unfortunately the water valve is only available as a whole rather than individual compartments. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Kathleen
May 14, 2019
The washer was filling very slowly, so we removed screens and at the time removed some plastic water diverter? Inside water valve, now the washer just keeps filling up and it doesn't stop, and the wash cycle isn't finishing? We are trying to find replacement part for that small plastic thing we took out, please help?
For model number MVWC415EW
Hello Kathleen, Thank you for the question. If the part removed was in the Water inlet valve. The vale will need to be replaced. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Ralph
January 29, 2018
This washer does not fill with hot water. The hot water inlet solenoid seems to open and close intermittently. Will replacing the water inlet valve assembly solve this problem?
For model number 1105072012
Hi Ralph, Thank you for your question. Usually if your water inlet valve is malfunctioning replacing it would fix the issue. You can make sure that it is your inlet valve with a multi meter though. I would suggest testing the hot water solenoid of your valve there to be sure. I hope that helps. Good luck with your repair.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Part Videos

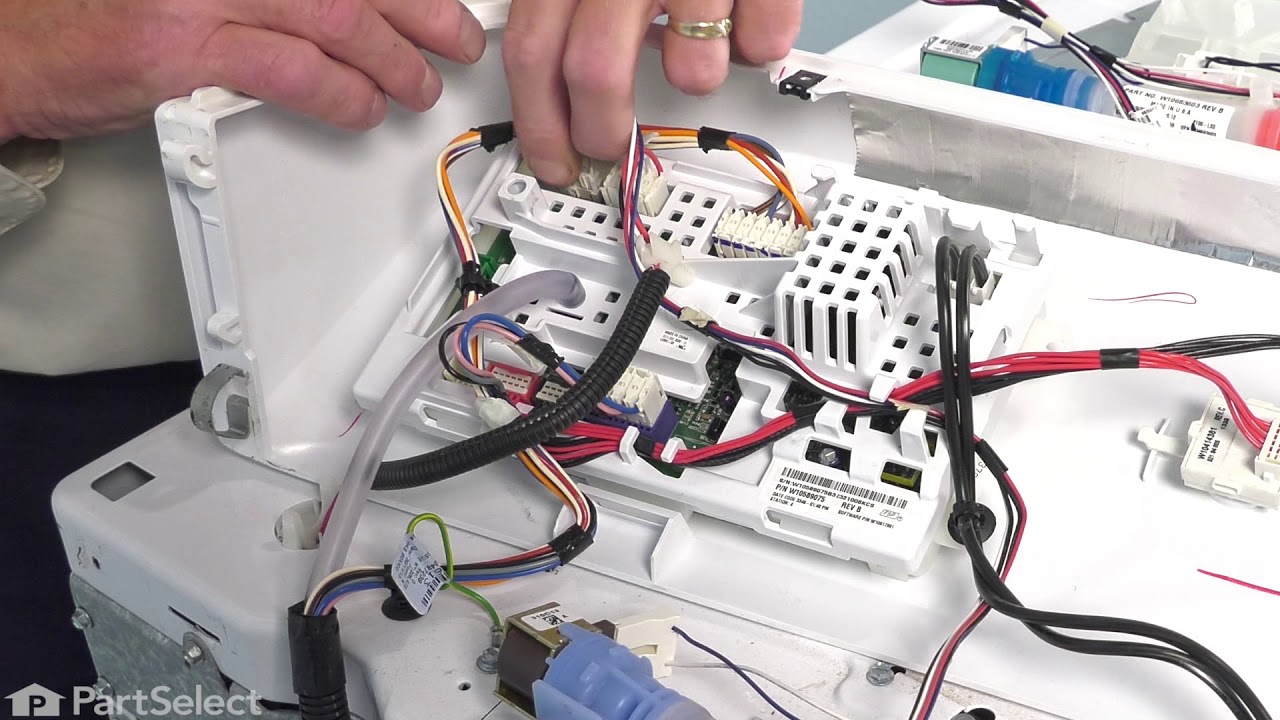

Replacing your Whirlpool Washer Washer Water Inlet and Valve Assembly

Replacing your Whirlpool Washer Washer Water Inlet and Valve Assembly play video
Customer Repair Stories
 Average Repair Rating: 4.1 / 5.0, 3 reviews. What's this?
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    Water inlet nozzle was stripped and leak
    Remove the front panel and back panel unplug the part unscrewed the part and replace it with the new one
    • Armand from WESTPORT, MA
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Pliers, Screw drivers
    22 of 47 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Hot water valve would barely open - take 35 mins to fill washer
    Pull the washer out from wall
    Unplug the Washer
    Close the supply line valves
    Unscrew the supply lines, use bucket to catch line water
    Remove 1 cover plate for elec lines (1 screw)
    Remove 2 screws on edge of back plate for control panel
    Slide long blade under front of control panel corners, pop the lock clips
    Lay control panel forward - controls down
    Compare new and old part - looks the same, wires, etc
    Remove center screw on back plate cover to remove it
    Unplug the elec wires connecting the valves and the control panel
    Remove 2 screws holding the water valve outlet
    swap out the old values for new valves
    Reverse the process - step backwards and reassemble
    Took me 36 minutes.
    Tested the washer for Hot fill and later cold - both work
    • Kevin from ARLINGTON, TX
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Pliers, Screw drivers, Socket set
    7 of 8 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Water would not stop running over filled the washer
    Unplugged the washer turned off the water disconnected the water lines then took the cover off and disconnected the wires and took 2 screws out and took the old part out and put the new 1 in
    • Mary from GROVER HILL, OH
    • Difficulty Level:
      Very Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Socket set
    2 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      21 Reviews
      4.7
      Filter By Rating:
      • 5 Stars
        17
      • 4 Stars
        3
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        1
      Sort by:
      Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
      Model Cross Reference
      This part works with the following models:
      PartSelect Number: PS11757114
      Manufacturer Part Number: WPW10683603
      Brand
      Model Number
      Description
      Kenmore
      11020022014
      Washer - WASHER
      Kenmore
      11020102310
      Washer - AUTOMATIC WASHER
      Kenmore
      11020102311
      Washer - AUTOMATIC WASHER
      Kenmore
      11020112311
      Washer - WASHER
      Kenmore
      11021102013
      Washer - AUTOMATIC WASHER
      Kenmore
      11021292013
      Washer - AUTOMATIC WASHER
      Kenmore
      11021302013
      Washer - AUTOMATIC WASHER
      Kenmore
      11021492310
      Washer - AUTOMATIC WASHER
      Kenmore
      11022102310
      Washer - AUTOMATIC WASHER
      Kenmore
      11022102311
      Washer - WASHER
      Kenmore
      11022342510
      Washer - WASHER
      Kenmore
      11022442510
      Washer - WASHER
      Kenmore
      11023102310
      Washer - AUTOMATIC WASHER
      Whirlpool
      1CWTW4740YQ1
      Washer - WASHER
      Whirlpool
      1CWTW4800YQ1
      Washer - WASHER
      Whirlpool
      1CWTW4840YW1
      Washer - WASHER
      Admiral
      ATW4675YQ0
      Washer - AUTOMATIC WASHER
      Admiral
      ATW4675YQ1
      Washer - AUTOMATIC WASHER
      Admiral
      ATW4676BQ0
      Washer - WASHER
      Admiral
      ATW4676BQ1
      Washer - WASHER
      Whirlpool
      CAW12444BW0
      Washer
      Crosley
      CAW12444DW1
      Washer - WASHER
      Crosley
      CAW12444XW2
      Washer - AUTOMATIC WASHER
      Whirlpool
      CAW9244BW0
      Washer
      Crosley
      CAW9244DW0
      Washer - WASHER
      Crosley
      CAW9244DW1
      Washer - WASHER
      Crosley
      CAW9244XQ4
      Washer - AUTOMATIC WASHER
      Whirlpool
      CAW9444BW0
      Washer
      Crosley
      CAW9444DW0
      Washer - WASHER
      Crosley
      CAW9444DW1
      Washer - WASHER
