Dispenser Actuator Switch

★★★★★
★★★★★
6 Reviews
$77.23   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11753574
Manufacturer Part Number WPW10352973
Manufactured by Whirlpool
Product Description

Dispenser Actuator Switch Specifications

This is an actuator switch to trigger bleach, detergent, or fabric softener housings to be dispensed into the tub of your washing machine. If your detergent cups are not dispensing, you may need to replace this part. The part is made of off-white plastic and metal.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Will not fill with water | Does not dispense fabric softener or detergent
This part works with the following products:
Washer.
This part works with the following products:
Whirlpool, Kenmore, Maytag, Amana.
Part# WPW10352973 replaces these:
AP6020256, 8183186, W10065190, W10163975, W10283468, W10352973
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

3 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Gary
    November 8, 2017
    Yes my unit will not start, and it issued trouble codes "e01" & "f06" on the display. I did not see any options for the trouble codes on your site, but ya''ll stipulate will not start causes being one of 3 items, temp sensor, dispenser actuator switch, or the mcu, just today-11/8/2017 while day before yesterday(11/6/2017) on your site, i entered the same query & it stipulated temp sensor, door switch/lock, & mcu as the options. I searched same query app 10 days ago and it said the same thing as day before yesterday(11/6/17), temp sensor, door switch/lock?, & mcu. I ordered, received & installed the temp sensor as your site stipulates that this was the problem 80% of the time, while the other 2 weighed in at 10%. I got on your site to order the door switch/lock option as the temp sensor did not work and further yet it issued the same trouble codes, e01 & f06. I am at a loss because i thought would pull it up again so i could order the door switch and figured to take that link displayed , but this time the door/switch/lock was not an option and had been replaced by the "dispenser switch lock". My question, what should i order? Another question, why do these trouble codes issued by the machine not enter into ya'lls calculations on what may be wrong with the appliance as they are generated for troubleshooting. On yet another site(repair clinic) stipulated similarly to your site, they listed temp sensor, door switch/lock, ccu & mcu? Thanks so much, I guess more than anything, I'm wondering about the trouble codes issued by the effected machine, thanks.
    For model number MHW6000XW0
    Hi Gary, Thank you for the questions. The list of symptoms with percentage is determined by our customers ordering the parts and why, so this can change depending out what people are ordering for certain issues they are having. The E01 & F06 error codes indicate a Communication issue between the CCU (central control unit) and the MCU (motor control unit). Check door switch operation. Faulty switch may interfere with power to MCU. Verify continuity in cable between CCU and MCU and that there is no damage to the boards or the drive system.In most cases the MCU will need to be replaced.Hope this helps!

    4 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    Tim
    January 19, 2018
    Hello, my washer stopped working when there was a load in there and water has not drained. Now when I try to start the washer the door locks, but then after a few minutes error codes E02 and F01 show up. I unplugged it for a couple hours and same results. Can you help?
    For model number MHW6000XW2
    Hello Tim, Thanks for your question. This situation arises due to a faulty motor control board. You may wish to replace this, though I recommend checking the wiring to the control board first after unplugging the machine to ensure there is no loose wiring. I hope this helps.

    3 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    Kathy
    July 31, 2019
    How do i know if the dispenser actuator switch has failed? I use the auto dispenser to dispense laundry detergent and fabric softener. The softener cup does not dispense all of the softener for a single load, and after a few washes gets gummy. Could it be the fabric softener i am using? Is there an error code or a way to test the actuator switch before i replace it?
    For model number WFL98HEBU0
    Hi Kathy, thank you for your question. Yes, it could be the fabric softener itself. However there are some parts that you may want to check if they need cleaning out. First would be the housing for your detergent itself there. Check the ports to see if there is any build up that would be stopping the flow of water into the housing and then down into your tub. The other part to check would be your water inlet valve itself there. It could be that it is not bringing enough water into the machine. The valve can be tested with a multi meter and should be reading between 500 - 1500 ohms of resistance. If both of those things have been checked and they are in working order, then it might be your switch that is the issue. I hope that helps. Good luck with your repair.

    2 people found this helpful.

    Was this helpful?
    Thank you for voting!
      Part Videos

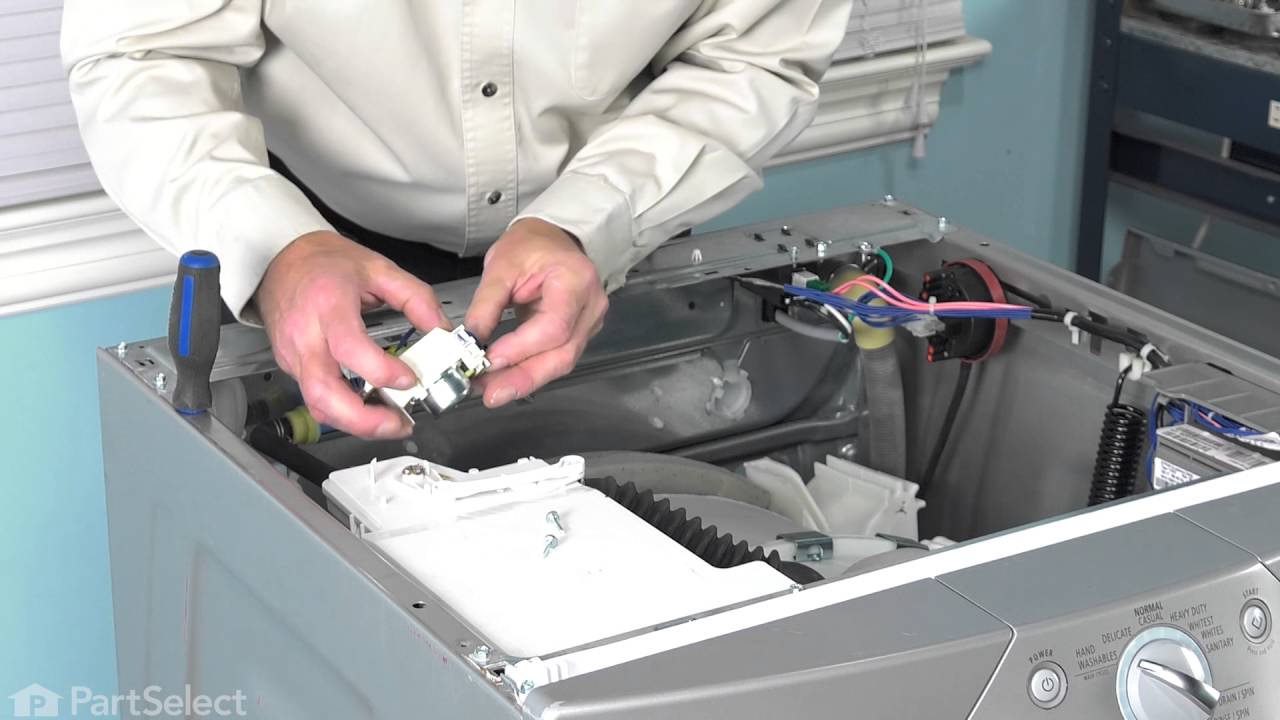

      Replacing your Whirlpool Washer Dispenser Actuator Switch

      Replacing your Whirlpool Washer Dispenser Actuator Switch play video
      Customer Repair Stories
       Average Repair Rating: 3.8 / 5.0, 2 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        The washer machine didn’t start the cycle. Had a weird sound. Then f 30 was ther error code. With research internet it was easy to know about the motor dispenser problem
        I did follow step by step your YouTube video. I’m a woman. There was nothing heavy in the process. You have to be careful that’s it. Thank you for the instructions. I fixed it with the YouTube tutorial you provided. Really nice from you people.
        • Martha from Pine Island, TX
        • Difficulty Level:
          Very Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers, Wrench (Adjustable)
        • Parts Used:
          WPW10352973
        2 of 2 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Washer would not fill
        replaced actuator switch. It did not fix the problem. Replaced actuator arm, and fixed. Needed the switch because gears were stripped. Needed the arm because it seems over time, the arm straightened, thereby increasing its length so that the rotation of the switch bound up during its cycle.
        • Steve from TULSA, OK
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Screw drivers
        • Parts Used:
          WPW10352973
        1 person found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          6 Reviews
          5.0
          Filter By Rating:
          • 5 Stars
            6
          • 4 Stars
            0
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS11753574
              Manufacturer Part Number: WPW10352973
              Brand
              Model Number
              Description
              Kenmore
              11046742700
              Washer
              Kenmore
              11046742701
              Washer
              Kenmore
              11046742702
              Washer
              Kenmore
              11046747801
              Washer
              Kenmore
              11046747802
              Washer
              Kenmore
              11046752700
              Washer
              Kenmore
              11046752701
              Washer
              Kenmore
              11046752702
              Washer
              Kenmore
              11046757801
              Washer
              Kenmore
              11046757802
              Washer
              Kenmore
              11047081600
              Washer
              Kenmore
              11047081601
              Washer
              Kenmore
              11047081602
              Washer
              Kenmore
              11047086600
              Washer
              Kenmore
              11047086601
              Washer
              Kenmore
              11047086602
              Washer
              Kenmore
              11047087600
              Washer
              Kenmore
              11047087601
              Washer
              Kenmore
              11047087602
              Washer
              Kenmore
              11047088600
              Washer
              Kenmore
              11047088601
              Washer
              Kenmore
              11047088602
              Washer
              Kenmore
              11047089600
              Washer
              Kenmore
              11047089601
              Washer
              Kenmore
              11047089602
              Washer
              Kenmore
              11047091600
              Washer
              Kenmore
              11047091601
              Washer
              Kenmore
              11047091602
              Washer
              Kenmore
              11047701800
              Washer
              Kenmore
              11047701801
              Washer
