This part does NOT include the water filter. Must order filter separately. his water filter housing is for refrigerators.
Water filter housing holds the water filter and connects the water lines to the water filter.
Safely store any food that could deteriorate while the power is off and unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
Ask our experts a question about this part and we'll get back to you as soon as possible!
12 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Tim Phillips
January 29, 2019
Water dispenser suddenly started filling very slowly. Changed the filter still very slow fill. Removed the filter and it flows great but i noticed water leaking out the filter housing outlet. Replaced the filter and again very slow fill. Do i need to replace the filter housing? Again without the filter great flow so it seems the switches and valve are ok.Thanks.
For model number c
Hello Tim, thanks for your question! We would recommend changing the filter housing, as changing the filter did not fix the issue and ruled out the filter being the problem. It is most likely an issue with the connection to the water filter in the housing. We hope this helps, and good luck with your repair!
17 people found this helpful.
Was this helpful?
Thank you for voting!
James
March 13, 2019
Every few days my water dispenser slows and i get a pulsating sound. I can fix it by removing and reseating the filter. But then it comes back in a few days. Also the filter takes a lot of pressure to seat and sometimes unseats on its own. Could this part fix my problem?
Hi James,
Thank you for your question. If the water filter is not seating correctly in the housing, replacing the housing may help. I would check first to make sure that housing you have now is fitted correctly in the refrigerator and not causing the issue. I hope this helps. Thank you and have a great day!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Joe
December 6, 2017
Replaced water filter and no water comes out of dispenser.Removed new filter and notice water leaking from filter housing ports. Removed housing cleaned ports with air to blow out any foreign material. Reinstalled housing and filter, still no water come out of dispenser. I already replaced inlet valve.
For model number ed5vhexvq02
Hi Joe,
Thank you for your question. I would suggest then checking your micro switch in your dispenser area. You can test that part with a multi meter to be sure. If that part is also fine, the problem may lay with your dispenser control board. I hope that helps. Good luck with your repair.
No water at the dispenser with the filter installed. I replaced it with a new filter and there is still no water. It works fine with the filter removed [bypass filter]. Do I need a filter housing?
For model number ED5VHEXVQ06
Hello Gary,
Thanks for your question. There are a few parts to consider beforehand. First, test the water inlet valve with a multi-meter for continuity and replace it if it shows no continuity. See if the water lines are frozen and if they are receiving sufficient pressure as well. We would also advise checking the door switches for continuity, as they can cause the dispenser to not dispense water if they fail.
I hope this helps.
Unable to remove water filter from the housing! Can't get the button to release.
Hello Paul, Thank you for the question. If the filter button will not release, You may have to remove the housing for the filter to open it up and get the filter out. Hope this helps, good luck with this repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Rodney
January 21, 2019
When I pull the filter out, water pours out of the back of the tube. No water pressure when dispensing water. Dispenses very slowly.
For model number ED2NHGXVQ01
Hello Rodney, Thank you for the question. It sounds like the filter, PartSelect Number: PS11722128 may need to be replaced. Hope this helps, good luck with this repair!
When water is dispensed at the door in addition to the slow flow, there has been a buzzing noise. This happened also with the installation of a new filter.
For model number ED5FHAXst00
Hi Ed, thank you for your question. Usually when you are having an issue like that it is best to check the water filter for any dirt or debris that could be in the top. Otherwise you might have to look at your water inlet valve for being the issue. I hope that helps. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Gordon
July 6, 2021
When removing the filter to replace it, should any water be spraying within the housing? If it is, would this mean housing is bad and that is why dispenser is very slow with water and making ice?
For model number ED5LVAXWB05
Hello Gordon, Thank you for the question. The Housing should Auto Bypass so not water should be spraying or leaking while changing or removing the filter. We recommended replacing the Housing. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
GABRIEL
August 30, 2021
Water housing leaks. Id like to replacement
For model number PS11748615
Hello Gabriel, Thank you for reaching out to us. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Chuck
August 26, 2023
I just replaced the water filter housing (whirlpool part # w10121138). I reconnected each water line, but the smaller one (not the one from the inlet valve) came loose and I do not know where/how to reconnect it.
Please reply and advise.
Thank you.
For model number ED5KVEXVB00
Hello Chuck, thank you for reaching out. To reconnect the water line, you may need to insert your water line into the port firmly, until the water line fits tightly. We have also attached a relevant video that may help you with the installation of the water lines. We hope this helps, good luck with this repair!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

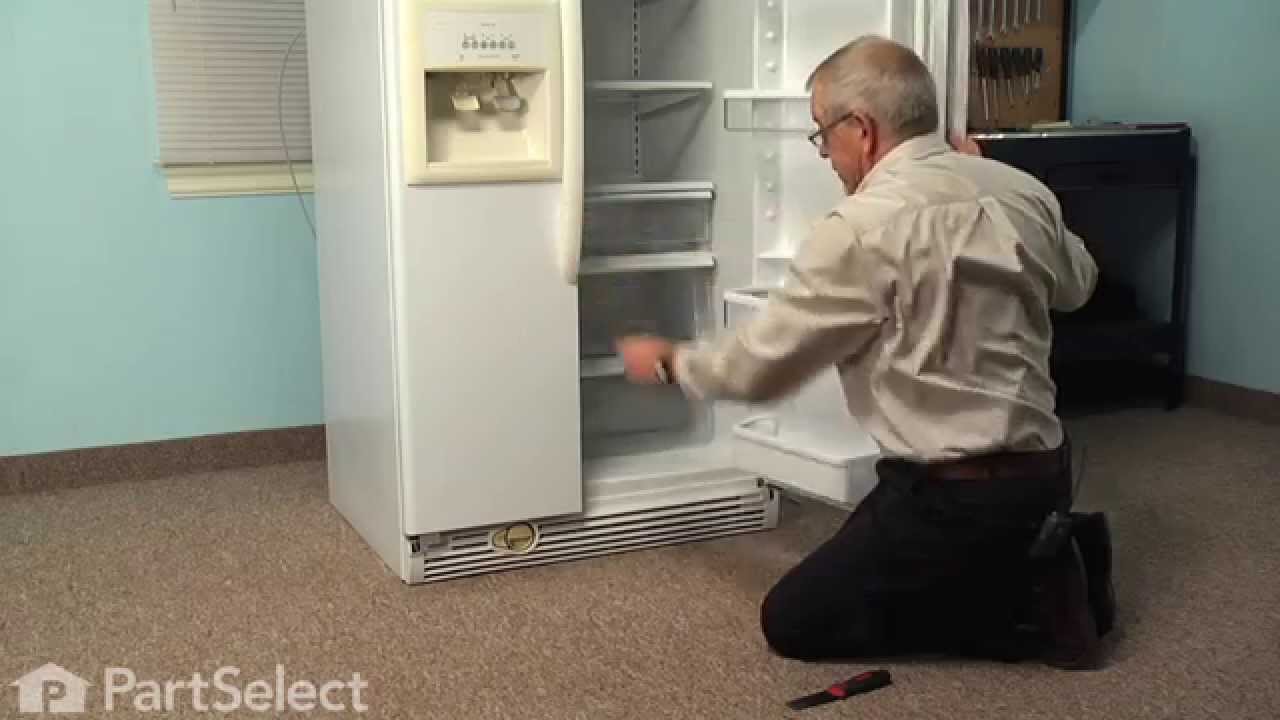

Replacing your Kenmore Refrigerator Water Filter Housing
Customer Repair Stories
Average Repair Rating: 3.4 / 5.0, 13 reviews.
What's this?
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Well, somehow when I replaced the water filter I turned and don’t suppose to so, it did started licking.
First, I watched the video the sale agent sent it to me. Then I decided to do it myself, I’m a 62 woman that I like to show myself how smart we are as a human being, thanks God! It took me less than 30 minutes to make it work!!!!
Followed the included installation link from this site No difficulty.
Staton from THE VILLAGES, FL
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
water housing was broken
Replaced the water filter housing. The part was correct, the sales person was well informed and was very helpful . The sales person was Lou Ann
Marcus from PONTE VEDRA, FL
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Socket set
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Needed to replace the Refrigerator Water Filter and Water Filter Housing
I watch the video and it was easy as pie 1,2,3 and I was done in know time flat...Thanks for everything I'd recommend these how to do videos to anyone they will save time and money on all your appliance repairs!
Removed the front cover on the bottom of fridge. Removed the water filter from the housing. The housing unbolted by two 1/4 screws at the front of the housing. Removed the back cover at the bottom of fridge. Removed the solenoid valves in order to pull the housing out the back to easily undo the water lines on the housing. (I couldn’t undo the water lines from the front of the fridge.) Once I got the water lines undone I replaced the housing and did the steps in reverse. Water pressure is now back to normal!
Scott from MONTGOMERY, TX
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Socket set
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water filter housing wasn't let the water go through the filter
I got model number off my unit and order the part. That was after trying a lot of different filters first. I did a rush order so I got it in 2 days. Pulled the unit out to shut the water off. Then took the back off so I could take the 2 screws that hold the water value . That way I wouldn't have to go back and forth. Now I went to the front. I already had had the vent cover at the bottom of the unit off. I had a head lap on so to make it easier to see under the unit. Then I use the nut driver or you can use 1/4 inch drive ratchet with sockets. To take the 2 screws out that hold the filter housing. Then lift the spring wire that is on the left side of the release botton. Then push the wire up out of the way. Reach back and pull the water value forward so you have slack in the water lines. Now you can pull the fliter housing out to you. Now release the 2 water lines by pushing down on the rings around the water lines and hold while you pull the water lines out. Now the old water filter housing is free you can set it to the side. I inspected the new filter housing for any deformities and cracks before I started installing. Now I hooked the water lines up by pushing them into the right size spring ring hole. Once lines was all the way in I pulled back on the water lines to make sure they were locked in place. Then I put a new water filter in and turned the water on to make sure of no leaks. Then I put everything back together in the reverse order I took it apart. Then I check the spicket to make sure everything was working right. After that I was able to push the refrigerator back in and then wipe everything up and I was done.
DANIEL from DAVENPORT, FL
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
6 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Both the ice maker and water dispenser in the door were not getting water.
I first replaced the water valve, but that did not correct the problem. I then replaced the filter, but still no luck. In the end, it turned out to the the water filter housing was malfunctioning and not letting water through the filter when the filter was installed (it did let water through when the filter was removed, however). I replaced the water filter housing and all worked well once again. The filter housing is not difficult to replace. The hardest part is figuring out how to remove the hoses from the filter. Just push the hose in while holding the plastic ring around the outside, then pull the hose back out.
Grady from LYONS, OR
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
4 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
water filter not seating properly to allow water flow, replace filter housing.
Turned off water to frig and unplugged power. Removed screws holding water valve in back of frig in order to release water line going to water filter housing. Removed screws holding water filter housing in front of frig and disconnected two water lines going to water filter housing. Removed water filter housing and replaced with new. Reattached the two water lines to the new filter housing and remounted with two screws. Reattached water line to fill valve and remounted fill valve. Plugged frig back in and tested water flow out of water dispenser, good flow now to water dispenser and ice maker.
Roland from O FALLON, MO
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
water would not go thru filter
removed 8 screws 3 hose connections and done....hardest thing was getting up from the floor!!!
CHARLES from SAND ROCK, AL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leaking water from filter housing
Followed the directions from the video and almost everything went great. The toughest part of the repair was removing the push button cap from the old housing.
Dennis from SPRING HILL, FL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
20 Reviews
5.0
Filter By Rating:
5 Stars
20
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Chris S - 7 days ago
Verified Purchase
Fixed the issue!
Replacement filters weren't "seating" properly. They would pop out slightly, which I learned was putting the water system in "bypass" mode, basically functioning as if no filter were in place. PartSelect helped me troubleshoot the issue and this replacement part did the trick.
I'll also give PartSelect five stars for their how-to videos. This would have been daunting, since you have to move the fridge and access water lines both under and behind the unit. Their video was clear and covered all the problems you might encounter along the way. I don't think I could have tackled this otherwise.
They also provide clear parts schematics, with links to the parts they carry. It made it very easy to find the part I need and make sure I ordered the correct one. You can't find ANY of this info on Whirlpool's own website, so kudos to PartSelect for providing so much information.
One problem I did encounter: If you need to disconnect the the rear hoses to get more slack on them, beware that they'll expel a bunch of water when you disconnect. In my case this ended up getting all over the wiring harnesses for the pump. So, I had to disconnect those and dry them out before reassembling everything.
★★★★★
★★★★★
Yolanda C - June 30, 2023
Verified Purchase
Do it yourself
The part came in the right time to get fix my refrigerator, now it’s working great!
★★★★★
★★★★★
Michael M - November 21, 2022
Verified Purchase
Original part, used the on line video to replace it.
After watching the video the replacement was fairly easy and solved the problem. I had poor to nothing water flow and this part solved the problem.
★★★★★
★★★★★
Lisa S - July 28, 2022
Verified Purchase
fit perfectly, working great, good video on installation
The part fit well, the installation video was clear and easier than the way I had taken it out ;)
★★★★★
★★★★★
David R - June 22, 2022
Verified Purchase
Easy, worked fine
Simple, easy replacement. There was also a video showing how!
★★★★★
★★★★★
David O - May 5, 2022
Verified Purchase
Replaced and working like new.
Perfect fit
★★★★★
★★★★★
Shirley C - January 20, 2022
Verified Purchase
exactly what was needed
The part came fast and it fixed our problem with water coming out as a trickle on door.
★★★★★
★★★★★
Glennon S - October 10, 2021
Verified Purchase
Simple repair
The part was easy to install and i no longer have water leaking under the frig.
★★★★★
★★★★★
Richard B - January 3, 2021
Verified Purchase
Problem Solved !
The water filter housing was easy to replace. Your how to video provided simple instructions and the entire job took about 25 minutes. Works good as new.
★★★★★
★★★★★
Jack W - July 1, 2020
Verified Purchase
As advertised
Part arrived promptly after order. Was exactly what I needed, and relatively easy to install with the help of a YouTube video.
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11748615
