Electronic Control Board

$320.77   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11748221
Manufacturer Part Number WPW10084142
Manufactured by Whirlpool
Product Description

Electronic Control Board Specifications

This part controls the functions of your dishwasher. It is located behind the control panel.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Will Not Start
This part works with the following products:
Dishwasher.
This part works with the following products:
Whirlpool, KitchenAid, Kenmore, Estate.
Part# WPW10084142 replaces these:
AP6014951, W10084142, W10084142R
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

11 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ron
November 13, 2017
The control board skips some cycles, is there a part that needs to be replace other than the control board, like a fuse?
For model number du1055xtvd1
Hi Ron, Thank you for the question. The fuses and relays are built into the board, so the full board will need to be replaced.Hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Serafin
February 28, 2018
Replace the control board with a new one washer stayed on wash cancelled the operation after 20 minutes. Later that day started washer stayed on wash for about 1 hr. Again i cancelled the cycle. Need advice
For model number DU1055XTSQ3
Hi Serafin, Thank you for the question. I suggest testing the Bi-Metal Fuse,PartSelect Number PS2360984. Use a multimeter to test the fuse for continuity and replace it if it is not showing continuity. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Al
March 2, 2018
Will not operate clean light on panel just blinks
For model number GU2455XTST3
Hello Al, Thank you for your inquiry. We would recommend checking the following parts to fix your issue: door switch, heating element, bi-metal fuse, high limit thermostat, and electronic control board. You can test the parts with a multimeter. You should get a reading of between 5 and 30 ohms on the heater if it’s good and less than one ohm on the high limit thermostat and fuse. I have included a link to our article on how to test the door switch. Hope this helps! https://www.partselect.com/Dishwasher+test-door-switch+repair.htm

1 person found this helpful.

Was this helpful?
Thank you for voting!
Bob
January 22, 2018
The part has more ribbon connector pins (15) than the ribbon connector (14). Does the connection start on the board with the pin labeled "p1" or the pin next to it. When i unplugged the ribbon connector i didn't note if the p1 or the pin on the other end was left open. Neither of the videos mentioned the alignment of the ribbon pins. Intuition says it starts with p1, murphy says it doesn't. Please let me know.
For model number wpw10084142
Hi Bob, Thank you for your question. You would start at P1. There are some appliances that this particular board goes to that has more pins, that is whey there is extra on the end. I hope that helps. Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Frank
December 19, 2019
Control board has no power i do have power thru the fuse ? Control board bad?
For model number GU2455XTSS3
Hi Frank, thank you for your question. You may have to take a look at your door switches. If those parts are not working it will believe that your door is open and so no power will connect to the control board. You can test those switches with a multi meter. They should be testing 0 ohms. If you are not sure how to use a multi meter we have a tutorial here: https://www.youtube.com/watch?v=bWC44fHn0As. Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Francine Manseau
June 11, 2019
Je possède ce lave vaisselle depuis 10 ans. Il ne sèche plus mais fonctionne Encore pour le reste. Quelquefois la lumière clean clignote 7 fois et je dois le reprogrammer. L'élément a été vérifié et il est bon. On m'a dit (réparateur) que si ce n'était pas l'élément c'était le board. Je voudrais savoir ce que vous en pensez et si d'après vous cela vaut la peine de changer cette pièce quand même assez dispendieuse après 10 ans? Pouvez vous me confirmer que j'ai bien trouvé la bonne pièce ps11748221. Merci infiniment et j'apprécierais que vous me répondiez en français.
For model number KitchenAid KUDK03CTWH3
Bonjour Francine, merci d'avoir écrit. Ce tableau de commande électronique est le remplacement approprié pour votre modèle. Vous voudrez peut-être commencer par examiner la partie PS11743423 relative au thermostat de limite supérieure ou la partie élément chauffant PS11748194. Nous espérons que cela aide.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Bobby
December 18, 2019
Will the control board i listed above work with the replacement board listed w10084142, w10084142 r
For model number w10084142 B
Hello Bobby and thanks for writing. We would be happy to do some research to find you the correct parts. However, we need your model number and the brand name to locate any information on this. Model numbers can be short or long and could have a mixture of numbers and letters. We do carry related parts for units just like yours. For example, part number PS11745496 Good luck with your repair.

Was this helpful?
Thank you for voting!
Related Parts:
Jesse
July 23, 2021
I replaced the control panel and still have no power to the control panel. What else could it be?
For model number 8647203433
Hi Jesse, Thank you for your question. If you replaced control panel on the dishwasher and you still have no power to it, you may need to check the electronic control board and the door latch with switches. We hope this helps! If you have any questions, please let us know.

Was this helpful?
Thank you for voting!
Roger
August 17, 2021
This Whirlpool dishwasher has power, but cannot select any button to start a washing cycle. Main problem is light blinking on normal wash cycle and no selection can be made to advance any cycle. Tried the lock on/off as instructions on the door, nothing would advance system’s.
For model number DU1055XTVD0
Hi Roger, Thank you for your question. If a light on the dishwasher panel is blinking and the cycle will not advance, there may be an issue with either the door latch and switches, the heating element, the water inlet valve, the pump, the control panel or the electronic control board. You will need to inspect and test these parts to see which one is causing the issue. Sometimes a film may build up on the on the end of the control panel ribbon cable that attaches to the electronic control board which may prevent the dishwasher from working correctly. This film may be removed by gently using an eraser to rub it off. We hope this helps! If you have any questions, please let us know.

Was this helpful?
Thank you for voting!
Related Parts:
Grace
August 20, 2021
All lights are on in cycle options as is the start and cancel buttons. But start will not start. I played around with hitting cancel and start and finally it did start, but don't think it finished when checked next morning. It was working fine until i unplugged it about 2 months ago. When i plugged it back on, it started up but then stopped. Do i need a whole new control panel ($320) or just to clean?
For model number KUDK03ITWH3
Hello Grace, Thank you for writing. There may have been a power surge that damaged the Electronic Control Board PartSelect Number PS11748221. Please see the video for more information. We hope this helps.

Was this helpful?
Thank you for voting!
Related Parts:
Part Videos

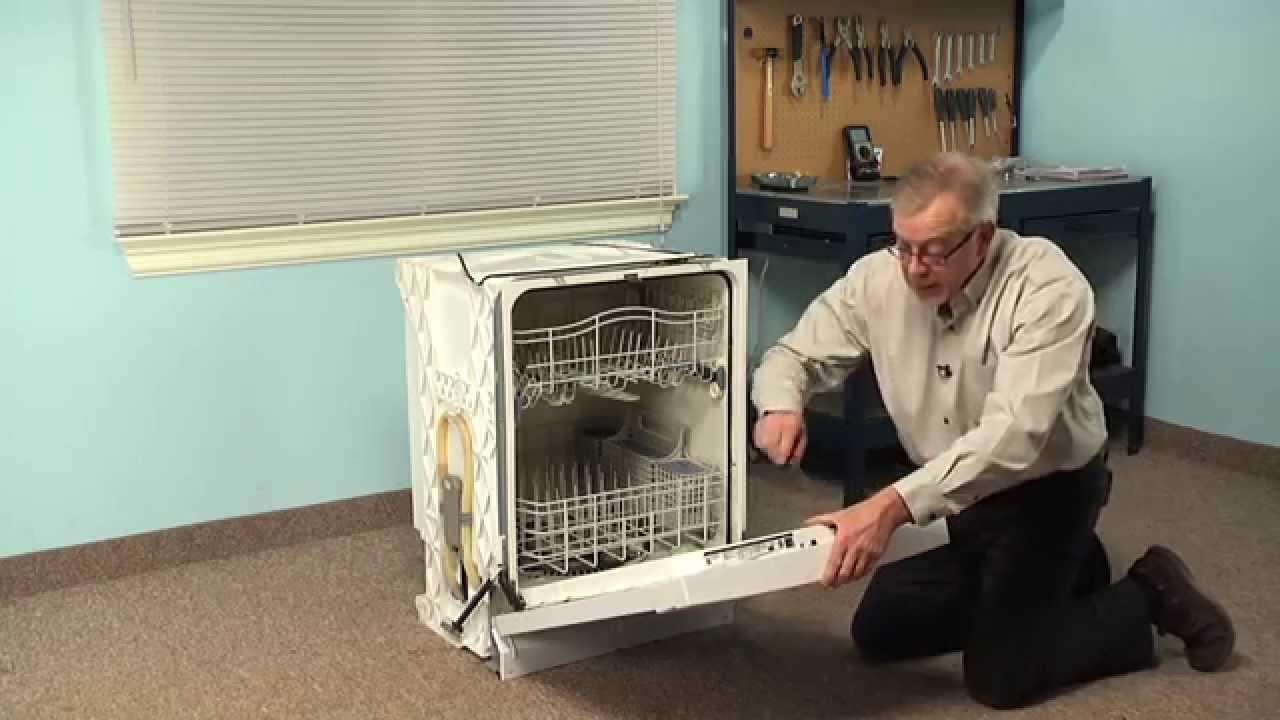

Replacing your Whirlpool Dishwasher Electronic Control Board

Replacing your Whirlpool Dishwasher Electronic Control Board play video
Customer Repair Stories
 Average Repair Rating: 4.9 / 5.0, 2 reviews. What's this?
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    Dishwasher was taking way too long to go through its normal cycle; the indicator lite did not advance to DRY.
    Remove just the 6 Phillips screws holding the control panel assembly to the top of the door. Panel lifted off, clearing the latch assembly. Rested it on my knees as I sat in front on a chair. Control board is right there. Wiring plugs easily pulled off the old board. Their locations are clearly marked on the board by wire colors. Removed screws holding old board, replaced with new one, plugged wires onto the new board. Screwed the control panel back on the door, being careful to clear the door latch assembly. Ran the dishwasher through a test cycle (time not included in the repair)and it works like new. Probably saved $150. in labor service charge.
    • Robert from Burlington, NJ
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    • Parts Used:
      WPW10084142
    87 of 101 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Dry cycle did not work
    Remove the top 6 screws and replace the control board
    • Glen from FILER, ID
    • Difficulty Level:
      Very Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Screw drivers
    • Parts Used:
      WPW10084142
    5 of 5 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Cross Reference
      This part works with the following models:
      PartSelect Number: PS11748221
      Manufacturer Part Number: WPW10084142
      Brand
      Model Number
      Description
      Kenmore
      66513462K900
      Dishwasher
      Kenmore
      66513462K901
      Dishwasher
      Kenmore
      66513463K900
      Dishwasher
      Kenmore
      66513463K901
      Dishwasher
      Kenmore
      66513469K900
      Dishwasher
      Kenmore
      66513469K901
      Dishwasher
      Kenmore
      66513472K900
      Dishwasher
      Kenmore
      66513472K901
      Dishwasher
      Kenmore
      66513473K900
      Dishwasher
      Kenmore
      66513473K901
      Dishwasher
      Kenmore
      66513479K900
      Dishwasher
      Kenmore
      66513479K901
      Dishwasher
      Kenmore
      66513552K700
      Dishwasher
      Kenmore
      66513559K700
      Dishwasher
      Kenmore
      66513562K700
      Dishwasher
      Kenmore
      66513569K700
      Dishwasher
      Kenmore
      66513572K700
      Dishwasher
      Kenmore
      66513573K700
      Dishwasher
      Kenmore
      66513579K700
      Dishwasher
      Kenmore
      66513582K700
      Dishwasher
      Kenmore
      66513583K700
      Dishwasher
      Kenmore
      66513589K700
      Dishwasher
      Kenmore
      66513632K900
      Dishwasher
      Kenmore
      66513633K900
      Dishwasher
      Kenmore
      66513639K900
      Dishwasher
      Kenmore
      66513732K601
      Dishwasher
      Kenmore
      66513733K601
      Dishwasher
      Kenmore
      66513734K601
      Dishwasher
      Kenmore
      66513739K601
      Dishwasher
      Kenmore
      66513832K601
      Dishwasher
