Element, Broil WP9760774

good, used tie wire with a hooked end to fish one wire out of the back, to keep from removing the oven

Turned the breaker off to the stove.
Removed 4 screws holding the element in place.
Disconnected the electric connection from element.
I had to replace the screws which were corroded.
Connect the new element electric connection.
Replace the 4 screws.
Turn on the power.
Turn on oven to burn off the smell of the new element.
You are done.

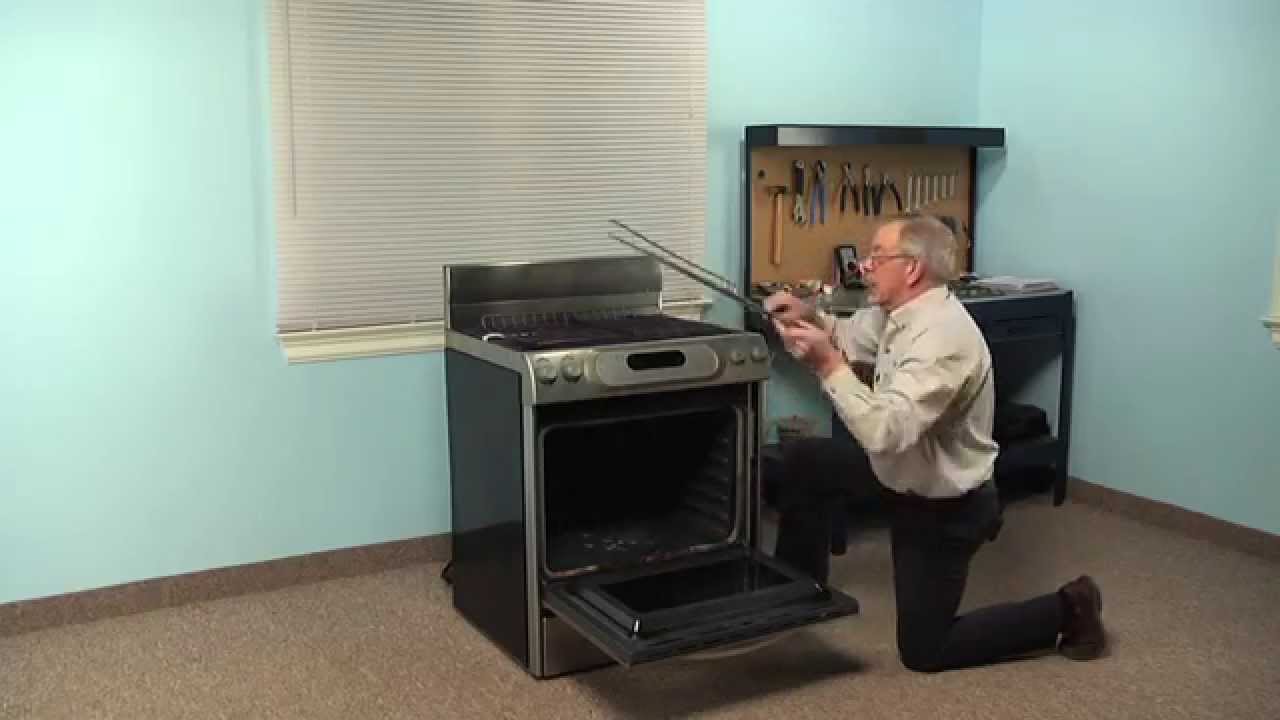

The Youtube videos for this particular repair, using part number PS11747304, indicated that the whole oven unit should be pulled out of the wall while working on it, and the electrical clips removed and re-attached from the back.

Because I was doing this as a one-man job, and didn't have anything to place the oven on while working, I turned off the circuit breaker, and performed the entire element replacement from the front.

1. I was very careful after unscrewing the 4 mounting screws (two in the back, two on the top) to gently pull the attaching wires while still attached to the old element.

2. I had 4 mini vice-grips that I clamped (gently) on the insulation of the 4 wires before detaching them from old element. The vice grips prevented the wires from disappearing to whence they came.

3. After completing the old element removal, I replaced it with the new element, attaching each wire where they had been attached to old element, only then removing the corresponding vice grip.

4. With all 4 wires reattached, I carefully pushed the element ends back into the back of the oven... also avoiding the protruding temperature sensor. The element needed to be held in place by hand until the first overhead screw could be re-screwed.

5. The most difficult part of the procedure was actually getting the screws to line up with their holes in the oven body. .. Returning the screws in fact took about half the 30 minutes the whole job took, because their alignment wasn't "keyed" such that the holes easily just lined up. My order was "Top right" - "Back Left", "Top Left", "Back Right".

Once the 4 screws were all satisfactorily tightened back in place, I turned the breaker back on, and hit the pre-heat function on the oven... It smoked a very little (my hands may have been a bit oily) but that quickly dissipated, and the job was complete. I am very thankful that I didn't have a professional come out. My baker wife has used the oven 10-20 times since then, and it seems as good as new.

Turned off circuit breaker to oven
Removed oven door
Removed screws of reflector plate and top and back of oven
Gently pulled element out and down slightly
Removed slide crimps on wires
Replaced reflector plate on new element
Connected slide crimps on wires
Screwed reflector plate with new element to top and back of oven
Done. Total time 22 minutes
Tested and it’s perfect!

Remove the oven from the wall
Remove the rear panel
Remove the 2 bottom panels
Lift and fold back the insulation
Remove the element enclosure
Replace the element
Reverse the steps to assemble

* the oven would not preheat and the top elements were working

I was stopped by the third screw on the roof of the oven, which was slightly rusted and would not budge in spite of using WD40! I had to enlist the aid of my son who arrived with better tools, including a SQUARE phillips head socket set. He also had to spend some time pinching and slightly reconfiguring one of the attachments in the back which did not slide together naturally. So, for an 82 year old retired housewife this was not as simple as it looked, but it was a piece of cake for guys like Erik with the know-how and the proper tools!

Repair was really simple. Saw that the outer shielding on the existing heat element had degraded and ordered a new element. Part was shipped to my house in two days. Actually took me longer to get the oven door off than to replace the element because the left bracket on the door was slightly bent. Element came out after removing 4 screws and disconnecting 4 wire terminals. I was able to do the repair inside the oven and did not have to pull it away from the wall as the wires were long enough to pull through. I used some painter's tape to tape down the disconnected wires so they would not fall back behind the oven. Then I used a needle-nosed pliers to slightly crimp the wire terminal to the heat element and screwed in the four screws. That was it! Never did this type of repair before and it was really easy. Also estimate that for my 20-25 minutes of work I probably saved over $200 in parts and labor if I hired someone to do it.

I followed instructions from the videos provided on the Part Select site. As with many such appliances, parts are interchangeable between brands. this unit is a KitchenAid but Whirpool,Kenmore parts interchange...Access from the front is all that's needed however and the only tool required was a phllips head screw driver...the only negative surprise (which the video warned about but I ignored) was the risk of the element leads drawing back through the holes, which 2 did. Save yourself that trouble by securing the wires to the back oven wall with a small strip of duct tape until you're ready to re-attach them to the new element. This necessitated removing the oven entirely for access to the back; the most time consuming aspect being removing/replacing what seemed like 20 odd screws holding the back cover in place! If not for that mistake, entire job would have been under 30 minutes. Well worth the effort and would do it again!

Removed oven door for easy access. Removed 4 phillip head screws that held broiler element from top of oven. pulled wires a couple of inches out from back of oven and used flat screw driver to help separate the wires connecting the broiler from the oven. Did the opposite to install the new element,.
The best part of this operation was the fact that the part arrived from Part Select by Fed X the next day after ordering it all for a shipping cost of $8.75. Great Service Highly recommend Part Select.

Using the video from PartSelect I followed the steps shown. Sliding the range out was difficult so I tilted it forward resting the frame on a 5 gallon plastic bucket. I did have to crimp on a new terminal. The repair was straightforward.
