Ammar
November 8, 2019
Does the lower door seal ( gray plastic piece) cause water leak under the machine ?
For model number KUDI01TJWH1
Hi Ammar, it is definitely possible if this piece is faulty. Thank you for your question and good luck with your repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Joseph
January 5, 2022
IS THERE ANY INSTRUCTION VIDEO ON HOW TO REPLACE THIS DISHWASHER SEAL?
For model number PS11745487
Hi Joseph,
Thank you for your question. We do not have a video for this part, but here is some information that a customer posted that may help you with your repair, "Turn off the power to the unit at your breaker panel. The air inlet strip is fastened to the backside of the inner stainless steel door panel. To access the screws, the outer door panel must be removed. Open the door and remove the six torx head screws that fasten the outer door panel to the stainless steel inner door. Do not remove the two top center torx screws as they hold the door latch in place. After removing the screws, raise the door up to the nearly closed position. Lift up the outer door panel handle and door bottom to disengage the outer panel from the inner stainless door. The next part is a little tricky since the vent strip hex head screws are at he bottom of the stainless door panel, facing out with the door closed. The lip of the bottom stainless pan is high enough to make it a tight fit to access the screws. There is also a steel bracket that is a door stiffener and it holds the electrical wiring. I found removing the bracket held by a 1/4 inch hex head screw on each side made access to the vent strip screws easier. Lay it flat on the floor. With a 3/16 inch nut driver or socket wrench remove each of the five vent strip screws. It is a tight fit between the bottom lip and door bottom, but it can be done. Remove the old vent strip and attach the new one. Make sure it fits snugly into the slot. Best to have an extra pair of hands at this point to hold the strip securely in place while the screws are reinserted from the opposite side. Reassemble everything in reverse order." We hope this helps! If you have any questions, please let us know.
Was this helpful?
Thank you for voting!
Part Videos

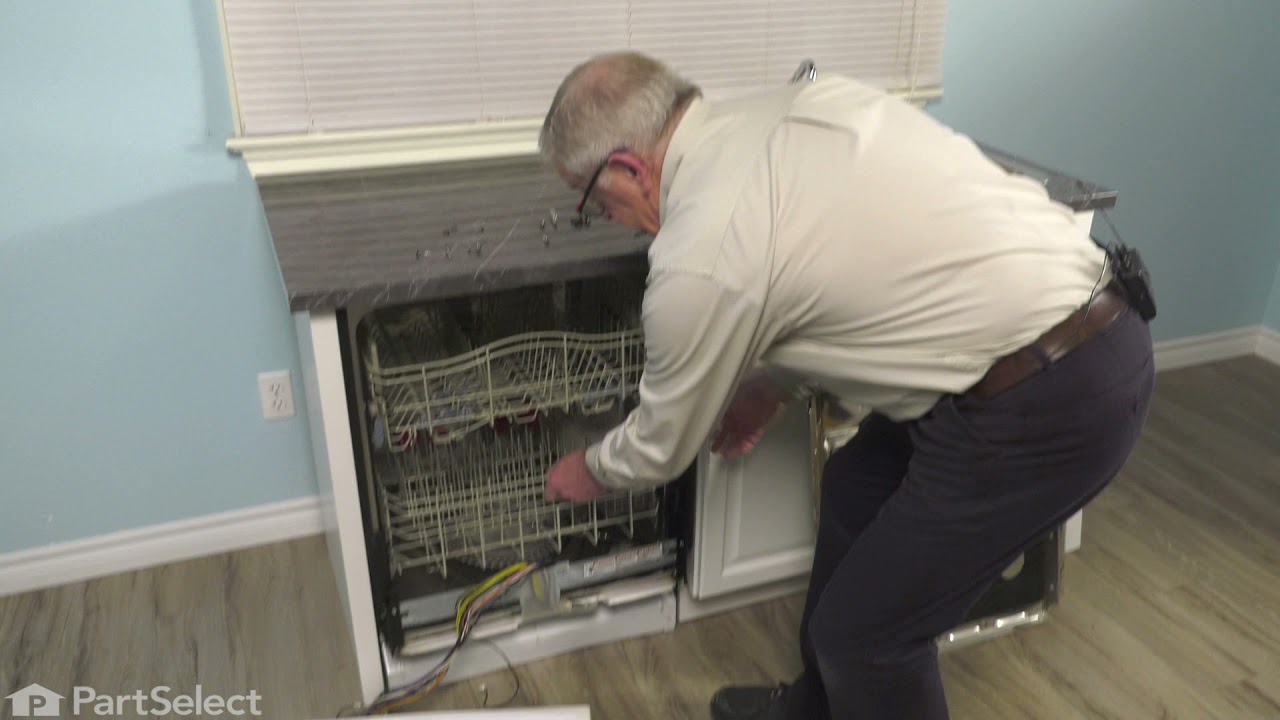

Replacing your KitchenAid Dishwasher Air Inlet
Replacing your KitchenAid Dishwasher Air Inlet
Customer Repair Stories
Average Repair Rating: 2.4 / 5.0, 6 reviews.
What's this?
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Leakage along bottom of door panel during wash/rinse
The air inlet strip has a flap and two smaller side flaps that seal the bottom of the inner door to the bottom pan that hold the water. The flaps don't form a watertight seal as they only serve to prevent the water surging during wash and rinse cycles from splashing out of the bottom pan onto the floor under the door. What I learned after dismantling the door is that the problem I was having with water dripping from the bottom of the bottom of the outer door was being caused by a loose upper round louvered vent and not he lower vent strip. If the lower vent strip were the problem, water would leak from the front lip of the bottom pan, which is located well behind the face of the front door panel.
Here's my recommendation on the lower vent srtip repair. Turn off the power to the unit at you breaker panel. The air inlet strip is fastened to the backside of the inner stainleess steel door panel. To access the screws the outer door panel must be removed. Open the door and remove the six torx head screws that fasten the outer door panel to the stainless steel inner door. Don't remove the two torx screws top dead center as they hold the door latch. After removing the screws, raise the door up to the nearly closed position. Lift up the outer door panel handle and door bottom to disengage the outer panel from the inner stainless door. The next part is a little tricky since the vent strip hex head screws are at he bottom of the stainless door panel, facing out with the door closed. The lip of the bottom stainless pan is high enough to make it a tight fit to access the screws. There is also a steel bracket that is a door stiffener and holds electrical wiring. I found removing the bracket held by a 1/4" hex head screw on each side made access to the vent strip scews easier. Lay flat on the floor. With a 3/16" nutdriver or socket wrench each of the five vent strip screws can be removed. It's a tight fit between the bottom lip and door bottom, but it can be done. Remove the old vent strip and attach the new one. Make sure it fits snugly into the slot. Best to have an extra pair of hands at this point to hold the stip securely in place while screws are reinserted from the opposite side. Reassemble everything in reverse order.
It was when I had the outer door panel off that I noticed my problem was water getting past the upper round louver vent seal and thus running down the inside of the outer panel. Simple fix was to remove and clean the scale residue from the parts and door. Then reassemble the vent and twitst tighten the vent to compress the rubber seal on the inside face of the door.
Carl from North Haven, CT
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
65 of 67 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
large leak on start of wash cycle , water leaked at bottom of door
I removed the screws around iner door panel. this allowed me acess to the hex head screws holding the plastic air inlet and replaced it. the small tabs on the ends of the old inlet had bent up allowing the water to flow by
robert from danvers, MA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
11 of 14 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
A small water leak at door
After replacing broken door cables I had a small leak at the door corner. I replaced door seal with that not fixing the leak and found that the door hinges were bent a little from the cables being broke for awile. Installed new hinges and leak is fixed now. A little difficult but once unit was pulled out about 6 inches the hinges were not bad to replace
LLeaking at bottom of door -Lower part of inlet damaged
REMEMBER TO SHUT OFF POWER _ Had to remove the screws using TORX driver on the inside door edge-- then came the hard part -- the foam insulation is glued to the inner door and the outer cover- I was able to finally separate the cover leaving the foam on the inner door. Then had to break off the foam insulation on the lower third of the door up from the bottom. I then had access to the screws holding the air inlet to the door. The screws are located so you can't get a straight shot at them and it is very difficult to get at them. These screws are hex head metric and very small. When they are removed the old air inlet will come right off. Take the new one and duct tape it in place inside the door and replace the screws. I recommend doing the outer ones first and since they are the easiest to get started, then you can fight the others a little easier. After the screws are replaced and tightened replace the lower half of the insulating foam by duct taping it to the foam that remained on the inner door. Then replace the outer cover and secure with the TORX screws. This was a time consuming and tough repair. I don't recommend it to a novice.
Edward from Tucson, AZ
Difficulty Level:
Very Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Socket set
6 of 9 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Plastic air inlet cracked
Removed back of door to access the screws holding on the air inlet. The top of the door with the controls does not need to be removed, I found out--only the bottom part. Accessing the 5 screws was difficult as there was no space to get the socket onto the screws at a 90 degree angle. Also, there are two plastic shields that fall off when you remove the inlet that need to be replaced, with difficulty because of the accessibility to the area.
PartSelect site is excellent and finding the correct part was relatively simple, although I was not absolutely sure I ordered the right part until it arrived--only one day after ordering, although I paid for the least S&H option.
Bruce from Waynesboro, PA
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set
6 of 7 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher leaking from door
Removed the door panel. 6 torx head screws. Then Removed the 5 5/16 hex head screws. Removed the lower plastic door seal
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Ann G - February 5, 2022
Verified Purchase
could have used some instructions with the part had to look online and that was difficult to follow hope you will include instructions next time
the part came in quick after hiring someone to put the part in we are back to working fine now
★★★★★
★★★★★
Matthew B - June 14, 2018
Verified Purchase
Not quite as expected, but maybe that's my fault
The part was in good condition, but it didn't come with the screws to attach it (which I didn't expect). Perhaps it's my use of the old ones, but the dishwasher is not working 100%, though it is substantially improved.
