Maytag/Maytag_Thumb/50798.gif
See part 19 in the diagram
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 10PM EST

customerservice@partselect.com

Door Hinge - Left or Right Side

★★★★★
★★★★★
3 Reviews
$ 67.44   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11744424
Manufacturer Part Number WP74011141
Manufactured by Whirlpool
Product Description

Door Hinge - Left or Right Side Specifications

This hinge can be used for either the left or the right side of the oven door. Sold individually.

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Door won’t close
This part works with the following products:
Range, Wall Oven.
This part works with the following products:
Maytag, Jenn-Air, Magic Chef, Amana.
Part# WP74011141 replaces these:
7106P109-60, 7106P133-60, 74003249, 74003968, 74011141
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Customer Repair Stories
 Average Repair Rating: 3.5 / 5.0, 2 reviews. What's this?
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    Oven Door hinge broke

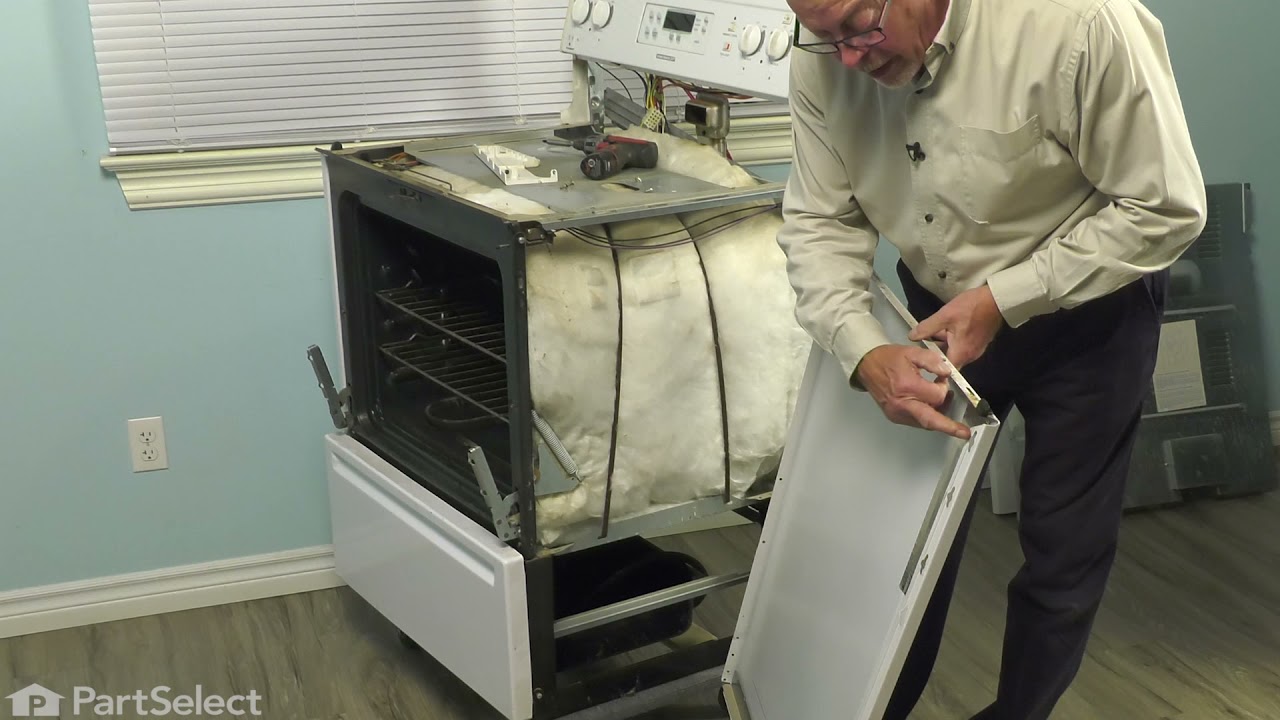

    0. Throw oven circuit breaker 1. Open oven door and slide/lift door off of hinge posts 2. Remove oven drawer 3. Slide oven out from between cabinets and turn so that the back is accessible. 4. remove Phillips screws holding the cover-rear and side panel to the stove. Note which screws have pan heads and which are hex head. 5. remove stove elements and pans 6. Raise stove Top Assembly and release ceramic element sockets from their clips. 7. Push the supports for the Top Assembly fornt and back to release them from their sockets so that the Top Assembly can be lifted to near vertical. 8. Remove the hex head screw holding the Control Panel End Cap to the side panel. (Steps 5-7 might be avoided if you have a small socket wrench that can get to this screw without removing the elements.) 9. Remove the other screws holding the top of the side panel to the "Box Burner" pan that sits under the Top Assembly. 10. Pull side panel slightly away from the oven and lift it to disconnect it from the posts that hold the side panel to the front of the oven. 11. Remove the two screws on the front of the oven that hold the hing mechanism. 12. tilt and remove the hinge. 13. Open the replacement hinge so that it can fit through the hinge opening in the front of the oven. 14. Reassemble.
    • Lar from Cary, NC
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    • Parts Used:
      WP74011141
    5 of 9 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    The Hinge Was Broken
    We moved into a house with seemingly newer looking appliances. After the dishwasher broke and destroyed our floor, we found out that they were all twelve years old. Amazing the condition they were in after all that time.

    The oven was the next thing to break. The hinge snapped, and while we could still use the oven, it allowed hot air to seep out.

    So I checked online and lo and behold, I found a hinge for under $20. Wow. Much cheaper than a new range.

    The most amazing thing was that I purchased it on a Friday afternoon, and it showed up on Saturday, so we could do the repair over the weekend. I cannot tell you how impressed I am with that kind of service.

    We had to take off the side panel which was a pain, but all in all, it was 7-8 screws and swapping the hinge was easy. One of the screws did not want to go back in, so I had to find a replacement, but other than that, it was a pretty easy repair.

    Thanks!
    • Jeff from Omaha, NE
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Screw drivers
    • Parts Used:
      WP74011141
    3 of 7 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      3 Reviews
      5.0
      Filter By Rating:
      • 5 Stars
        3
      • 4 Stars
        0
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        0
        Sort by:
        Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
          Model Cross Reference
          This part works with the following models:
          PartSelect Number: PS11744424
          Manufacturer Part Number: WP74011141
          Brand
          Model Number
          Description
          Magic Chef
          3488WVS
          Range - Gas
          Magic Chef
          3888WVS
          Range
          Kenmore
          62945775
          Range
          Kenmore
          62945776
          Range
          Kenmore
          62945779
          Range
          Magic Chef
          9475VYV
          Wall Oven - Built-in, Gas
          Magic Chef
          9475XYB
          Wall Oven - Built-in, Gas
          Magic Chef
          9875VYV
          Wall Oven - Built-in, Electric
          Magic Chef
          9875XYB
          Wall Oven - Built-in, Electric
          Maytag
          ABR3740AGW
          Range
          Admiral
          AER1450AAH
          Range - Freestanding, Electric
          Admiral
          AER1450BAH
          Range
          Amana
          AER5511BAB
          Range - Freestanding, Electric
          Amana
          AER5511BAQ
          Range - Freestanding, Electric
          Amana
          AER5511BAW
          Range - Freestanding, Electric
          Amana
          AER5712AAQ
          Range - Freestanding, Electric
          Amana
          AER5712AAS
          Range - Freestanding, Electric
          Amana
          AER5712AAW
          Range - Freestanding, Electric
          Amana
          AER5712ACW
          Range - Freestanding, Electric
          Amana
          AER5712BAB
          Range - Freestanding, Electric
          Amana
          AER5712BAW
          Range - Freestanding, Electric
          Amana
          AER5722BAS
          Range - Freestanding, Electric
          Amana
          AER5722CAS
          Range - Freestanding, Electric
          Amana
          AGR5712ADB
          Range - Freestanding, Gas
          Amana
          AGR5712ADQ
          Range - Freestanding, Gas
          Amana
          AGR5712ADW
          Range - Freestanding, Gas
          Amana
          AGR5712BDB
          Range - Freestanding, Gas
          Amana
          AGR5712BDQ
          Range - Freestanding, Gas
          Amana
          AGR5712BDW
          Range - Freestanding, Gas
          Maytag
          CBR3765AGC
          Range - Freestanding, Gas
