Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

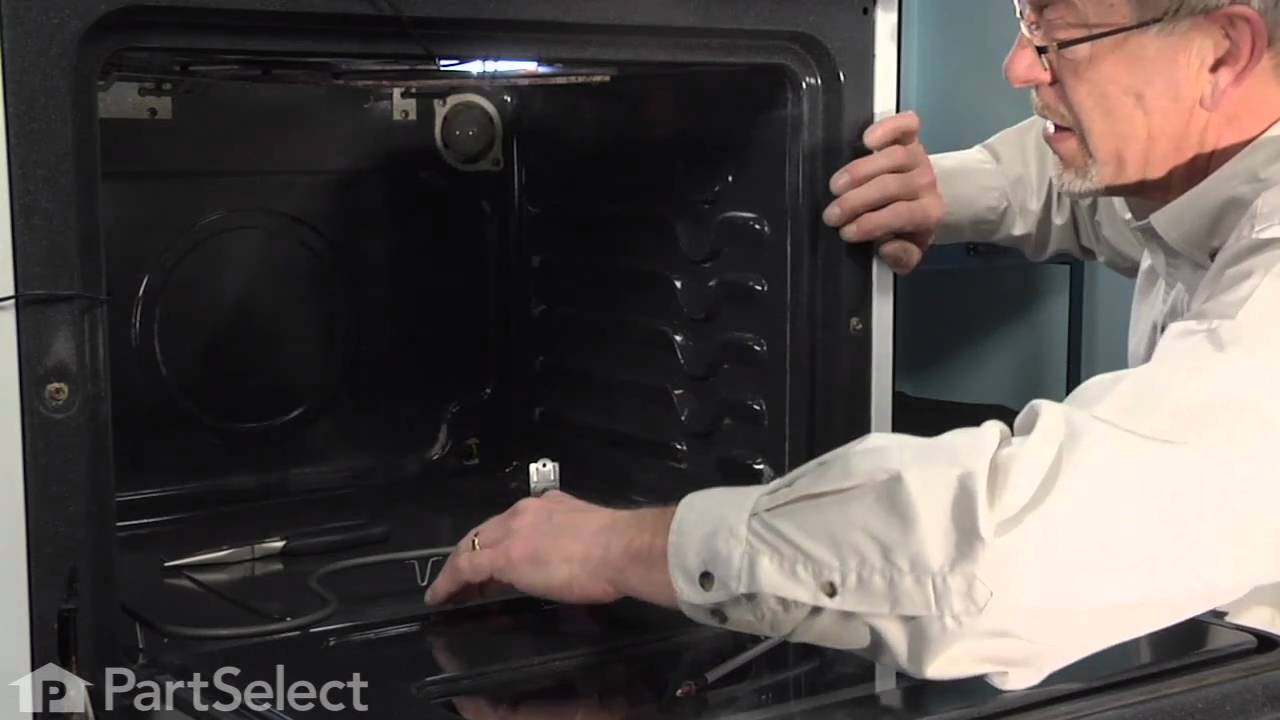

This is a 2800 watt, 240-volt Whirlpool oven bake element that is sourced directly from the original manufacturer for stoves, ovens, cooktops, or range ovens. This part should be replaced if the element is not heating, heating unevenly, or is too hot. It has a terminal distance of 16 inches with a terminal depth of 3 inches. Disconnect power to the oven before replacing the bake element. Unscrew the Phillips screws directly above the element brackets to remove the existing element, and remove the wire harness without losing the wires. It is recommended to inspect the wire terminals to ensure they are not arced or burnt while the element is removed.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
James J - February 18, 2023
Verified Purchase
exact
It was exactly right. Fixed the oven in a couple of minutes.
★★★★★
★★★★★
VICKI W - August 28, 2018
Verified Purchase
EASY REPAIR
ODER WAS DELIVERED PROMPTLY AND OVEN IS WORKING AGAIN!
★★★★★
★★★★★
Helen S - July 28, 2018
Verified Purchase
works great
works like a new one
★★★★★
★★★★★
Robert N - July 24, 2018
Verified Purchase
Perfect part!
Got the part when they said it was going to be there. Put it in and saved one hundred dollars. It was perfect with no problems.
★★★★★
★★★★★
RICHARD F - January 16, 2020
Verified Purchase
Direct fit, less than 5 minute install.
Heats like new OEM part
★★★★★
★★★★★
Mikki H - February 15, 2018
Verified Purchase
My Oven Lives Again!
It was super easy to find the exact part I needed, and the installation video was right there on the same page. This repair could not have been easier. (23 year old Crosley Cooktop; bottom heating element burned out one night like a Roman candle. Spectacular!)
★★★★★
★★★★★
Lillian V - September 6, 2019
Verified Purchase
Fast delivery works great
All good
★★★★★
★★★★★
Quentin B - April 9, 2021
Verified Purchase
Easy Repair, Great Part - Worked as expected
Part came fast and worked as expected, Working like new !
★★★★★
★★★★★
Ira S - September 8, 2022
Verified Purchase
Perfect fit
Arrived as promised. Exact fit. Worked fine.
★★★★★
★★★★★
Stephen C - March 7, 2018
Verified Purchase
Super helpful website and video! Exactly what I needed.
Part came quickly, installed easily, and works great!
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 4.6 / 5.0, 142 reviews.
What's this?
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Broil element burst
Drop in range was in excellent condition until element burst and was getting ready to purchase another range and then I was looking to replace the element and found part select and they were great from the order process and shipping was fast and the whole process was 5 STARS. As far as me doing the repair I watched the video and it was s
... Read moreimple for even me. I also replaced the bake element at the same time. Once again I highly recommend Part Select and they are second to none.
Removed two screws and disconnected the element. Reconnected the new element and reinstalled the screws
Robert from LEXINGTON, MA
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Old element caught fire, replaced with new one
Removed screws of old element pulled clips off replaced with new element very easy
louis from CAHOKIA, IL
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Bake element burned out
Removed the failed bake element per the video linked in the Partselect email. Unlike the video on YouTube the PartSelect video shows that the bake element can easily be replaced through the oven door and it is not necessary to slide the range out and remove a rear panel.
Richard from BOULDER, CO
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The element on my 20+ year old Jenn Zaire oven had broken in two...
Went online to find replacement part. (Because I’m cheap) Came across the website, found the part by model number, and watched the wonderful replacement video that was right on the same page as the part. After the part arrived, (in just a couple of days) I put the new one in. Only took a couple of minutes! Perfection! Thanks for making m
... Read morey problem, no problem at all!
Read less
Mary from New Britain, PA
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Replace the lower oven element
Unplug the 220 cord..remove rear metal back ( 7-8 Ph/screws)... disconnect the red & yellow connectors from the back of the lower element. Remove-the-lift-off Oven door. Remove the two Ph/screws (one on either end of the element) At the very rear of the oven. Install the new element and reverse the about to reassemble.
Tom from ROCKTON, IL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The Baking Element won't heat to bake.
I had the problem before and had to call in a Tech to repair the baking element in my oven. It cost me $150.00 for the repair. This time I decided to do the repair myself, so I went online and found this site The instruction video made it very easy. I am very proud of what I was able to do without calling a Tech. My oven works like new, I
... Read moret only cost less than $40.00 for the total repair. I am so glad this site were there when I needed them.. Thanks a Lot..
Read less
Kiara from JACKSONVILLE, FL
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Element didn't heat at all
Removed 2 screws, disconnected wires, attached wires to new element, put screws back. Turned oven on. Perfect.
Roger from PATERSON, NJ
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven baking coil had burned out
Removed two screws from back of oven ,pulled apart old coil from wires, inserted new coil into the small metal pieces, pushed back and screws replaced. Really easy , anyone can do. Oh, I am 70 years old so probably people younger could do more quickly.
Marie from Fredericksburg, VA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
replace broken bake element
Unplugged the range. Took our the oven shelves. Unscrewed the bars holding the broken bake element to the back of the oven wall. Gently pulled out the wiring to which the bake element is attached. Slipped the ends of the broken bake element off the ending on the wiring. Then slipped the ends of the new bake element over the ends on
... Read morethe wiring. Then pushed the wiring with attached bake element back into their position behind the oven wall and attached the bars holding the bake element to the back of the oven wall. This is really easy because it is exactly like the on-line video, for I am a 75 year old female with little technical experience.
Read less
Frances from MOREHEAD, KY
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
13 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Henry
February 17, 2018
I have found this bake element here that says it fits my Magic Chef oven but the distance between my two terminals is 18 19". This one says it 16". Do the heating elements spread easily enough to cover this? Thank you, henry pearson
For model number 6898VVV Magic Chef
Hello Henry, Thank you for your inquiry. 16 inches is the actual length of the terminals right up to the brackets, with an additional 3 inches from the brackets to the ends. The distance between them is between 18 and 19 inches. Hope this helps!
12 people found this helpful.
Was this helpful?
Thank you for voting!
Bev
November 16, 2017
I need the bottom heating element that will fit my Magic Chef stove do you have this?
For model number 3523XRW
Hello, Thank you for contacting us. I have researched the model you have provided and have found the part you’re looking for is PartSelect Number PS11744014. This is a 2800 watt, 240 volt oven bake element,It has a terminal distance of 16 inches with a terminal depth of 3 inches. Hope this helps!
5 people found this helpful.
Was this helpful?
Thank you for voting!
Mikki
January 29, 2018
The bottom heating element of my oven burned out (it was quite an impressive show!). The unit is currently unplugged while awaiting replacement of that element. Is it safe to plug it back in and use the cooktop?
For model number CE3878VVV
Hello Mikki,
Thanks for your question. The top burners on your cooktop are wired separately, but be sure to turn off your stove and remove the bottom bake element prior to using the cooktop to avoid any risks.
I hope this helps.
4 people found this helpful.
Was this helpful?
Thank you for voting!
Stan
February 11, 2018
I purchased the ps11744014 heating element, but one of the connecting terminals was fused to the old element and needs to be replaced. I can't find that part on the site, can you direct me to the right part? This is the clamp terminal connector that the heating element attaches to.
For model number 6898XRB
Hello Stan, thank you for your question. There was a kit of parts available from the manufacturer to re-wire the appliance but that part has been discontinued. If the metal terminal was fused to the element itself and had to be cut off the wire, that terminal can be replaced without having to remove the entire wire and then having to try and push it back through the back wall of the oven. I would cut the metal terminal off the wire, pick up another one at a hardware store (make sure to get the appropriate ones for high heat ect) then put the wire back into the terminal then reattach to the element. I hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Kyle
April 16, 2019
The clock display keeps going out
For model number CE6898VVV
Hello Kyle, Thank you for the question. This sounds like the clock will need to be replaced. I looked up the part and it is listed as No Longer Available/Discontinued. There is no part substitutions listed. My suggestion here would be to call the manufacturer and see if they can provide you with a substitution for these part numbers. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tammy
April 26, 2019
I found a baking element part # ps11744014 and want to make sure this is what i want for my Maytag ceramic top stove with the model # cre9600ccm.
For model number CRE9600CCM
Hello Tammy, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number PS11744014. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tabby
October 31, 2019
My ancient ovens bake element has burnt out. What is the correct element to replace it with? I have no product numbers to compare, and am not seeing my oven model number, don't want the wrong one.
For model number 3510PRW-U
Hello Tabby, thank you for inquiring. This Bake Element part number PS11744014 is the compatible replacement for your range. Good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Daryl
December 30, 2017
Does the wp74003019 replace the 3868xra? Are they the same? It is the bottom heating element for a Magic Chef oven.
For model number 3868XRA
Hello Daryl,
Thanks for your question. Yes, the WP74003019 part is the correct bake element for your model. It is a Whirlpool part as Whirlpool owns Magic Chef.
I hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Matt
April 14, 2018
Need bottom bake element for my Magic Chef 3510krw. The picture looks right. But want to be sure before i purchase it.
For model number 3510krw
Hello Matt, Thank you for your inquiry. We are showing that this is the bottom bake element that will fit your model number. Hope this helps!
Was this helpful?
Thank you for voting!
Louise
June 25, 2021
Is the WP74003019 element bake compatible with Kenmore drop in with model number 62945765?
For model number 62945765
Hi Louise,
Thank you for your question. Yes, this bake element would be the correct part for your oven. If you would like to place an order for it, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you any questions, please let us know.
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
