Maytag/Maytag_Thumb/59654.gif
See part 15 in the diagram
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Defrost Heater

Rated by 1 customers

A Bit Difficult

30 - 60 mins

Ratings submitted by customers like you who bought this part.

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS11743496
Manufacturer Part Number WP67002493
Manufactured by Whirlpool
You May Also Need?
Product Description

Defrost Heater Specifications

The defrost heater keeps the cooling coils from frosting over.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Fridge too warm | Freezer not defrosting
This part works with the following products:
Refrigerator.
This part works with the following products:
Amana, Kenmore, KitchenAid, Maytag.
Part# WP67002493 replaces these:
12729105, 67002493, 8171085
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

2 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
James
June 20, 2019
I am installing a defrost heater. I have everything disassembled. The old defrost heater goes through the coils on one side. How do I remove it?
For model number GX5SHDXTQ00

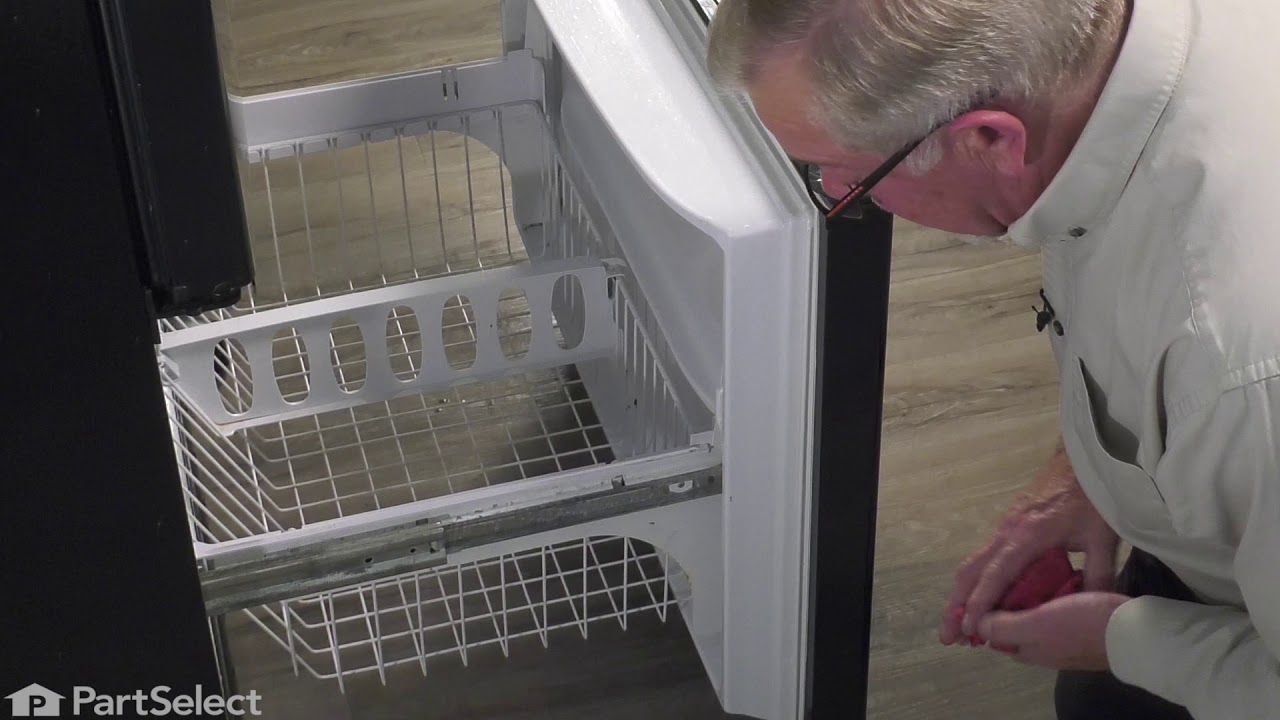

Hi James, Thank you for your question. Here is a link to one of our videos from YouTube that you may reference on how to install the defrost heater, https://www.youtube.com/watch?v=fb8iz56hcEo. The refrigerator and defrost heater in the video may not show exactly like the one you have, but it will give you a general idea on how to install the part. I hope this helps. Thank you and have a great day!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Laverne
September 16, 2021
Why is the bottom freezer frosting up like it's snowing
For model number 59677593801
Hello LaVerne, thank you for writing. There could be several reasons why its frosting up. The Defrost Heater may be defective. You may also want to inspect the Freezer Gasket Freezer Door Gasket - Black PartSelect Number PS3651266 to see if it is allowing warm in to disrupt the defrost cycle. And finally the issue may be with a faulty Electronic Circuit Board PartSelect Number PS11750388. Good luck with your repair.
play video

Was this helpful?
Thank you for voting!
Related Parts:
Customer Repair Stories
 Average Repair Rating: 2.8 / 5.0, 1 reviews. What's this?
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
no cold air coming into refrigerator area, all frozen up
first I looked into the refrigerator for blockage of air flow.
none found, I looked into the freezer area to see if fan was working ,it was, noticed ice built up on the outside of the metal cover letting me know it was not defrosting ,It was easier for myself to pull freezer door off , then the ice-maker,only three 1/4" hex head bolts,two 1/4" hex bolts only holding the metal cover . The quickest way to defrost was using a blow hair drier .once it was all defrosted I disconnected the defrost heater and using a volt/ohm meter,I ohm out the element,finding out I had no reading .The one thing I forgot to mention, unplug the frigertor first !!!
Other Parts Used:
CLIP- EVAP
  • mark from destin, FL
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
65 of 85 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11743496
Manufacturer Part Number: WP67002493
Brand
Model Number
Description
Kenmore
10678586800
Refrigerator
Kenmore
59673502200
Refrigerator
Kenmore
59673502201
Refrigerator
Kenmore
59673502202
Refrigerator
Kenmore
59673502203
Refrigerator - KENMORE REFRIGERATOR
Kenmore
59673502300
Refrigerator
Kenmore
59673503200
Refrigerator
Kenmore
59673503201
Refrigerator
Kenmore
59673503202
Refrigerator
Kenmore
59673503300
Refrigerator
Kenmore
59673504200
Refrigerator
Kenmore
59673504201
Refrigerator
Kenmore
59673504202
Refrigerator
Kenmore
59673504203
Refrigerator - KENMORE REFRIGERATOR
Kenmore
59673504300
Refrigerator
Kenmore
59673509200
Refrigerator
Kenmore
59673509201
Refrigerator
Kenmore
59673509202
Refrigerator
Kenmore
59673509203
Refrigerator - KENMORE REFRIGERATOR
Kenmore
59673509300
Refrigerator
Kenmore
59675502400
Refrigerator
Kenmore
59675503400
Refrigerator
Kenmore
59675504400
Refrigerator
Kenmore
59675509400
Refrigerator
Kenmore
59675512400
Refrigerator
Kenmore
59675513400
Refrigerator
Kenmore
59675514400
Refrigerator
Kenmore
59675519400
Refrigerator
Kenmore
59675522400
Refrigerator
Kenmore
59675523400
Refrigerator
