Part Location Diagram of WP67001794 Whirlpool Defrost/Evaporator Heater
See part 15 in the diagram
Replacing your Amana Refrigerator Defrost/Evaporator Heater
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.com

Defrost/Evaporator Heater WP67001794

★★★★★
★★★★★
1 Review

Rated by 4 customers

A Bit Difficult

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$ 107.15
  In Stock
Get FREE EconoShip on orders over $100! T&C apply

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS11743472
Manufacturer Part Number WP67001794
Manufactured by Whirlpool for Amana, Kenmore, Maytag, KitchenAid
Product Description

Defrost/Evaporator Heater Specifications

The defrost heater is similar to the burners on an electric stove. It's located just beneath the cooling coils, which are concealed behind a panel in the freezer compartment. The heater gets hot. And, because it's close to the cooling coils, any ice or frost build-up melts.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

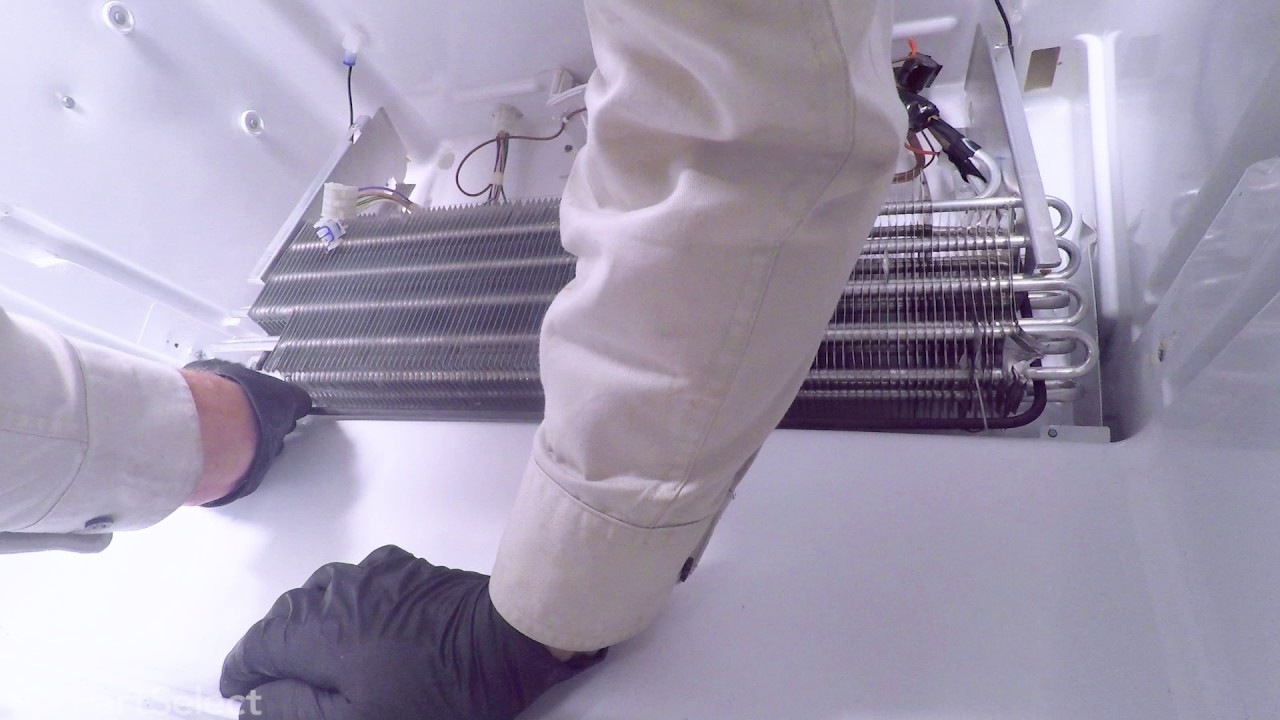

Replacing your Amana Refrigerator Defrost/Evaporator Heater

Replacing your Amana Refrigerator Defrost/Evaporator Heater
Troubleshooting
This part fixes the following symptoms:
Fridge too warm | Freezer not defrosting | Freezer too cold
This part works with the following products:
Refrigerator.
Part# WP67001794 replaces these:
67001085, 67001794, 8171152
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
1 Review
4.0
Filter By Rating:
  • 5 Stars
    0
  • 4 Stars
    1
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Customer Repair Stories
 Average Repair Rating: 2.9 / 5.0, 4 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Refrigerator not cooling well, freezer working
long story, but good experience with Partselect.com...ordered a defrost heater as I had to replace same 15 years earlier, when part arrived I managed to test continuity of old heater in place and appeared fine (unless due to intermittent break that opened with heat) - so went ahead and order defrost thermostat and arraigned for return of heater (kept until testing after installation of the thermostat) - replacement of thermostat pretty easy - be sure to watch video of how to remove freezer rails for bottom freezer.
When I plugged back in the compressor wouldn't start, tried to and then shut off over and over. I had the dreaded thought that either I had put a leak in the coils or the compressor had failed due to overwork with failed defrost mode. Fingers crossed I ordered start capacitor and relay kit...sure enough when I removed the old capacitor and relay - I heard loose parts in the relay and pieces fell out when I shook it. installed new relay/capacitor and the fridge works like new - 21 year old Amana - very well engineered and easy to work on - great videos on disassembly re-assembly - when I replaced the heater 10 years ago I couldn't figure out how to remove side rails - no idea how I managed to pull the bottom of the cooling unit past the rails to remove and replace the heater.
I would recommend doing what I did, unless you are sure of the failure mode - which is to leave the back panel open for a day in the freezer after repair to be sure the defrost mode is working.
  • Christopher from MILFORD, NH
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Screw drivers
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fridge was warm.
Removed timer. Tested timer with a continuity tester-seemed ok. Checked heater element-30 ohms-checked ok. Defrost thermostat measured 53k ohms when it was cold or warm. Should be open at room temperature and closed when cold. Part Select recommended changing the heater when you replace the thermostat. I was not able to slide the heating element out of freezer coils without removing coils. Put the old element back in. Seems to work ok. Thanks.
Other Parts Used:
Defrost/Evaporator Heater Defrost Thermostat Kit
  • Chris from Barto, PA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    15 - 30 mins
16 of 21 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Defrost failed. Freezer icing up
(FYI, Amana model is re-labeled Maytag with similar model number)I earlier replaced the defrost timer but that didn't solve the problem, so I purchased a new thermostat and evaporator heater. The hardest part was figuring out how to remove the slide out freezer door to access the back panel. Simple once figured out: There is one small screw on each slide rail, facing outward, near the door. Remove each screw and the door section will pivot up and disconnect from the rail.

The next thing you have to do is remove one of the slide rail supports so you can remove the back panel. Slide the track all the way out and you will see three small machine screws securing the track to the side of the freezer wall. Remove. Then push in the plastic clasp (near the back of the compartment) and slide the plastic assembly forward and out of the compartment. Now you can unscrew and remove the back panel to access the thermostat and heater.

I checked the resistance of the existing heater and measured 300 ohms (it would have been an open circuit if it was burned out). When I saw the resistance was OK on the heater, I left it in place and only changed out the thermostat. The defrost has worked fine since. Good luck.
Other Parts Used:
Defrost/Evaporator Heater Defrost Thermostat Kit
  • James from Chestnut Hill, MA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
33 of 41 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
timer gave out, so it caused the fridge to freeze
took out manual to locate area's that needed repair, it was quick and simple .. would like to thank you for your assistance with ordering the part and the follow up's .. I will definately use you again.
Other Parts Used:
Defrost/Evaporator Heater Defrost Timer - 120V 60Hz
  • John from San Antonio, TX
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Socket set
11 of 21 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11743472
Manufacturer Part Number: WP67001794
Brand
Model Number
Description
Kenmore
59662212200
Refrigerator
Kenmore
59662213200
Refrigerator
Kenmore
59662214200
Refrigerator
Kenmore
59662219200
Refrigerator
Amana
59662222200
Refrigerator
Kenmore
59662224200
Refrigerator
Amana
59662232200
Refrigerator
Kenmore
59662234200
Refrigerator
Kenmore
59662239200
Refrigerator
Kenmore
59663222200
Refrigerator
Kenmore
59663224200
Refrigerator
Kenmore
59665232400
Refrigerator
Kenmore
59665232401
Refrigerator
Kenmore
59665232402
Refrigerator
Kenmore
59665232403
Refrigerator
Kenmore
59665234400
Refrigerator
Kenmore
59665234401
Refrigerator
Kenmore
59665234402
Refrigerator
Kenmore
59665234403
Refrigerator
Kenmore
59665239400
Refrigerator
Kenmore
59665239401
Refrigerator
Kenmore
59665239402
Refrigerator
Kenmore
59665239403
Refrigerator
Kenmore
59665262700
Refrigerator
Kenmore
59665264700
Refrigerator
Kenmore
59665269700
Refrigerator
Kenmore
59665332600
Refrigerator
Kenmore
59665333700
Refrigerator
Kenmore
59665339700
Refrigerator
Kenmore
59666122700
Refrigerator
