Interior Oven Door Glass WP4449253

I watched the video on the product page and followed it step by step. Not difficult at all.

Thanks to video provided by PartSelect the repair was fast and easy. My second experience with an appliance repair with parts and video from PartSelect. I am a happy customer.

we live in Venzuela the ordered windows come to us via a forwarder in the US, one glass (the outer glass) still has to arrive. Very pleased with the service of PartSelect, one glass was in stock, the inner glass had to be ordered with the manufacturer. This glass is on its way and will arrive here in Venezuela by the end of May. As I have to travel to Europe next week, I will install both glasses upon my return somewhere in August next. I will sure inform you about the repair which will be done by myself.
regards,
Titus

Watched the repair video and started the project. Ran into a problem when trying to remove the interior panel off the door to reach the broken interior glass. On this model Kitchen Aid there is another section that is screwed in holding the exterior glass pieces in place. It prevents the interior panel from coming off the front of the oven door. So we had to flip over the door and unscrew the glass retaining bars to get the interior panel off and reach the glass. This allows the entire door to come apart in pieces so you have to carefully line up everything to re-assemble the door. Part of the issue with this is some of the retaining screws are not very long so you have to press the pieces back together to make sure the screw will catch in the original hole. We had to do this twice to ensure the interior door glass was laying flush on its mounts. A bit fiddly for sure, and if I was working alone it may not have been successful. But at least we know how the door is put together!

My oven (late 90's/early 2000's model) didn't have the flip-down hinge locks shown in the video. It seems Whirlpool/Kitchenaid changed the hinges even though they didn't change the model number of the oven. With my style hinges, you have to put Allen wrenches or bent nails in the holes just behind the hinge pins. Then close the door almost all the way and lift it out to separate the hinges. Spring force holds the nails in tightly until you replace the door. This video was very helpful:
https://www.youtube.com/watch?v=p7oRZdIN6m0

Also, my door had 3 different kinds of sheet metal screws. Two of them have similar heads but different threads. Keep track of which is which for when you put everything back together.

We followed the instructions given by Parts Service. The only problem we had (Whirlpool left two screws out of spacer bracket and it fell out requiring further removable of inner glass to replace spacer. Process took about twenty minutes.

Very easy once we figured out how to remove the oven door - which was insert the Allen keys in the holes in the hinges and pull the door out. We thought there was some way of using the Allen key to undo a pin or bolt but it was as simple as putting it through the hole in the hinge !!!!!

Ordered the glass and read the other reviews/instructions on the PartSelect site. Also read the instructions in my owner's manual for removing the oven door. The hardest part of replacing the glass was the removal and replacement of the door. Once I had the door out, replacing the glass was as simple as removing about 8 or so screws, lifting off the cover and replacing the glass, then replacing the screws. One of the hinges on the door had closed and I was not able to open it to replace the door, so I had to have a neighbor come over to over his muscle power. The hinge problem should not have happened and without that little issue, this is a simple repair that I'm sure saved me at least $100.00 on repairman! And - I'm a woman!

I used the instructions from another user on this site and the instructions were great. First look in your oven manual to see how to get the oven off-hardest part of repair. Before removing door-duct tape the broken glass. Remove door. Lay door down on flat surface and keep track of screws as you take them out. Remove outer liner-we removed 6 screws total. Replace glass with new glass. Reattached outer liner back onto door. Replace door. This is a GREAT site. Thanks.

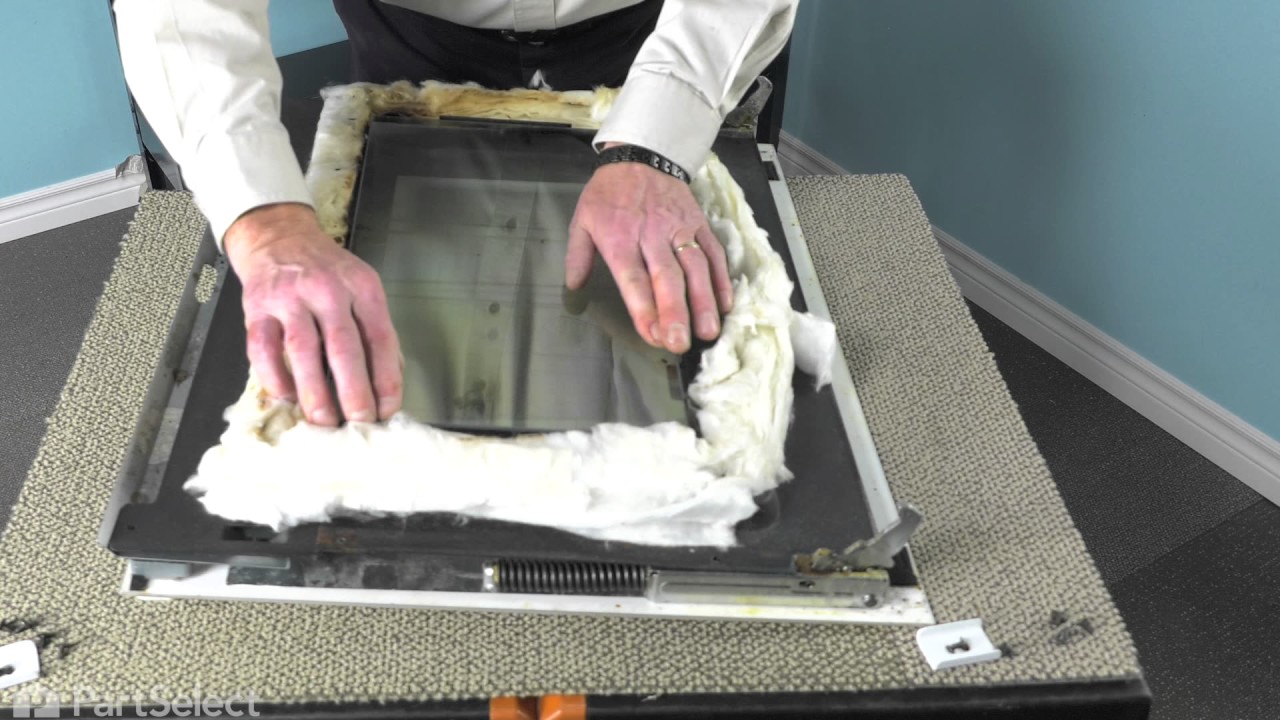

Removed the door and laid it flat with the cracked glass facing up. applied duct tape to the broken glass to help hold it together. Removed the screws from the frame holding the glass. lifted the frame off,removed the broken glass and replaced it with the new piece. replaced the frame. and put the door back on the oven.
