Door Spring

★★★★★
★★★★★
6 Reviews
$7.76   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11741264
Manufacturer Part Number WP3368999
Manufactured by Whirlpool
Product Description

Door Spring Specifications

These detergent cup dispenser springs are sold individually.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Will not dispense detergent | Door latch failure | Not cleaning dishes properly
This part works with the following products:
Dishwasher.
This part works with the following products:
Whirlpool, Kenmore, Roper, Estate.
Part# WP3368999 replaces these:
AP6008132, 3368999
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

4 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    John
    March 3, 2018
    The soap dispenser door will not open. I took the door panel off, removed the cover and verified that the plastic parts and springs appear clean and free of damage. I also cleaned out any soap debris with warm water. I reassembled the door, however the retest was unsuccessful as the soap dispenser still does not open. What have i missed?
    For model number DU810DWGQ1
    Hello John, Thanks for your question. Make sure no large items in the lower rack are blocking the dispenser door from opening. The actuator could be causing this problem, part number PS392727. Though more rare, the timer may also be at fault - consider testing it with a multimeter and replacing it if it shows no continuity. I hope this helps.

    2 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    Olesia
    June 6, 2019
    Small latch to close the soap dispenser is not working, it doesn't grip the lid
    For model number 15522000
    Hello Olesia, thank you for writing. This is the correct replacement Door Spring for the dispenser on your model.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    RANDY HOWARD
    February 23, 2018
    I was not having the detergent not being released. Took off the door panel, and all the pieces fell off. Found the broken spring part # ps11741264. But i have no picture to show how everything goes back and where the spring reconnects
    For model number DU810SWPU3
    Hello Randy, Thank you for your inquiry. The interior of the dishwasher door has to be removed (8 screws). Once removed, flip the interior cover over and remove the plastic cover which protects the detergent assembly. You will see the two tabs where the spring attaches on the lower detergent dispenser actuator assembly. Install the new spring and the protective cover. Pay attention before reassembly that the exterior door has not popped out of it's tab. If so, pop the tab in place. Reinstall interior door cover and you are finished. Hope this helps!

    Was this helpful?
    Thank you for voting!
    William
    February 17, 2018
    Will this spring work with the rinse aid dispenser as well as the detergent dispenser?
    For model number 66516334400
    Hello William, Thanks for your question. We show that it is compatible with the detergent cup specifically. I hope this helps.

    Was this helpful?
    Thank you for voting!
      Part Videos

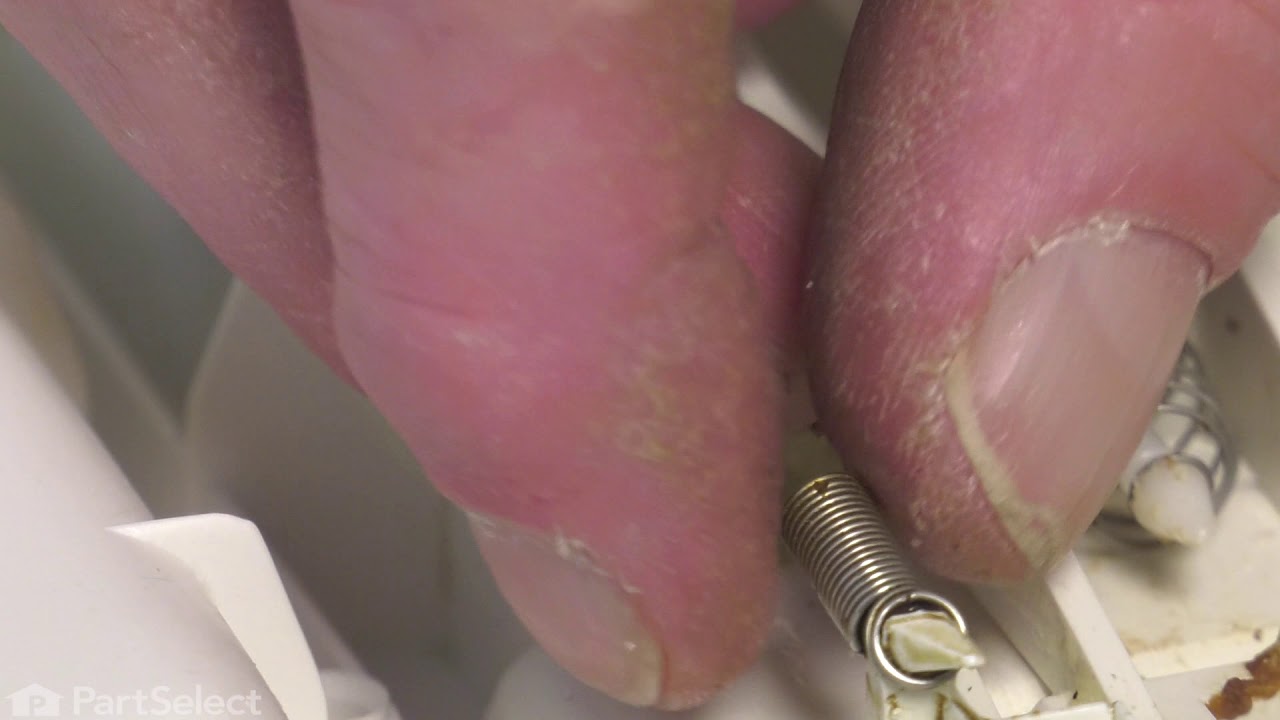

      Replacing your Whirlpool Dishwasher Door Spring

      Replacing your Whirlpool Dishwasher Door Spring play video
      Customer Repair Stories
       Average Repair Rating: 3.5 / 5.0, 4 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        Detergent Cup does not open
        Disconnect power supply to dishwasher. Open door and remove screws on inner door cover. Carefully remove inner cover while watching how inner parts are arranged. Found return spring on detergent cup linkage had rusted and broken causing detergent cup not to open. Installed new spring and re assembled inner cover. Rotated timer dial one full revolution to check operation of detergent cup. Worked like a charm. Re connect power supply to dishwasher and your good to go.
        • stephen from venice, FL
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Pliers, Screw drivers
        • Parts Used:
          WP3368999
        26 of 42 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        detergent dispenser would not operate
        remove star screws holding inside door panel. remove plastic cover that protects latch assembly. hook one end of spring on stationary pin on inside of slider bar. Hook other end of spring on pin on slider bar. replace cover and door panel.
        • Lee from Thomaston, GA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        • Parts Used:
          WP3368999
        8 of 16 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Long spring broke that pulls soap cup open
        Opened the door by using a star screwdriver. Pulled the door inside from the outside. Located the broken spring, put in new one (be very carefull to see how the insides are put together..makes life ALOT easier), and carefully put back together.
        • mark from ickesburg, PA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          WP3368999
        5 of 23 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Dishwasher would not dispense soap
        Both springs (8066018 and 3368999) were replaced as recommended in your troubleshooting guide, but did not resolve the problem. Finally the Dual Motor, 3374501, was replaced. During the above, the plastic face of the door fell off, which created a nuisance task before proceeding to fix the original problem. However, while replacing the motor, I realized the purpose of the two, T-shaped studs sticking out of the motor. It is absolutely necessary that these sit inside the slots which engages the sliding plastic cover, which is spring loaded, in order to engage the release of the soap dispenser door. It was truly a learning experience, but I got it done.
        • Louis from CHESTERFIELD, MO
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          1- 2 hours
        • Tools:
          Screw drivers, Socket set
        • Parts Used:
          WP3368999
        1 person found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          6 Reviews
          4.8
          Filter By Rating:
          • 5 Stars
            5
          • 4 Stars
            1
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS11741264
              Manufacturer Part Number: WP3368999
              Brand
              Model Number
              Description
              Kenmore
              110723120
              Dishwasher
              Kenmore
              110773811
              Dishwasher
              Kenmore
              110773812
              Dishwasher
              Kenmore
              110773813
              Dishwasher
              Kenmore
              110773881
              Dishwasher
              Kenmore
              110773882
              Dishwasher
              Kenmore
              110773883
              Dishwasher
              Kenmore
              65715755791
              Dishwasher - Kenmore Dishwasher Model 657.15755791 (65715755791, 657 15755791) Parts
              Kenmore
              66513402K900
              Dishwasher
              Kenmore
              66513402K901
              Dishwasher
              Kenmore
              66513409K900
              Dishwasher
              Kenmore
              66513409K901
              Dishwasher
              Kenmore
              66513442K900
              Dishwasher
              Kenmore
              66513442K901
              Dishwasher
              Kenmore
              66513443K900
              Dishwasher
              Kenmore
              66513443K901
              Dishwasher
              Kenmore
              66513444K900
              Dishwasher
              Kenmore
              66513444K901
              Dishwasher
              Kenmore
              66513449K900
              Dishwasher
              Kenmore
              66513449K901
              Dishwasher
              Kenmore
              66513492K600
              Dishwasher
              Kenmore
              66513499K600
              Dishwasher
              Kenmore
              66513592K600
              Dishwasher
              Kenmore
              66513593K600
              Dishwasher
              Kenmore
              66513594K600
              Dishwasher
              Kenmore
              66513599K600
              Dishwasher
              Kenmore
              66513692K600
              Dishwasher
              Kenmore
              66513699K600
              Dishwasher
              Kenmore
              66514212K900
              Dishwasher
              Kenmore
              66514212K901
              Dishwasher
