Timer Knob – Part Number: WP3364291
Timer Knob – Part Number: WP3364291 Timer Knob – Part Number: WP3364291 https://partselectcom.azureedge.net/Schematics/Whirlpool/SFINXQDA.gif

Timer Knob

Product Description

Timer Knob Specifications

This is an improved white timer knob with metal threads.

How Buying OEM Parts Can Save You Time and Money

Troubleshooting

This part fixes the following symptoms:

Timer will not advance

This part works with the following products:

Washer, Washer Dryer Combo.

This part works with the following brands:

Whirlpool, Kenmore, Crosley, Inglis, Estate.

Part # WP3364291 replaces these:

3358416, 3358417, 3358418, 3358419, 3358421, 3364290, 3364291, 3364292, 8123, 8274290, WP3364290.
Questions and Answers
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Part Videos

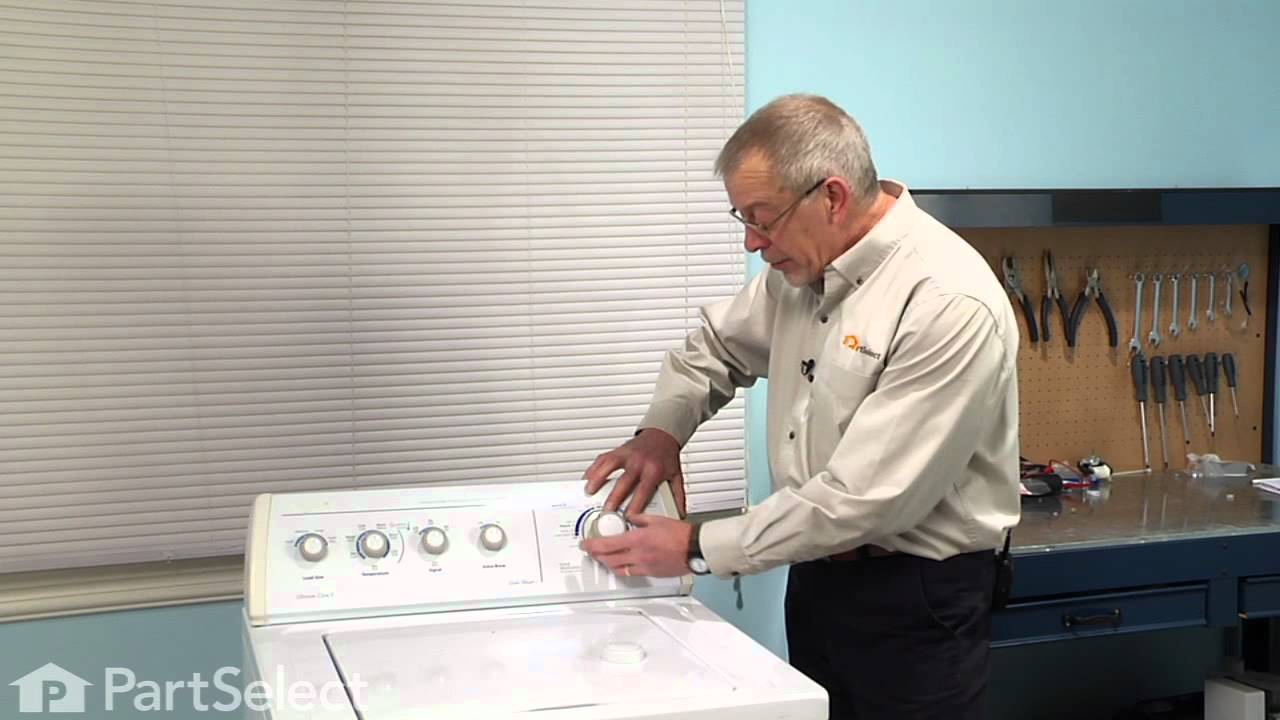

Replacing your Whirlpool Washer Timer Knob

Customer Repair Stories
Average Repair Rating: 4.8 / 5.0, 40 reviews What's this?
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Joe from Covington, GA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
285938, WP3364291
Washer would not wash on "normal" cycle. Had to play with the knob to get it to run at all. Washer would not drain properly either.
I unplugged the washer from the electrical outlet.

I then removed the drain hose from the wall drain to allow me to turn the washer to gain access to the the back panel.

From the front, I then removed the plastic timer knob from the timer by unscrewing it. Then I pulled the plastic plate with the arrow on it to remove it. This exposed the screws that attached the timer to the control panel. I left them attached.

I then removed the two screws on the bottom of the front of the control panel (on each end) that attach the control panel to the washer.

I then went to the rear of the washer and removed the two screws on the top of the rear of the control panel.

I went back to the front and pulled the control panel forward and up to release it from the washer.

I then removed the two screws (that were under the plastic plate) that attached the timer to the panel and removed the timer from the panel.

Then I unplugged the wiring harness from the timer and removed the timer completely.

From there I reversed the procedure to install the new timer and knob.
38 of 44 people found this instruction helpful.
Was this instruction helpful to you?
John from Saint Clair Shores, MI
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
Parts Used:
WP3364291
Original timer knob was plastic construction , twisted apart
The repair was very easy. The original dial was a poor design and did not hold up to the twisting and finally let loose. The threaded bottom of the dial stayed on the threaded shaft, so it was a simple matter of grabbing it with nose pliers and spinning off. Glue does not work with this type of plastic, I tried instant glue and hot glue. The replacement part was re-designed with a metal threaded center, so when it arrived in the mail, 3 days after online ordering, I spun it onto the shaft and job was complete. While I waited for the new part to arrive, I threaded 2 nuts onto the shaft and tightened them to each other to give me a temporary 'knob' that I could grab with my nose pliers.
28 of 29 people found this instruction helpful.
Was this instruction helpful to you?
Gary from Sherman, TX
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WP3364291, WH1X2721
Timer knob missing
Installed new timer knob on timer shaft and it worked as expected.
23 of 669 people found this instruction helpful.
Was this instruction helpful to you?
Francois from Oakley, CA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
Parts Used:
WP3364291
Broken timer knob
un-screw old knob with pliers. Hand spin on the new one. Your PartSelect. Is the BEST!!! I ordered on-line Sunday night.Got the part Wedesday!! FAST!!!!!!!
9 of 11 people found this instruction helpful.
Was this instruction helpful to you?
chuck from burke, VA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WP3364291
old knob broke off
new knob is made of metal and the old one was made of plastic. i doubt the new one will break
7 of 19 people found this instruction helpful.
Was this instruction helpful to you?
Carolyn from Albuquerque, NM
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WP3364291
Broken Timer Knob
Removed remaining plastic piece of old broken knob by turning counter clockwise. Screwed on replacement knob by turning clockwise. Replacement knob is made of metal and I do not expect it to ever break. Soooo easy! Fast service and shipping!
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Dennis from Newton Centre, MA
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Parts Used:
WP3364291
plastic timer knob broke
Screwed in metal replacement knob. It fit perfectly.
5 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Carol from Springfield, OH
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
Parts Used:
WP3364291
Knob broke off
Used pliers to take remaining broken plastic from post then screwed on new knob in 10 seconds. Easy as can be! I also loved the fact the new knob was made from metal where it threaded on instead of plastic like the original knob.
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Barbara from Augusta, WV
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WP3364291
the on/cycle select knob broke into pieces in my hand
Received the new knob and screwed it on. The new knob is metal inside instead of plastic like the old one. It fit perfectly and I couldn't be happier. Also - I ordered the knob and it came in 2 days. Very effecient service.
4 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Tammy from Elgin, IL
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WP3364291, WP3362952
Knob Broke
Ordered part and within 2 days it arrived. Removed broken knob and twisted new one on. Awesome job getting the part to me so fast. Thank you!
4 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Customer Reviews
Average Rating:
12 Reviews
4.8
out of 5
Filter By Rating:
  • 5 Stars
    10
  • 4 Stars
    1
  • 3 Stars
    1
  • 2 Stars
    0
  • 1 Stars
    0
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Model Cross Reference

This part works with the following models:

PartSelect Number: PS11741244
Manufacturer Part Number: WP3364291
Brand
Model Number
Description
Kenmore
110.9975820
Washer Dryer Combo - Kenmore Washer/Dryer Combo Model 110.9975820 (1109975820, 110 9975820) Parts
Kenmore
11098573100
Washer Dryer Combo
Kenmore
11098573110
Washer Dryer Combo
Kenmore
11098573120
Washer Dryer Combo
Kenmore
11098573130
Washer Dryer Combo
Kenmore
11098573800
Washer Dryer Combo
Kenmore
11098573810
Washer Dryer Combo
Kenmore
11098573820
Washer Dryer Combo
Kenmore
11098573830
Washer Dryer Combo
Kenmore
11098575100
Washer Dryer Combo
Kenmore
11098575110
Washer Dryer Combo
Kenmore
11098575120
Washer Dryer Combo
Kenmore
11098575800
Washer Dryer Combo
Kenmore
11098575810
Washer Dryer Combo
Kenmore
11098575820
Washer Dryer Combo
Kenmore
11098576200
Washer Dryer Combo
Kenmore
11098576400
Washer Dryer Combo
Kenmore
11098673830
Washer Dryer Combo
Kenmore
11099575100
Washer Dryer Combo
Kenmore
11099575110
Washer Dryer Combo
Kenmore
11099575120
Washer Dryer Combo
Kenmore
11099575800
Washer Dryer Combo
Kenmore
11099575810
Washer Dryer Combo
Kenmore
11099575820
Washer Dryer Combo
Kenmore
11099576200
Washer Dryer Combo
Kenmore
11099576400
Washer Dryer Combo
Whirlpool
2LSR5233BN0
Washer - Residential, Automatic
Whirlpool
2LSR5233BQ1
Washer - Residential, Automatic
Whirlpool
2LSR5233BQ2
Washer - Residential, Direct Drive
Whirlpool
2LSR5233BW0
Washer - Residential, Automatic
