This is the replacement motor pulley for your dryer. The motor pulley transfers momentum from the drive motor to the drum via the drive belt. If the motor pulley cracks or is no longer staying on the drive shaft, you will need to replace it. You will need to access the dryer motor for this repair, by removing the front panel. The motor pulley is approximately 1 inch in diameter and is sold individually. This is an OEM part sourced directly from the manufacturer.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part works with the following products:
Dryer.
This part works with the following products:
Maytag, Magic Chef, Crosley, Admiral.
Part# WP31001535 replaces these:
AP6007604, 31001535, 53-0932
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
9 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Robert
August 4, 2017
Does this part have left handed threads. Mine does, but i know that a lot of models have right handed threads. (depending on where motor is mounted). I don't want to order this part and i get the one with right handed threads.
For model number PYGT344AWW
Hi Robert,
Thank you for your inquiry. The pulley has left handed threads. To remove the motor pulley you would turn to the left. You would turn left to loosen and right to tighten. I hope this helps. Thank you and have a great day!
11 people found this helpful.
Was this helpful?
Thank you for voting!
Nicole
August 1, 2018
My drive shaft pulley has broken into pieces and i cannot remove the dome shaped piece, is there a trick to getting it off?
For model number HYE3658AYW
Hi Nicole, Thank you for your question. You should not be removing anything from the motor other than the little pulley as pictured underneath this part information. Everything else cannot be removed from the motor. I hope that helps. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Julie
June 14, 2019
The motor pulley I took out does not look like the replacement part. Has the part changed?
For model number LNC8764A71
Hello Julie, Thank you for the question. The pulley just screws onto the shaft of the motor. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Darren
November 7, 2019
I have an Admiral #adg7005aww, is this compatible, and is it reversed thread? This is in refrence to part # wp31001535
For model number #adg7005aww,
Hello Darren, thank you for your question. Unfortunately, the pulley for your unit is PartSelect Number: PS11739459 Motor assembly. The motor pulley for your unit is not sold separately. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Pat
February 13, 2020
The motor pulley has sheared off. How difficult is it to remove the remaining piece and replace it?
For model number HYG2460AWW
Good Day Pat. Thank you for your question in regards to your unit (Model Number HYG2460WW). The following URL is to a video we have made to show how to replace the motor pulley: https://www.youtube.com/watch?v=ndDq8ouVrjs. We hope this helps! Best Regards.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Richard Scherzinger
September 8, 2017
Is the motor pulley one piece? The current one is two pieces with the pulley and then a left threaded nut that screws on over the threaded motor shaft to keep the belt on the pulley. This appears to have become stripped over time and i just need the nut.
For model number MCE8000AYW
Hi Richard,
Thank you for your inquiry. Yes the motor pulley is one piece that goes on the motor and looks like a nut. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Ronny
February 1, 2018
How do I install the spring when I replace the belt with the guide roll?
For model number CYG2000AWW
Hi Ronny, Thank you for the question. One end of the spring hooks onto the bar and the other end on the motor plate in the unit. Hope this helps!
Was this helpful?
Thank you for voting!
Ronny
February 2, 2018
Can you show me exactly about the idler spring where to hook it on the motor unit plate e. G. In a picture?
For model number CYG2000AWW
Hi Ronny,
Thank you for your question. At the base of the dryer there will be a slot and a round opening. Hook the round end of the spring on the idler arm. Install the hooked end of the spring into the slot and move it along the slot until the hooked end of the spring aligns and can be pulled up and through the round opening near the end of the slot. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Elaine
November 25, 2021
I am not sure if the dryer is not tumbling. This motor wheel is really squeaky and noisy. I took the dryer apart already thinking it was the rear support wheels. But its the motor wheel. Can i just oil it
For model number PYG2300AWW
Hello Elaine, thank you for writing. Yes, you can grease it with Synthetic Grease. We hope this helps
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Customer Repair Stories
Average Repair Rating: 3.9 / 5.0, 3 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Dryer would'nt start / drum wouldn't turn

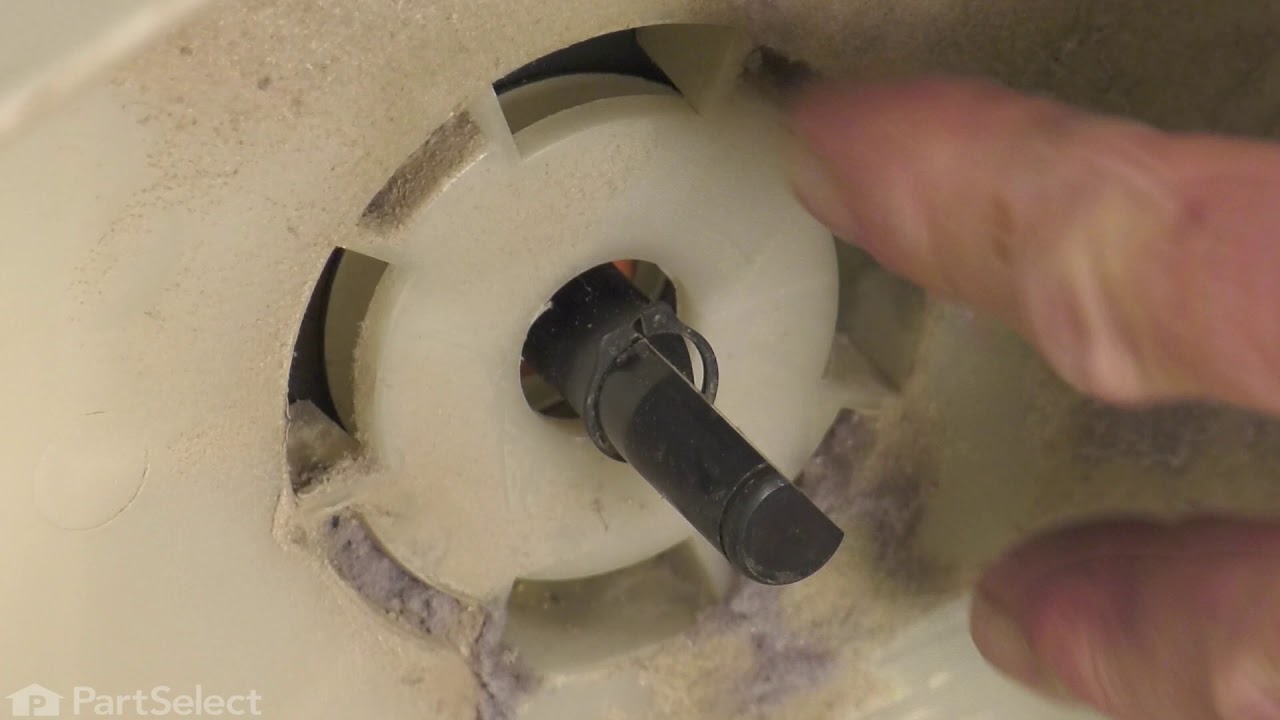

Unplugged Dryer; used screwdriver to push in and release two clips that hold top to front, tilted top back and removed two screws holding front to sides. Disconnected door switch and removed front . Reached in above motor to remove belt from around pulley and tensioner wheel, Pulled drum and belt out of machine. Removed approximately 10 screws around perimeter of blower housing and removed cover to access blower wheel. Removed outer lock ring from shaft and clamp from blower wheel hub, and removed blower wheel. Took out tensioner assembly. Disconnected wiring connector from motor. Removed three screws that held blower housing to bottom and removed retainer around rubber motor mount at pulley end of motor. Lifted out motor, blower housing and vent pipe as one unit. Removed 2nd outer lock ring from motor shaft. Rotated motor frame 45 degrees to free the rubber mount from the blower housing. Screwed new pulley onto new motor shaft and cleaned blower housing and vent pipe. Assembly is reverse of disassembly. Inspected and lightly greased the glides and inspected the idler wheels before reinstalling drum.
Dryer works perfectly.
Five to ten minutes also spent unscrewing and replacing timer knob and hinge pins on lid of matching washer Crosley cw22b5v.
Before anything else, I would like to thank your company for a quick response and fast delivery of the parts that I ordered. Ordering parts from your company saved me a lot of money. The repair took me about 15 min. First I removed the two screws that hold the front cover and then I pulled out the drum and replaced the broken pulley, then I put back the drum and the belt in place and then I put the cover and screwed back in and now I'm back washing and drying pile of clothes.
Item # PS11740721 motor drive pulley. This has a 3/8-24 reverse thread inner bore. Fit my Maytag model MDE508DAYW dryer made by Whirlpool, with drive motor on the lower right below the counterclockwise rotating drum and exhaust blower at the front of the machine. It might work with a number of brands of dryers made by Whirlpool with that configuration. Check the motor shaft thread and the drive belt which is a 5 rib belt 5/16ths inch or 8 mm wide. For Joe Blow the local appliance repair places only quote replacing the motor and pulley as a unit. At $170.
Tom from FIRTH, NE
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers, Socket set
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
6 Reviews
4.8
Filter By Rating:
5 Stars
5
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Thomas J - July 19, 2021
Verified Purchase
Worked as expected
The part was different from the original but it worked as a replacement and my dryer is back on service.Thank you.
★★★★★
★★★★★
Tom S - November 7, 2020
Verified Purchase
This part has a 3/8-24 reverse thread inner bore. Fit my Maytag model MDE508DAYW
This drive motor pulley has a 3/8-24 reverse thread inner bore. Fit my Maytag model MDE508DAYW dryer made by Whirlpool, with drive motor on the lower right below the counterclockwise rotating drum and exhaust blower at the front of the machine. It might work with a number of brands of dryers made by Whirlpool with that configuration and maybe others. Check the motor shaft thread and the drive belt which is a 5 rib belt 5/16ths inch or 8 mm wide. A good solid steel part that should have been on the dryer to begin with. For Joe Blow the appliance repair places only quote replacing the motor and pulley as a unit. At $170.
★★★★★
★★★★★
ANDREW M - June 20, 2020
Verified Purchase
No wobble after installation. Very Easy installation compared to the Cup shaped.
Dryer is working!
★★★★★
★★★★★
Greg D - June 4, 2019
Verified Purchase
Great up grade!
This part is a great up grade from the original. This is NOT cheap pot metal. It will last years and not damage my belt!
A perfect fit!
★★★★★
★★★★★
James S - April 22, 2019
Verified Purchase
Factory part failed
After figuring out how to remove what was left of the old pully, the replacement was easily installed.
★★★★★
★★★★★
Paula A - January 11, 2019
Verified Purchase
Correct replacement part
This pulley replaces the factory one that has a bell housing on the motor side. I removed the broken pulley by getting vice grips on the old bell housing and holding the motor from turning with a screwdriver through the motor (unplugged). Remember this pulley has reverse threads. Dryer is working great again.
