Sold individually. Hardware not included. Roller only.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part works with the following products:
Refrigerator, Freezer.
This part works with the following products:
Whirlpool, Kenmore, KitchenAid, Roper.
Part# WP2166108 replaces these:
AP6005900, 2166108
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
4 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
ANN
January 3, 2019
Rear roller is broke, do you have that replacement part? All I see is the front roller.
For model number ET1FTTXKB02
Hello Ann, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is Part Number: PS11755335. Thank you for your inquiry, good luck with this repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Bruce
June 5, 2019
I need a right front wheel on my fridge, it cracked and disintigrated. How do i get the wheel assembly off the fridge. Can you pdf me the installation instructions please. Thankyou very much. Bruce larking
For model number MTB2254EEW00
Hi Bruce, thank you for your question. Unfortunately we do not have a PDF version of the instructions. Those instructions are provided by your manufacturer and come with the part itself. This part is the front wheel of the appliance model number that you provided. To replace it you will need to be able to tilt or lift the refrigerator safely so that you can have access to unscrewing the part. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tracy
November 16, 2021
I am looking for the rear roller. Only saw front roller on parts list. Thank you
For model number WRT1L1TZYS00
Hi Tracy,
Thank you for your question. The part number listed under your model number for the rear roller is PS11755335. If you need the rivet to secure it, the part number listed for it is PS11739025. If you would like to place an order for these parts, you may order them either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
do you have rear wheel replacements. only found front wheel parts
For model number ER2CHMXPL01
Hello Sandy, thank you for contacting us. We have researched the model you have provided and have found that the part you are looking for is part number PS11755335. We hope this helps!
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

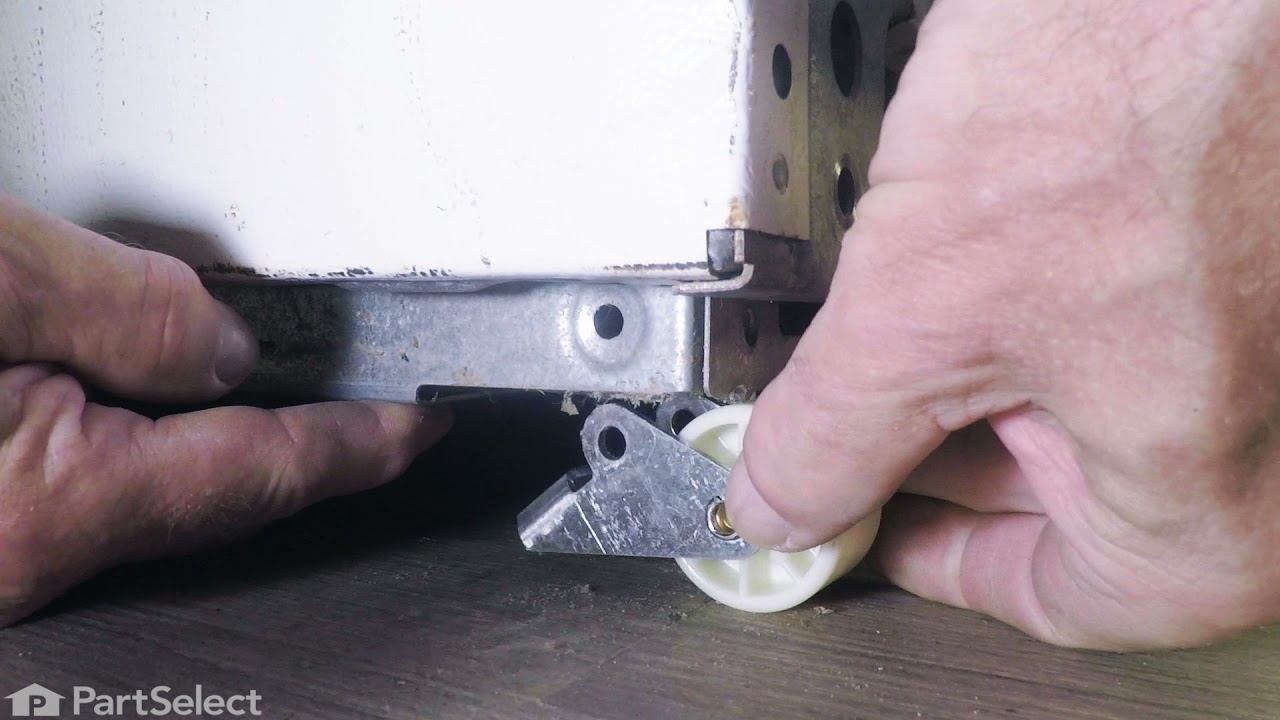

Replacing your Whirlpool Refrigerator Front Roller
Customer Repair Stories
Average Repair Rating: 2.8 / 5.0, 2 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Right front wheel broke
Definatly a two man job. I suggest you put a pad down to protect your floor. Remove the filter, grill, and bolts per instructions. Everything is straight forward. Move the frame back 1/2 to 1 inch then tilt the frig back on it's side about 4 inches. If the frame doesn't drop down, move it back until the front of the frame comes of the front lip of the frig. Place a block under the frig lip NOT the frame and WATCH YOUR FINGERS. The wheel should be hanging down. Just pull out the pin, replace the wheel (make sure you have it facing the correct way) and tilt back and pull the blocks. Move the frig back in place and replace the bolts. Took me and a buddy less than 30 minutes.
Tony from Chicago, IL
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Socket set
31 of 40 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
front roller wheel broke
its not that hard to replace. may need help to tilt fridge on one side so you can get to the bottom to remove wheel.Had to undo all four corner screws/bolts to loosen bottom section and slowly pull out base frame which holds the 4 wheels. this frame is also holding the compressor and fan so be careful.replace wheel and slowly put frame back to position and screw back bolts. pull back fridge to upright position. leave unplugged for a day or two to allow gas to come back to normal level as we had tilted it.plug it back and it works. thanks Anoop
Anoop from Diamond Bar, CA
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
19 of 29 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
4 Reviews
4.8
Filter By Rating:
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
WILLIAM B - July 30, 2021
Verified Purchase
Rollers
The parts were exactly what we needed. So easy. I'm so glad we found this site!
★★★★★
★★★★★
Jerry N - March 9, 2020
Verified Purchase
Easy repair accomplished with no help in about 1 hour including rounding up materials to support unit.
received part fast with instruction which was easy to install using these instructions. Unit back in operation good as new.
★★★★★
★★★★★
Robert B - April 4, 2019
Verified Purchase
Had to drill out the pin holding the old roller.
The provided was fine. Better diagram from the manufacturer of the refrigerator would have helped. Refrigerator rolls fine now.
★★★★★
★★★★★
Bruce D - May 29, 2018
Verified Purchase
wheel repair
The part was right and the youtube video on repairing it was spot on!
