Margo
September 16, 2017
Is there just a clip for the kickplate grill on the left side of the fridge. As per your diagram it only shows #6 on the left. The bottom right side of my grill drags on the floor and has nothing to attach to. Previous owner may have broken it off if it did exist.
For model number GS2KVAXVS01
Hi Margo,
Thank you for your inquiry. You would be able to use the clip on both sides. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Kathryn
August 2, 2021
Looking for a new kickplate. My refrigerator is totally missing this finIshing part
For model number WRS321SDHWOO
Hi Kathryn,
Thank you for your question. The part number listed under your model number for the white grille is PS12704496. The part number listed for the black grille is PS12704497. The part number for the grey grille is PS12704495. If you would like to place an order for one of these grilles, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
I need a black grille kickplate with square door for water filter. Actually just the door for water filter but I do not see that you can order door. It broke off because it would not shut. It is #17 on the diagrams I have seen.
For model number WRS325FDAM02
Hi Melody, thank you for reaching out. Based on our research, the door you are referring to does not come as a part of the kickplate, but it comes as a part of the water filter housing, part number PS11759606. So, if you are looking to replace the water filter door, you may need to replace the water filter housing. We hope this information is useful!
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

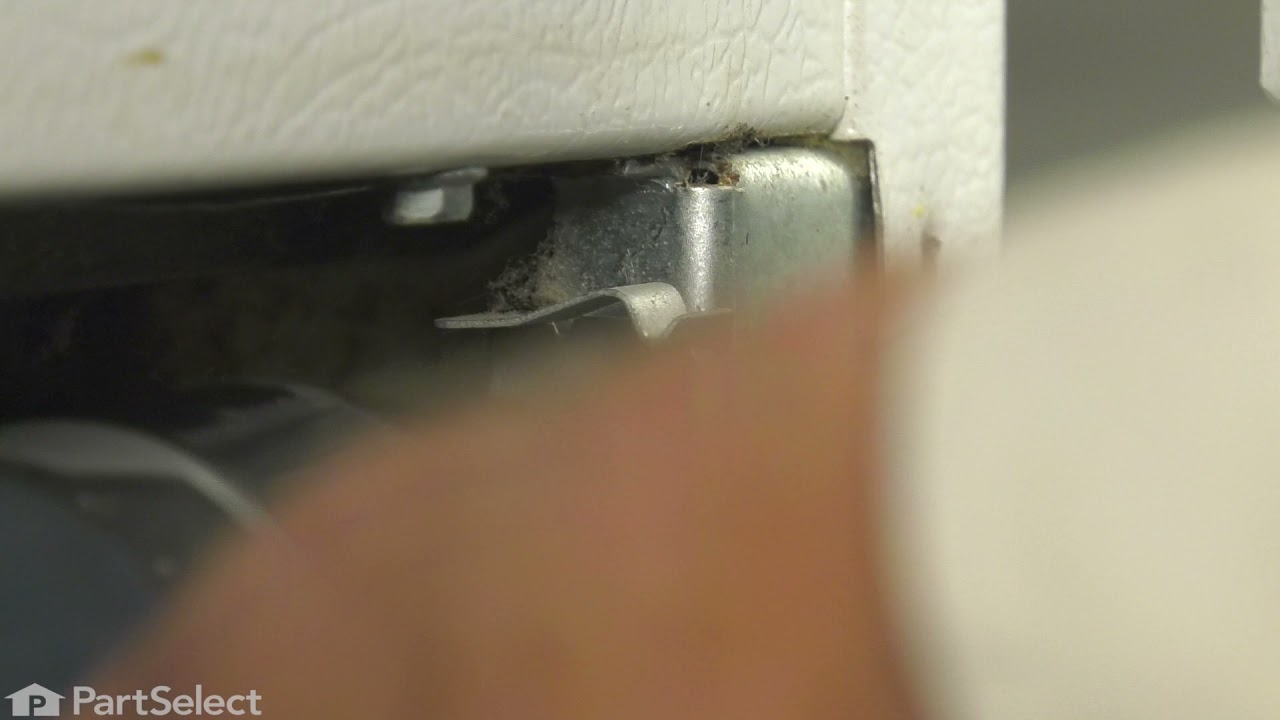

Replacing your Whirlpool Refrigerator Bottom Kickplate Clip
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 3 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Dryer made loud intermittant humming sound after 20-30 minutes of use
Unplug Dryer. Remove 2 5/16in hex screws from lower panel and remove panel.Remove 3 5/16in hex screws attaching lint duct. Remove 8 1/4in hex screws attaching blower housing. Remove 2 1/4 hex screws attaching thermostat to blower housing. Using adj. wrench on back of motor shaft nut to hold, loosen fan assy. w/ 7/8in socket. Remove 3 5/16in hex screws holding fan housing to motor mount. Remove 2 5/16in hex screws holding housing and motor mount to base floor. Push belt pulley wheel up enough to loosen belt and take off rear motor pulley. Motor w/mount can be slid out bottom for replacement [wires are layed toward front].Using 6in flat tip screw driver press down to unlock front & back motor bushing holddown clamps. Pinch electrical wire connector ends to pull off old motor. Remove and Install new motor, reversing steps. Belt replacement [suggested w/new motor] requires removal of 2 5/16in screws to lift/remove door w/front panel [disconnect door switch wires upper right rear corner].Remove 4 5/16 screws holding front bulkhead. Once bulkhead is pulled up and off, allow front end of drum to sag and rest IN PLACE [removal not required to slip old belt off and install new belt]. Note belt location point around drum. Slide new belt on. Reinstall bulkhead and panel/door [Don't forget door swich wires]. Adjust belt into position and push spring-held belt pully up to allow looping of new belt around rear motor belt pulley. Complete w/hand turning of drum to ensure belt is aligned and feeding properly. Reinstall lower fan housing/covers/thermostat,etc removed for motor installation.
First, I loosened the two top screws and removed the bottom screw. Then lifted the unit up and out. Next, I unplugged the wire plug and removed the ice maker unit from frig. The replacement ice maker was identical to the original, wire loom and all. So all I had to do is plug in the wire plug, slide the top down on the loosened screws and tighten them. Next, installed the bottom screw, turned on the water,flipped the wire down and waited for ice. We had ice being made by the next morning and in about 3 days had a full bin.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Catharine Barry I - January 28, 2019
Verified Purchase
Part works
Part was easy to install but I NEED AN INVOICE in order to bill my client. Email to cwcbarry@yahoo.com.
Thanks!
Catharine Barry
★★★★★
★★★★★
Richard B - June 27, 2018
Verified Purchase
Easy to replace
Part came n perfect condition and on time.
★★★★★
★★★★★
Luann O - June 20, 2018
Verified Purchase
Inexpensive
The clip was cheap to order, but a little tricky to install. First came getting the old clip out since it was put in with a rivet? So no way to get it out easily except with a drill/bit. Then I had to find a bolt/screw to refit and hold. Once that was done the plastic cover snapped right in. 30-60 min. to get tools and replace.
