See part 12 in the diagram
Replacing your Whirlpool Washer Water Level Switch play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 10PM EST

customerservice@partselect.com

Water Level Switch

$82.80   On Order

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11723158
Manufacturer Part Number W10820051
Manufactured by Whirlpool
Product Description

Water Level Switch Specifications

This water level switch senses the level of water in the inner tub.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Will not stop filling with water | Will not fill with water
This part works with the following products:
Washer.
This part works with the following products:
Whirlpool, Kenmore, Roper, Inglis.
Part# W10820051 replaces these:
3366848, 3950422, W10339229
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

5 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Scott
    August 30, 2017
    The one I need only has two water levels low and high this will not work do you have a switch with just two water levels I'm assuming it's what they call a manual switch
    For model number RAS8333RQ1
    Hi Scott, Thank you for your question. According to your model number, this is the correct part for your machine, so this would be the one that you would need to order if you are looking to replace your water level switch. Good luck with your repair.

    3 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Bill
    January 8, 2019
    How to test the water level switch?
    For model number LSQ8543JQ0
    Hello Bill, thank you for your question. You can check the pressure switch with an ohm meter. If the washer is empty you should read closed across pink and violet. If it is full, it should read closed from tan to violet. Hope this helps.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Lonnie
    January 22, 2019
    How many levels does this switch have? I have a Roper washing machine with a 5 water level switch but i can not find a model number on the machine.
    Hello Lonnie, Thank you for the question. This switch is 3 levels. Thank you for your inquiry, good luck with this repair!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Greg
    April 29, 2019
    After the washer fills and the agitator goes thru the cycle nothing else happens. This is on normal and permanent setting. Please advise what part needs to be replaced. Thank you for your assistance
    For model number LSQ8543JQ1
    Hello Greg, Thank you for the question. I suggest testing the Lid Switch, PartSelect Number: PS11722098. The pin on the lid pushes on the lever of the lid switch to tell the washing machine that the lid is closed, which allows the wash cycle to begin. The washer will not spin if the machine senses the lid is open. Hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Joe
    November 14, 2017
    Does not fill to right level ,will wash,rinse and drain
    For model number LSQ8243HQ0
    Hi Joe, Thank you for your inquiry. If your washer will not fill to the correct level, there are some parts that you will need to check to see which one is causing the issue. You will need to check the water level switch, the lid switch, the water temperature switch, the cycle selector switch, the main drive motor switch, the lid strike and the connector. I hope this helps. Thank you and have a great day!

    Was this helpful?
    Thank you for voting!
      Part Videos

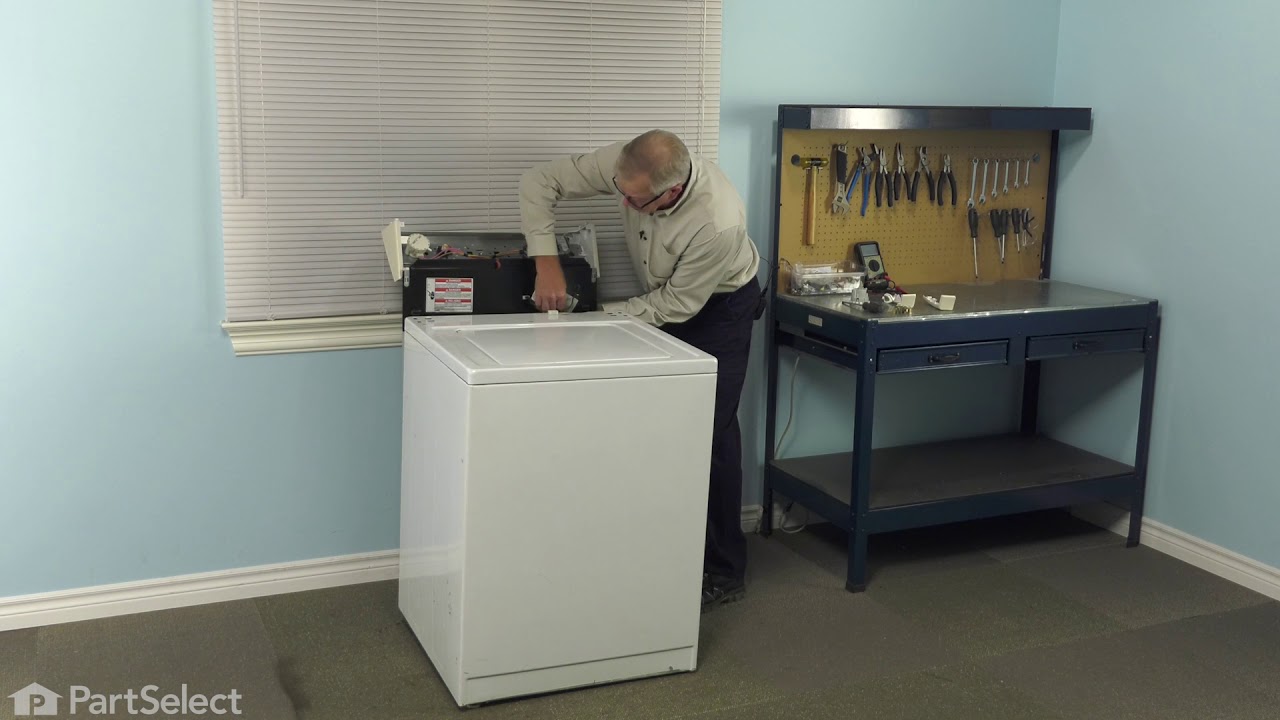

      Replacing your Whirlpool Washer Water Level Switch

      Replacing your Whirlpool Washer Water Level Switch play video
      Customer Repair Stories
       Average Repair Rating: 4.1 / 5.0, 3 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        washer overflowing
        Repair was easy enough by just unlocking the tab and twisting the switch out from under the control panel. For me though, this did not fix my overflowing issue. After more research I found the inlet valve needed to be cleaned out.
        I respect that electrical parts are non-returnable as I am in the auto parts business.
        • GREIG from CARTERSVILLE, GA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        • Parts Used:
          W10820051
        16 of 22 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        washer would no longer fill to proper height--just low
        removed top controls panel (not obvious),then released old switch by rotating 90 degrees (after disconnecting wires and pressure sensor tubing), then reinstalled new switch (new switch has only 3 positions, not 5 as old switch had) and reinstalled everything else.

        A 'gotcha' is the plastic 'strap' on the back that anchors switch compartment to the back steel sheet. It is EASY to dislodge that plastic strap from the bakc panel and it drops down inside the panel--maybe to the floor, maybe not--requiring difficult retrieval. Suggest TAPING the plastic strap in place on the back steel sheet so it will not fall out.
        • keith from Bellaire, TX
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          W10820051
        12 of 15 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Over full
        First I removed the four screws,
        then I replace the old part whet the new part,
        It was easy.
        thank you
        Juan
        • Juan from Humble, AL
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          W10820051
        10 of 16 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Model Cross Reference
          This part works with the following models:
          PartSelect Number: PS11723158
          Manufacturer Part Number: W10820051
          Brand
          Model Number
          Description
          Kenmore
          11010202000
          Washer
          Kenmore
          11010202001
          Washer
          Kenmore
          11012202100
          Washer
          Kenmore
          11014112300
          Washer
          Kenmore
          11016502690
          Washer
          Kenmore
          11016502691
          Washer
          Kenmore
          11016502692
          Washer
          Kenmore
          11016502693
          Washer
          Kenmore
          11016502694
          Washer
          Kenmore
          11019422200
          Washer
          Kenmore
          11020422990
          Washer
          Kenmore
          11020422991
          Washer
          Kenmore
          11020602990
          Washer
          Kenmore
          11020602991
          Washer
          Kenmore
          11020602992
          Washer
          Kenmore
          11020622990
          Washer
          Kenmore
          11020622991
          Washer
          Kenmore
          11020692000
          Washer
          Kenmore
          11020692001
          Washer
          Kenmore
          11022292100
          Washer
          Kenmore
          11022294100
          Washer
          Kenmore
          11022422100
          Washer
          Kenmore
          11022622100
          Washer
          Kenmore
          11022652100
          Washer
          Kenmore
          11022662100
          Washer
          Kenmore
          11022692100
          Washer
          Kenmore
          11022692101
          Washer
          Kenmore
          11023652200
          Washer
          Kenmore
          11023662200
          Washer
          Kenmore
          11023692200
          Washer
