Lid Lock Assembly W10810403
$
143.75
In Stock
Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.
PartSelect Number PS11722981
Manufacturer Part Number W10810403
Manufactured by
Whirlpool

Check if this fits your product and find model diagrams
Need help finding your model number?
Troubleshooting
This part fixes the following symptoms:
Lid or door won’t close | Will Not Start
This part works with the following products:
Washer.
This part works with the following products:
Whirlpool, Maytag, Kenmore, Crosley.
Part# W10810403 replaces these:
W10648012, W10787878, W10810403VP
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
- < Prev
- 1
- 2
- 3
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jim
July 25, 2019
I get f5 and a constant beep on the control panel and i can hear the lid lock clicking
I'm guessing the lock is bad, any thoughts ?
For model number wtw8040dw4
Hello Jim, thank you for your question. Yes, that error code is in relation to the lid lock assembly If the lock is clicking but not latching the part is bad and will have to be replaced. Good luck with your repair!
32 people found this helpful.
Was this helpful?
Thank you for voting!
Jamie
May 27, 2019
I am getting e3f5 error code. From what i have read online it is the lid lock assembly. Would that be correct and that is the part i need to order for my washer??
For model number WTW7040DW0
Hello Jamie, thank you for inquiring. The error code indicates that there is an issue with the Lid Lock. First try pressing POWER to exit the cycle the machine is in, then press POWER again to release the lid. If this does not fix it, you can reboot the machine by unplugging it for 2-5 minutes and then plug it back in. If neither of these methods work, then you will want to replace this Lid Lock Assembly for your model.
13 people found this helpful.
Was this helpful?
Thank you for voting!
Stacie Bellanger
December 12, 2018
Is this the correct part for my bravos xl Maytag?
For model number MVWB755DW0
Hello, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number: PS11722981. Hope this helps, good luck with this repair!
7 people found this helpful.
Was this helpful?
Thank you for voting!
Jim
May 31, 2019
No power. No light, i was told that if the fuse in the lid switch or the switch itself is defective the control board will not power up. But this makes no sense to me because your control board should have power in order to do self diagnostics..
For model number MVWB765FW0
Hello Jim, Thank you for the question. If the switch was defective it will not effect the power to the controls. It may not go into the spin cycle but the board will still operate. If the appliance is getting power but the controls will not power on, it is more then likley a defective electronic control, PartSelect Number PS11770139. Thank you for your inquiry, good luck with this repair!
5 people found this helpful.
Was this helpful?
Thank you for voting!
Related Parts:
Howard
December 7, 2019

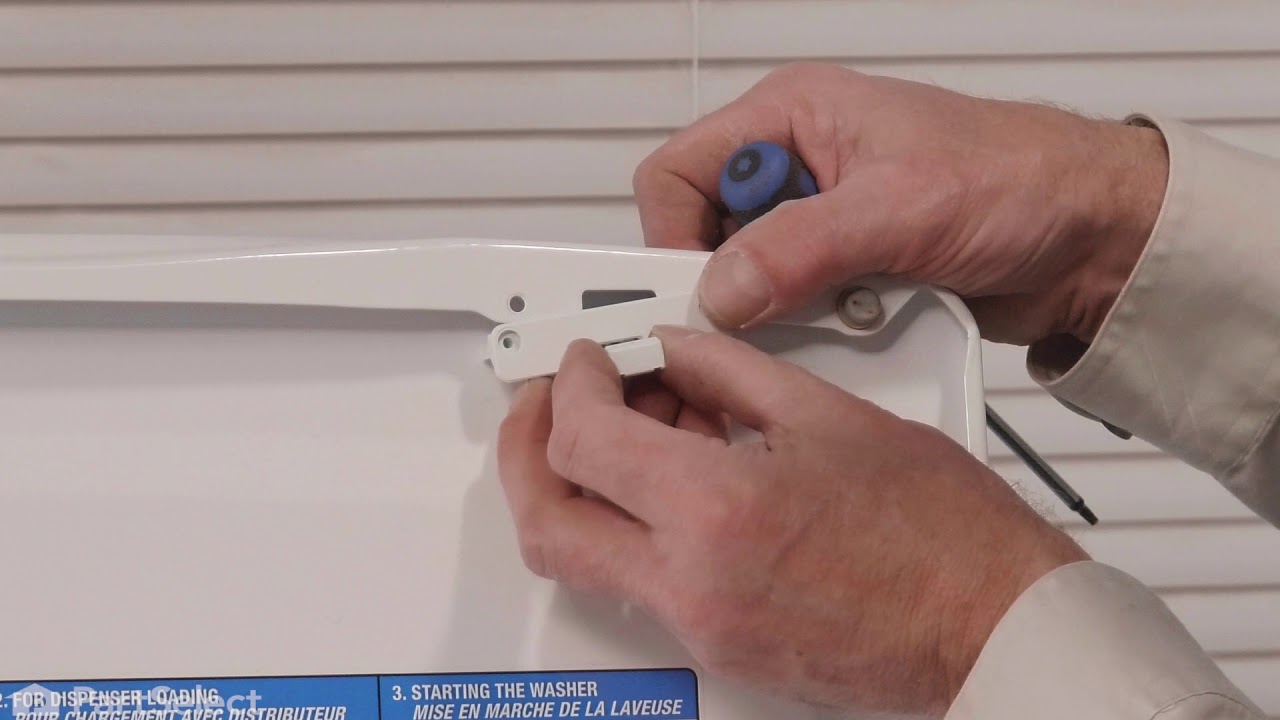

How do i install the lid latch assembly that i've already purchased from you?
For model number WTW7300DW0
Hello Howard and thanks for writing.
For your convenience, we have attached the link to your video with repair instruction. We hope this helps. Good luck with your repair.
https://www.youtube.com/watch?v=ak_JrJX4Leo

4 people found this helpful.
Was this helpful?
Thank you for voting!
Katie
January 27, 2020
The little piece that keeps the lid locked had broke is this the part or can we just get the little piece that locks it back up?
For model number WTW7000DW0
Hello and thank you for writing.
This is a little plastic frame that the lid latch goes in, it is called the bezel PS12578748 is in the list of compatible parts for your model. We hope this helps. Please contact us anytime if you require further assistance.
4 people found this helpful.
Was this helpful?
Thank you for voting!
Related Parts:
Ward
June 11, 2019
Getting a code e3 nd f5
Can i bypass by cutting wires ?
For model number Wtw8500dc0
Hello Ward, thank you for inquiring. It would not be suggested to do so. The E3 F5 code indicates there is an issue with the Lid Lock. You can touch the POWER button to exit the cycle, then touch POWER again to release the lid. If this doesn't work, you can reboot the machine by unplugging it for 3-5 minutes and then plug it back in. If this does not work either, then you will want to replace the Lid Lock Assembly part PS11722981 for your model. We hope this helps.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Guadalupe
January 15, 2018
This part can be used in 7mwtw7300ew0, cabinet parts, #14 and 15?
For model number 7MWTW7300EW0
Hello Guadalupe,
Thanks for your question. Yes, this latch part number PS11722981 and the screw, part number PS2326386, are compatible for your model.
I hope this helps.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Related Parts:
Sheri
January 27, 2020
My washer beeps and blinks. I can hear it trying to start and it shows an F5 code. I have to unplug it to get the beeping to stop. What could be malfunctioning?
For model number MVWB765FW0
Hi Sheri,
Thank you for your question. The F5 error code is letting you know that there is a temperature sensor error or a heating circuit failure in your washer. You will need to check check the connections of the sensor. We hope this helps. Thank you and have a great day.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Brendan
November 15, 2017
What does this piece look like?
Hi Brendan,
Thank you for your inquiry. The switch portion of the lock is approximately 6 inches long and is divided into 2 parts. One part of the switch is bisque colored and has the cable attached to it. The other part of the switch is white in color. The cable is long and it is grey and tan in color. There bends in it and where those bends are they are black in color. I hope this helps. Thank you and have a great day!
2 people found this helpful.
Was this helpful?
Thank you for voting!
- < Prev
- 1
- 2
- 3
- Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Customer Repair Stories
Average Repair Rating: 3.9 / 5.0, 1 reviews.
What's this?
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
washer would start then stop with everything flashing
UNPLUG WASHER FROM WALL PLUG
Watch u tube on how to remove top and also cover on top circuit compartment
First find the service book taped inside front. PLUGand read to read codes
call up the error codes flashing
the code indicated a defective lid latch.UNPUG WASHER
went through testing the switch one of the contacts was defective and intermittent.
UNPUG WASHER unpug J connect from circuit board remove wiring and connect from lid
new wiring harness goes back same as old one and mount new lid switch. done
Watch u tube on how to remove top and also cover on top circuit compartment
First find the service book taped inside front. PLUGand read to read codes
call up the error codes flashing
the code indicated a defective lid latch.UNPUG WASHER
went through testing the switch one of the contacts was defective and intermittent.
UNPUG WASHER unpug J connect from circuit board remove wiring and connect from lid
new wiring harness goes back same as old one and mount new lid switch. done
-
Lee from MURPHY, NC
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
2 of 2 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- Next >
Customer Reviews
Filter By Rating:
- < Prev
- 1
- 2
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Michael M - August 29, 2023
Verified Purchase
Right part for the job.
Just changed out the part. Right fit and seems to be working well. I’ve used parts select prior to this fix and have always been satisfied.
Jane M - April 5, 2023
Verified Purchase
easy repair
Just the part I needed to get my washer working again....Thank you
Theresa S - February 3, 2023
Verified Purchase
Worked perfectly
This part came quickly and my repairman had no issues installing it. I was going to try the repair myself because it was well explained. However, I chickened out due to some wiring warnings. Maybe next time.
KEVIN M - October 20, 2022
Verified Purchase
Easy
Pretty easy to install
Steven C - April 28, 2022
Verified Purchase
Washer repair -lid lock
We had to unplug the washer between every wash. I noticed the lid lock at times did not engage this part was a perfect fit and resolved the issue
Keith T - October 15, 2021
Verified Purchase
Easy repair
Part works great. Although shipping took almost 3 weeks.
Mary B - September 8, 2021
Verified Purchase
Easy repair
The part took forever to arrive.
ANTHONY D - September 1, 2021
Verified Purchase
O.E.M. Parts, Nothing Like Them.
The part was received in excellent condition. It looked to be new. The replacement was straight forward. Once installed, it worked as it should.
Fred M - July 31, 2021
Verified Purchase
easy repair works great
Easy repair works great good condition
Carl D - February 1, 2021
Verified Purchase
Easy
I was happy that the it a genuine factory part,
Installation was easy and shipping was prompt.
- < Prev
- 1
- 2
- Next >
